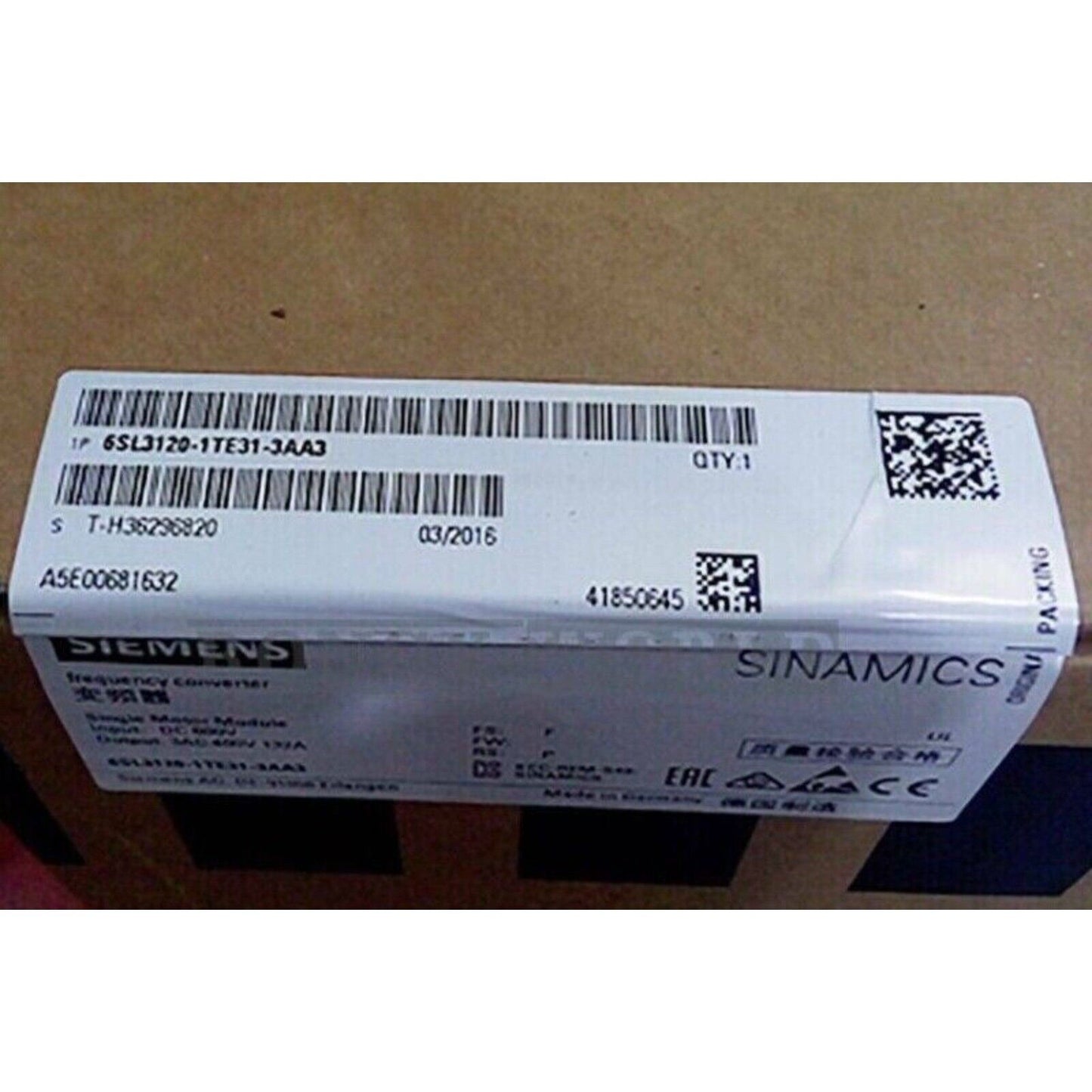

SINAMICS S120 Drive System | Siemens | 6SL3120-1TE31-3AA3 6SL3 120-1TE31-3AA3 S120 SINGLE MOTOR MODULE

Product Description: Siemens 6SL3120-1TE31-3AA3

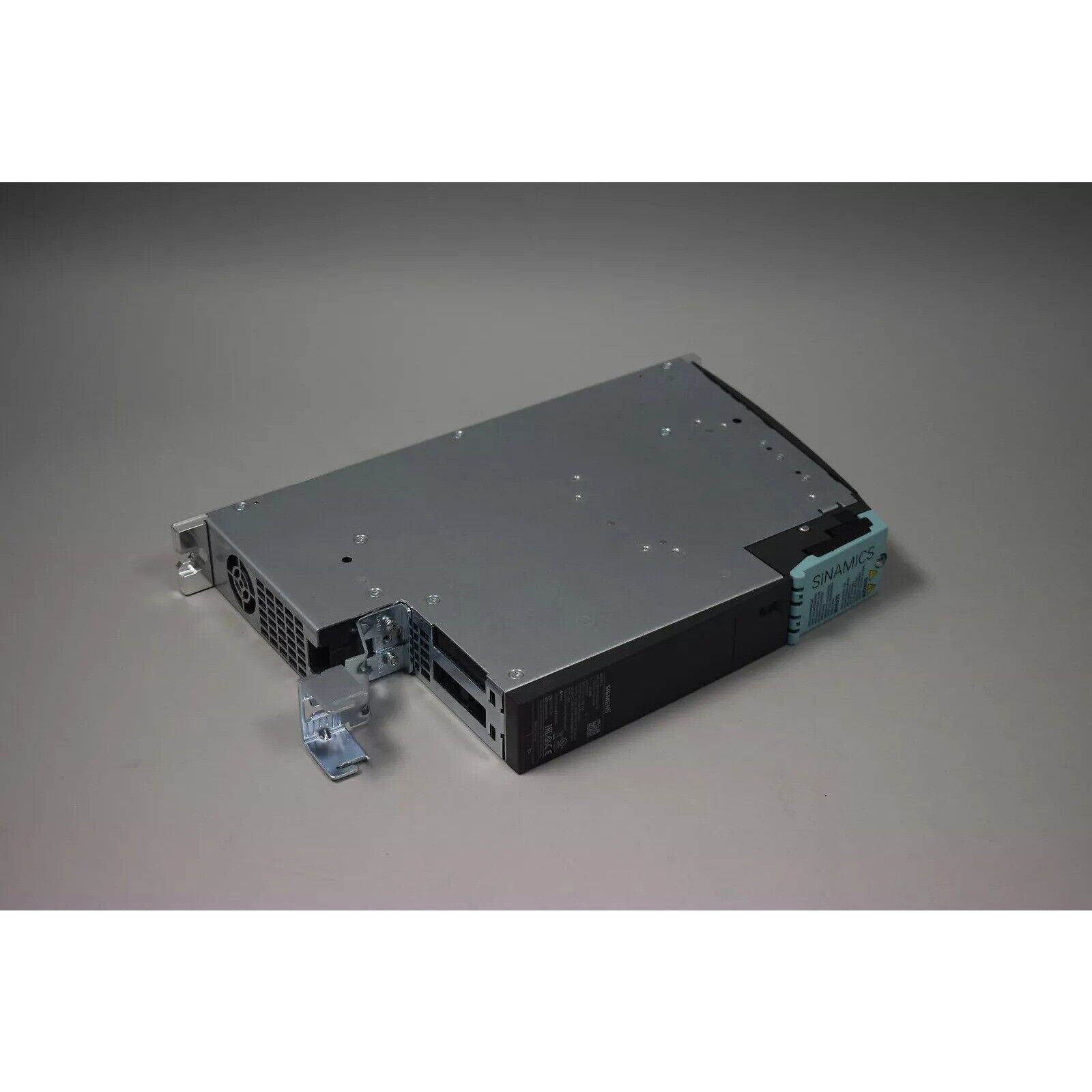

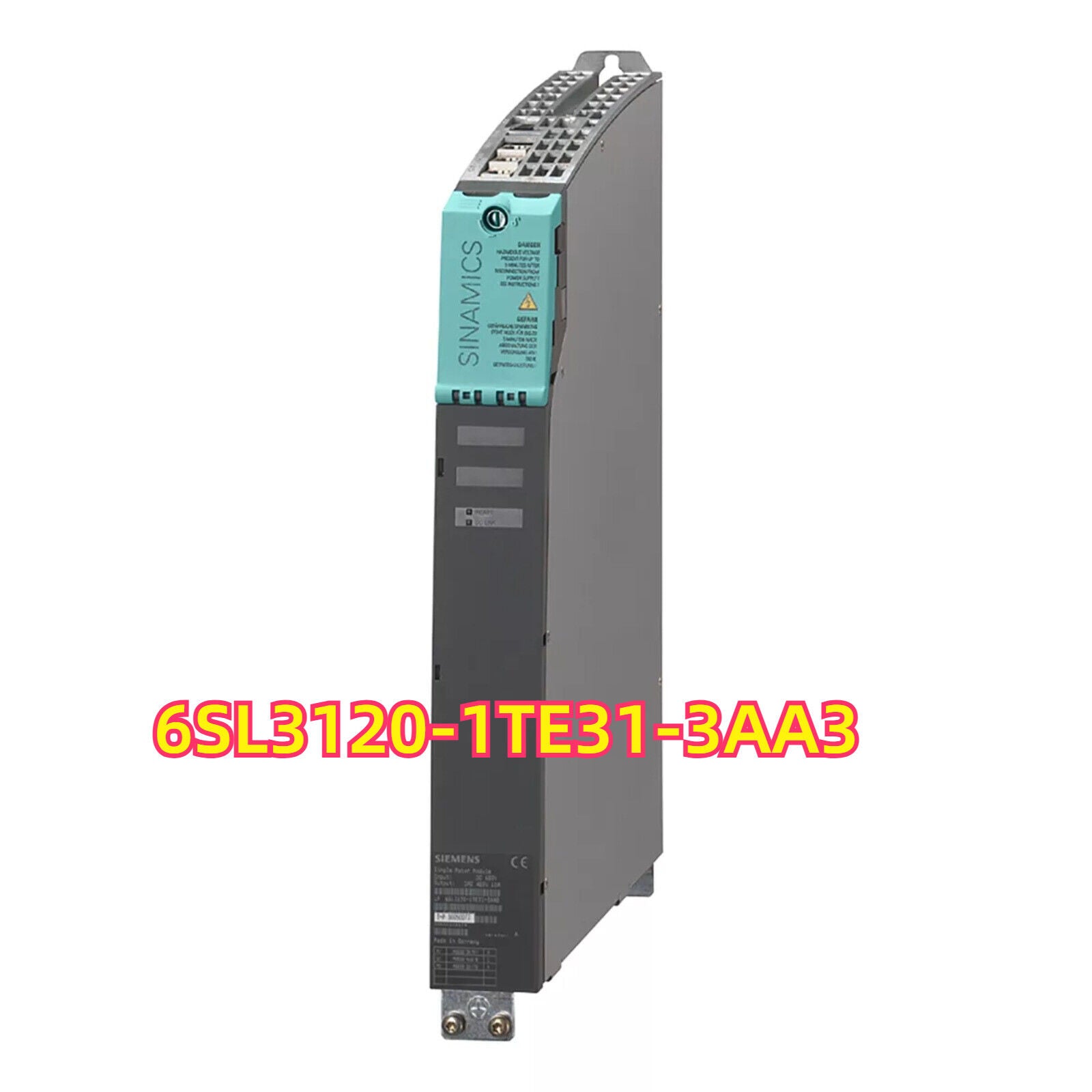

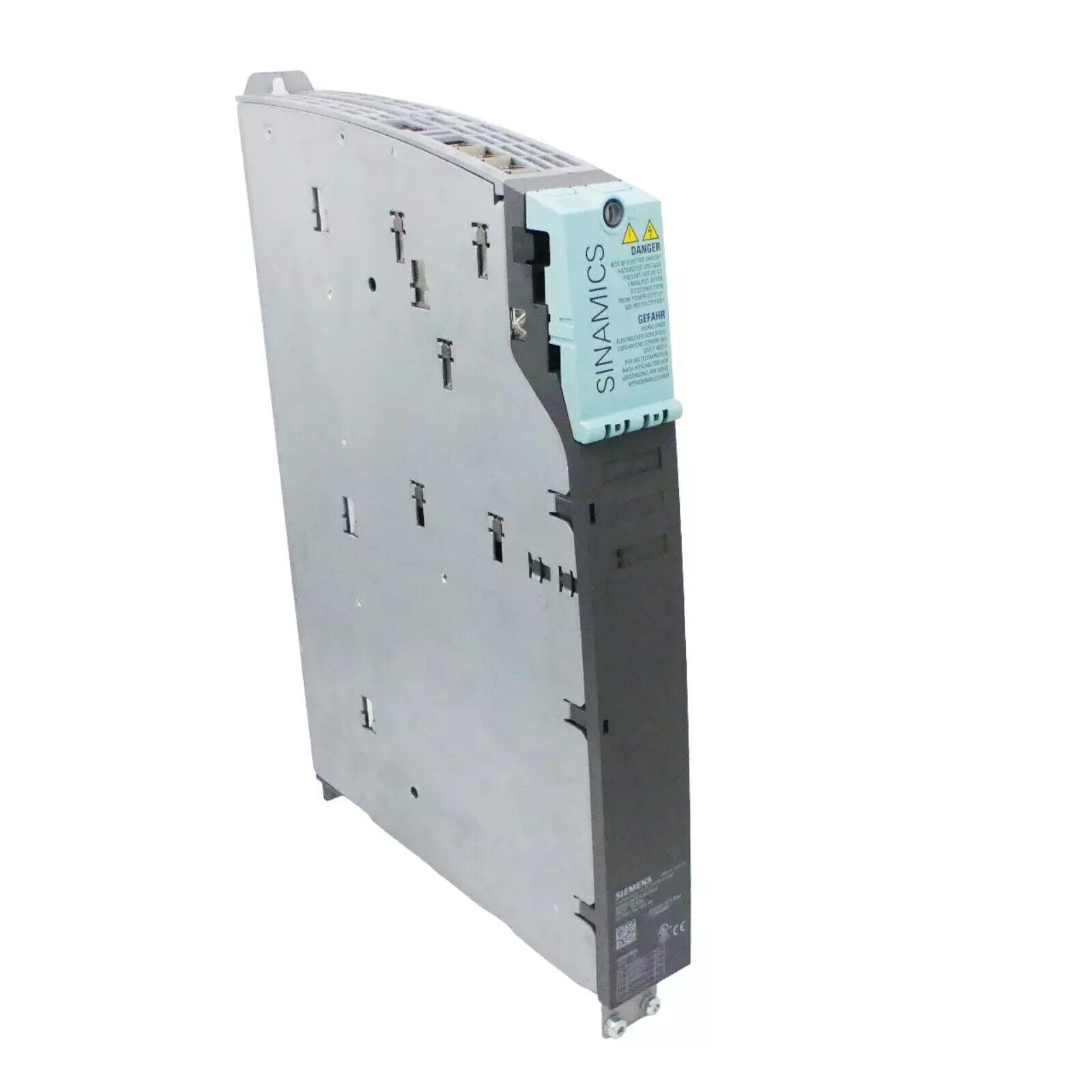

The Siemens 6SL3120-1TE31-3AA3 is a power module from the SINAMICS S120 Drive System series. This PM240-2 model is designed to be used as a power supply and converter for the SINAMICS S120 system. It features integrated safety functions, making it suitable for applications where operational safety and energy efficiency are critical. The module provides high flexibility in both standard and dynamic applications, and it supports communication via the PROFIBUS DP interface. The PM240-2 module also integrates various control and monitoring features for seamless system integration and operation.

Key Features

• Power Module: Designed for SINAMICS S120 modular drive systems
• Integrated Safety Functions: Includes Safe Torque Off (STO) and Safe Stop 1 (SS1) for enhanced safety
• Interfaces: PROFIBUS DP interface for communication with the control unit
• Energy Efficiency: High efficiency with energy-saving capabilities
• Cooling System: Integrated cooling system for optimal temperature management
• Compatibility: Compatible with various SINAMICS S120 drive components and modules

Technical Specifications

• Power Module Type: PM240-2
• Communication Protocol: PROFIBUS DP
• Integrated Safety Functions: Safe Torque Off (STO), Safe Stop 1 (SS1)
• Power Supply: For SINAMICS S120 drive system
• Cooling: Integrated cooling system
• Dimensions (W × H × D): 120 mm × 155 mm × 200 mm
• Protection Class: IP20
• Operating Temperature Range: 0 °C to +40 °C
• Weight: 2.8 kg

Application Areas

• Power conversion and distribution for SINAMICS S120 drive systems
• Motion control in industrial automation and machinery
• Safety-critical applications requiring integrated safety functions
• Suitable for both dynamic and standard operation environments

Advantages

• Integrated safety features provide enhanced operational safety
• High energy efficiency reduces operational costs
• Flexible integration with SINAMICS S120 drive components
• Robust design suitable for industrial automation applications
