Servo Controller | Siemens | 6SL3120-1TE23-0AC0 New IN STOCK Siemens S120 Motor Module shipping by DHL/UPS

Product Description: Siemens 6SL3120-1TE23-0AC0

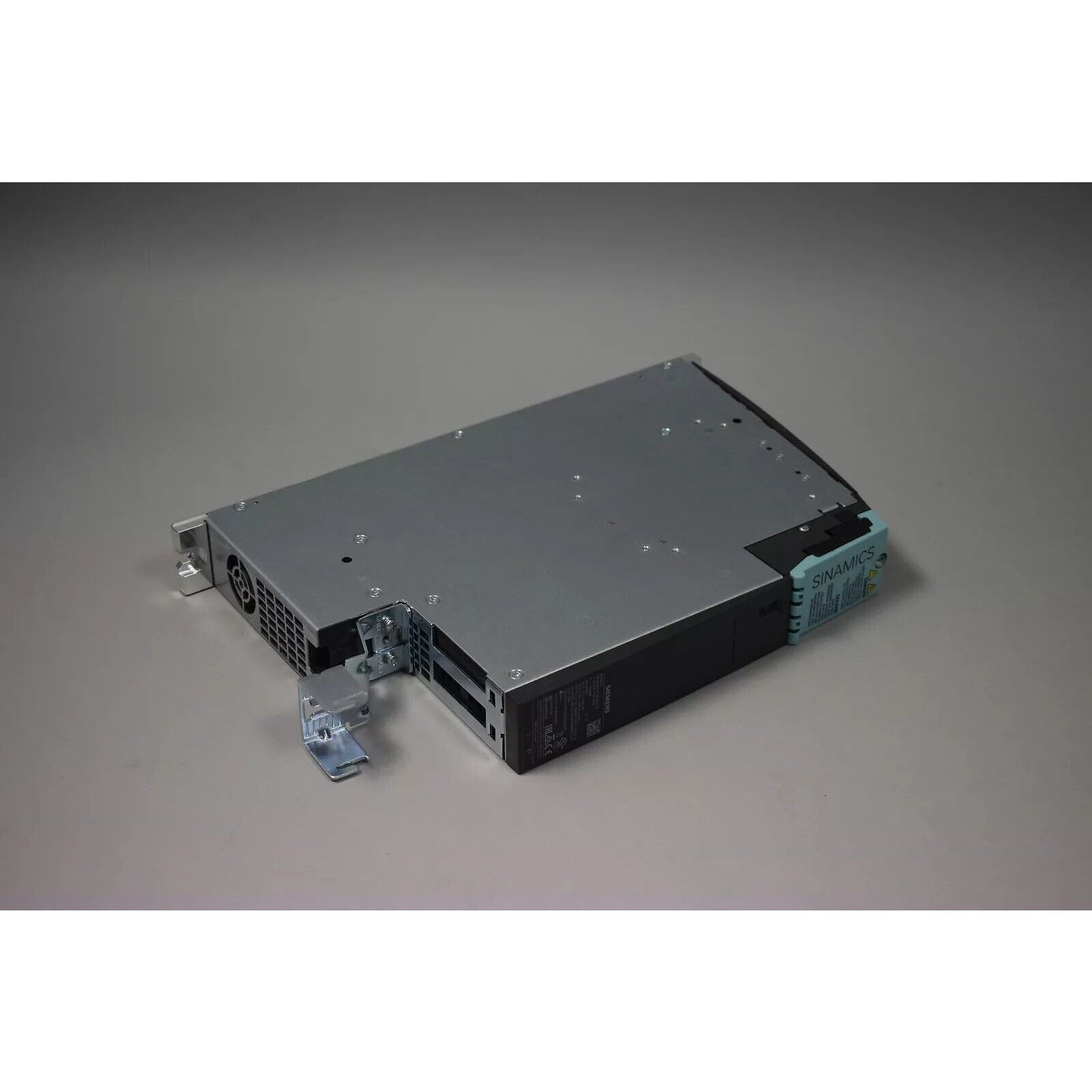

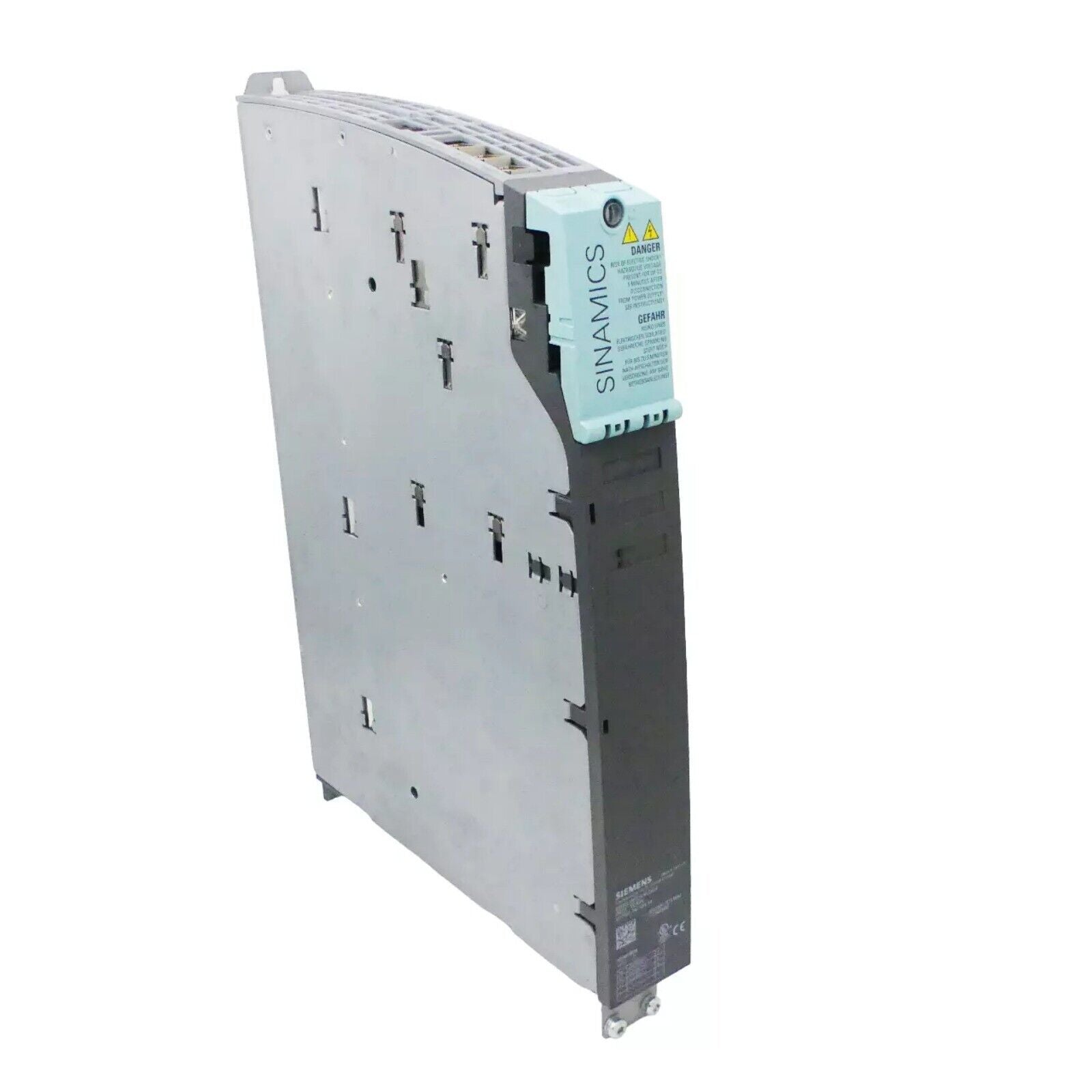

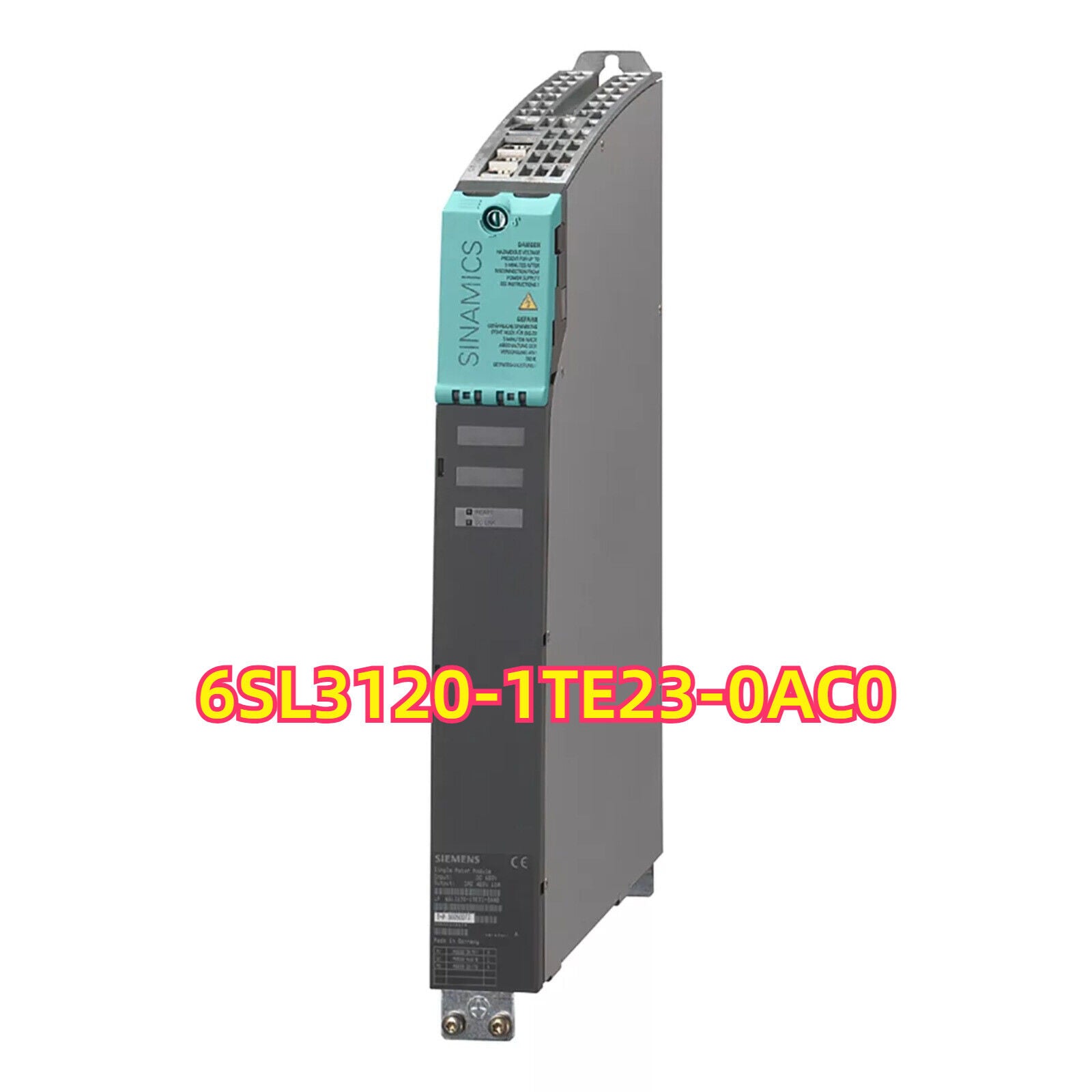

The Siemens 6SL3120-1TE23-0AC0 is a book-size Single Motor Module for the modular SINAMICS S120 drive family. Supplied from a 600 V DC bus, it delivers three-phase 400 V AC to the motor with a continuous output current of 30 A. It incorporates sensor-less vector control, pulse-pattern optimisation and “Safety Integrated” functions such as Safe Torque Off (STO). The module uses forced-air internal cooling and features the DRIVE-CLiQ interface for seamless connection to CU-310/320 control units, making it suitable for both standard and safety-relevant motion tasks in machinery, handling systems and production lines.

Key Features

• Continuous Output Current: 30 A (base-load)
• Input / Output: 600 V DC input bus, 3-phase 400 V AC motor output
• Frame Size: Booksize C, 100 mm wide for high-power density
• Cooling: Internal forced-air cooling (fan noise ≤ 71 dB(A))
• Safety Functions: STO support; SS1/SS2/SLS with appropriate CU firmware
• Diagnostics: Detailed fault and warning data via DRIVE-CLiQ
• Mounting: Snap-on book-size rail; pluggable power and motor terminals
• Protection Class: IP20 for cabinet installation

Technical Specifications

• DC Bus Voltage: 600 V DC (540–670 V DC)
• Rated Output Voltage: 3AC 400 V (0–480 V)
• Continuous Output Current: 30 A
• Base-Load Current: 25 A nominal
• Switching Frequency (default): 4 kHz (selectable up to 8 kHz)
• Frame Size / Housing: Booksize C (100 mm)
• Dimensions (W × H × D): 100 mm × 270 mm × 380 mm
• Weight: ≈ 7.4 kg
• Cooling Method: Internal forced air
• Protection Class: IP20 (cabinet)
• Ambient Operating Temperature: 0 °C … +40 °C (derating above +50 °C)
• Safety Integrated: STO, SS1, SS2, SLS (with CU)
• Communication: DRIVE-CLiQ to CU310-2 / CU320-2

Application Areas

• Servo and induction motor drives in packaging, printing, textile and machine-tool sectors
• Multi-axis coordinated motion systems (gantries, robotics, handling)
• Safety-related drives requiring integrated STO / SSx functions

Advantages

• High Power Density: 30 A output in a 100 mm-wide booksize module optimises cabinet space.
• Integrated Safety: Hardware-based STO and extended safety functions reduce external wiring.
• Easy Integration: DRIVE-CLiQ autoconfiguration with SINAMICS control units speeds commissioning.
• Robust Operation: Wide temperature range, comprehensive diagnostics and overload protection ensure uptime.
