Servo Controller | Siemens | 6SL3120-1TE23-0AA3 6SL3 120-1TE23-0AA3 SINAMICS S120 Double Motor

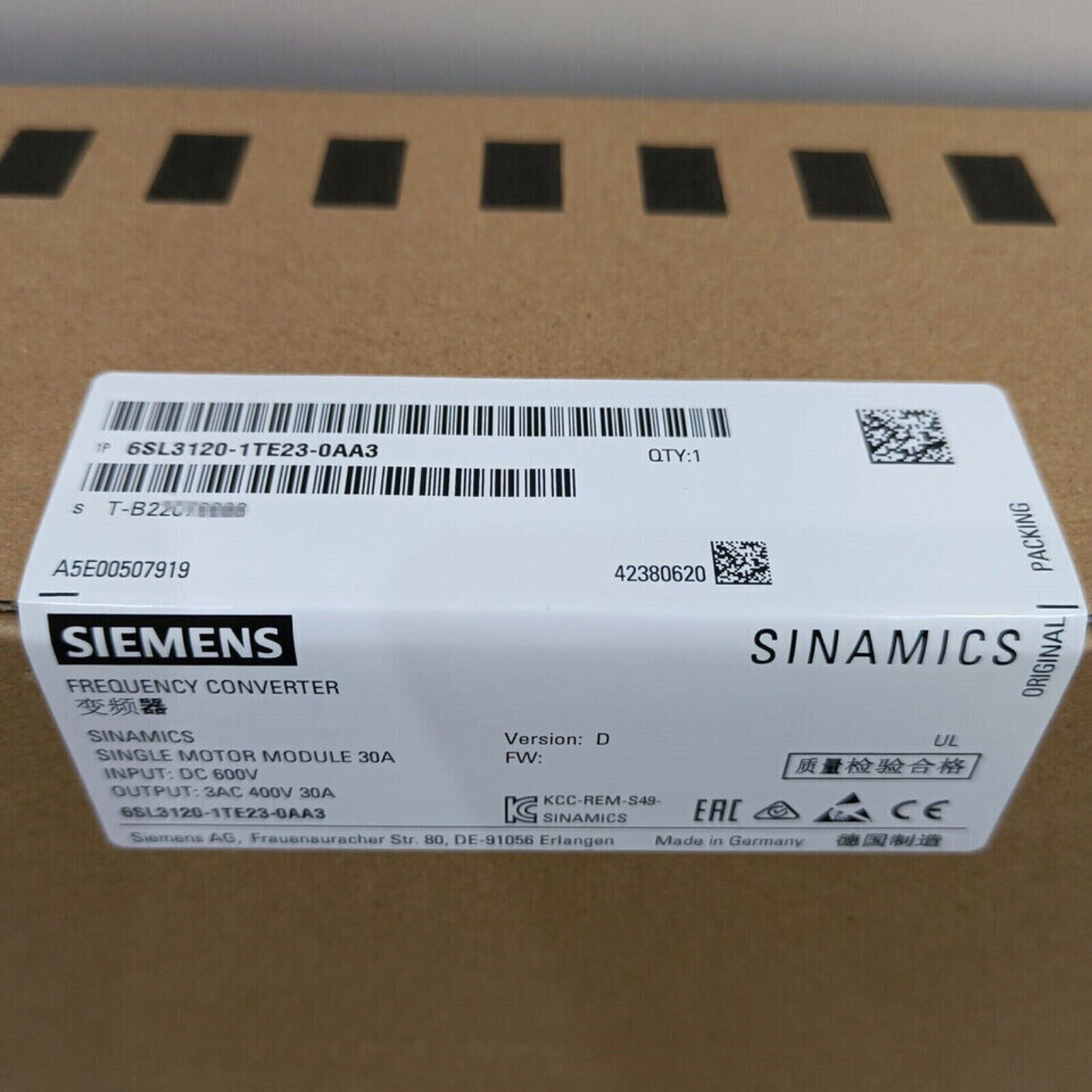

Product Description: Siemens 6SL3120-1TE23-0AA3

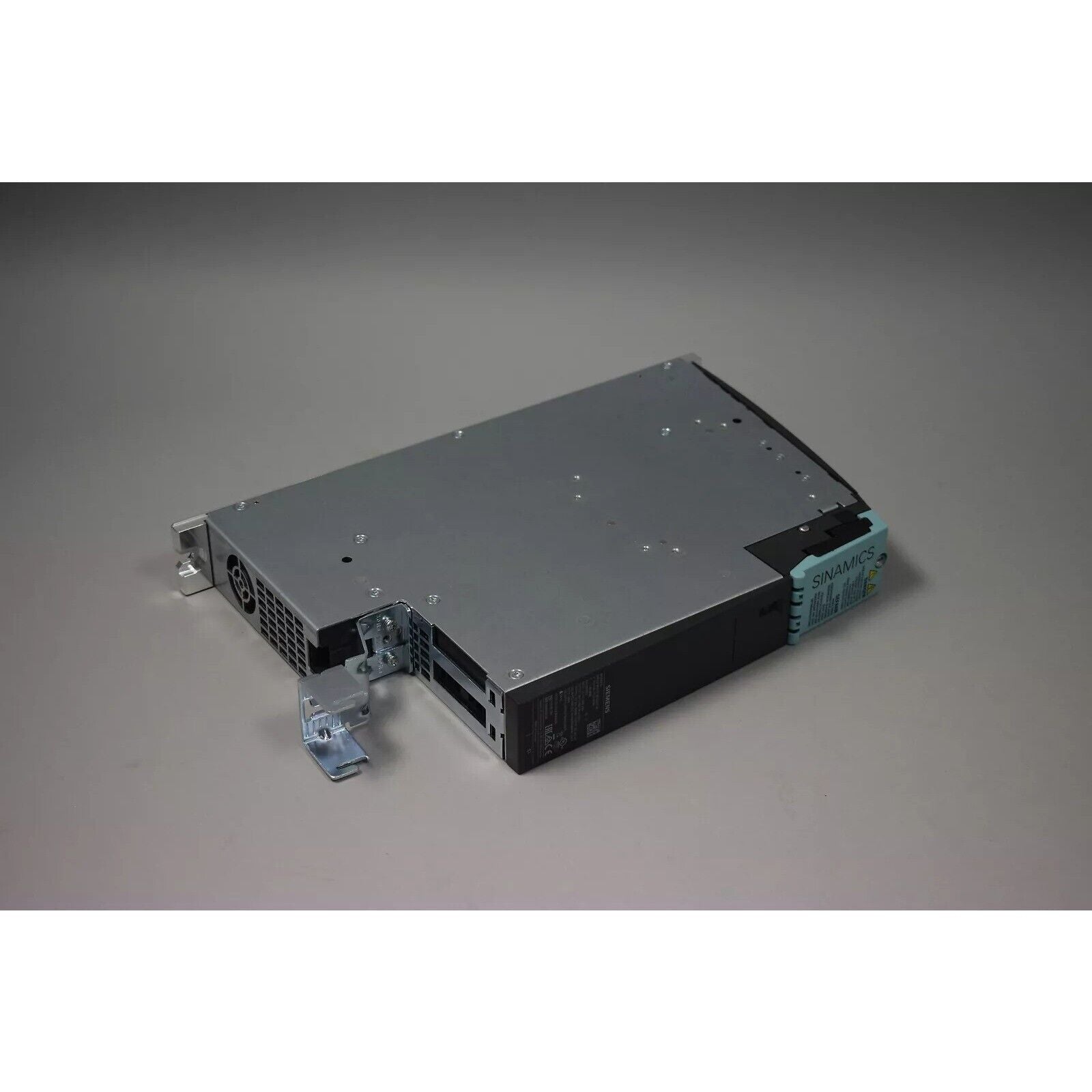

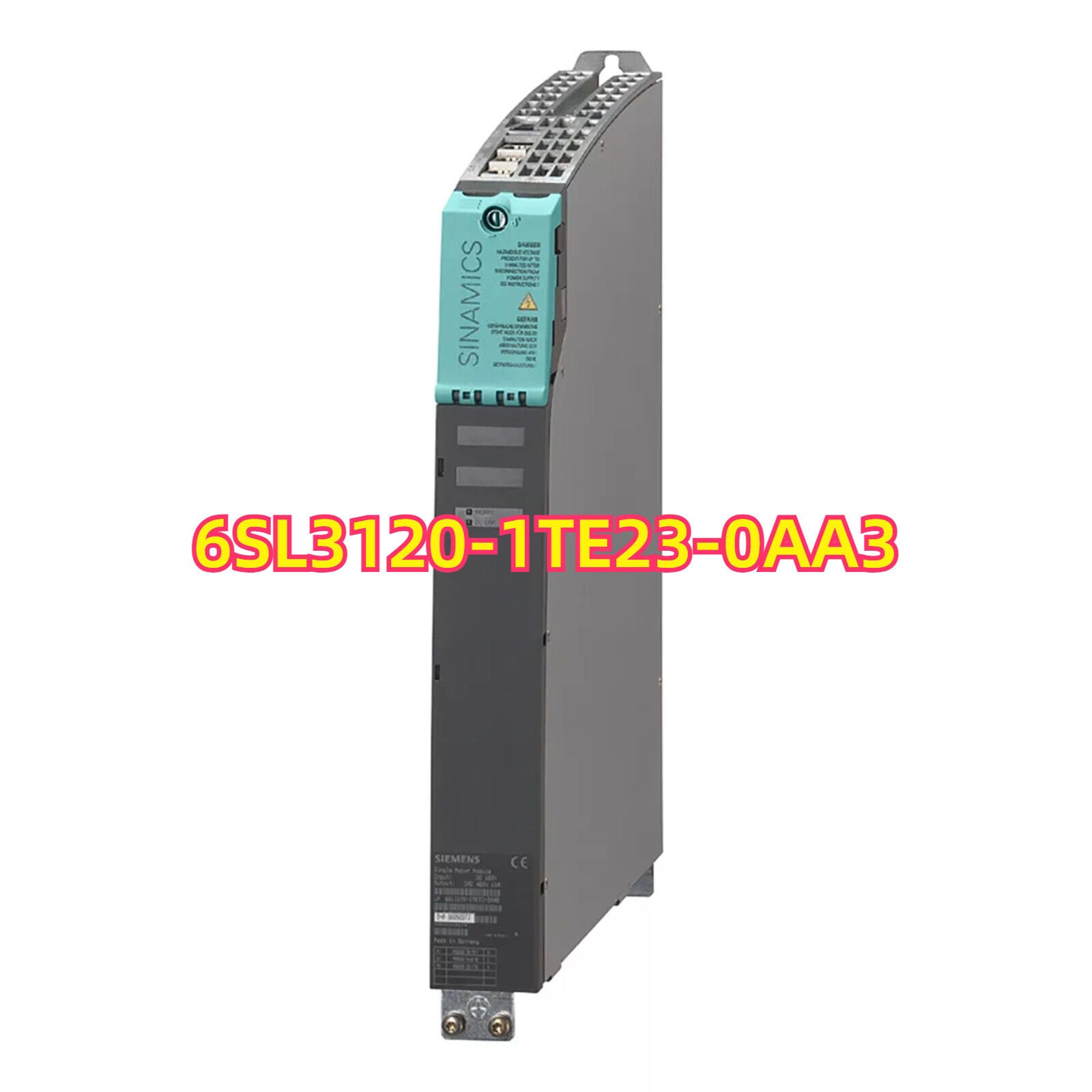

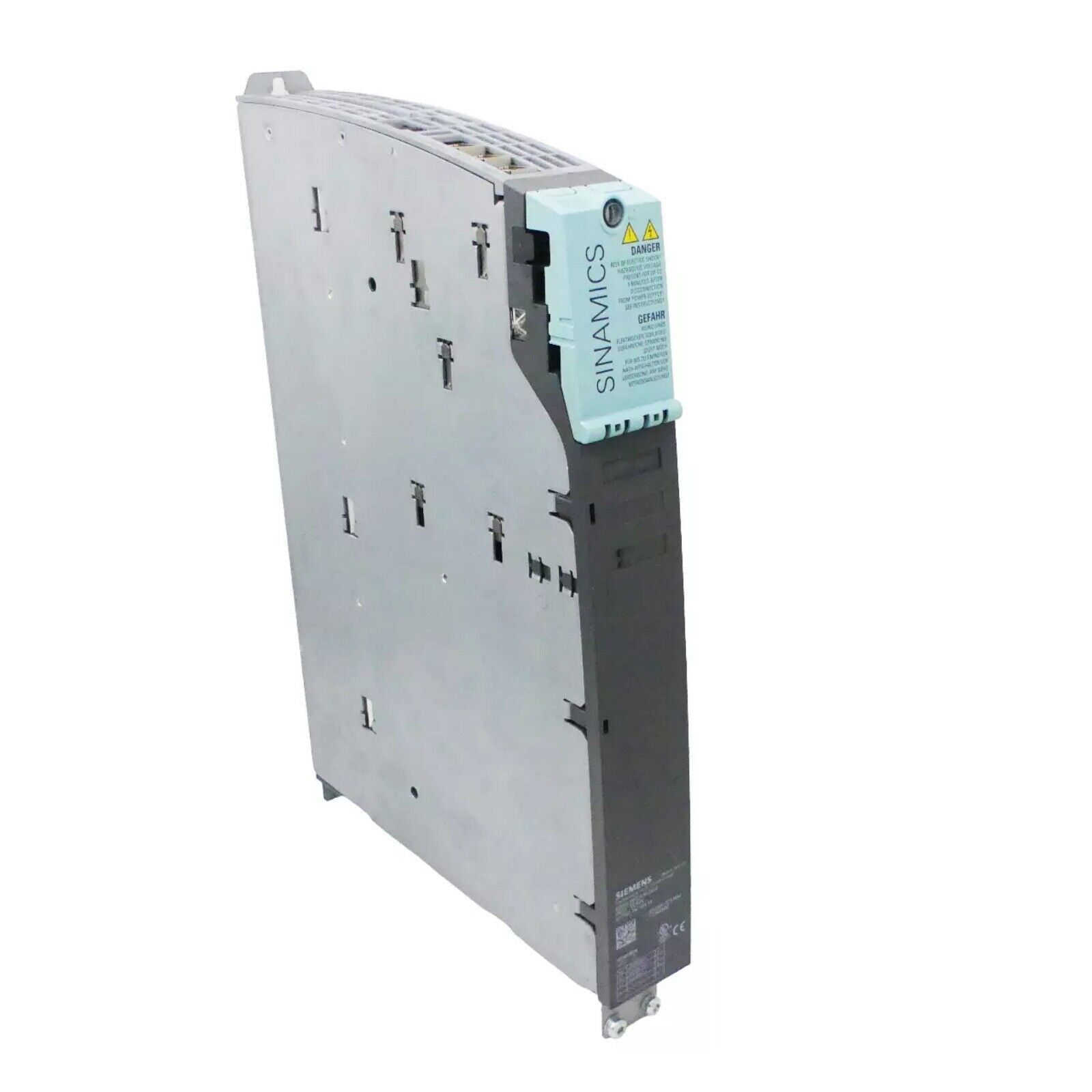

The Siemens 6SL3120-1TE23-0AA3 is a Single Motor Module from the SINAMICS S120 series, designed for high-performance motor control in industrial automation systems. This module features a booksize format with internal air cooling, optimized pulse patterns, and support for extended Safety Integrated functions, including DRIVE-CLiQ communication. It is suitable for controlling 3-phase AC motors with a rated output current of 30 A and is commonly used in applications requiring precise motion control, such as robotics, packaging, and material handling systems.

Key Features

• Input Voltage: 600 V DC
• Output Voltage: 400 V 3 AC
• Rated Output Current: 30 A
• Rated Power: 16 kW (20 HP)
• Cooling Type: Internal air cooling
• Communication Interface: DRIVE-CLiQ
• Safety Functions: Supports extended Safety Integrated functions
• Mounting Type: Booksize format
• Degree of Protection: IP20

Technical Specifications

• Product Type: Single Motor Module
• Part Number: 6SL3120-1TE23-0AA3
• Input Voltage: 600 V DC
• Output Voltage: 400 V 3 AC
• Rated Output Current: 30 A
• Rated Power: 16 kW (20 HP)
• Cooling Type: Internal air cooling
• Communication Interface: DRIVE-CLiQ
• Safety Functions: Extended Safety Integrated functions
• Mounting Type: Booksize format
• Degree of Protection: IP20

Application Areas

• Servo Applications: Ideal for controlling servo motors in applications requiring high precision and dynamic response.
• Robotics: Suitable for robotic arms and automated guided vehicles (AGVs) in manufacturing environments.
• Packaging Machinery: Used in packaging lines for controlling conveyors, fillers, and labelers.
• Material Handling: Employed in systems for transporting materials within production facilities.

Advantages

• High Performance: Delivers precise motor control with high dynamic response, ensuring optimal performance in demanding applications.
• Compact Design: The booksize format allows for space-saving installations in control cabinets.
