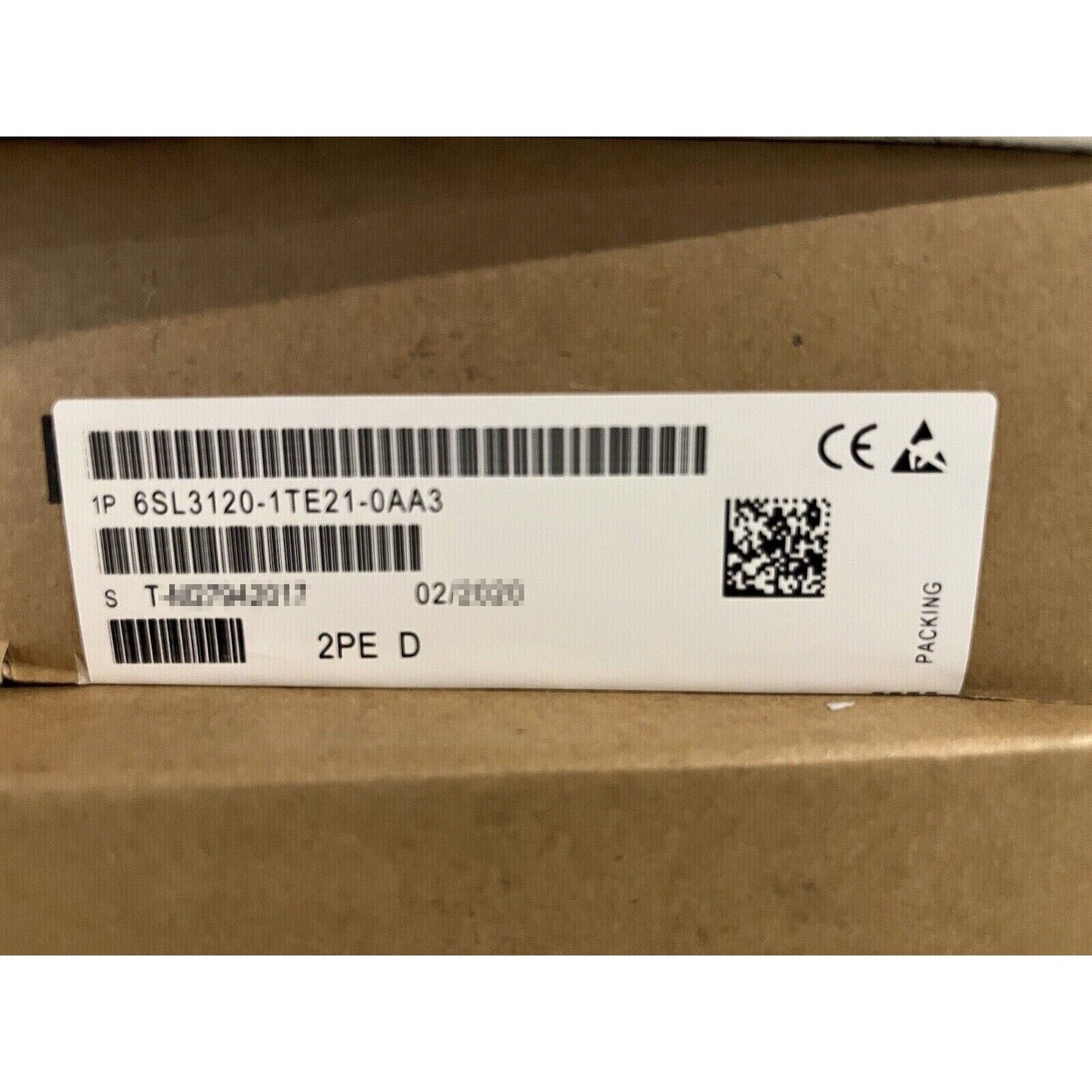

Servo Controller | Siemens | 6SL3120-1TE21-0AA3 6SL3 120-1TE21-0AA3 Single Motor Module

Product Description: Siemens 6SL3120-1TE21-0AA3

The Siemens 6SL3120-1TE21-0AA3 is a SINAMICS S120 motor module designed for high-performance servo and vector control applications. Operating on a 3-phase 380–480 V AC input with a continuous output current of 12 A, this module is suitable for dynamic motor control tasks requiring speed, torque, or position accuracy. The booksize format allows for compact side-by- side installation, and the module is used within a common DC bus configuration, typically in modular multi-axis drive systems.

Key Features

• Rated Output Current: 12 A continuous
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Type: For synchronous and asynchronous motors
• Cooling: Internal fan cooling (booksize format)
• DC Link Connection: Operates with shared DC bus (requires line module)
• Interface: DRIVE-CLiQ for communication and diagnostics
• Mounting: Vertical, side-by-side (booksize system)

Technical Specifications

• System Series: SINAMICS S120
• Module Type: Single Motor Module
• Input Voltage: 3AC 380–480 V ±10%
• Output Current: 12 A
• Output Power Range: Approx. 5.5–7.5 kW (motor dependent)
• Cooling Method: Internal fan
• DC Bus Operation: Yes (shared DC link required)
• Communication Interface: DRIVE-CLiQ
• Mounting Type: Booksize (side-by-side)
• Dimensions (W × H × D): Approx. 55 mm × 380 mm × 270 mm
• Operating Temperature Range: 0 °C to +40 °C (up to +55 °C with derating)
• Protection Class: IP20
• Certifications: CE, UL, cULus, EAC

Application Areas

• Multi-axis motion systems in packaging, robotics, and material handling
• Precision drives in CNC and industrial automation systems
• Modular drive architectures with shared DC bus topology
• High-speed, high-accuracy positioning and torque control applications

Advantages

• Compact and scalable design with side-by-side mounting
• Precise and efficient motor control performance
• Seamless integration into SINAMICS S120 systems via DRIVE-CLiQ
• High reliability and diagnostics capability for industrial environments
