Servo Controller | Siemens | 6SL3120-1TE13-0AA4 6SL3 120-1TE13-0AA4 SINAMICS S120 Double Motor

Product Description: 6SL3120-1TE13-0AA4

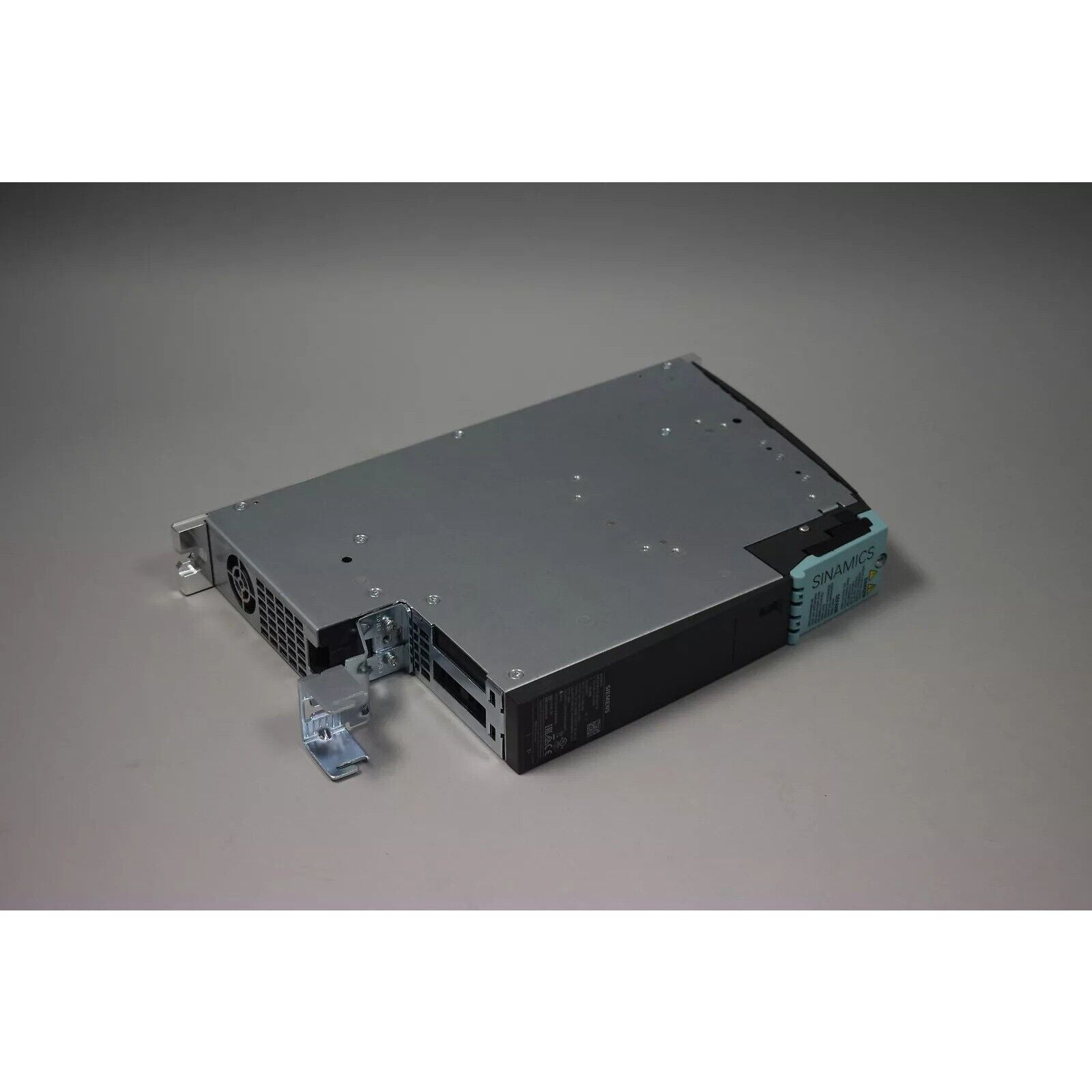

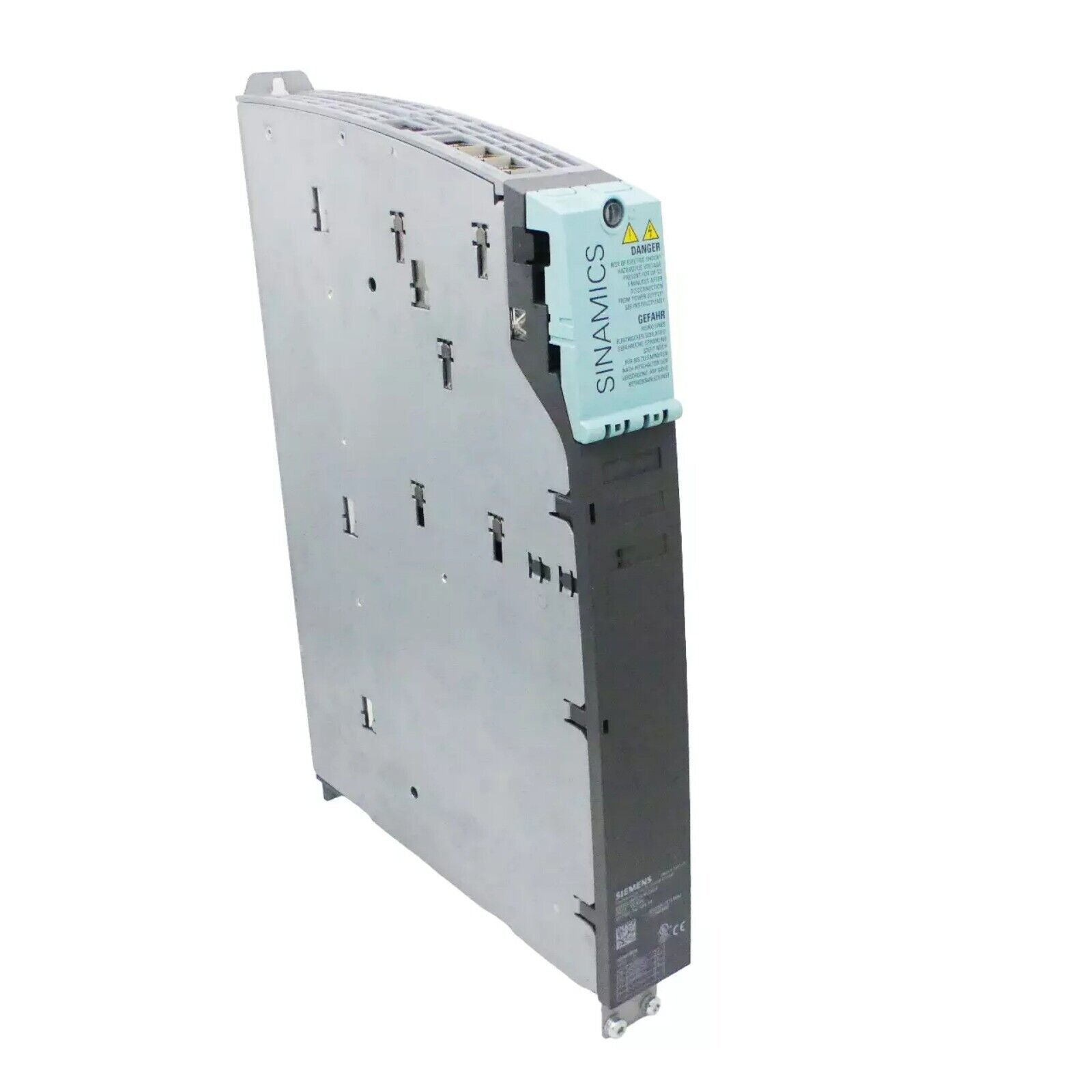

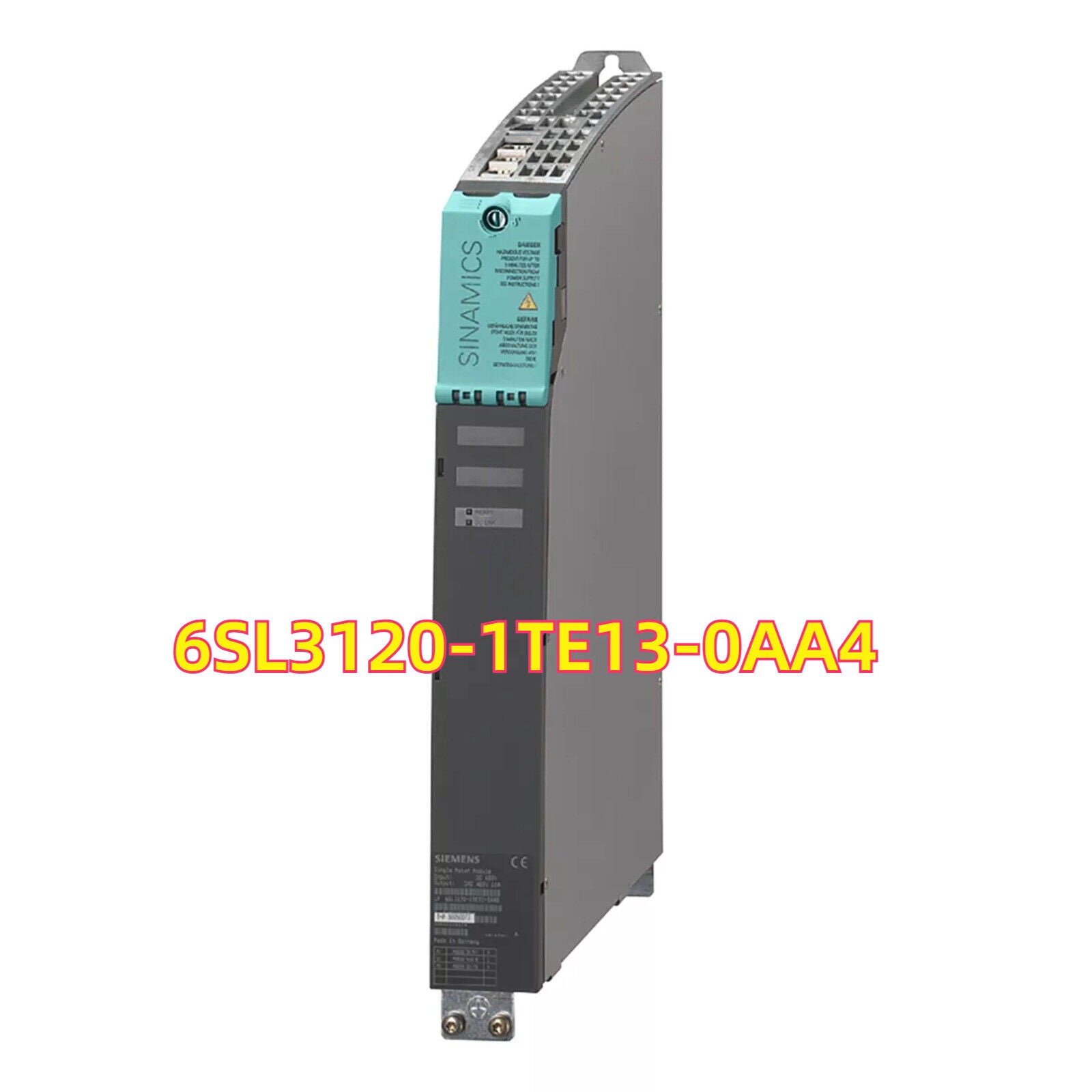

The 6SL3120-1TE13-0AA4 is a single-motor power module for the SINAMICS S120 drive system. It converts a 600 V DC bus voltage into three- phase 400 V AC, supplying up to 3 A continuous current per phase. Packaged in the compact Booksize format with integrated fan cooling, it interfaces via DRIVE-CLiQ to a SINAMICS control unit. Ideal for precision motion tasks, it delivers smooth, high-dynamic control of one servo or spindle axis in CNC machining, packaging, printing, and other industrial applications.

Key Features

• 3 A Continuous Output: Drives one motor axis with up to 3 A per phase
• 600 V DC → 400 V AC Conversion: Standard DC bus compatibility
• Booksize Frame: Slim module for high-density rack mounting
• Internal Air Cooling: Integrated fan for reliable thermal management
• DRIVE-CLiQ Interface: High- speed communication with control units
• Safety Integrated Ready: Supports functional safety when used with appropriate CU

Technical Specifications

• DC Link Voltage: 600 V DC
• AC Output: 3 × 400 V AC, 3 A per phase
• Continuous Current: 3 A
• Overload Capability: 150% for 60 s
• Frame Size: Booksize
• Cooling: Internal fan
• Communication: DRIVE-CLiQ
• Mounting: Vertical in S120 rack
• Protection Class: IP20 (cabinet-mounted)
• Operating Temp.: 0 … +40 °C (derate to +55 °C)
• Dimensions (W×H×D): ≈ 50 × 380 × 250 mm
• Weight: ≈ 6.5 kg

Application Areas

• CNC machine feed and spindle axes
• Packaging, printing, and converting machinery
• Robotic handling and multi-axis systems
• Any single-axis servo drive requiring compact, high-performance modules

Advantages

• Compact & Scalable: Fits single or multi-axis racks without wasted space
• High Dynamic Performance: Optimized pulse patterns for precise motion
• Integrated Cooling & Protection: Ensures reliable 24/7 operation
• Seamless Integration: Part of the SINAMICS S120 ecosystem and TIA Portal engineering
