Product Description: Siemens 6SL3100-0BE25-5AB0

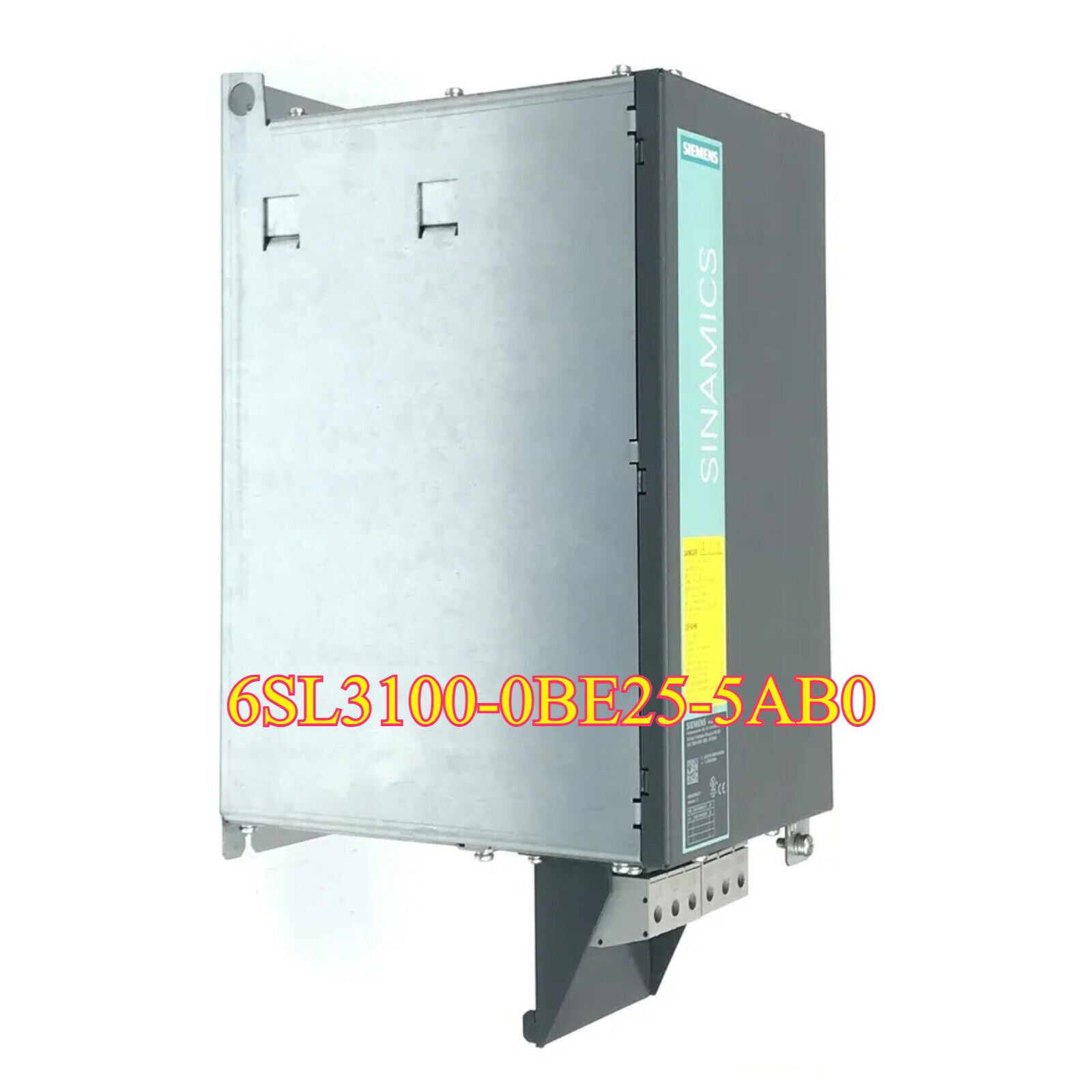

The Siemens 6SL3100-0BE25-5AB0 is a Smart Line Module from the SINAMICS S120 series, rated at 55 kW. It serves as the power supply unit for S120 multi-axis drive systems, converting AC line voltage into regulated DC link voltage. This module is designed for high-performance motion control applications and supports regenerative feedback, allowing excess braking energy to be fed back into the power supply network. The module features internal air cooling and is designed for installation in control cabinets. It works in combination with SINAMICS S120 motor modules and control units (CU) to provide a flexible, scalable drive platform suitable for demanding applications such as packaging machines, CNC machines, printing presses, and material handling systems.

Key Features

• Rated Power: 55 kW continuous power supply
• Smart Line Technology: High-performance line infeed with energy efficiency
• Regenerative Capability: Supports feedback of braking energy to the grid
• Internal Cooling: Efficient fan-based air cooling for control cabinet installation
• Modular System Integration: Compatible with SINAMICS S120 motor modules and CUs
• DRIVE-CLiQ Interface: Ensures fast, reliable communication within the drive system

Technical Specifications

• Product Type: Smart Line Module
• Part Number: 6SL3100-0BE25-5AB0
• Series: SINAMICS S120
• Rated Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Rated Power: 55 kW
• DC Link Voltage: Approx. 600 V DC
• Cooling Method: Internal air cooling
• Infeed Type: Smart Line (with regenerative feedback)
• Communication: DRIVE-CLiQ
• Mounting: Control cabinet, vertical orientation
• Protection Class: IP20
• Operating Temperature: 0°C to +40°C (up to +55°C with derating)
• Dimensions (W × H × D): Approx. 150 × 380 × 250 mm
• Weight: Approx. 12–14 kg

Application Areas

• Machine Tools: Powers CNC systems with frequent acceleration and deceleration cycles
• Packaging Machinery: Supplies energy-efficient motion systems for conveyors and actuators
• Automated Material Handling: Drives for lifts, cranes, and sortation systems
• Printing and Textile Machines: Supports multi-axis drive systems with dynamic loads
• Energy-Conscious Systems: Enables regenerative braking and reduced power consumption

Advantages

• High Efficiency: Returns braking energy to the grid, lowering operating costs
• Space-Saving Design: Compact module fits easily into control cabinets
• Modular and Scalable: Suitable for single- or multi-axis drive architectures
• Integrated Diagnostics: Fault and operational data accessible via DRIVE-CLiQ
• Reliable Operation: Siemens industrial-grade design ensures 24/7 performance in harsh environments
