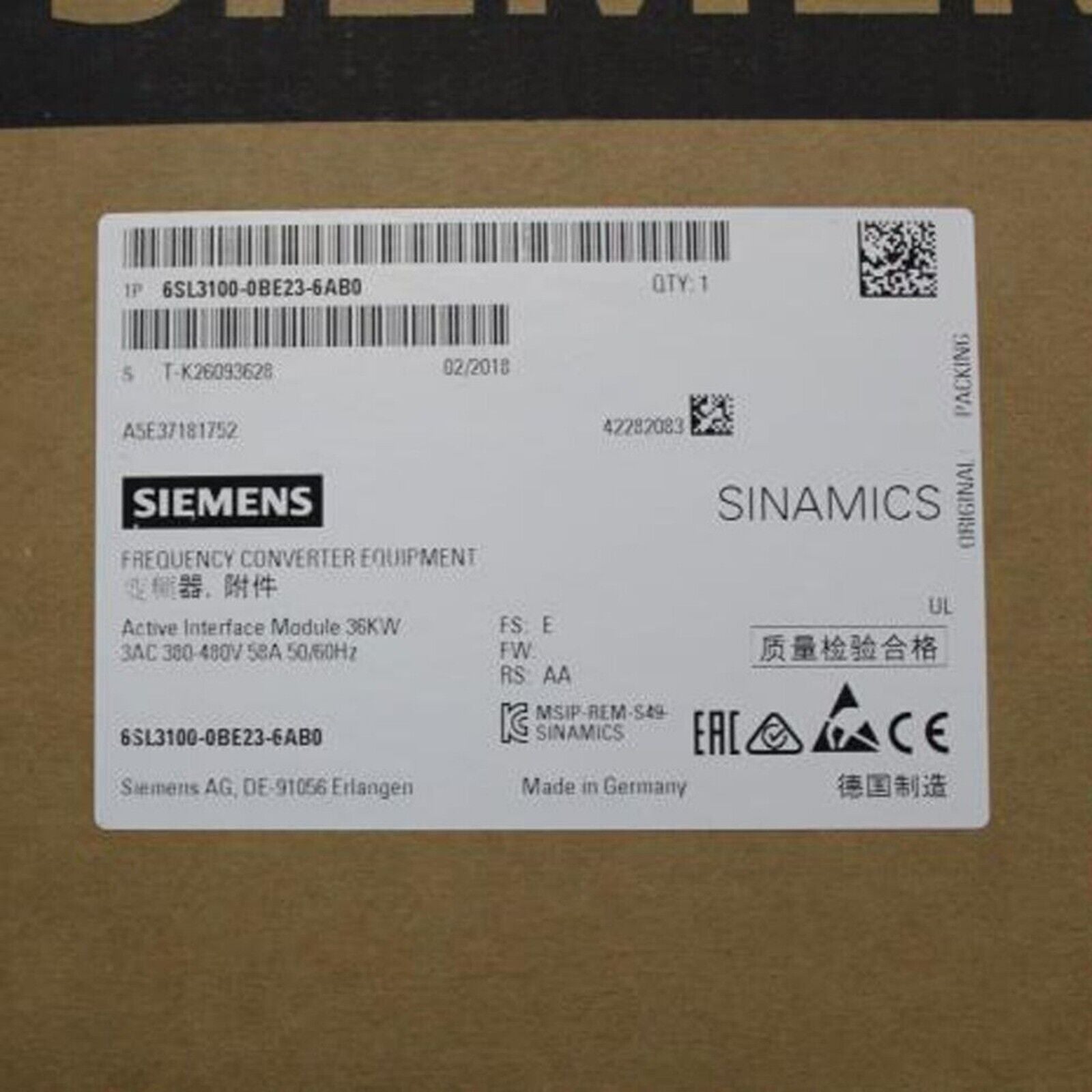

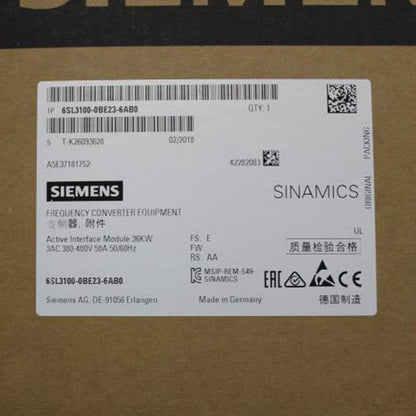

Servo Drive | Siemens | 6SL3100-0BE23-6AB0 6SL3 100-0BE23-6AB0 SINAMICSS120 ACTIVE INTERFACE

Product Description:

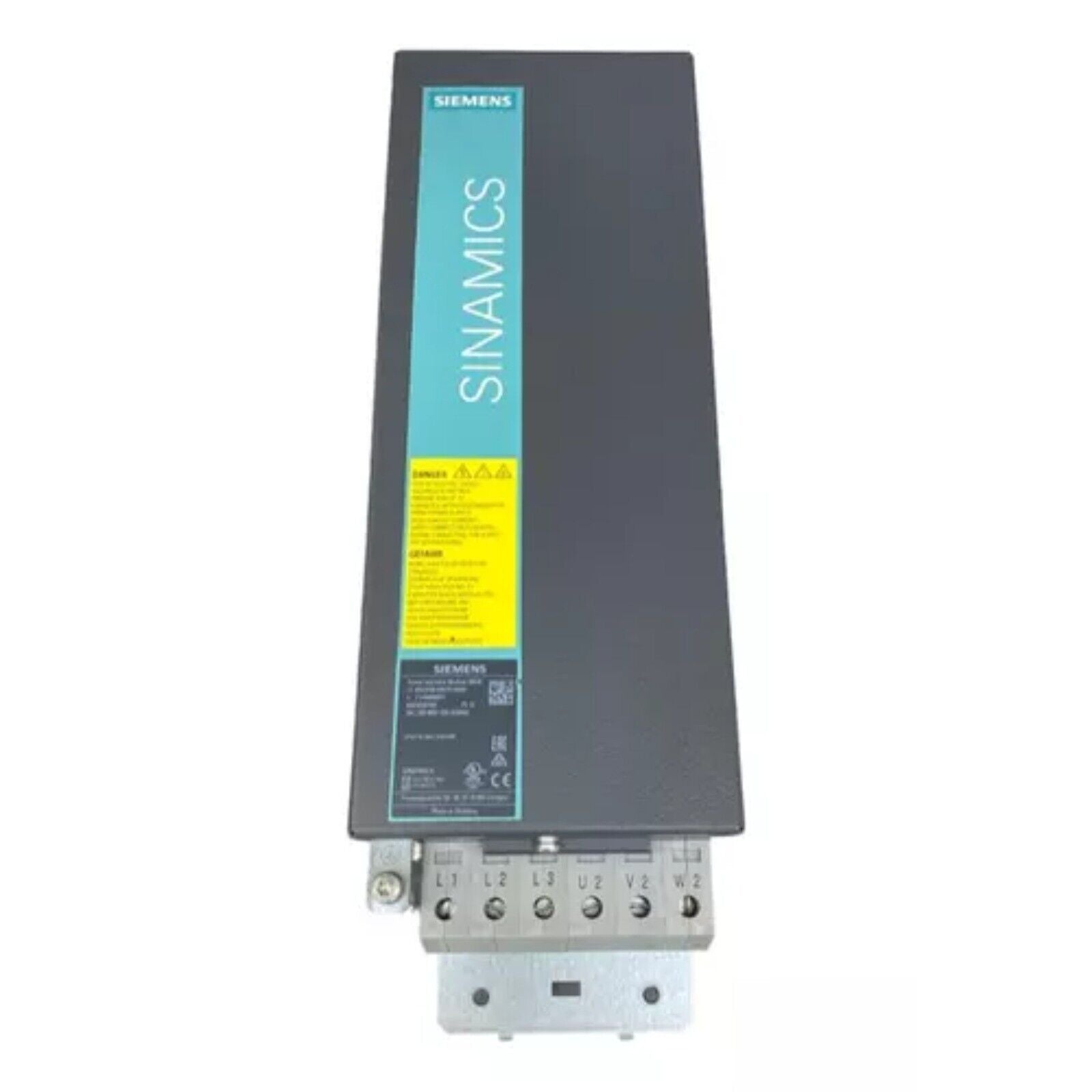

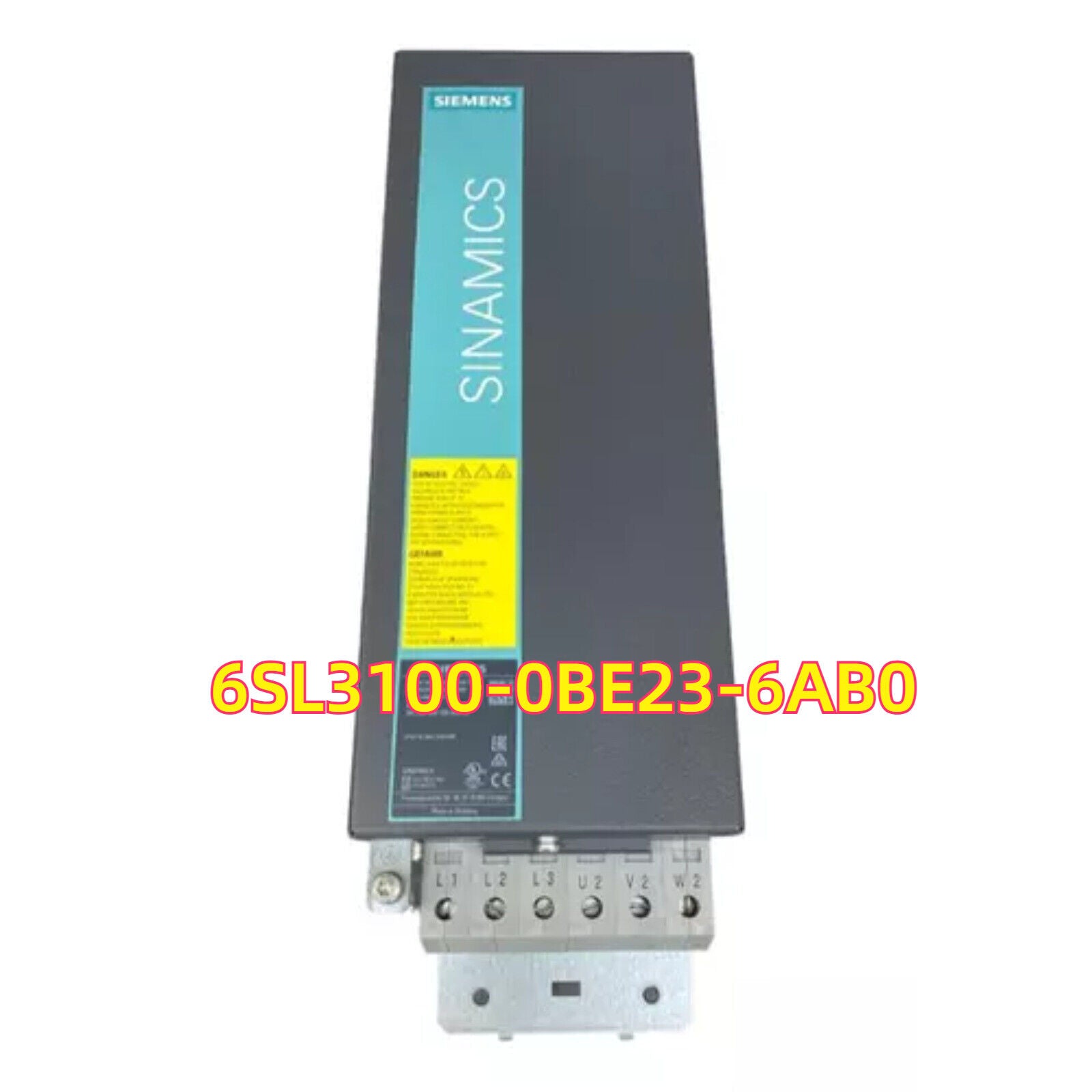

The Siemens 6SL3100-0BE23-6AB0 is an Active Line Module from the SINAMICS S120 series, designed to supply energy to the DC link of a multi-axis drive system. This module is rated at 36 kW and supports bidirectional power flow, enabling energy recovery to the supply network (regenerative feedback). Operating at a 3-phase AC voltage of 380–480 V (±10%) and 50/60 Hz, it features a booksize construction in Frame Size D and uses internal air cooling. As part of a modular drive concept, this Active Line Module ensures high energy efficiency and reduced harmonics when used in conjunction with a line filter and reactor.

Technical Specifications:

Part Number: 6SL3100-0BE23-6AB0

Product Type: Active Line Module

Input Voltage: 3AC 380–480 V ±10%, 50/60 Hz

Rated Power: 36 kW

DC Link Voltage: 600 V DC (typical operating point)

Frame Size: Booksize Frame D

Cooling Method: Internal air cooling

Power Flow Direction: Bidirectional (energy regeneration capable)

Compliance: RoHS compliant

Product Lifecycle Status: Active

Net Weight: Approx. 6.5 kg

Country of Origin: Germany

EAN: 4019169446657

UPC: 887621270027

Applications:

Multi-axis drive systems requiring regenerative feedback

Machine tools, packaging machines, and production lines

Applications focused on energy savings and harmonic reduction

Advantages:

Supports energy recovery to reduce power consumption

Compact booksize format enables space-efficient cabinet integration

Provides stable DC supply for connected motor modules

Enables low-harmonic power input when used with compatible line filter
