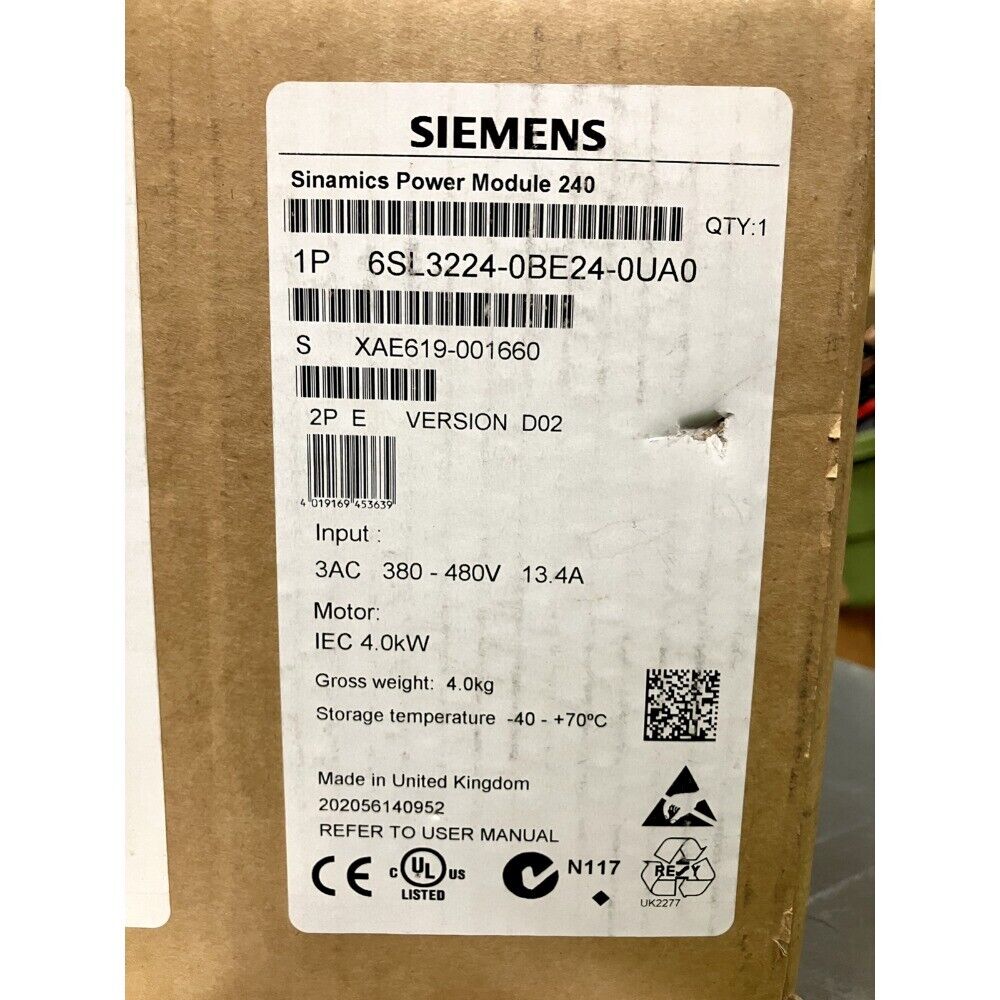

Product Description: Siemens 6SL3224-0BE24-0UA0

The Siemens 6SL3224-0BE24-0UA0 is a PM240-2 Power Module from the SINAMICS G120 series, designed for controlling and powering electric motors in various industrial applications. This power module is equipped with an integrated brake chopper, making it ideal for dynamic braking applications and energy feedback. The PM240-2 is suitable for motor power ratings up to 15 kW and operates with a 380-480 V AC input voltage. The module supports PROFIBUS or PROFINET communication interfaces when combined with appropriate control units, offering flexibility in integration with Siemens PLC systems. The power module is compact and efficient, making it suitable for a wide range of industrial motor control tasks, including machine and process automation.

Key Features

• Rated Output Power: Capable of powering motors up to 15 kW.
• Input Voltage: 380-480 V AC, 50/60 Hz.
• Integrated Brake Chopper: Enables efficient dynamic braking, with energy recovery to reduce wear on mechanical brakes.
• Communication: Supports PROFIBUS or PROFINET communication when paired with a Siemens control unit for network integration.
• Overload Capacity: Handles 150% overload for 60 seconds every 300 seconds, ensuring reliable operation in demanding applications.
• Protection Class: IP20, suitable for installation in control panels or cabinets.
• Cooling: Equipped with an internal fan for efficient heat dissipation.

Technical Specifications

• Power Rating: Up to 15 kW
• Input Voltage: 380-480 V AC, 50/60 Hz
• Brake Chopper: Integrated for energy recovery during braking
• Communication Interface: Supports PROFIBUS or PROFINET
• Overload Capacity: 150% for 60 seconds every 300 seconds
• Protection Class: IP20
• Cooling: Internal fan for efficient heat management
• Mounting: Booksize mounting for ease of installation

Application Areas

• Machine Control: Ideal for applications such as conveyors, pumps, fans, and compressors that require dynamic motor control.
• Process Automation: Used in process industries for controlling motors with precise speed and torque regulation.
• Energy Management: Suitable for applications where energy recovery and dynamic braking are needed to optimize power consumption.
• Motion Control: Provides efficient motor control for high-dynamic applications such as CNC machines, robotics, and material handling.

Advantages

• Energy Efficiency: Integrated brake chopper allows for energy recovery during braking, reducing power consumption.
• Flexible Communication: Easy integration with PROFIBUS or PROFINET networks when combined with Siemens control units.
• High Overload Capability: Capable of handling high dynamic loads and providing reliable performance even under heavy-duty conditions.
• Compact and Scalable: Modular design allows for easy expansion and configuration according to system needs.
• Durable and Reliable: With IP20 protection, the module is suitable for industrial environments and ensures long-lasting performance.
