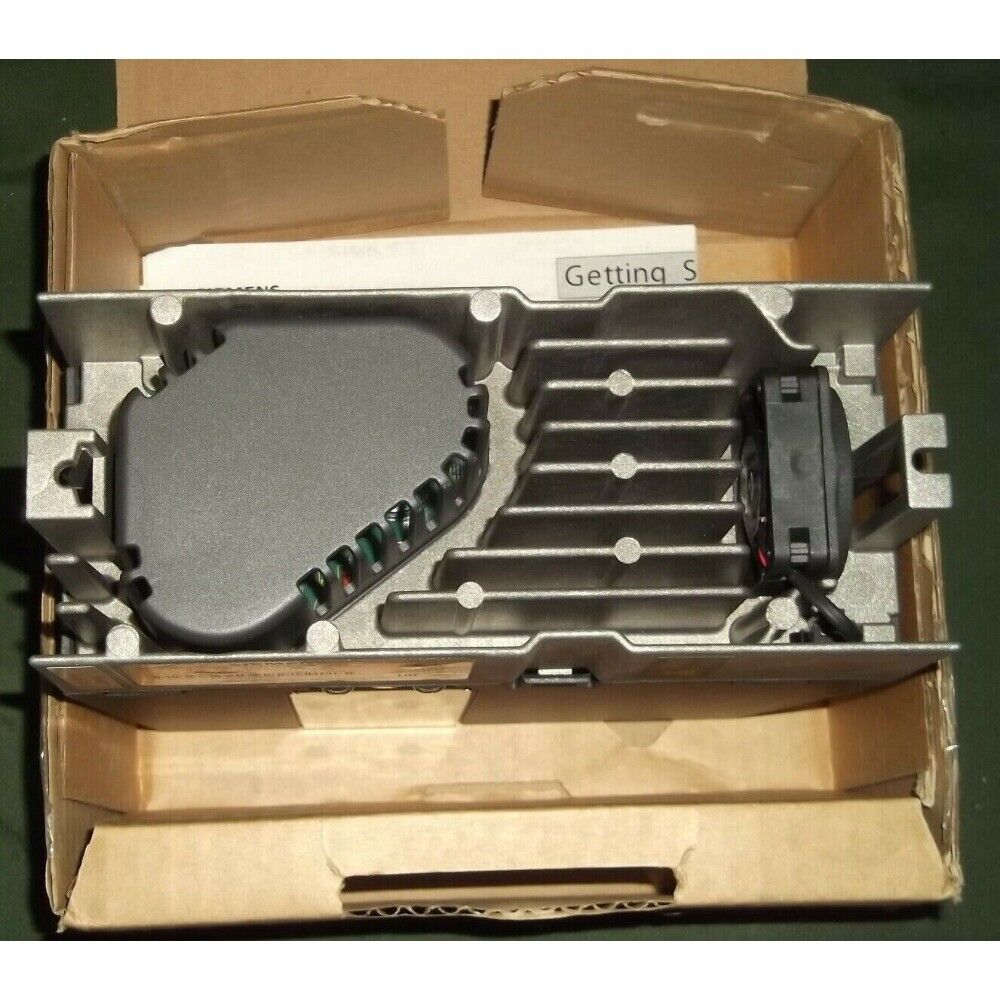

Servo Drive | Siemens | 6SL3 224-0BE13-7UA0 6SL3224-0BE13-7UA0 G120 PM 240 Power Module

Product Description: Siemens 6SL3224-0BE13-7UA0

The Siemens 6SL3224-0BE13-7UA0 is a power module from the SINAMICS G120P series, designed for energy-efficient control of motors in industrial applications. With a rated output power of 7.5 kW and an output current of 15 A, it operates on a 3-phase 400 V AC supply. The module includes integrated energy-saving features, such as an efficient braking chopper for dynamic load applications, making it ideal for pumps, fans, compressors, and similar machines that require precise motor control.

Key Features

• Power Rating: 7.5 kW (approx. 10 HP)
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Current: 15 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Braking Unit: Integrated braking chopper for dynamic braking
• Cooling: Internal fan cooling with compact IP20 housing
• Communication Interface: PROFINET, RS485 (USS/Modbus RTU), optional fieldbus modules
• Configuration: Via SINAMICS Startdrive in TIA Portal or IOP/IOP-2 panel

Technical Specifications

• System Series: SINAMICS G120P
• Module Type: Power Module
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 7.5 kW
• Output Current: 15 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Communication Interface: PROFINET, RS485 (USS/Modbus RTU), I/O
• Braking Unit: Integrated
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 150 mm × 380 mm × 215 mm
• Operating Temperature Range: -10 °C to +50 °C (derating above +40 °C)
• Certifications: CE, UL, cULus

Application Areas

• Variable-speed control for pumps, fans, and compressors
• HVAC systems and material handling applications
• Energy-efficient motor control in industrial automation systems
• Solutions requiring compact drive modules with braking capability

Advantages

• Integrated braking functionality for dynamic load control
• Energy-efficient motor control with multiple operating modes
• Compact and modular design suitable for space-constrained applications
• Easy system integration with Siemens PLCs via PROFINET or other interfaces
