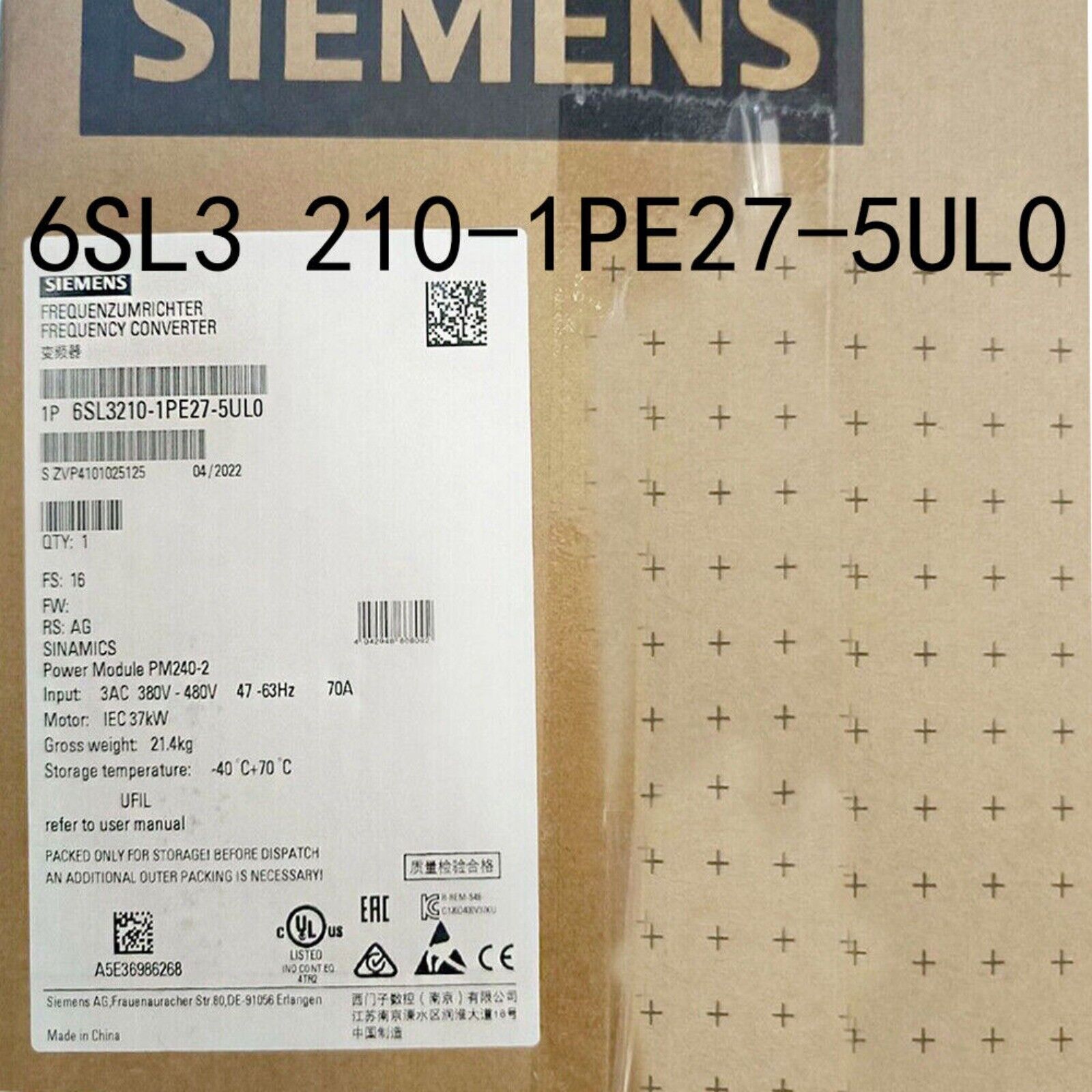

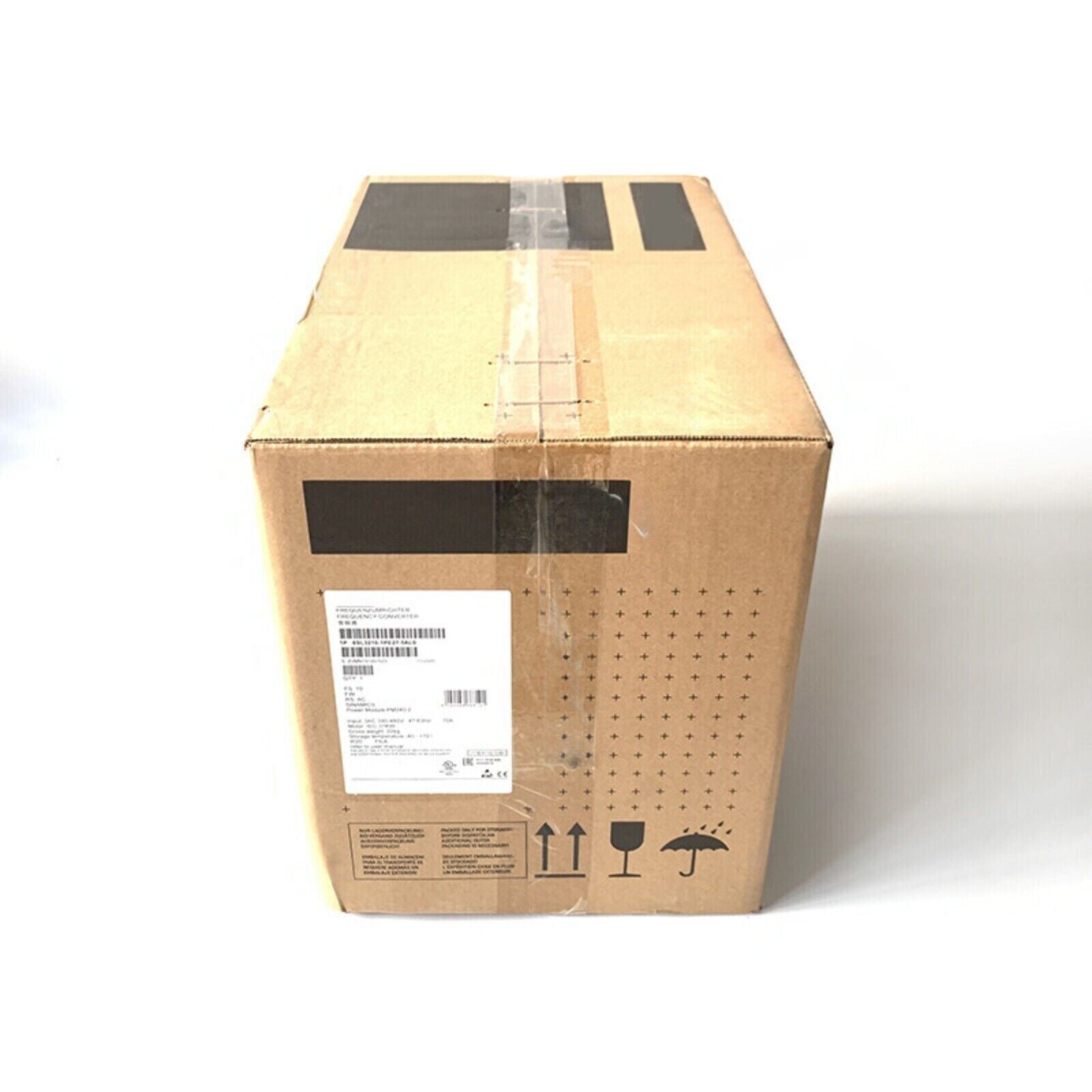

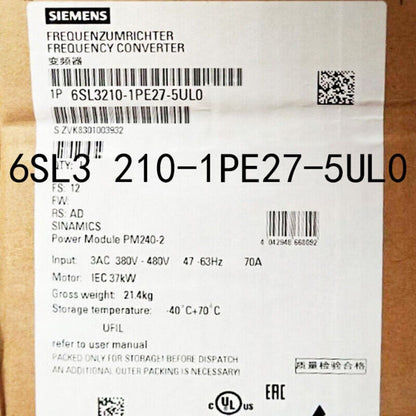

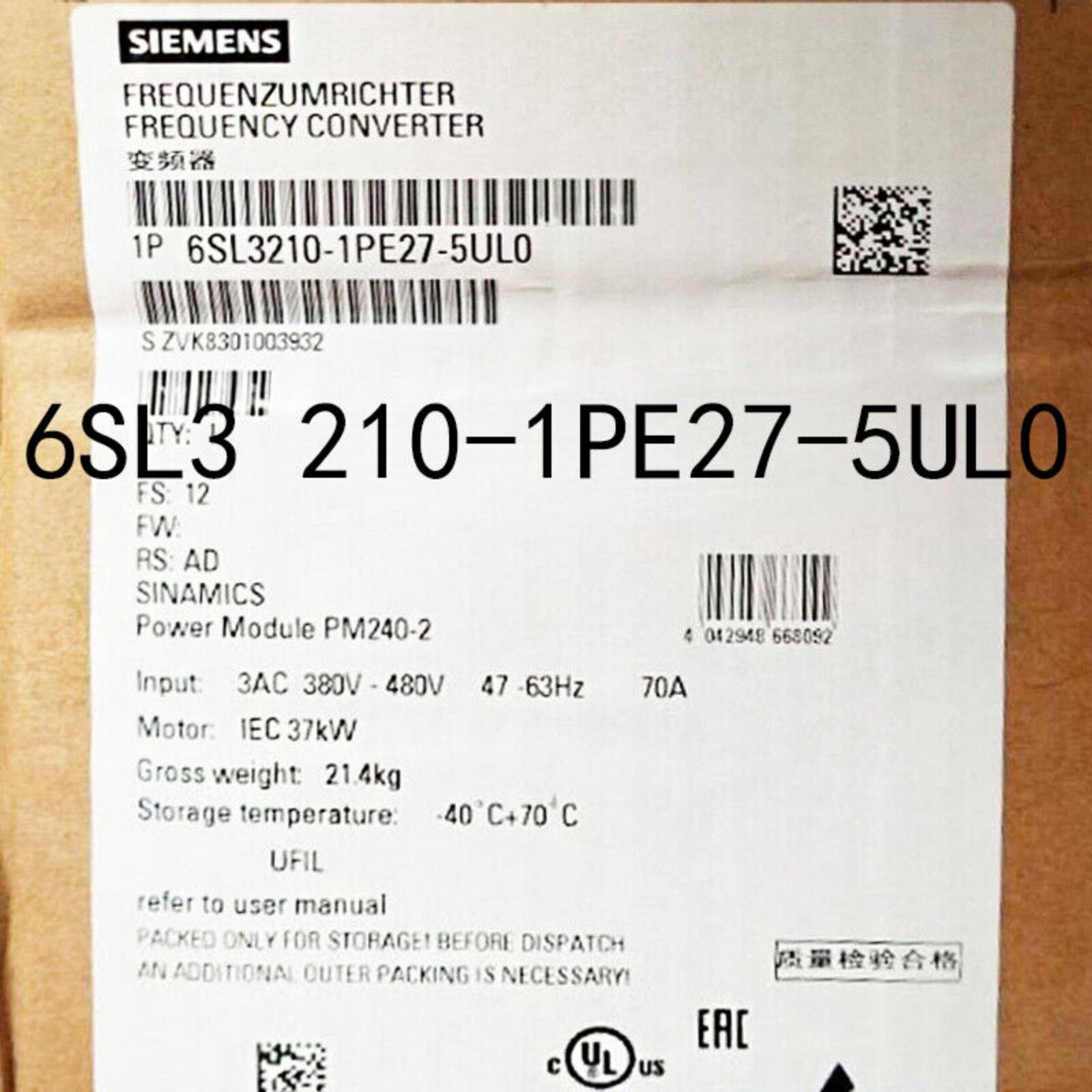

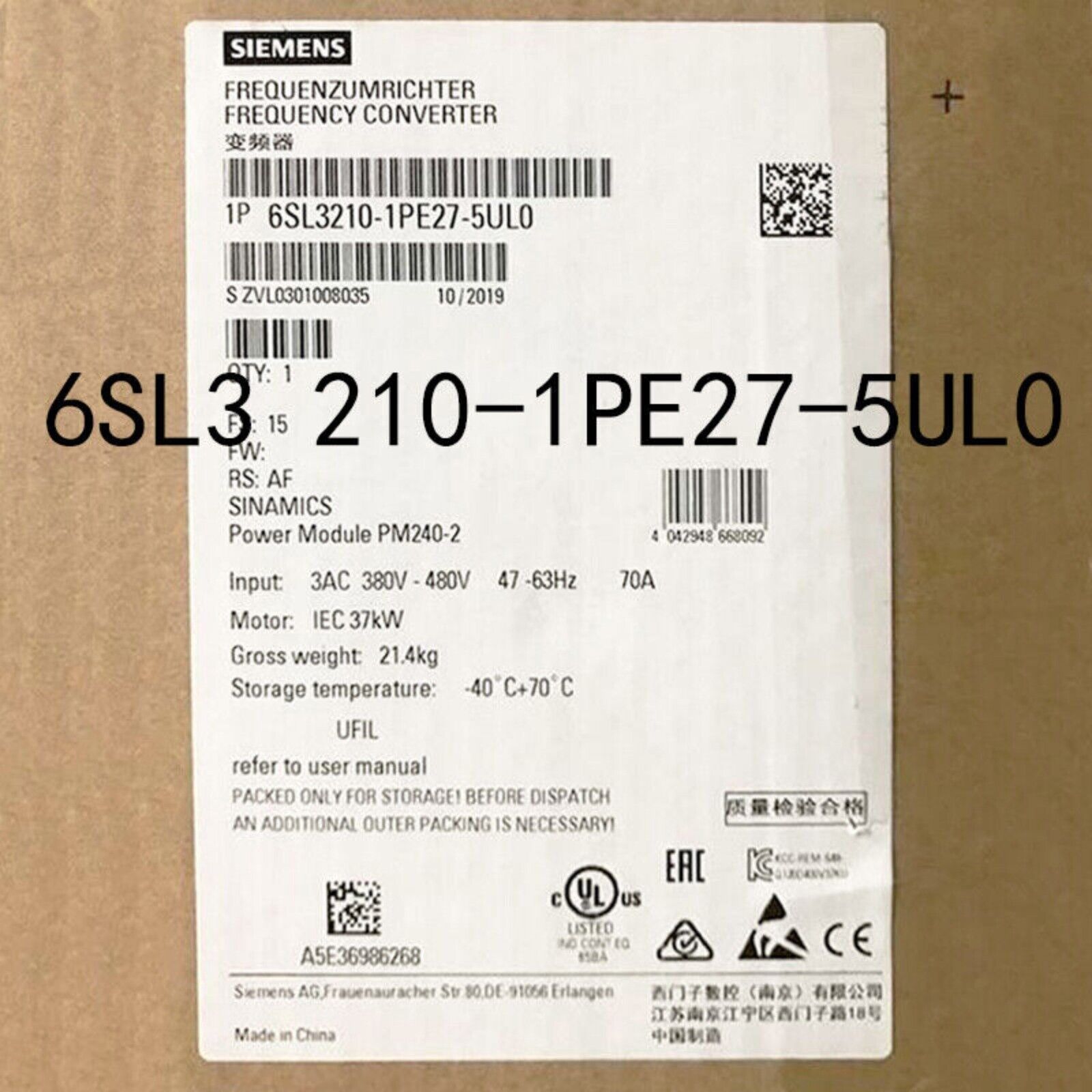

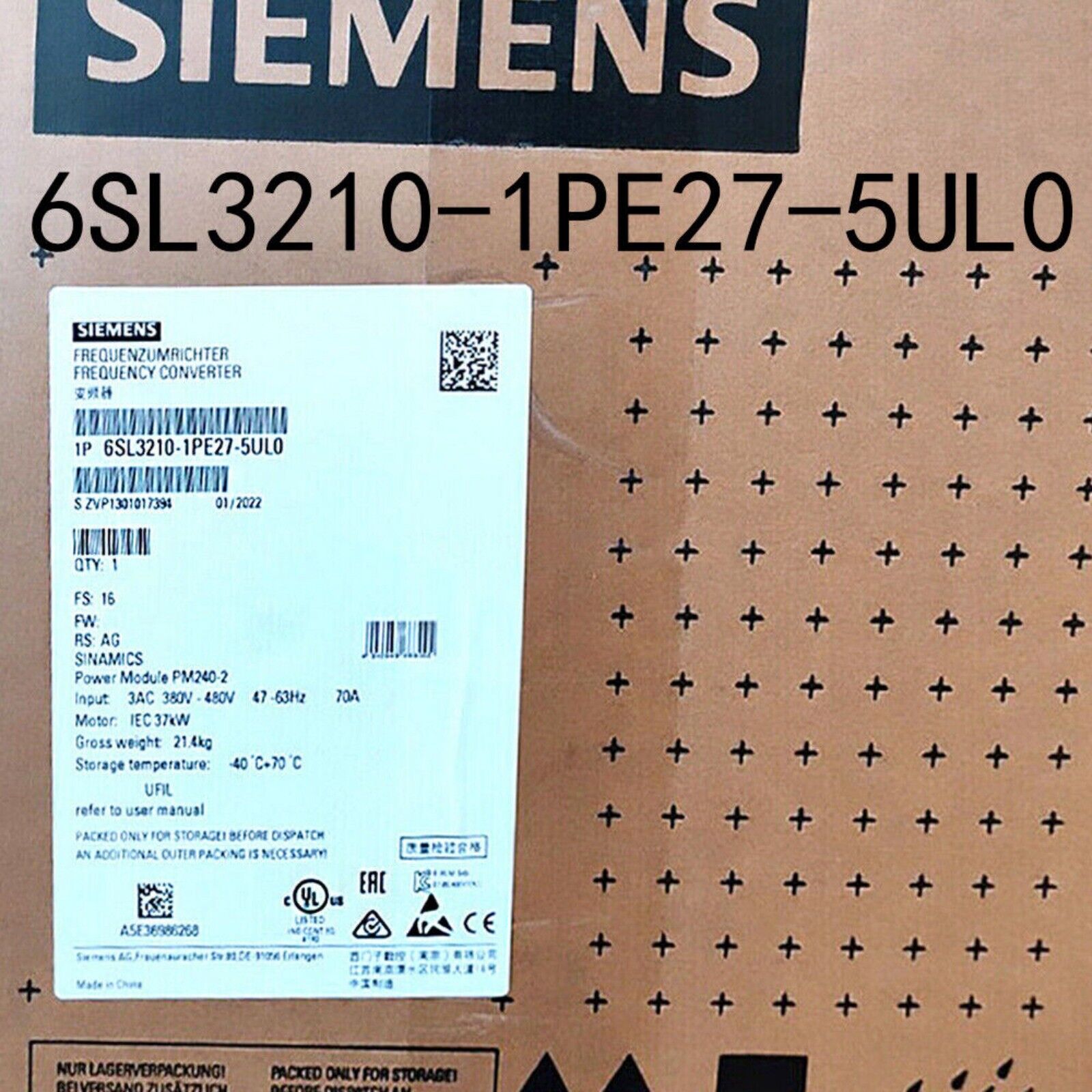

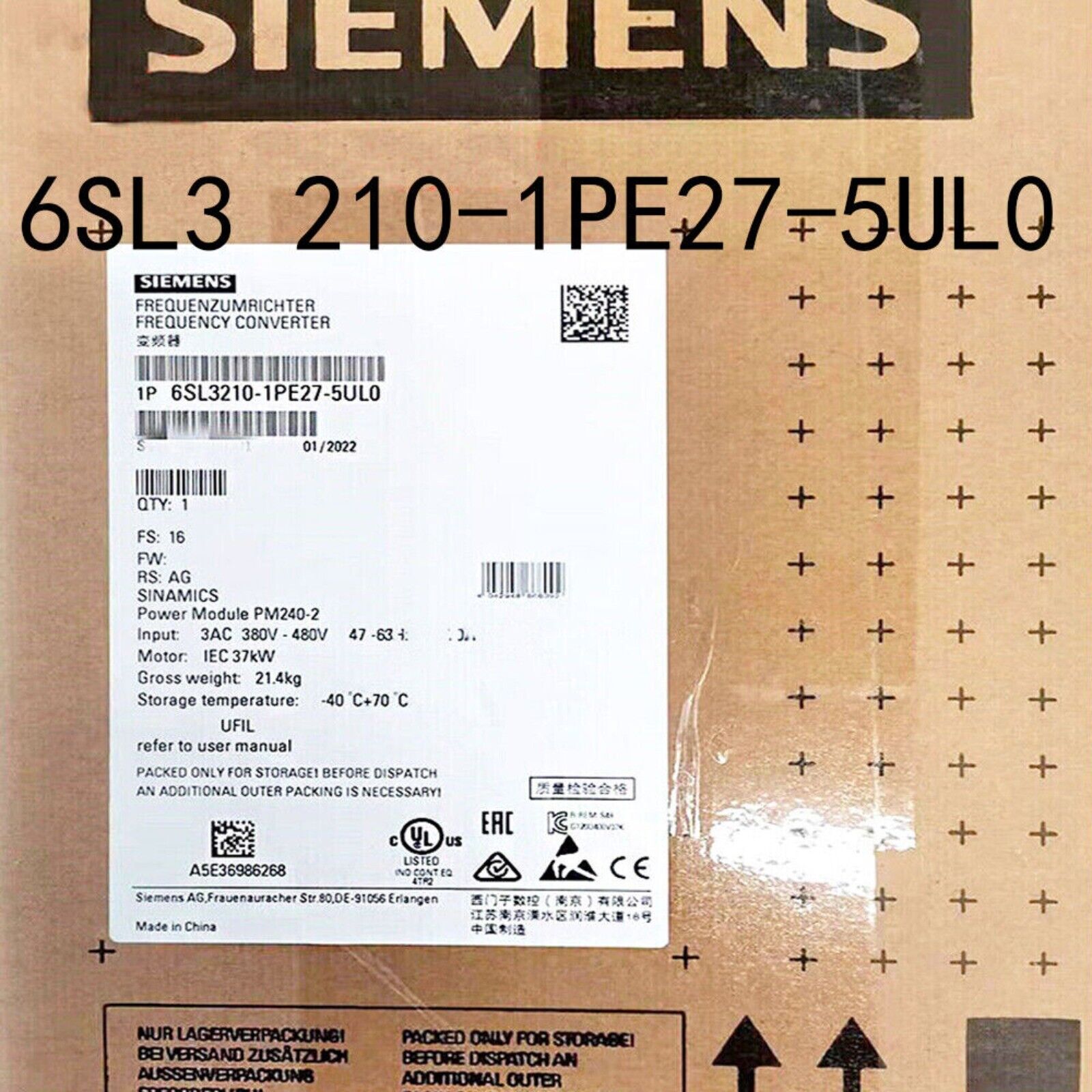

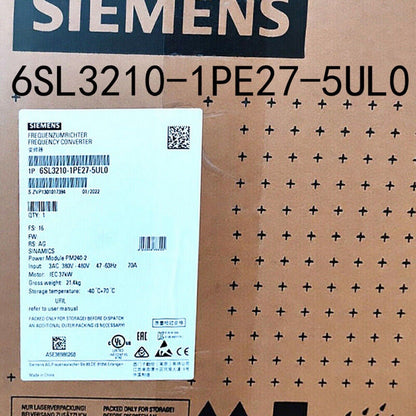

SINAMICS G120P | Siemens | 6SL3210-1PE27-5UL0 6SL3210-1PE27-5UL0 SINAMICS G120 POWER MODULE

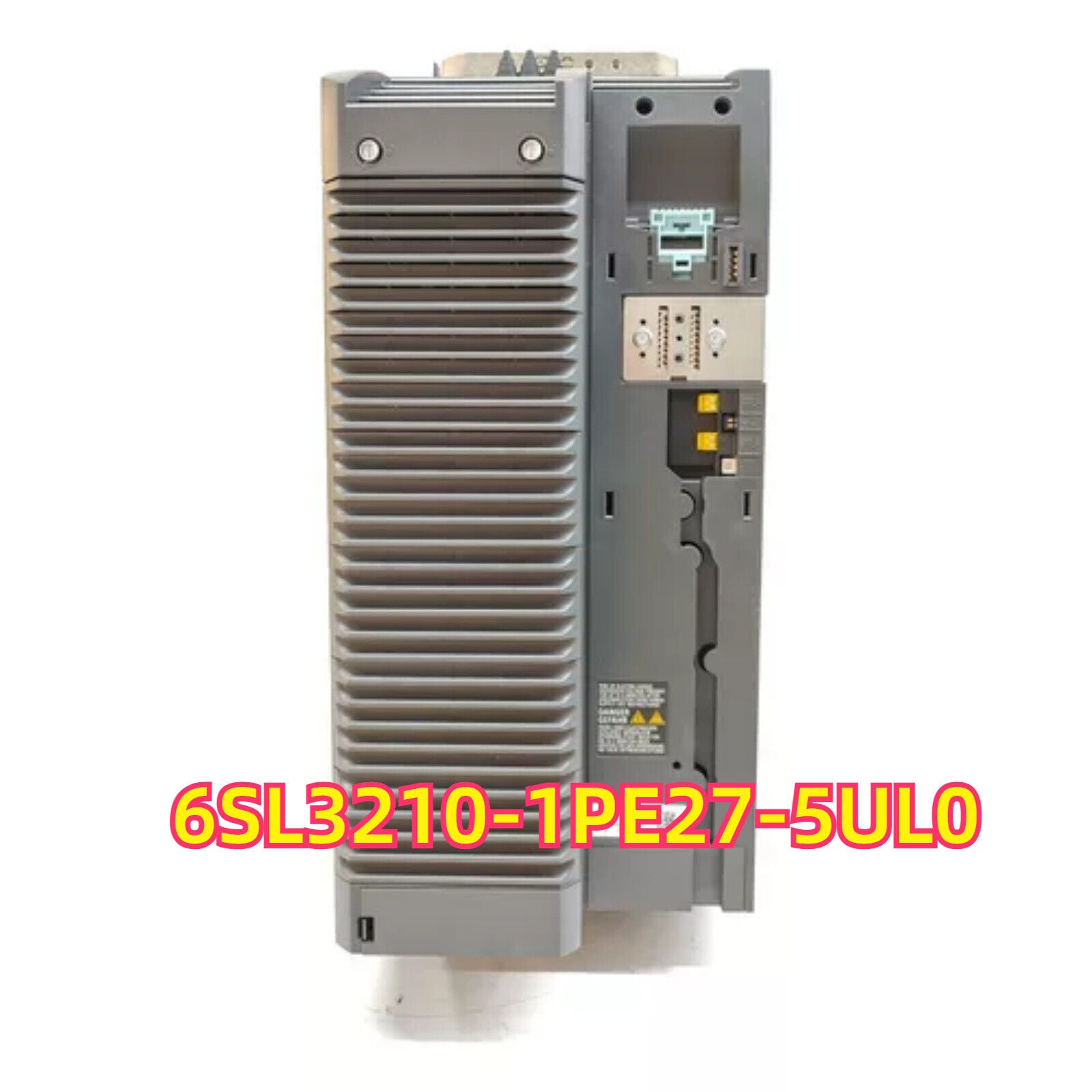

Product Description: Siemens 6SL3210-1PE27-5UL0

The Siemens 6SL3210-1PE27-5UL0 is a SINAMICS G120P frequency inverter engineered for energy-efficient control of pumps, fans, and compressors in HVAC and industrial process applications. It supports a 3-phase 380–480 V AC input and delivers a rated output of 75 kW with 136 A output current. Designed for ease of integration and long-term operation, the G120P offers advanced energy-saving features, integrated safety, and multiple communication options. Configuration is done via SINAMICS Startdrive in the TIA Portal.

Key Features

• Power Rating: 75 kW (100 HP)
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Current: 136 A
• Control Modes: V/f, V²/f, ECO mode optimized sensorless vector control
• Integrated Functions: Safe Torque Off (STO), energy monitoring, motor parameter identification
• Communication Options: RS485 (USS/Modbus RTU), PROFINET, BACnet (via optional modules)
• Cooling: Internal fan cooling with robust IP20 design
• Configuration: Via SINAMICS Startdrive or IOP-2 panel

Technical Specifications

• System Series: SINAMICS G120P
• Module Type: Frequency Inverter
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 75 kW
• Output Current: 136 A
• Control Methods: V/f, V²/f, Sensorless Vector Control
• Safety Functions: STO (Safe Torque Off)
• Communication Interfaces: RS485, optional PROFINET/BACnet
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 305 mm × 745 mm × 280 mm
• Operating Temperature Range: -10 °C to +50 °C (derating up to 60 °C)
• Certifications: CE, UL, cULus, EAC, RoHS

Application Areas

• Energy-efficient control of pumps and fans in HVAC systems
• Industrial processes involving variable load compressors
• Automation in infrastructure, utilities, and commercial buildings
• Water treatment plants, ventilation systems, and cooling towers

Advantages

• High-power capacity in a compact, modular design
• Optimized for fluid handling applications with ECO control
• Integrated safety and diagnostics enhance system protection
• Simple integration and fast commissioning using TIA Portal
