SINAMICS G120 | Siemens | 6SL3 210-1PE23-8UL0 6SL3210-1PE23-8UL0 SINAMICS G120 POWER MODULE

Product Description:

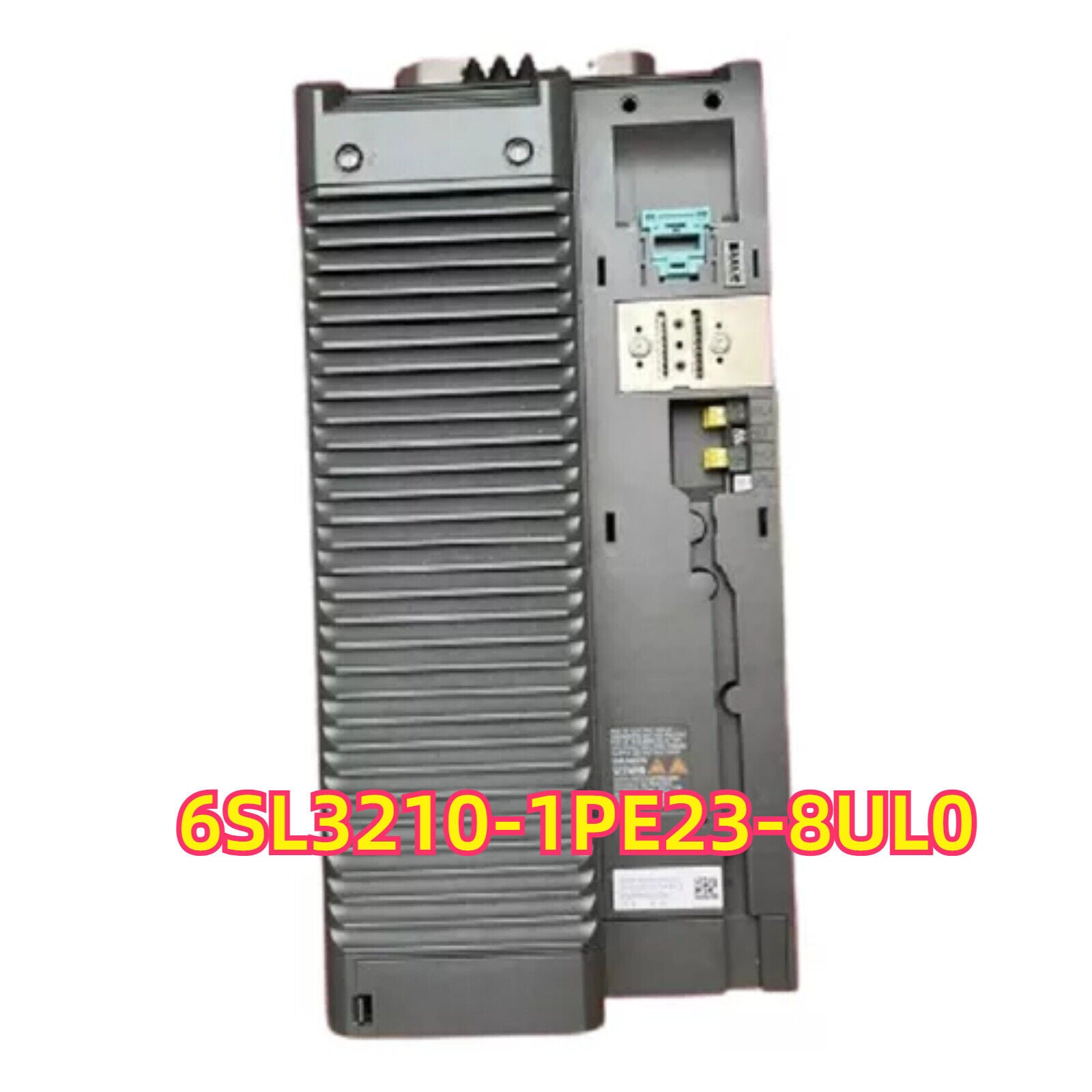

The Siemens 6SL3210-1PE23-8UL0 is a PM240-2 Power Module within the SINAMICS G120 drive system family, designed for high-efficiency, variable-speed motor control in industrial applications. This unit delivers 18.5 kW of output power and provides a rated output current of 38 A. It supports 3-phase input voltage from 380–480 V AC (±10%) at 47–63 Hz. The power module is built in frame size FSD and includes internal air cooling for compact and efficient thermal management. An integrated Class A line filter ensures EMC compliance for industrial environments. Compatible with SINAMICS G120 Control Units, this module supports scalable and modular automation solutions.

Technical Specifications:

Part Number: 6SL3210-1PE23-8UL0

Product Type: Power Module (PM240-2)

Output Power: 18.5 kW

Output Current: 38 A

Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz

Frame Size: FSD

Cooling Method: Internal air cooling

Integrated Line Filter: Yes (Class A)

Compliance: RoHS compliant

Product Lifecycle Status: Active

Net Weight: Approx. 12.5 kg

Country of Origin: Germany

EAN: 4019169456151

UPC: 887621270416

Applications:

Industrial drive systems requiring precise speed and torque control

Fans, pumps, compressors, conveyors, and material handling equipment

Environments requiring integrated EMC filtering for compliance

Advantages:

Compact design with high power output

Built-in Class A EMC filter simplifies panel integration

Internal cooling reduces need for external fans or ventilation

Fully compatible with G120 Control Units for flexible system integration
