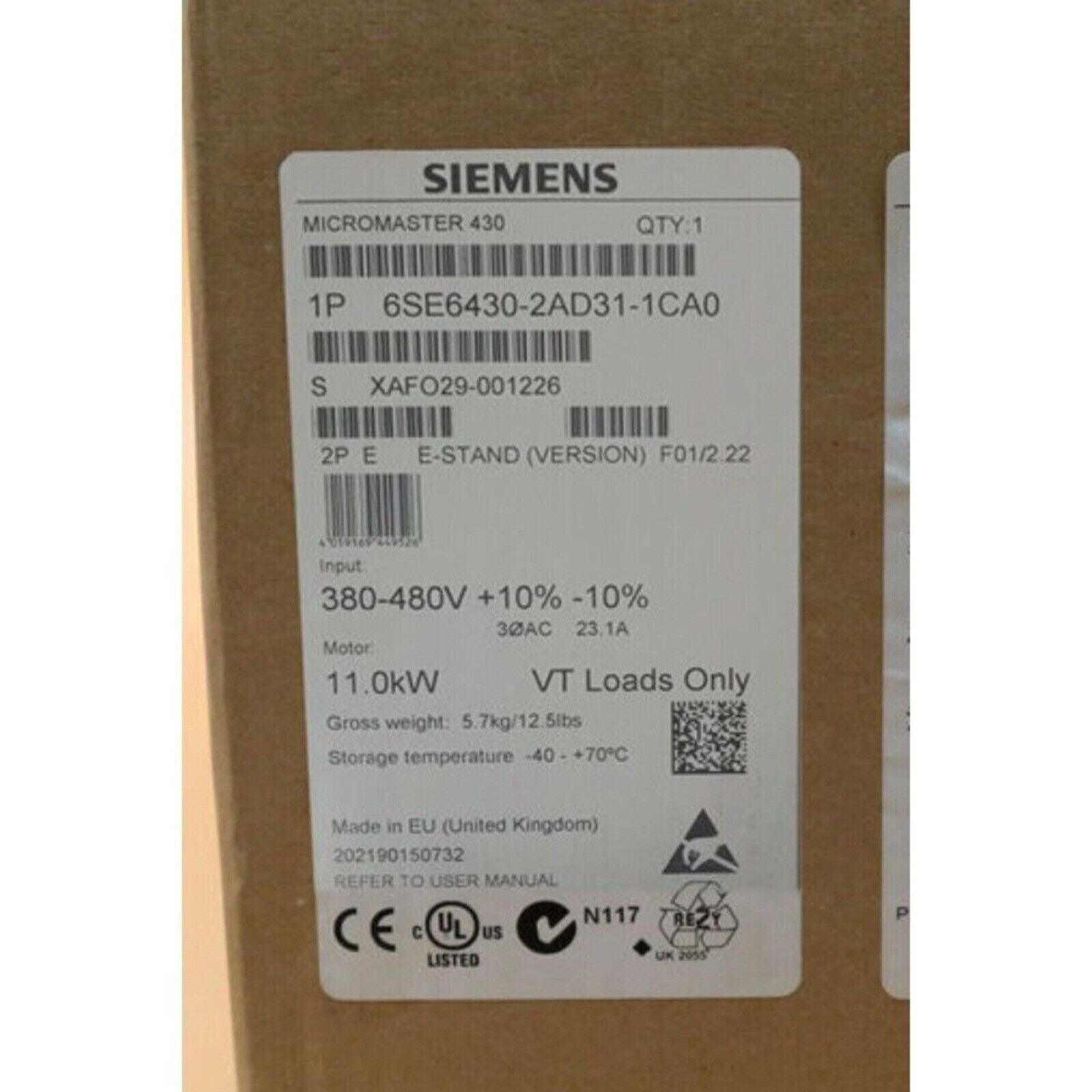

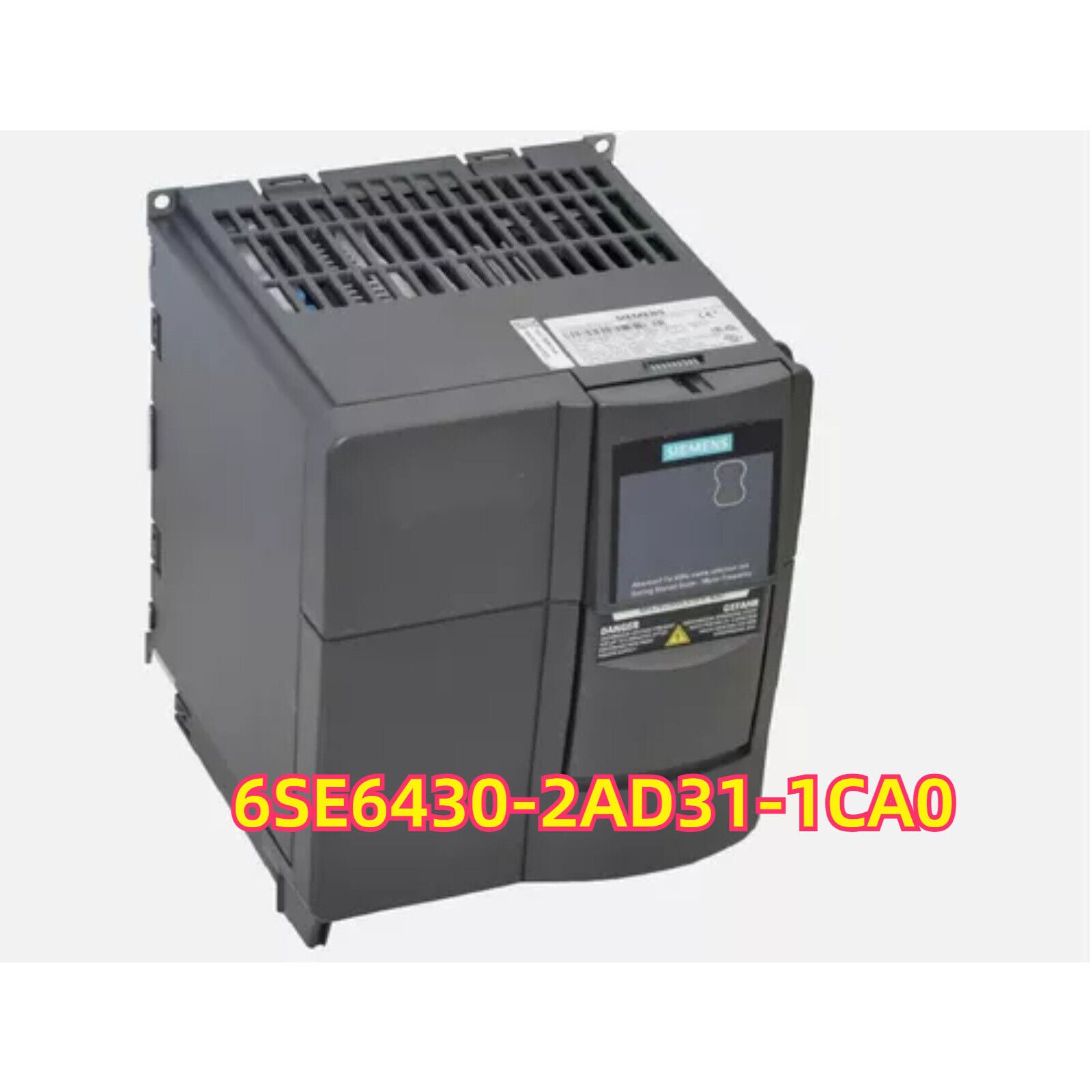

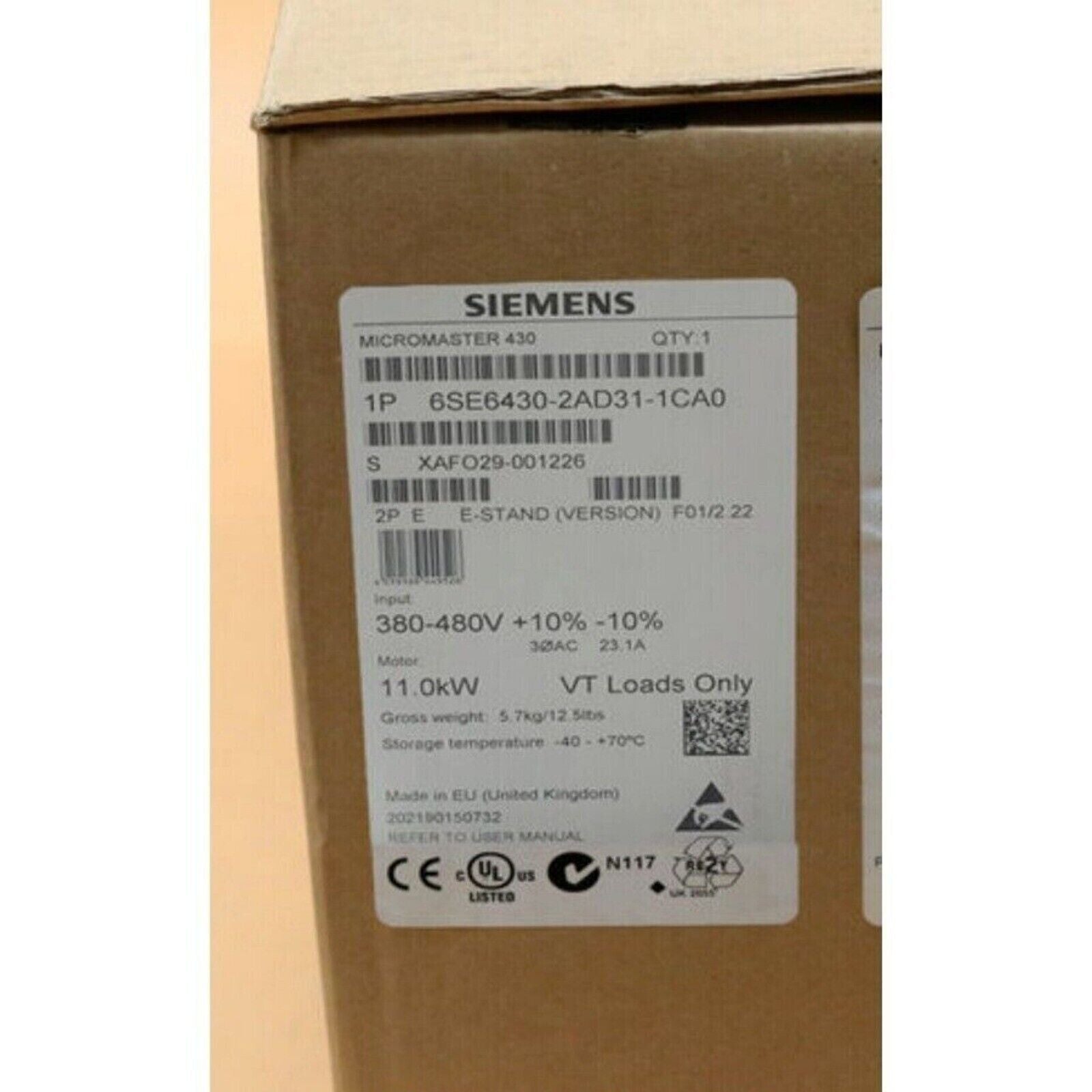

Product Description: Siemens 6SE6430-2AD31-1CA0 Frequency Inverter

The Siemens 6SE6430-2AD31-1CA0 is a frequency inverter from the SINAMICS G120 series, designed to provide reliable and efficient motor control in industrial applications. With a rated output power of 15 kW and an output current of 30 A, it operates on a 3-phase 380–480 V AC input. This inverter offers versatile control modes such as V/f and Sensorless Vector Control (SVC), making it suitable for various applications such as pumps, conveyors, fans, and compressors. It also supports integrated energy-saving functions and braking chopper capabilities.

Key Features

• Power Rating: 15 kW (approx. 20 HP)
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Current: 30 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Integrated Features: Braking chopper, energy-saving mode, motor parameter identification
• Interfaces: RS485 (USS/Modbus RTU), digital and analog I/O
• Cooling: Internal fan cooling with compact IP20 housing
• Configuration: Via SINAMICS Startdrive in TIA Portal or IOP/IOP-2 panel

Technical Specifications

• System Series: SINAMICS G120
• Module Type: Frequency Inverter
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 15 kW
• Output Current: 30 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Communication Interface: RS485 (USS/Modbus RTU), I/O
• Braking Unit: Integrated
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 149 mm × 184 mm × 150 mm
• Operating Temperature Range: -10 °C to +50 °C (derating above +40 °C)
• Certifications: CE, UL, cULus, RoHS

Application Areas

• Speed-controlled drives for conveyors, pumps, and compressors
• Industrial applications requiring reliable motor control
• OEM machine control for manufacturing and processing systems
• Applications with regenerative braking and energy-saving features

Advantages

• High-efficiency motor control with integrated braking functionality
• Compact design for easy integration in space-constrained environments
• Reliable operation with easy setup using TIA Portal or operator panel
• Flexible and scalable drive solution with multiple communication options
