Drive | Siemens | 6SE6400-0AP00-0AA1 6SE6 400-0AP00-0AA1 Advanced Operator Panel

Product Description: Siemens 6SE6400-0AP00-0AA1

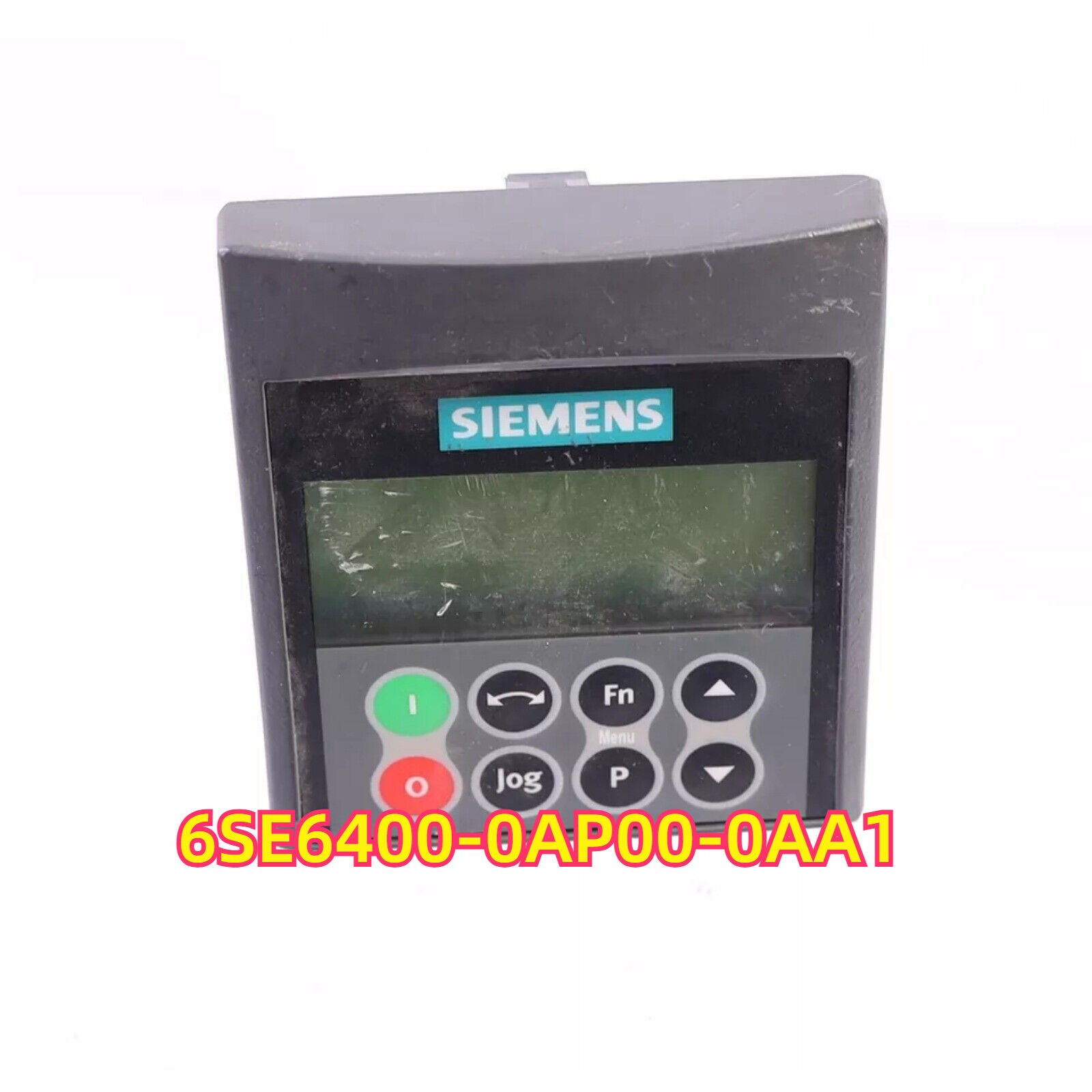

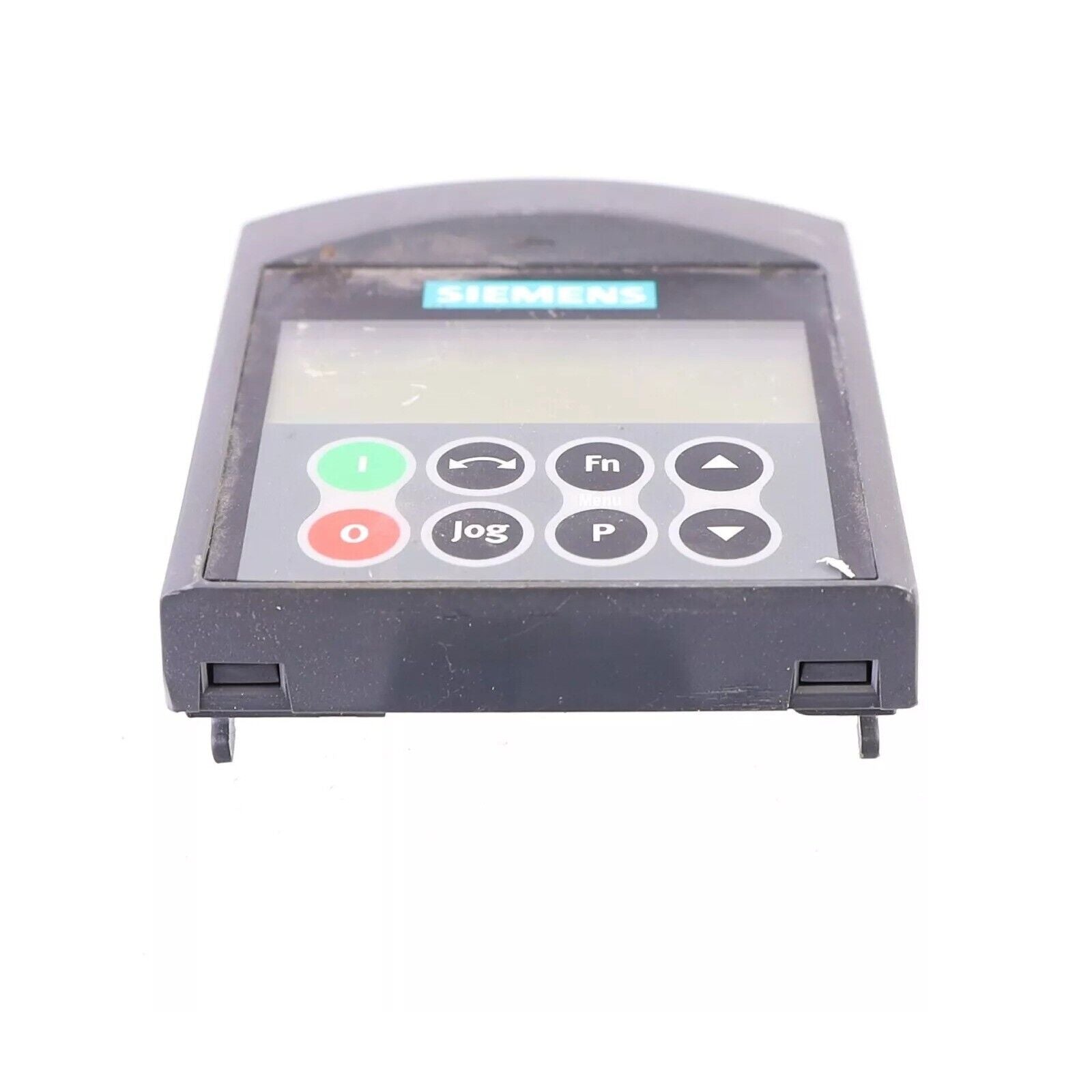

The Siemens 6SE6400-0AP00-0AA1 is an Advanced Operator Panel (AOP) designed for use with the MICROMASTER 4 series frequency inverters, including MICROMASTER 420, 430, and 440. Unlike the Basic Operator Panel (BOP), the AOP features a multi-line backlit LCD and alphanumeric display, enabling full-text messages, parameter descriptions, and enhanced navigation. It provides advanced functionality for commissioning, monitoring, diagnostics, and direct control of the drive, making it suitable for complex setup and maintenance tasks.

Key Features

• Multi-line backlit LCD with full-text alphanumeric display
• Intuitive menu structure with navigation keys and softkeys
• Supports multilingual parameter display
• Parameter read/write, fault diagnosis, status display, motor control
• Pluggable directly into the drive or panel-mount with accessories
• Compatibility with all MICROMASTER 4 series drives (420/430/440)

Technical Specifications

• Product Type: Advanced Operator Panel (AOP)
• Display Type: LCD, backlit, multi-line
• Interface: RS485 (integrated with MICROMASTER)
• Mounting Type: Plug-in or remote mounting
• Control Functions: Start/Stop, Speed Control, Parameterization
• Power Supply: Powered via the drive connection
• Dimensions (W × H × D): Approx. 90 mm × 35 mm × 25 mm
• Operating Temperature Range: 0 °C to +50 °C
• Protection Class: IP20 (higher with optional housing)
• Certifications: CE, cULus

Application Areas

• Commissioning and parameterization of MICROMASTER drives
• Drive diagnostics and fault resolution in industrial settings
• Operator interface for field-level control and monitoring
• Enhanced local access to drive parameters and operation

Advantages

• Full-text display improves usability and reduces training time
• Multilingual support for global deployment
• Advanced diagnostics and parameter access simplify maintenance
• Compatible with all drives in the MICROMASTER 4 series
