Product Description: Siemens 6SE6420-2AB13-7AA1

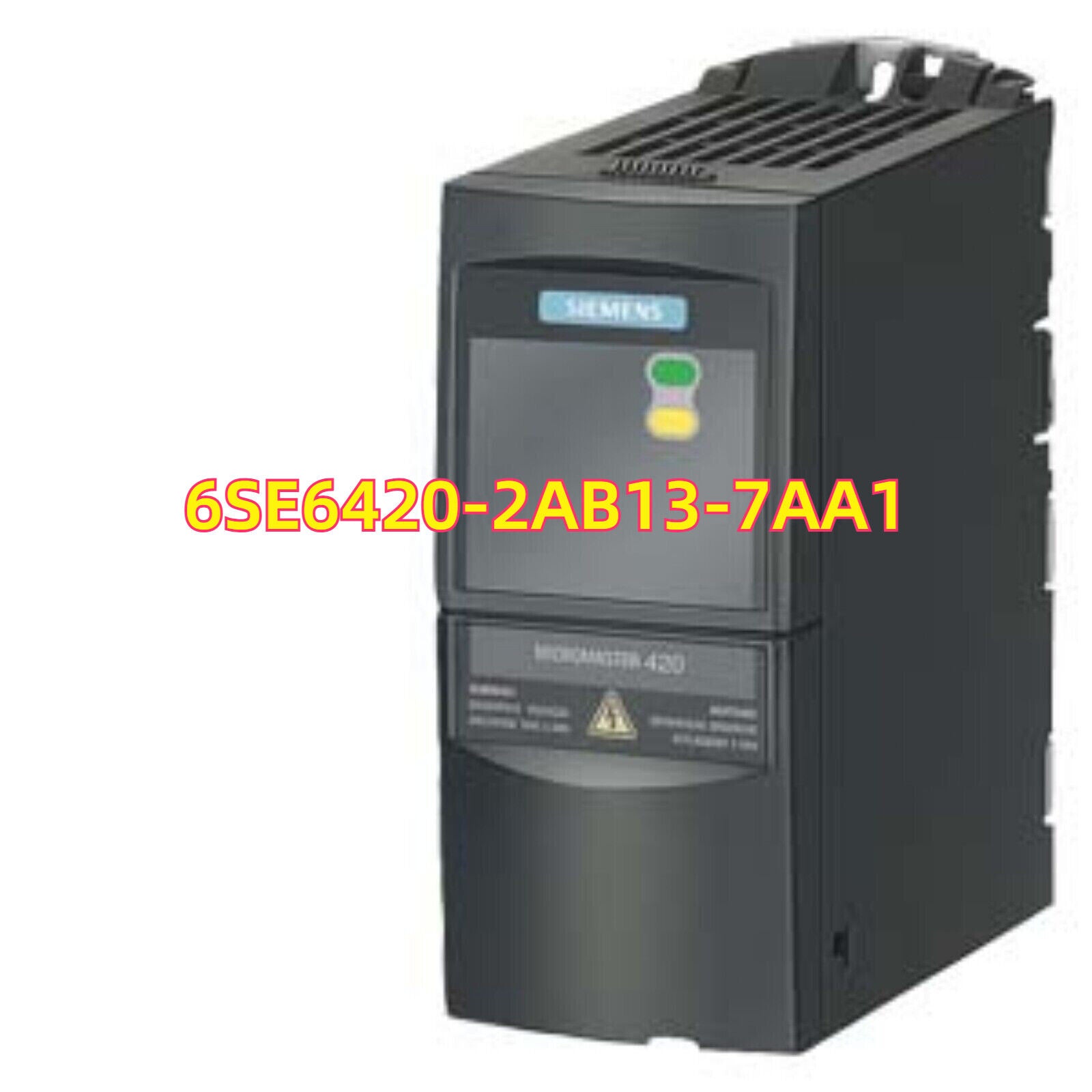

The Siemens 6SE6420-2AB13-7AA1 is a MICROMASTER 420 frequency inverter designed for controlling 3-phase motors in industrial applications. With a rated output power of 7.5 kW and a current rating of 15 A, this inverter operates on a 3-phase 380–480 V AC input. The MM420 offers versatile control methods, including V/f and Sensorless Vector Control (SVC), providing reliable motor control for applications such as pumps, fans, conveyors, and compressors. It includes integrated braking chopper functionality and energy- saving features.

Key Features

• Power Rating: 7.5 kW (approx. 10 HP)
• Input Voltage: 3AC 380–480 V ±10%, 47–63 Hz
• Output Current: 15 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Integrated Features: Braking chopper, motor parameter identification, energy- saving functions
• Interfaces: RS485 (USS/Modbus RTU), digital and analog I/O
• Cooling: Internal fan cooling with compact IP20 housing
• Configuration: Via keypad, STARTER software, or optional operator panel

Technical Specifications

• System Series: MICROMASTER 420
• Module Type: Frequency Inverter
• Input Voltage: 3AC 380–480 V ±10%
• Output Power: 7.5 kW
• Output Current: 15 A
• Control Methods: V/f, Sensorless Vector Control (SVC)
• Communication Interface: RS485 (USS/Modbus RTU), I/O
• Braking Unit: Integrated
• Cooling Method: Internal fan
• Protection Class: IP20
• Dimensions (W × H × D): Approx. 149 mm × 184 mm × 150 mm
• Operating Temperature Range: -10 °C to +50 °C (derating above +40 °C)
• Certifications: CE, UL, cULus, RoHS

Application Areas

• Speed-controlled drives for fans, pumps, and compressors
• Conveyor systems and material handling equipment
• General-purpose motor control in manufacturing and processing systems
• OEM machine control for varied industrial applications

Advantages

• Compact design with high-efficiency performance
• Versatile control modes for different motor types
• Integrated braking functionality for dynamic load applications
• Easy commissioning and configuration using STARTER or optional operator panel
