SINUMERIK 810D/DE & 840D/DE | Siemens | 6FC5210-0DF22-2AA0 6FC5 210-0DF22-2AA0 SINUMERIK PCU 50 1.2 GHz

Product Description: Siemens 6FC5210-0DF22-2AA0

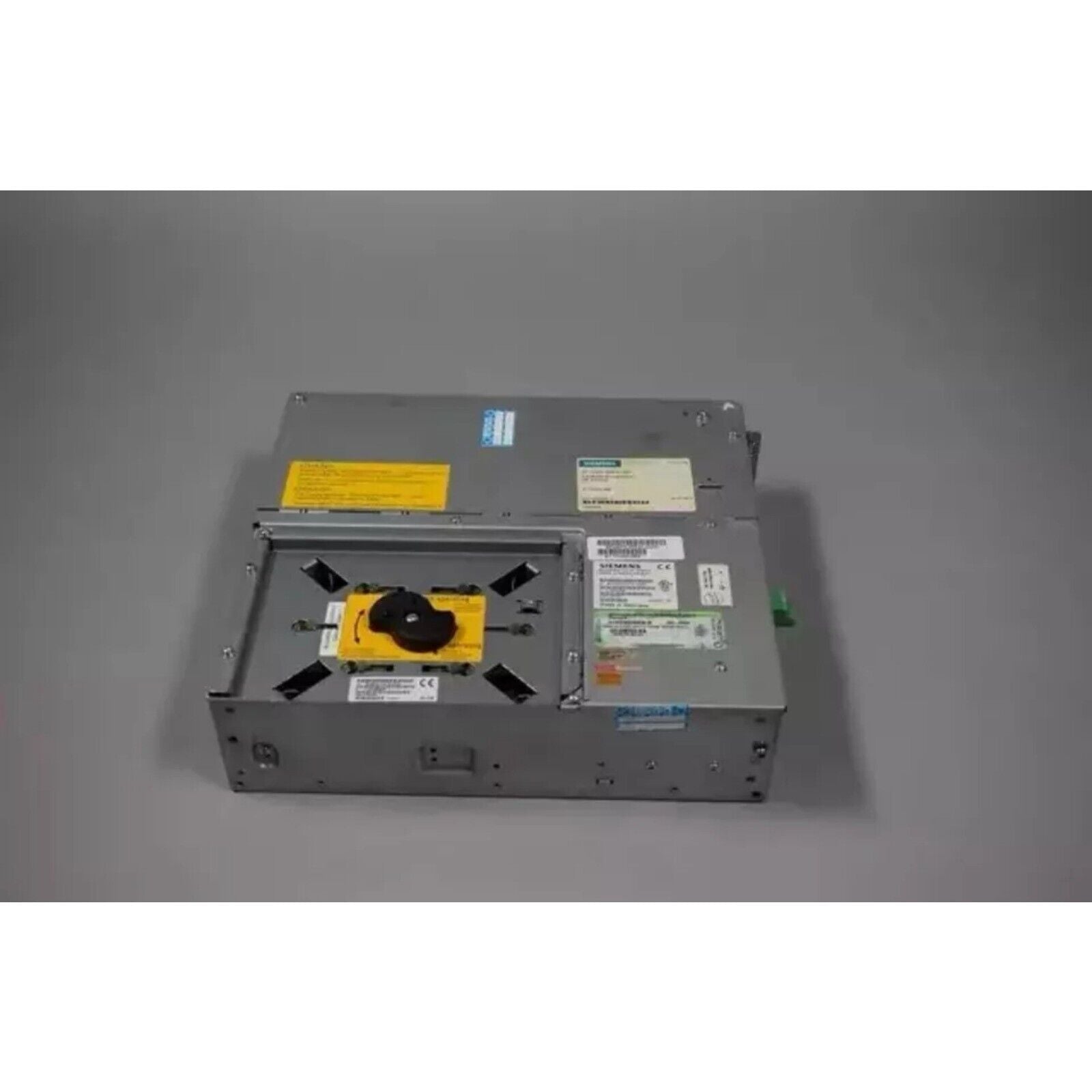

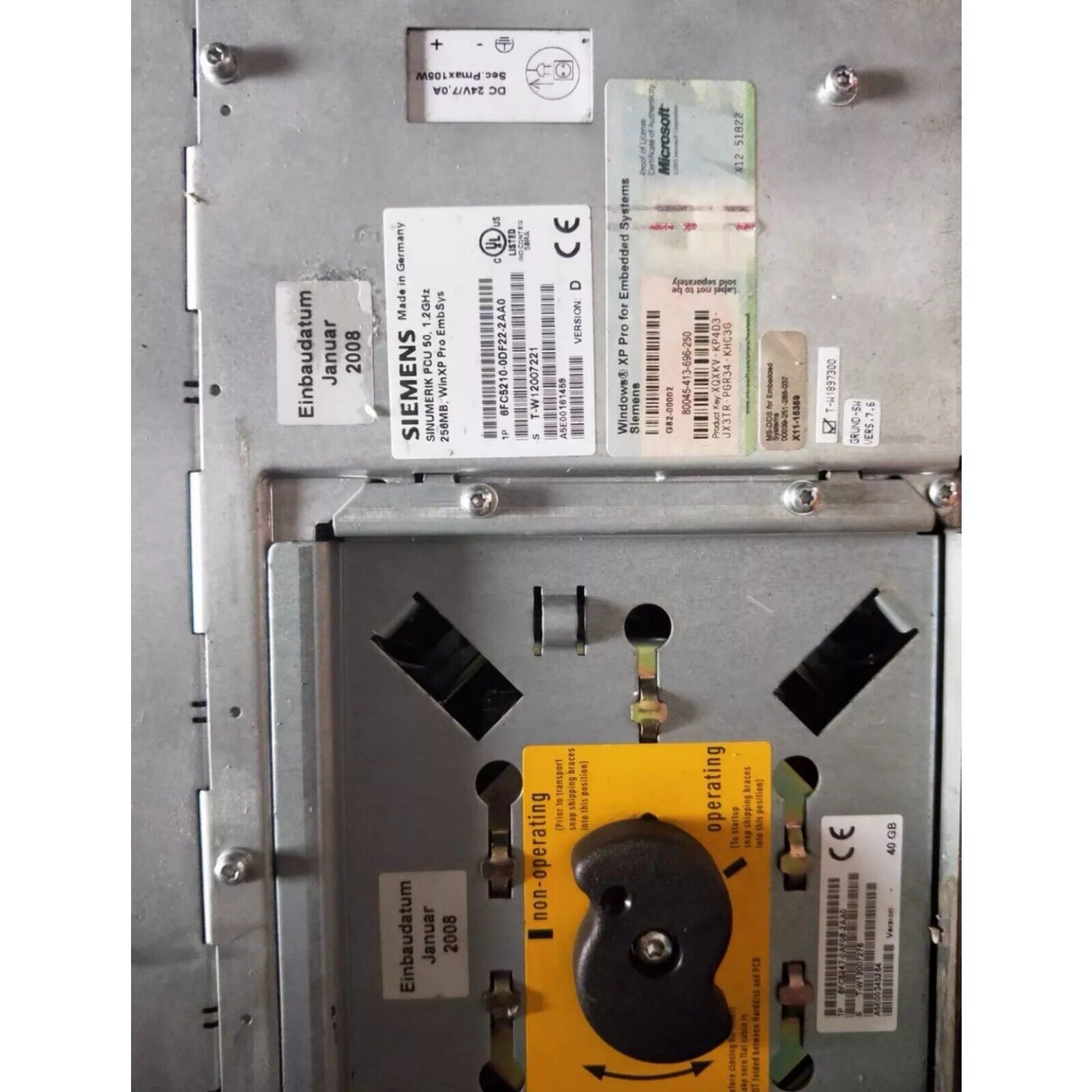

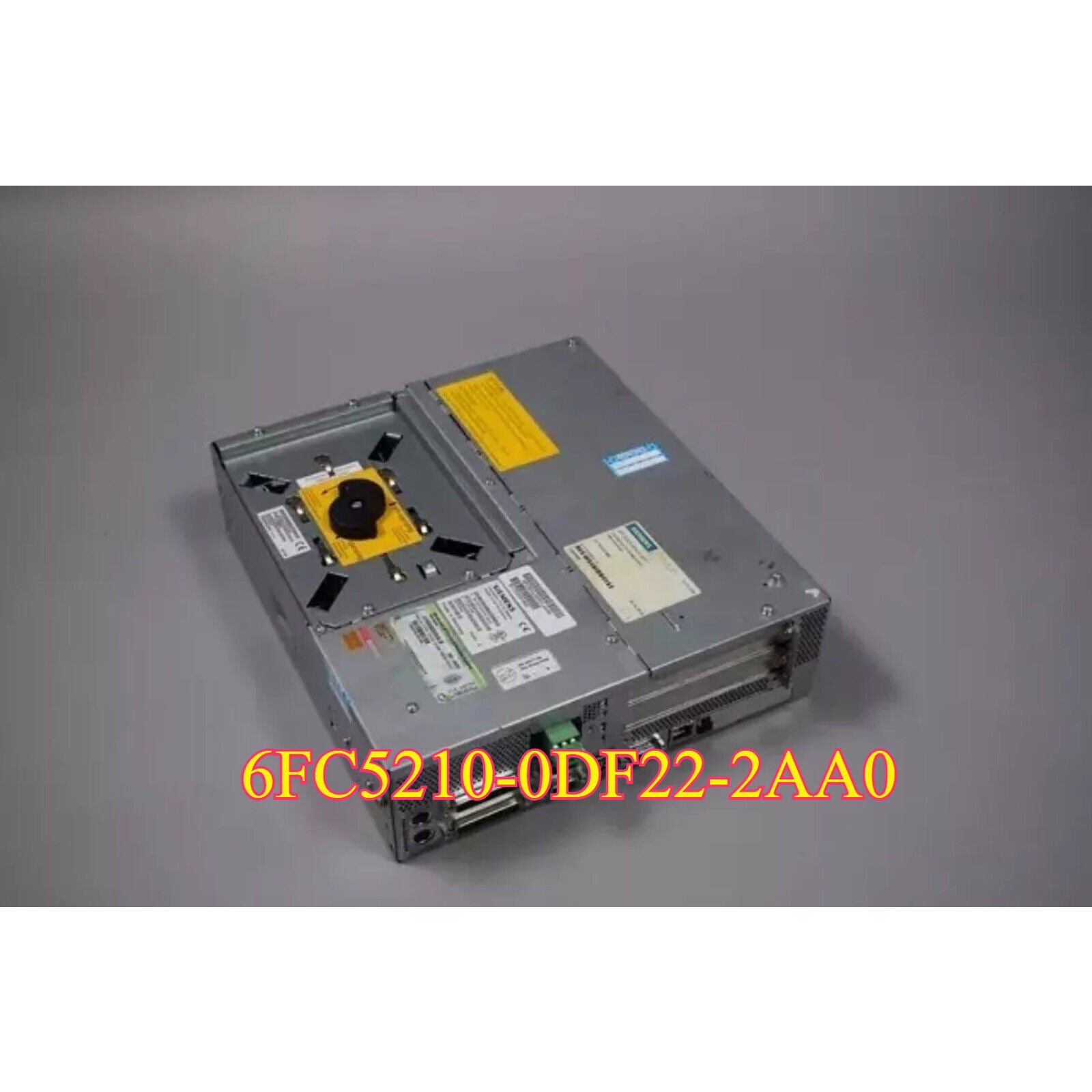

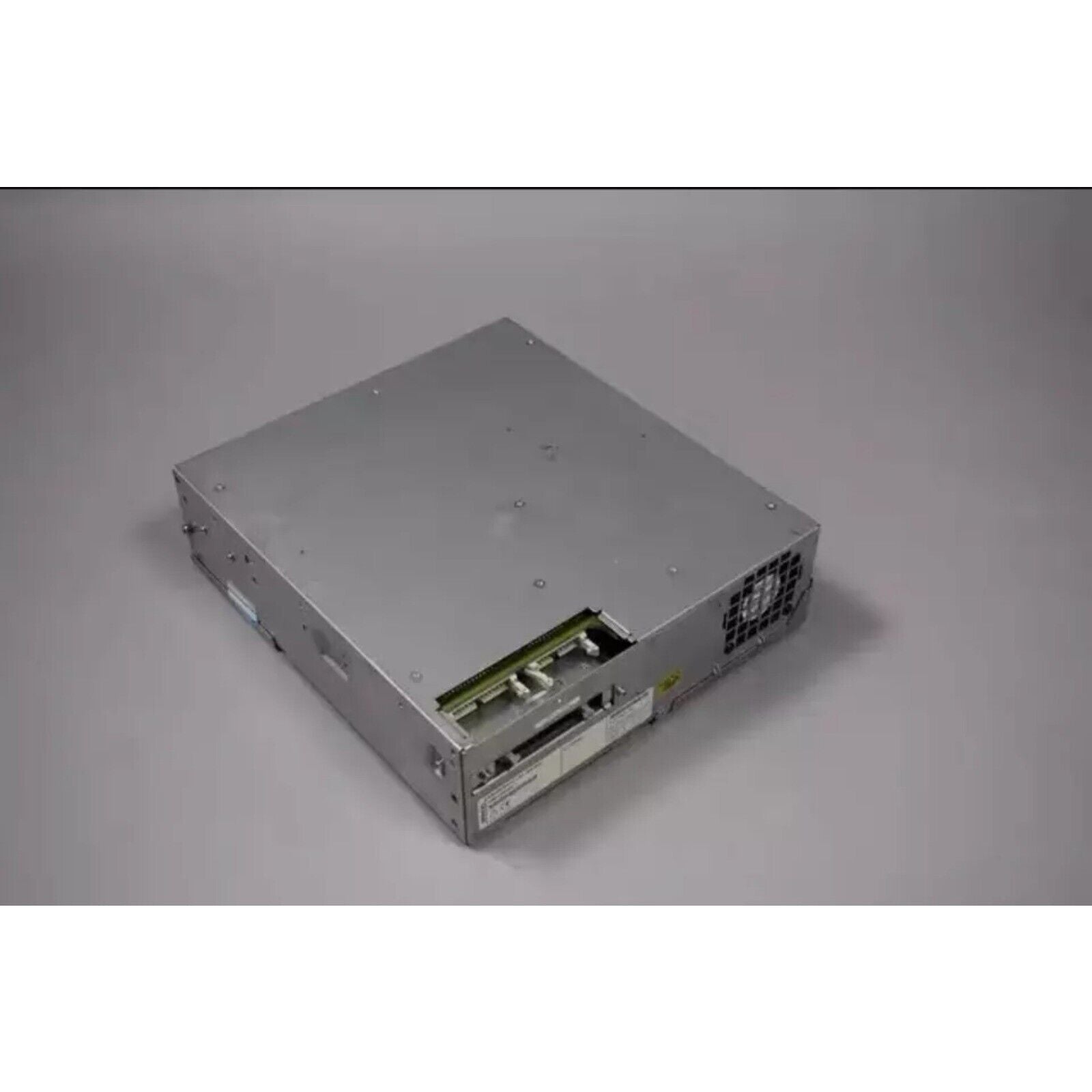

The Siemens 6FC5210-0DF22-2AA0 is a compact electronic control unit in the SINUMERIK PCU 50.3 series, optimized for CNC machine tool applications. Equipped with an Intel Pentium M PM720 processor at 1.4 GHz and 512 MB of DRAM, it delivers reliable performance for real-time control of axes, PLC logic, and HMI tasks. The unit runs Windows XP Embedded to ensure stability and compatibility with SINUMERIK system software. Designed for DIN- rail mounting in control cabinets, it supports robust 24 V DC power and interfaces seamlessly with drives, I/O and operator panels.

Key Features

• CPU Module: Intel Pentium M PM720, 1.4 GHz
• Memory: 512 MB DRAM for CNC kernel, PLC and HMI applications
• Operating System: Windows XP Professional for Embedded Systems
• Power Supply: 24 V DC logic supply
• Compatibility: SINUMERIK 810D/DE and 840D/DE control systems
• Application: CNC machine control including motion, PLC and HMI integration

Technical Specifications

• Processor: Intel Pentium M PM720, 1.4 GHz
• System RAM: 512 MB DRAM
• NC Program Memory: 3 MB onboard
• PLC Work Memory: 128 KB
• Operating System: Windows XP Embedded
• Supply Voltage: 24 V DC
• Mounting: DIN-rail, IP20
• Dimensions (W × H × D): 125 mm × 125 mm × 80 mm
• Weight: ≈ 3.5 kg
• Ambient Operating Temperature: 0 °C … +55 °C
• Communication Interfaces: DRIVE-CLiQ, PROFIBUS DP via optional module
• Diagnostics: LED indicators for power, status, fault

Application Areas

• CNC machining centers for milling, turning and grinding
• Integration into SINUMERIK 810D/DE and 840D/DE control cabinets
• Real-time control of multi-axis motion, PLC logic and HMI operations
• Retrofitting older SINUMERIK systems with modern control hardware

Advantages

• Balanced Performance: 1.4 GHz CPU with 512 MB RAM meets moderate to high CNC demands
• Embedded Stability: Windows XP Embedded ensures reliable operation in harsh industrial settings
• Seamless Integration: DRIVE- CLiQ and PROFIBUS DP compatibility streamlines connectivity to drives and I/O
• Compact & Robust: DIN-rail form factor and IP20 housing conserve space and protect electronics
• Easy Maintenance: Front-panel LEDs and standardized form factor enable quick diagnostics and replacement
