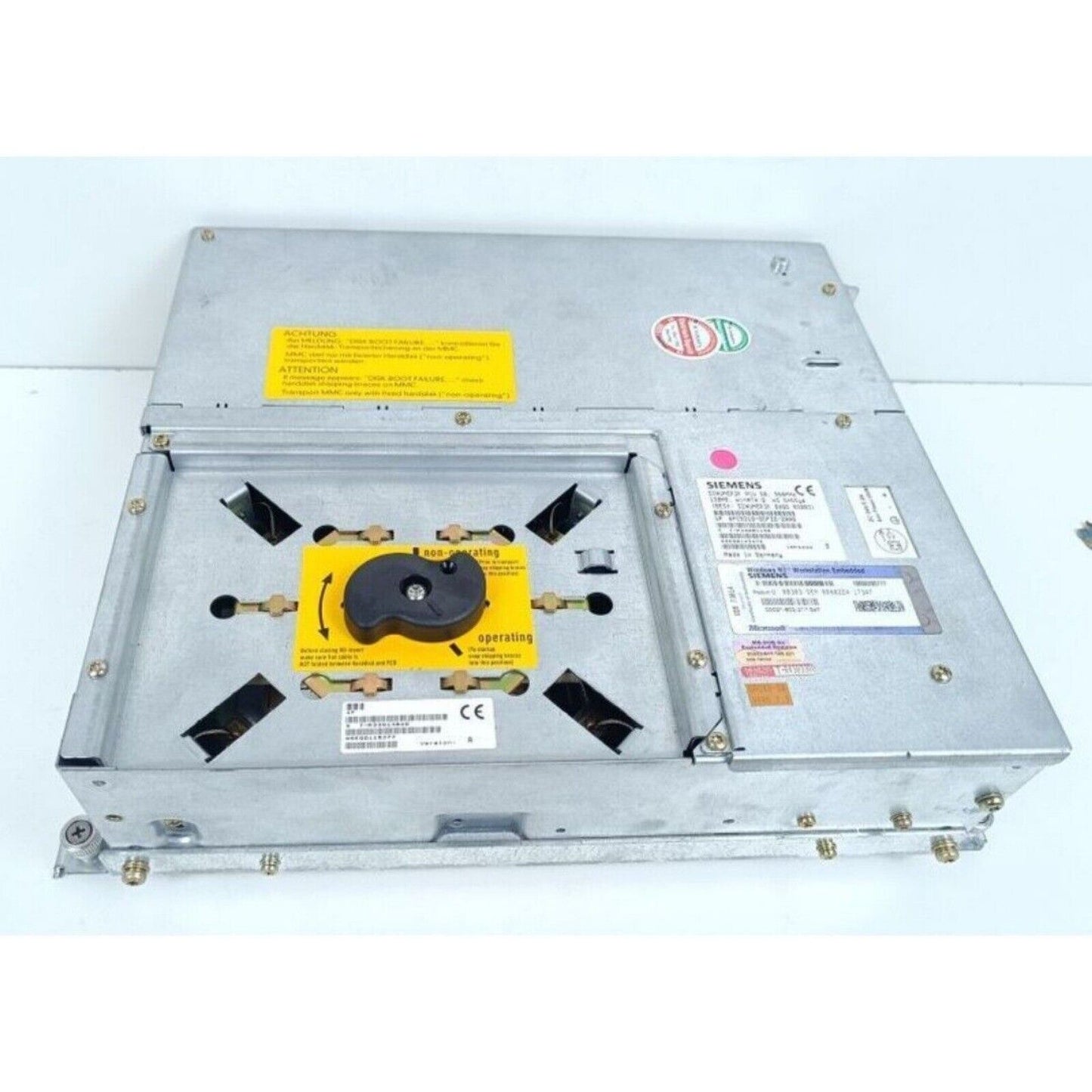

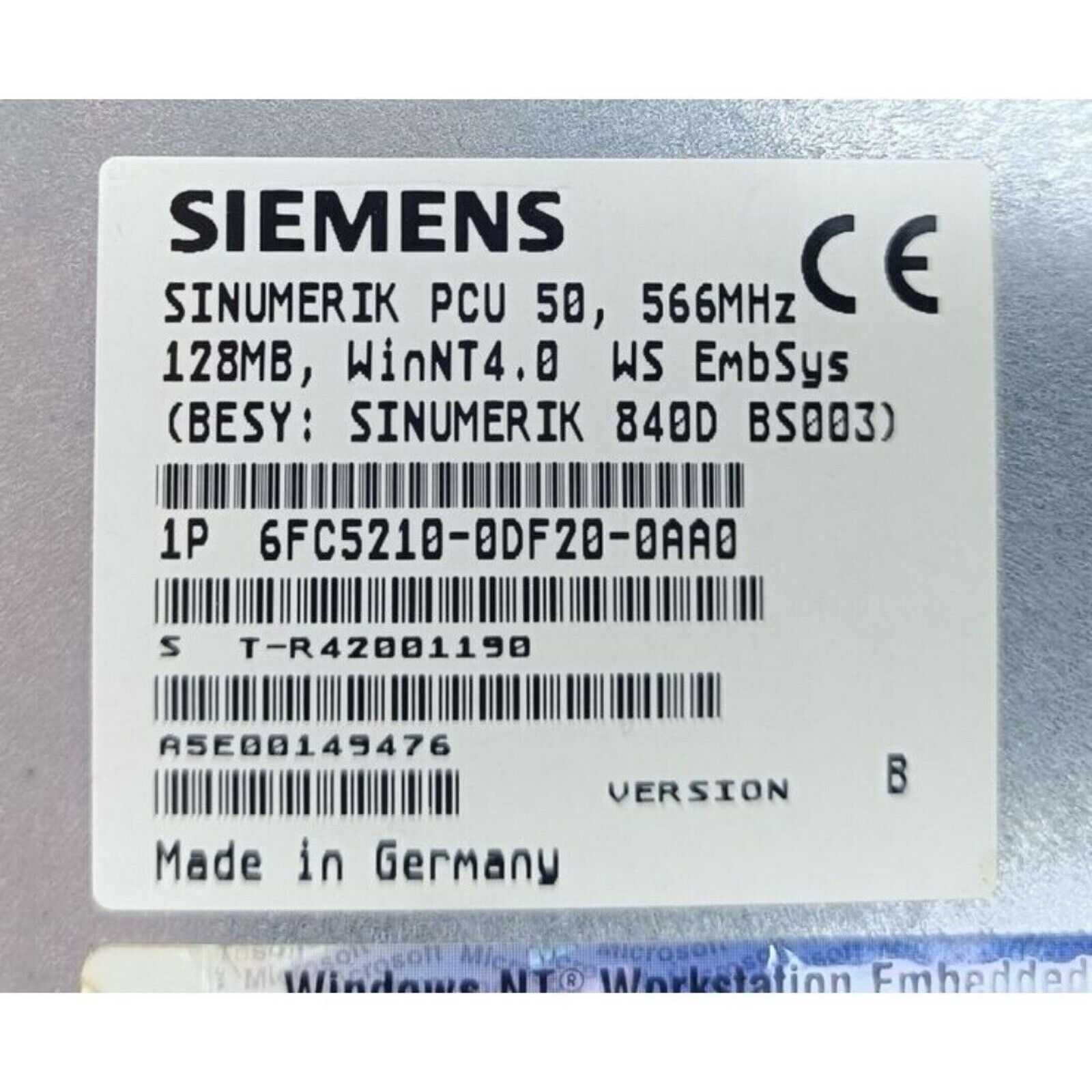

SINUMERIK | Siemens | 6FC5210-0DF20-0AA0 6FC5 210-0DF20-0AA0 SINUMERIK PCU 50 566 MHz

Product Description: Siemens 6FC5210-0DF20-0AA0

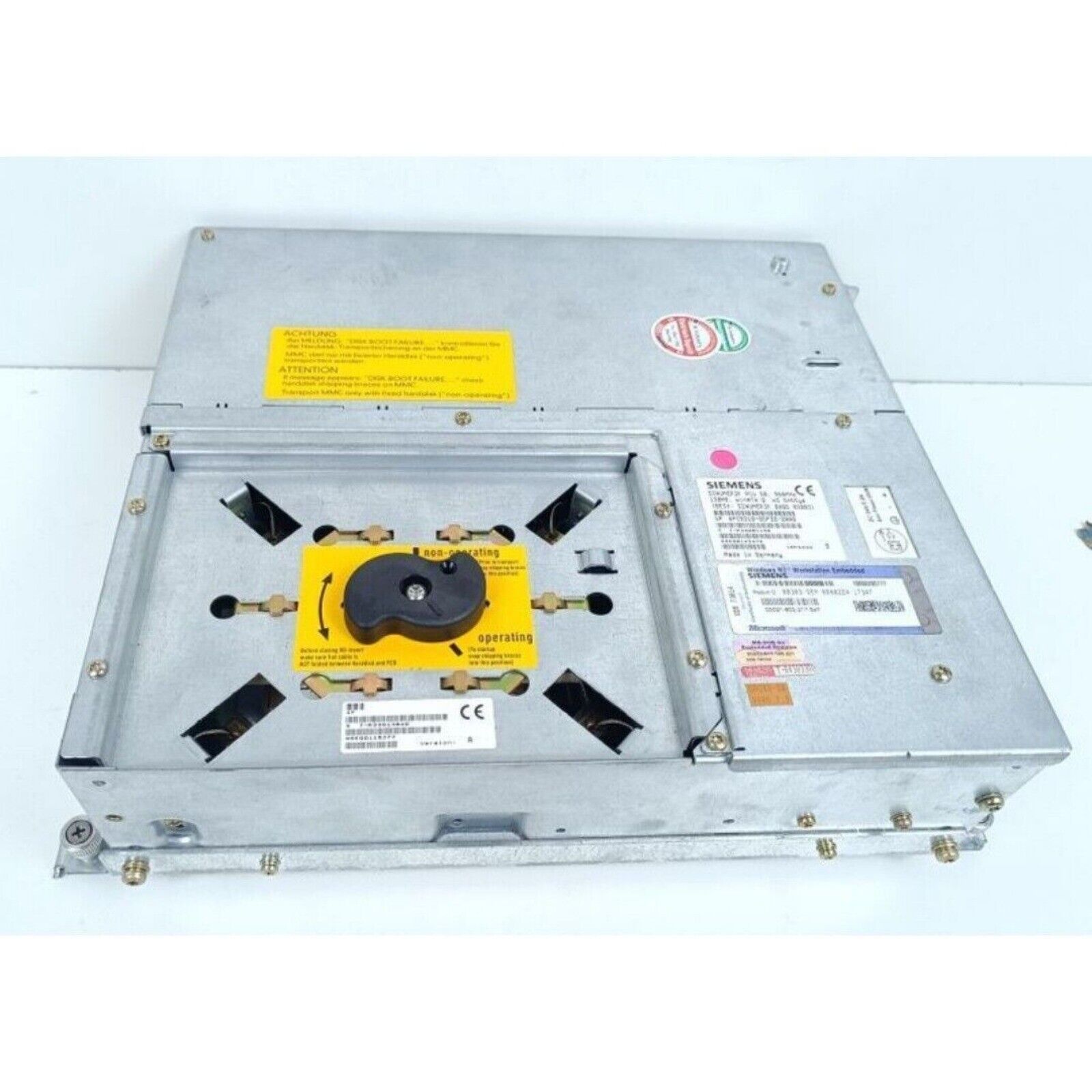

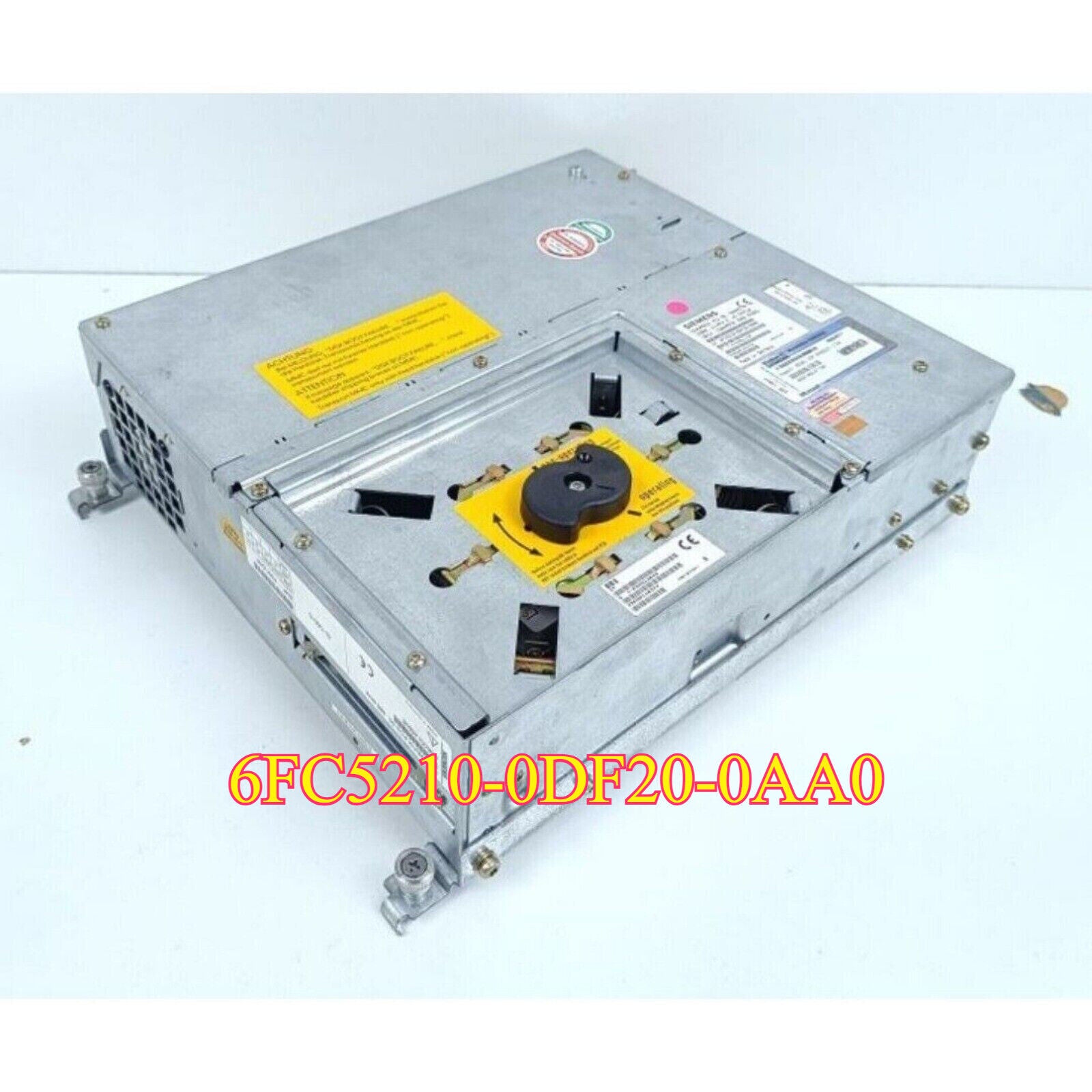

The Siemens 6FC5210-0DF20-0AA0 is a PCU 50.3 (Panel Control Unit) from the SINUMERIK system family, designed as a central control and operator interface for CNC applications. It integrates computing power, display output, and connectivity in one compact industrial PC. Typically paired with SINUMERIK operator panels (such as OP 012 or OP 015), this unit enables high-performance motion control, visualization, and CNC programming in machine tools and production systems. It includes a pre-installed Windows Embedded operating system and interfaces for communication with drive and control components.

Key Features

• Processor: Intel Celeron M, fanless design
• RAM: 1 GB DDR2 (expandable)
• Storage: CompactFlash card (typically 1–2 GB pre- installed)
• Interfaces: Ethernet, USB, serial (RS232), DVI for external display
• Operating System: Windows XP Embedded or equivalent
• Mounting: Panel or cabinet mounting, fanless and ruggedized

Technical Specifications

• System Series: SINUMERIK
• Device Type: PCU 50.3 (Panel Control Unit)
• CPU: Intel Celeron M
• RAM: 1 GB DDR2
• Storage: CompactFlash slot
• Display Output: DVI interface
• Communication Ports: 2 × Ethernet, 2 × USB, 1 × RS232
• Operating System: Windows XP Embedded
• Power Supply: 24 V DC
• Dimensions (W × H × D): Approx. 262 mm × 190 mm × 58 mm
• Operating Temperature Range: 0 °C to +50 °C
• Protection Class: IP20
• Certifications: CE, cULus

Application Areas

• CNC control for turning, milling, grinding, and laser machines
• High-speed data processing in SINUMERIK 840D/810D environments
• Panel-based machine control in metalworking and advanced manufacturing
• Integrated control and visualization in production systems

Advantages

• Compact and robust design with fanless cooling
• Compatible with SINUMERIK operator panels and HMI solutions
• Real-time processing for motion and CNC control
• Flexible interface options for industrial connectivity
