Product Description: Siemens 6ES7515-2AM01-0AB0

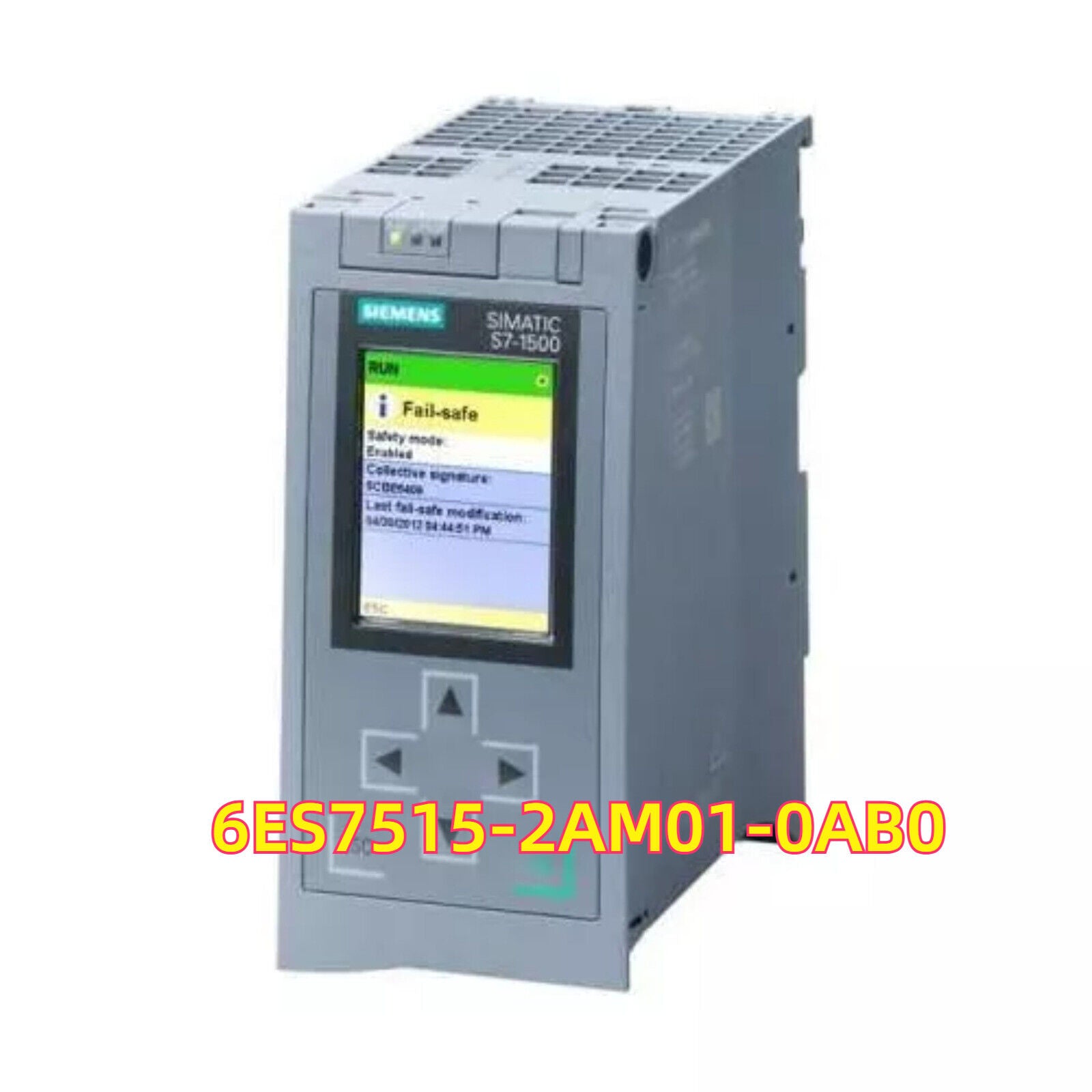

The Siemens 6ES7515-2AM01-0AB0 is a high-performance CPU module from the SIMATIC S7-1500 series, model CPU 1515-2 PN. It is designed for advanced automation tasks with medium to high demands in processing power, memory, and communication. The module comes with two integrated PROFINET interfaces and is optimized for use in complex machine control and process applications requiring high-speed data processing and real-time performance. The CPU 1515-2 PN supports extensive diagnostics, secure communication, and easy configuration via the TIA Portal engineering framework. Its modular design and high memory capacity make it suitable for scalable system architectures.

Key Features

• Dual PROFINET Ports: Supports separate machine and HMI or IT networks.
• High-Speed Processing: Ideal for time-critical applications with fast cycle performance.
• Advanced Diagnostics: Integrated diagnostic functions available via TIA Portal and web server.
• Security Features: Includes access protection, copy protection, and Know-how protection.
• Modular Expansion: Compatible with all S7-1500 signal, communication, and technology modules.
• Non-volatile Memory: Data is retained without the need for battery backup.

Technical Specifications

• Product Type: Central Processing Unit (CPU)
• Part Number: 6ES7515-2AM01-0AB0
• Series: SIMATIC S7-1500
• CPU Model: CPU 1515-2 PN
• Work Memory: 500 KB (for program) / 3 MB (for data)
• Load Memory: Requires memory card (SIMATIC MC)
• Integrated Interfaces: 2 × PROFINET (RJ45), 1 × USB
• Performance: Standard performance class
• Bit Processing Time: Approx. 40 ns/instruction
• Power Supply: 24 V DC
• Mounting: DIN rail with S7-1500 backplane bus
• Operating Temperature: 0°C to +60°C
• Dimensions (W x H x D): 50 × 147 × 129 mm
• Weight: Approx. 480 g

Application Areas

• Machine Automation: Used in packaging, material handling, robotics, and assembly systems.
• Process Automation: Supports complex processes in food, pharmaceutical, and chemical industries.
• System Integration: Ideal for multi-axis coordination, data logging, and distributed I/O systems.
• High- Speed Control: Suitable for time-sensitive tasks with motion, logic, and communication integration.

Advantages

• High Performance: Enables fast processing and real-time response for complex logic.
• Flexible Networking: Dual PROFINET ports allow segmentation of control and information networks.
• Secure Engineering: Integrated security functions protect intellectual property and system access.
• Scalable and Future-Proof: Easily expandable with digital, analog, and communication modules.
• TIA Portal Integration: Full engineering support in Siemens’ unified software platform.
