PLC | Siemens | 6ES7355-0VH10-0AE0 6ES7 355-0VH10-0AE0 S7-300 Control Unit FM 355

Product Description: Siemens 6ES7355-0VH10-0AE0

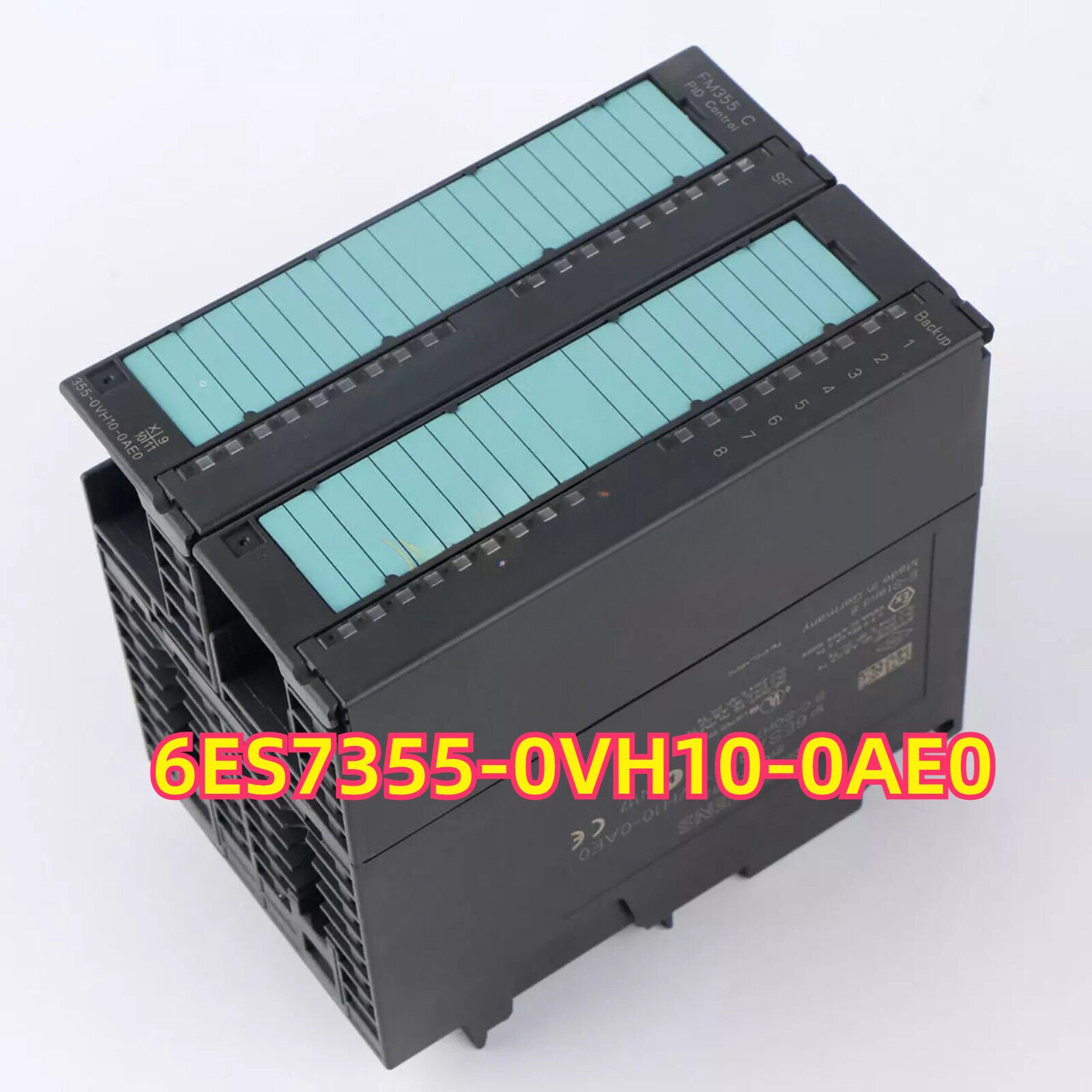

The Siemens 6ES7355-0VH10-0AE0 is the FM 355 C module for the SIMATIC S7-300 automation system. It integrates four universal analog inputs, eight digital inputs and four analog outputs in a single 80 mm-wide module. Designed for continuous operation, it consolidates mixed-signal I/O and control functions—eliminating the need for separate modules and reducing cabinet footprint.

Key Features

• Mixed-Signal I/O: 4 analog inputs, 8 digital inputs, 4 analog outputs
• Analog Input Flexibility: Supports voltage (±10 V, 0–10 V) and current (0–20 mA, 4–20 mA) signals
• Digital Inputs: 24 V DC, high- speed sensing for switches and sensors
• Analog Outputs: Configurable 0–20 mA or 4–20 mA with 12-bit resolution
• Continuous Operation: Industrial-grade design for 24/7 use
• Hot-Swap Capability: Module can be replaced under power without interrupting the rack bus
• On-Board Diagnostics: Status LEDs for power, bus integrity, and channel faults

Technical Specifications

• Analog Inputs: 4 channels
• Input Types: Voltage: ±10 V, 0–10 V; Current: 0–20 mA, 4–20 mA
• Analog Input Resolution: 12 bit
• Digital Inputs: 8 channels, 24 V DC
• Analog Outputs: 4 channels, 0–20 mA or 4–20 mA
• Analog Output Resolution: 12 bit
• Backplane Supply (5 V): 70 mA
• Power Loss: Approx. 3 W
• Module Width: 80 mm
• Protection Class: IP20 (front)
• Operating Temperature: 0 °C … +60 °C
• Mounting: S7-300 rack; hot-swap capable

Application Areas

• Consolidated analog/digital control loops in process and machine automation
• Compact I/O stations for batch and continuous production
• Retrofitting existing S7-300 systems to reduce module count
• Mixed-signal tasks requiring tight synchronization between analog and digital channels

Advantages

• Space & Cost Savings: Combines multiple I/O types in one module, reducing rack space and wiring
• Flexible Signal Handling: Universal analog inputs and configurable outputs adapt to diverse sensors and actuators
• High Availability: Hot-swap capability and on-board diagnostics minimize downtime
• Simplified Engineering: Single-module configuration streamlines project design and maintenance
