PLC | Siemens | 6ES7313-5BE01-0AB0 6ES7 313-5BE01-0AB0 S7-300 CPU 313C COMPACT CPU

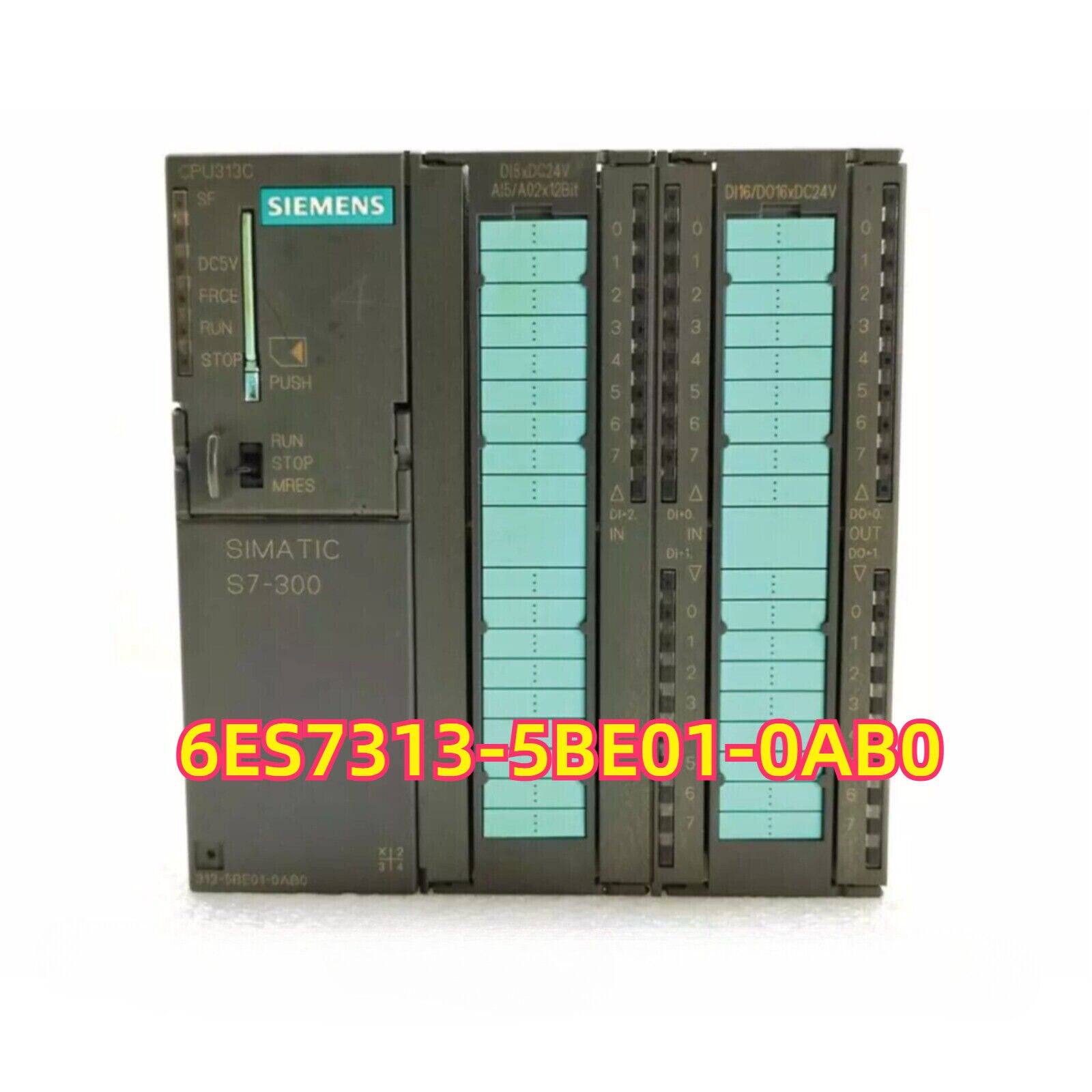

Product Description: Siemens 6ES7313-5BE01-0AB0

The Siemens 6ES7313-5BE01-0AB0 is a compact CPU module from the SIMATIC S7-300 series, model CPU 313C, featuring integrated digital and analog I/Os. This all-in-one module is ideal for small to mid-range automation applications where space efficiency and cost-effectiveness are essential. It combines logic control, analog/digital signal processing, and high-speed counting in a single module. The CPU 313C supports standard Siemens communication protocols via MPI interface and can be programmed with STEP 7 in the TIA Portal or classic engineering environments. Its onboard I/O capability makes it well-suited for standalone machines or systems with limited expansion needs.

Key Features

• Integrated I/O: Includes digital inputs/outputs and analog I/O channels.
• Compact Design: Combines CPU and I/O in one module, reducing footprint and wiring.
• High-Speed Counters: Built-in fast counting for motion and position detection.
• MPI Communication: Connects easily with other Siemens devices via multi-point interface.
• Expandable: Can be connected to additional S7-300 signal, communication, or function modules.

Technical Specifications

• Product Type: Central Processing Unit (CPU)
• Part Number: 6ES7313-5BE01-0AB0
• Series: SIMATIC S7-300
• CPU Model: CPU 313C
• Program Memory: 64 KB
• Integrated Digital Inputs: 16 DI (24 V DC)
• Integrated Digital Outputs: 16 DO (24 V DC)
• Integrated Analog Inputs: 4 AI (12-bit resolution)
• Integrated Analog Outputs: 2 AO (12-bit resolution)
• High-Speed Counters: 2 channels
• Communication Interface: MPI (1 port)
• Power Supply: 24 V DC
• Mounting: DIN rail with S7-300 backplane
• Operating Temperature: 0°C to +60°C
• Dimensions (W × H × D): Approx. 120 × 125 × 130 mm
• Weight: Approx. 450 g

Application Areas

• Standalone Machine Control: Ideal for compact systems like packaging, mixing, or labeling machines.
• OEM Equipment: Integrated I/O makes it cost-effective for equipment builders.
• Small Process Control: Suitable for water treatment skids or batch operations.
• Building Automation: Can control lighting, HVAC, and other facility systems in compact installations.

Advantages

• All-in-One Design: Reduces hardware requirements by integrating CPU and I/O.
• Reliable Performance: Proven Siemens engineering for industrial reliability.
• Space and Cost Efficient: Reduces panel size and wiring costs.
• Fast Setup and Commissioning: Fully supported in STEP 7 and TIA Portal.
• Modular Expandability: Easily add more I/O or communication modules as needed.
