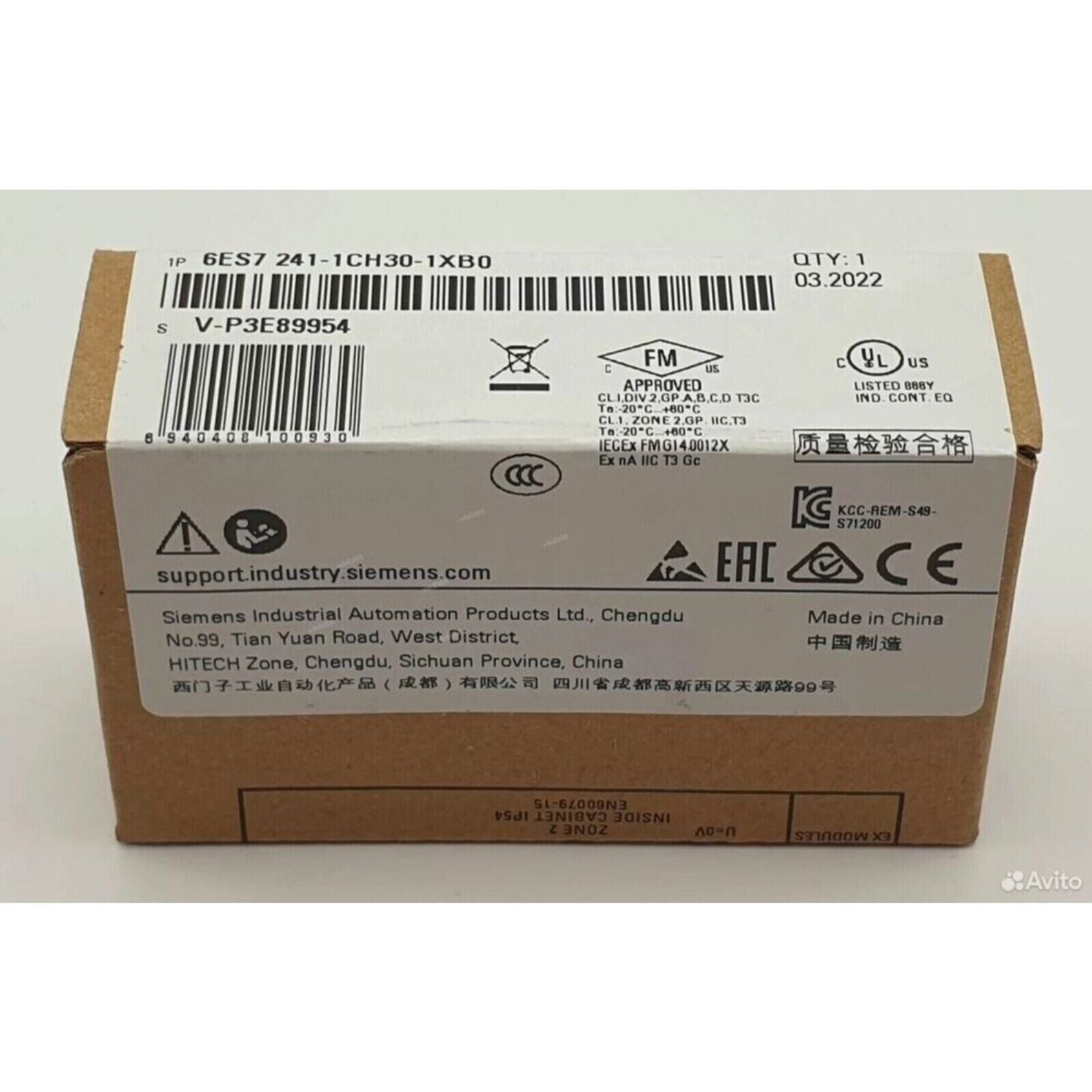

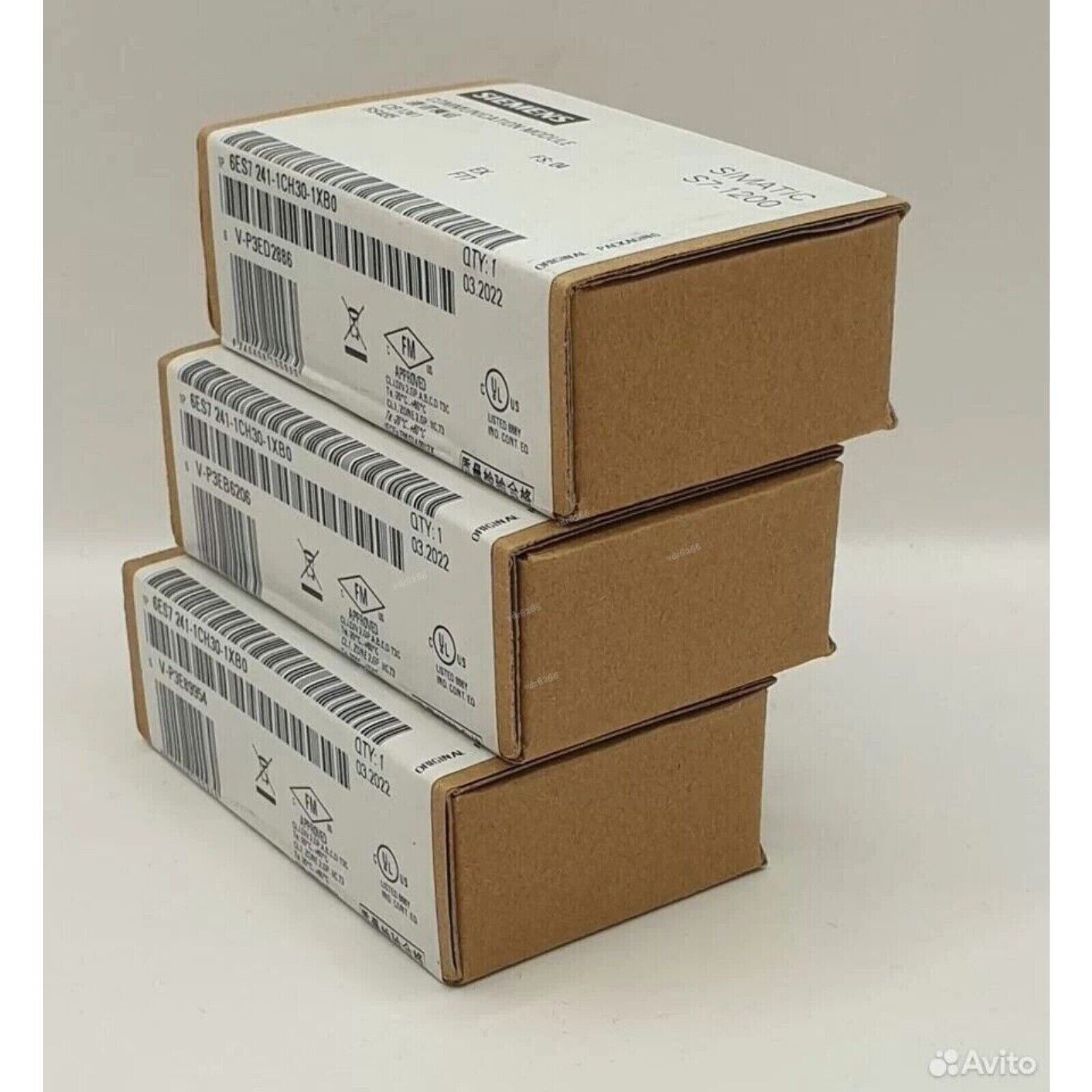

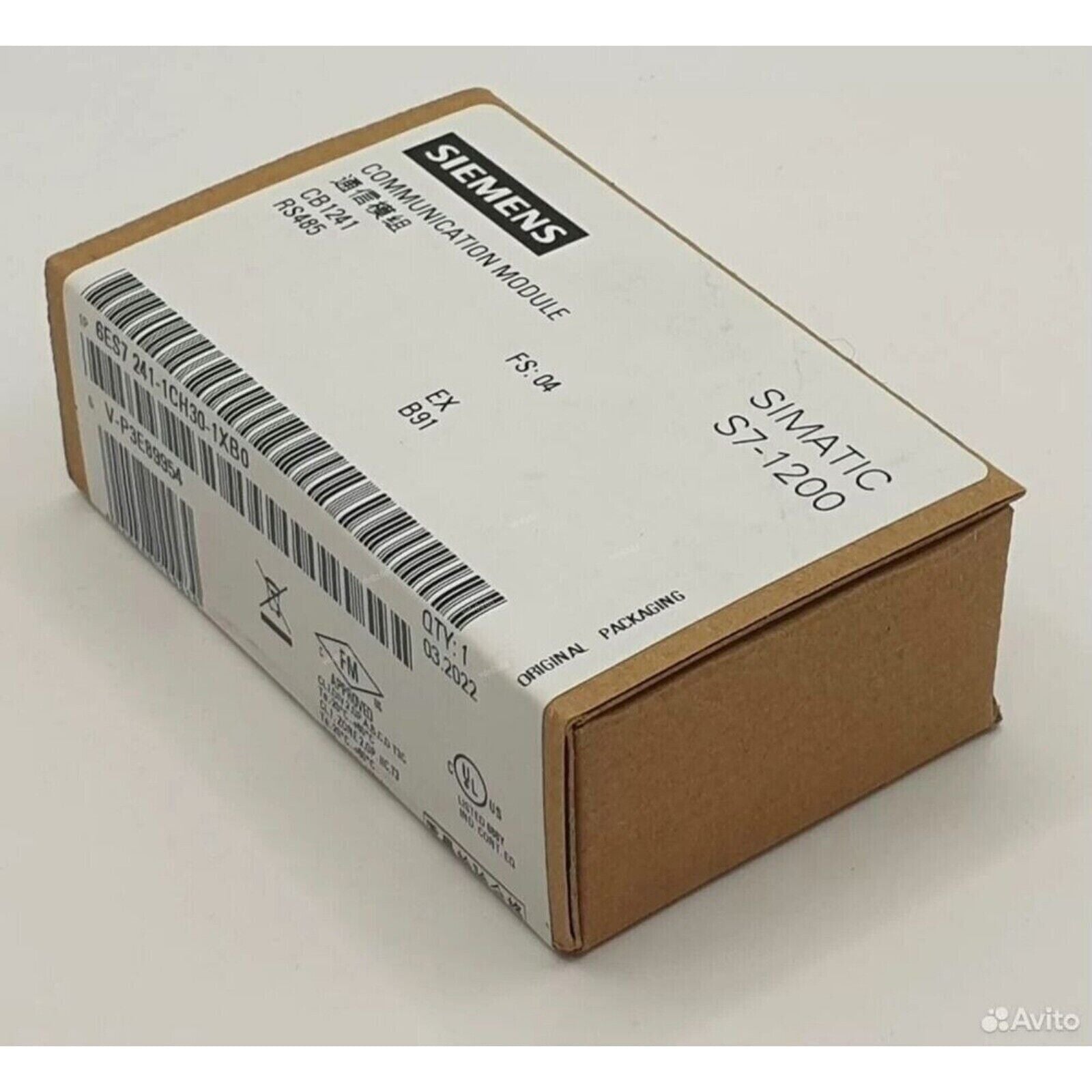

PLC | Siemens | 6ES7241-1CH30-1XB0 SIMATIC S7-1200 CB 1241 6ES7 241-1CH30-1XB0

Product Description: 6ES7241-1CH30-1XB0

The 6ES7241-1CH30-1XB0 is a high-feature digital input module for the SIMATIC S7-1200 PLC. It provides sixteen isolated 24 V DC inputs in a single 45 mm- wide housing. Each channel offers built-in diagnostics (short-circuit, wire- break, overvoltage) and user-selectable debounce filtering, delivering reliable detection of PNP/NPN sensor signals. Snap-on mounting to the CPU’s backplane bus ensures seamless power and data transfer, making it ideal for compact automation systems requiring high- density, diagnostic I/O.

Key Features

• 16 Isolated Inputs: 24 V DC, PNP/NPN compatible
• High-Feature Diagnostics: Per-channel short-circuit, wire-break, overvoltage detection
• Configurable Debounce: Filter times adjustable via TIA Portal
• Status LEDs: Individual indicators for each channel and module health
• Compact Footprint: 45 mm width maximizes I/O density
• Seamless Integration: Plug-and-play on S7-1200 backplane without extra wiring

Technical Specifications

• Channels: 16 digital inputs
• Input Voltage: 24 V DC ±20 %
• Input Current: ≤ 6 mA per channel
• Isolation: 500 V DC channel-to-bus
• Diagnostics: Short-circuit, wire-break, overvoltage
• Debounce Time: 0…20 ms configurable
• Power Consumption: 1.2 W from backplane
• Module Width: 45 mm
• Mounting: Snap-on beside S7-1200 CPU
• Operating Temperature: 0 … +60 °C
• Protection Class: IP20 (cabinet installation)
• Weight: ≈ 150 g

Application Areas

• Machine-level sensor monitoring (proximity, limit switches)
• Conveyor and material-handling signal acquisition
• Building automation digital inputs
• OEM equipment with high-density I/O requirements

Advantages

• Integrated diagnostics accelerate fault location
• Configurable filtering enhances noise immunity
• High channel count in a slim module saves panel space
• Direct backplane mounting reduces wiring complexity
• Full TIA Portal support for rapid configuration and maintenance
