Product Description: Siemens 6ES7234-4HE32-0XB0

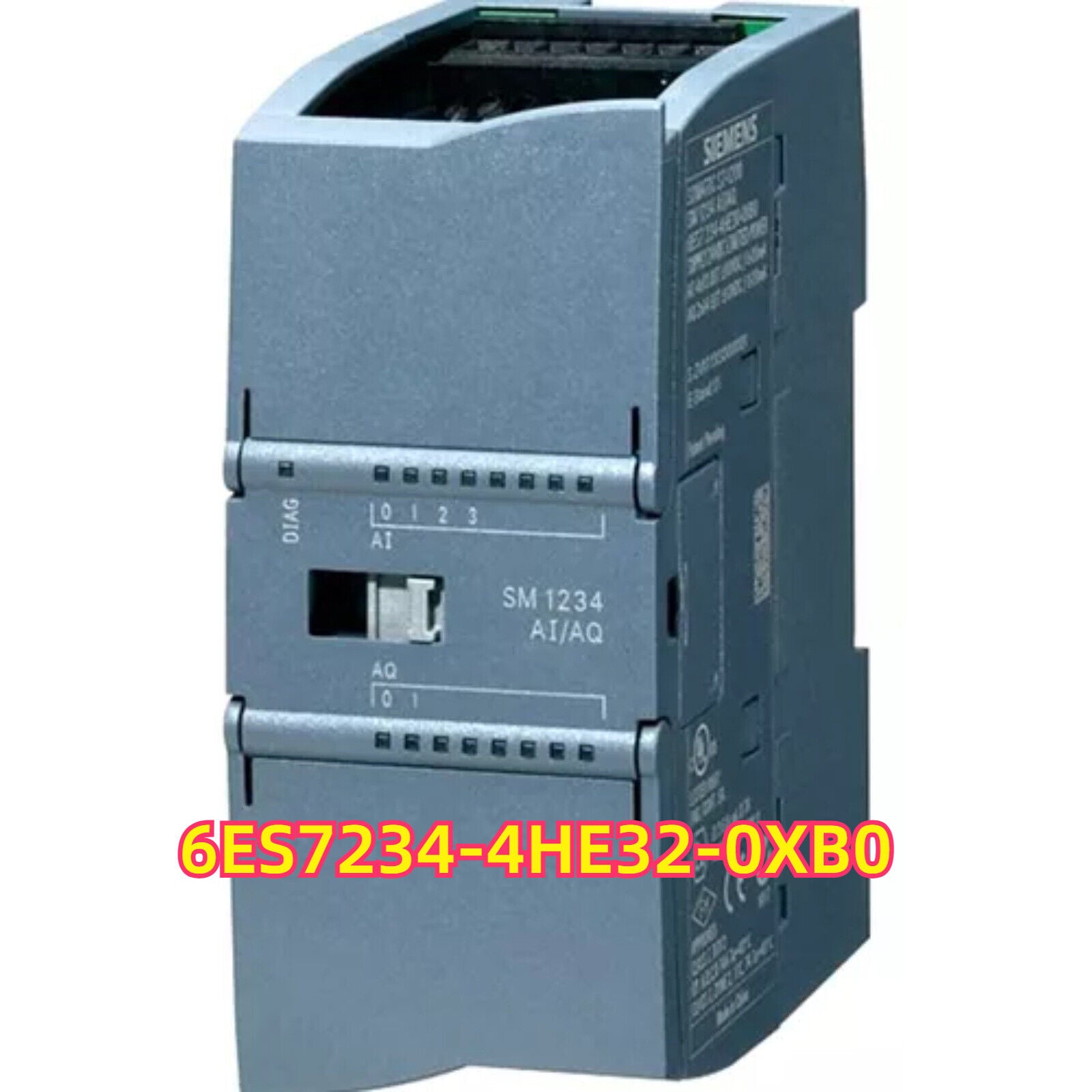

The Siemens 6ES7234-4HE32-0XB0 is a versatile analog signal module from the SIMATIC S7-1200 series, offering 4 analog inputs and 2 analog outputs in a compact, space-saving form. It supports a wide range of voltage and current input/output signals, making it suitable for general-purpose process control applications. This module is ideal for systems requiring both measurement and analog actuation within the same module, enhancing flexibility and reducing module count in compact control setups.

Key Features

• 4 analog inputs (AI) and 2 analog outputs (AO)
• Supports voltage and current signal types
• High-resolution signal processing (13–14 bits)
• Individually configurable input/output channels
• Integrated diagnostic features and channel parameterization
• Seamless integration with SIMATIC S7-1200 CPUs via TIA Portal
• DIN rail mounting for space-efficient installation

Technical Specifications

• Part Number: 6ES7234-4HE32-0XB0
• Analog Inputs: 4 channels
• Input Ranges: ±10 V, 0–10 V, 1–5 V, 0–5 V, 0–20 mA, 4–20 mA
• Resolution: 13 bits
• Analog Outputs: 2 channels
• Output Ranges: 0–10 V, 1–5 V, 0–20 mA, 4–20 mA
• Resolution: 14 bits
• Input Impedance: Voltage: ≥100 kΩ, Current: ≤250 Ω
• Load (AO): Voltage: ≥1 kΩ, Current: ≤500 Ω
• Conversion Time: Approx. 100 ms per channel
• Isolation: Between channels and backplane
• Power Supply: Via backplane from CPU
• Mounting Method: DIN rail
• Dimensions (W × H × D): 70 mm × 100 mm × 75 mm
• Weight: Approx. 220 g
• Protection Class: IP20
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, cULus, EAC

Application Areas

• General process automation
• Industrial measurement and control systems
• Machine-level analog signal acquisition and actuation
• Compact PLC applications with mixed I/O requirements
• Equipment in HVAC, water treatment, and manufacturing systems

Advantages

• Combines analog input and output in a single compact module
• Reduces hardware and wiring complexity
• Configurable channels enhance application flexibility
• Seamless integration into TIA Portal for efficient engineering
• Reliable performance with high signal resolution for precise control
