PLC | Siemens | 6ES7215-1AG40-0XB0 Module Fast delivery 6ES72151AG400XB0

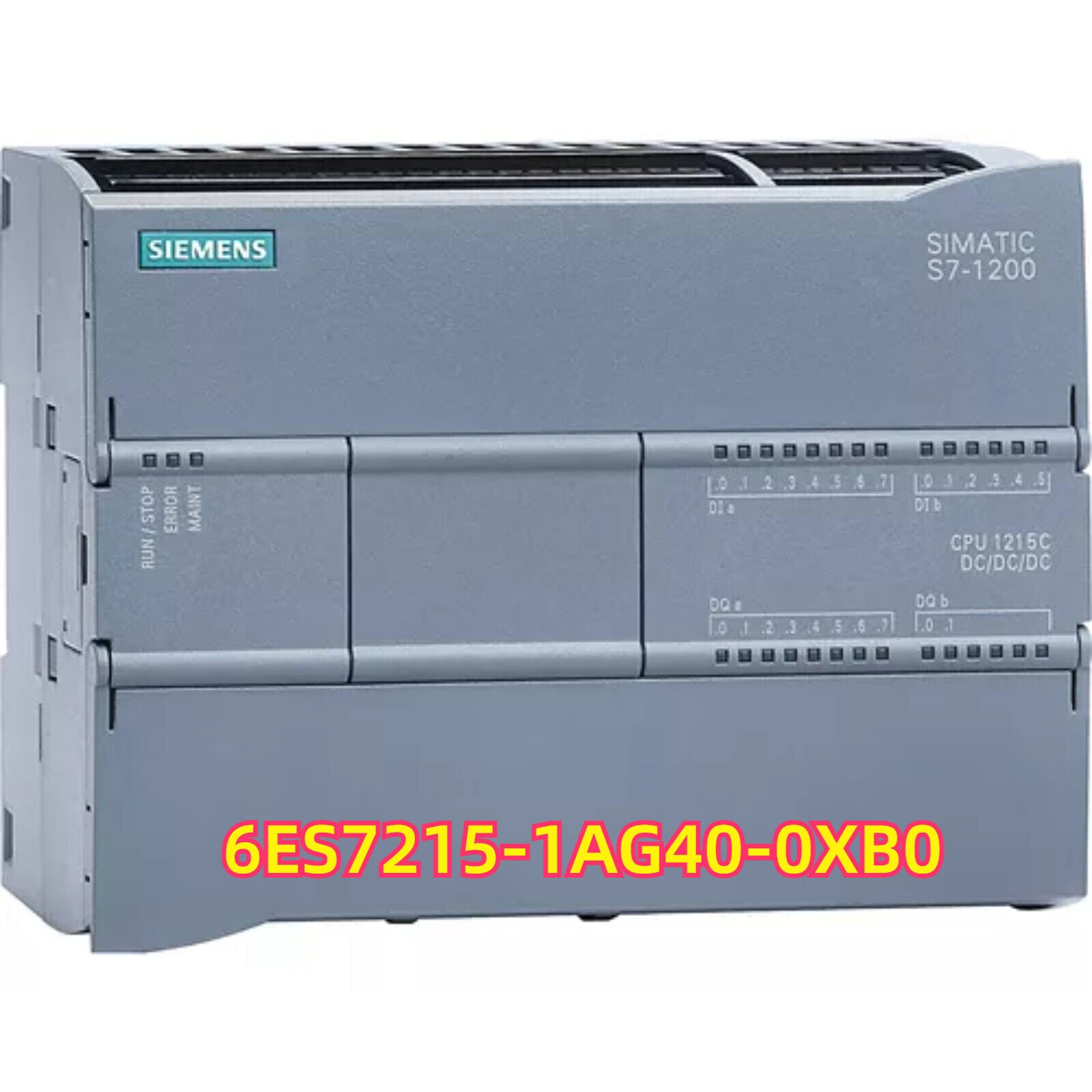

Product Description: Siemens 6ES7215-1AG40-0XB0 CPU 1215C

The Siemens 6ES7215-1AG40-0XB0 is the CPU 1215C from the SIMATIC S7-1200 series, designed for medium-sized automation tasks requiring enhanced processing capabilities and I/O flexibility. With integrated digital and analog inputs/outputs, built-in PROFINET communication, and support for high- speed counters and motion control, this compact PLC offers scalable performance with seamless integration into the TIA Portal engineering environment.

Key Features

• Integrated I/O: 14 digital inputs, 10 digital outputs (transistor), 2 analog inputs
• 24 V DC power supply and output voltage
• Built-in PROFINET interface for communication and programming
• High-speed counters, pulse train outputs, and PWM support
• Expandable with signal modules, signal boards, and communication modules
• Integrated real-time clock and data retention
• Supports data logging, web server access, and integrated security features
• Programmed using TIA Portal (STEP 7 Basic or Professional)

Technical Specifications

• Part Number: 6ES7215-1AG40-0XB0
• Power Supply: 24 V DC
• Digital Inputs: 14 (24 V DC, sink/source configurable)
• Digital Outputs: 10 (24 V DC transistor, max. 0.5 A per channel)
• Analog Inputs: 2 (0–10 V, 10-bit resolution)
• Program/Data Memory: 125 KB / 50 KB
• Communication Ports: 1 x PROFINET (RJ45, 10/100 Mbps)
• Integrated Functions: PID control, HSC, PWM, PTO, web server
• Expansion Capacity: Up to 8 signal modules; 3 communication modules; 1 signal board
• Dimensions (W × H × D): 110 mm × 100 mm × 75 mm
• Weight: Approx. 420 g
• Protection Class: IP20
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, cULus, EAC

Application Areas

• Machine automation with moderate I/O demands
• Building control systems and distributed field installations
• Manufacturing processes, conveyor systems, and energy management
• Motion control applications requiring integrated HSC/PTO
• Projects requiring fast cycle times and scalable control systems

Advantages

• Powerful and compact CPU with integrated I/Os and communication
• High flexibility through modular expansion
• Simplified engineering with TIA Portal integration
• Real-time and motion control capabilities built-in
• Reliable performance for a wide range of industrial automation tasks
