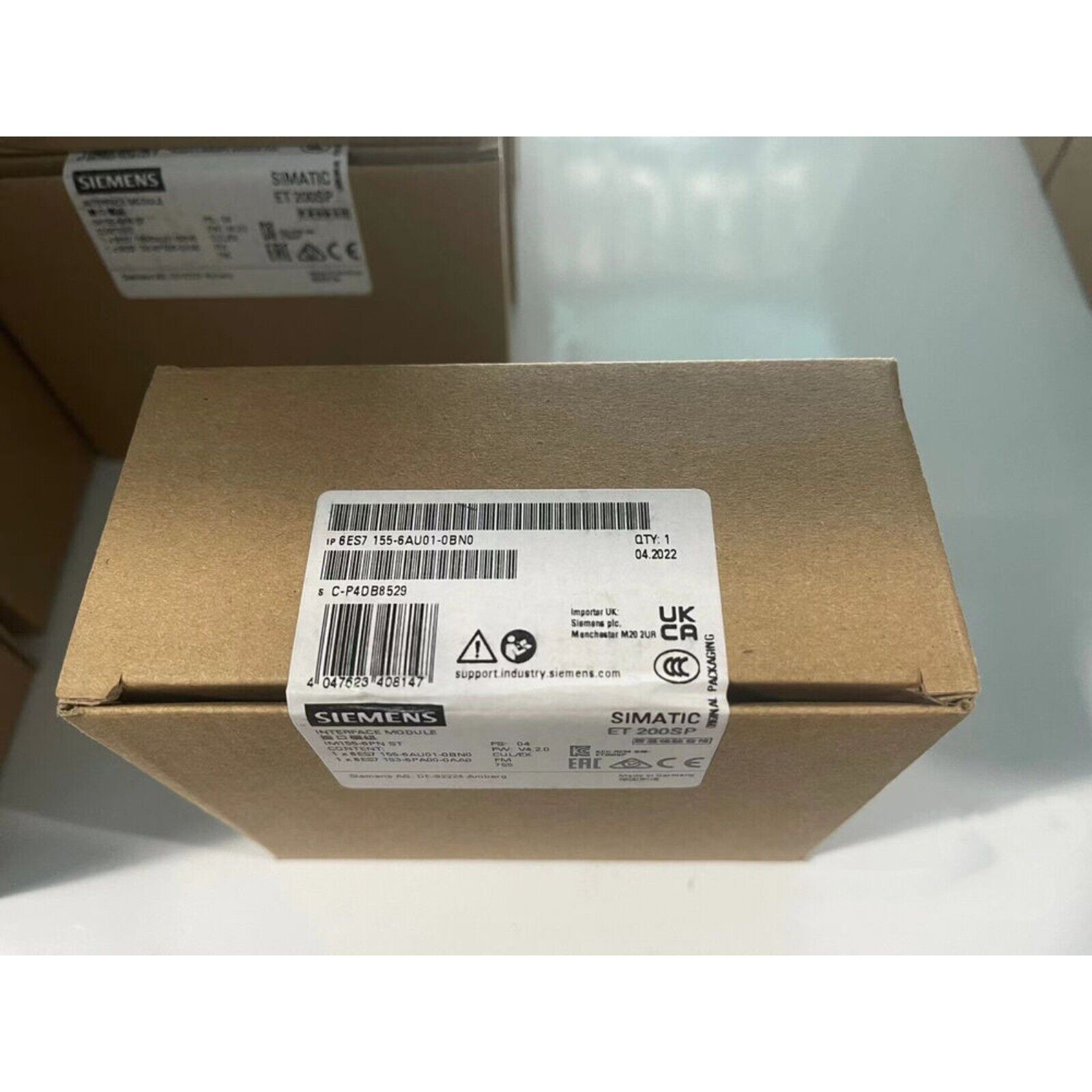

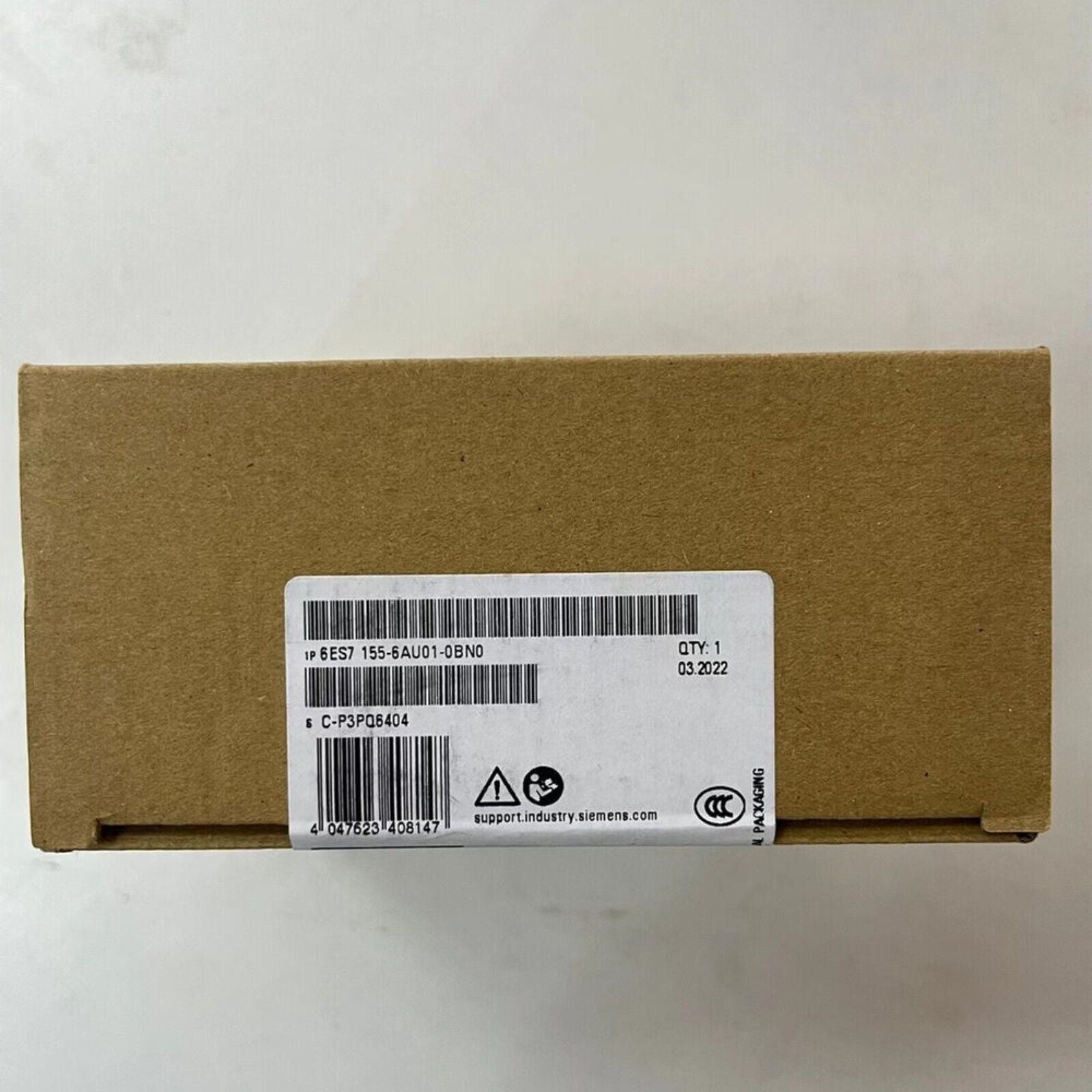

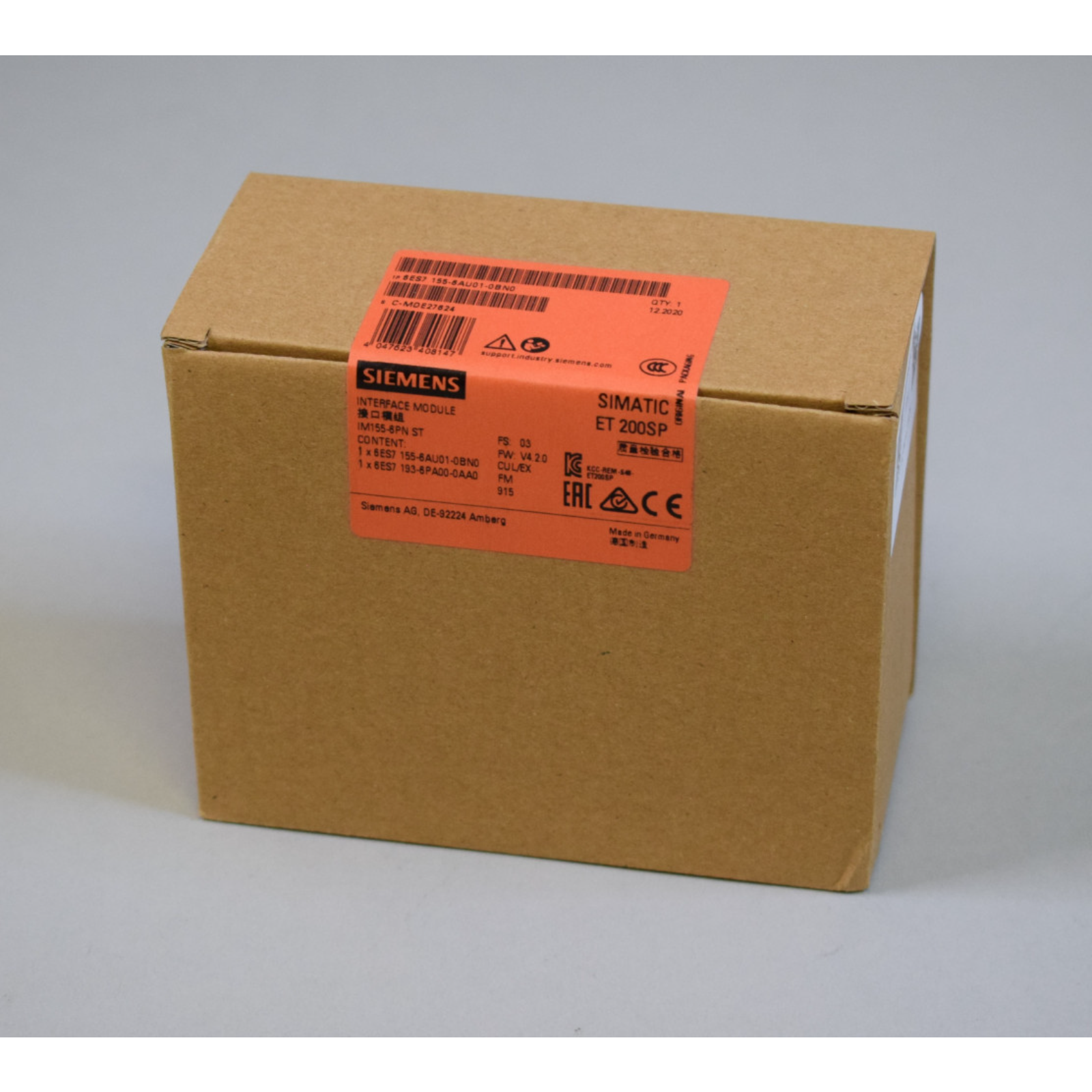

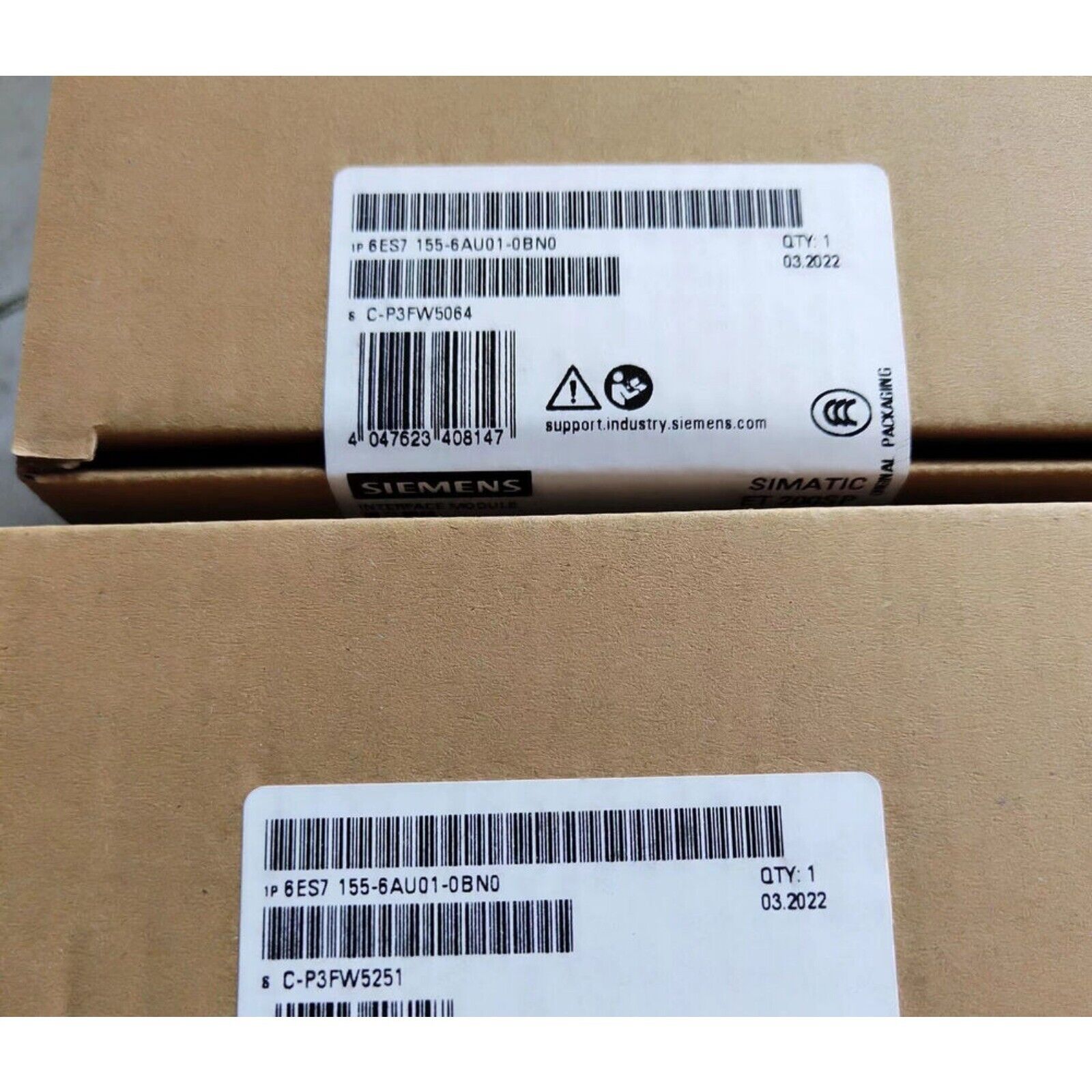

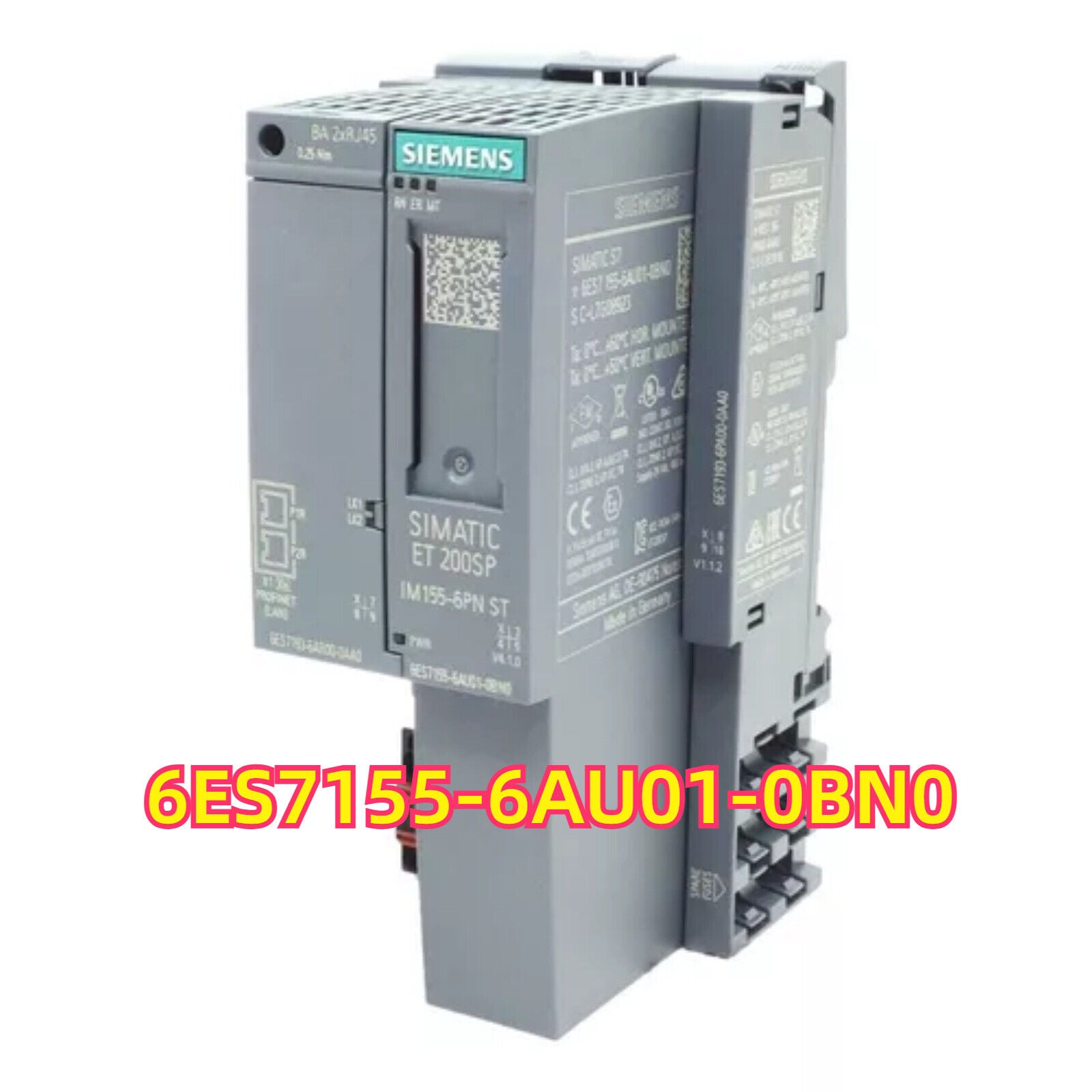

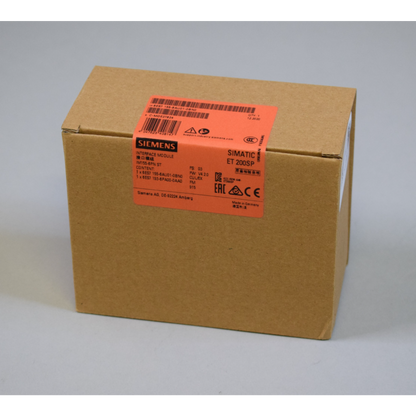

Product Description: Siemens 6ES7155-6AU01-0BN0 IM 155-6 PN ST

The Siemens 6ES7155-6AU01-0BN0 is the IM 155-6 PN ST interface module from the SIMATIC ET 200SP distributed I/O system. It provides a standard PROFINET connection for linking the ET 200SP station to higher-level controllers (such as SIMATIC S7 CPUs). Designed for high- performance, space- saving installations, this module supports flexible module expansion and efficient data exchange in real-time PROFINET applications.

Key Features

• Standard PROFINET interface for ET 200SP distributed I/O
• Supports up to 64 I/O modules per station
• 2 PROFINET ports (RJ45) with integrated switch functionality
• Isochronous mode and real-time communication support
• Automatic topology recognition via LLDP
• Hot-swappable I/O modules (with active backplane)
• Configuration via TIA Portal

Technical Specifications

• Part Number: 6ES7155-6AU01-0BN0
• Communication Protocol: PROFINET IO (RT)
• Transmission Rate: 100 Mbps full duplex
• Ports: 2 x RJ45 (integrated switch)
• Max. I/O Modules: 64
• Address Range: Up to 512 bytes input / 512 bytes output
• Bus Interface: Backplane bus for ET 200SP modules
• Power Supply: 24 V DC (via BU type A0 or higher)
• Mounting: DIN rail
• Dimensions (W × H × D): 20 mm × 117 mm × 74 mm
• Weight: Approx. 120 g
• Protection Class: IP20
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, UL, cULus, EAC

Application Areas

• Decentralized automation in industrial systems
• PROFINET-based machine and factory automation
• High-speed data exchange in modular control systems
• Compact control panels with distributed I/O
• Systems requiring seamless TIA Portal integration

Advantages

• Enables high-performance PROFINET communication
• Dual ports allow flexible network topologies
• Supports isochronous operation for motion and time-critical tasks
• Compact design minimizes space requirements in control cabinets
• Fully compatible with the ET 200SP ecosystem and Siemens engineering tools
