PLC | SIMATIC ET 200M | Siemens | 6ES7153-1AA03-0XB0 6ES7 153-1AA03-0XB0 SIMATIC DP ET 200M

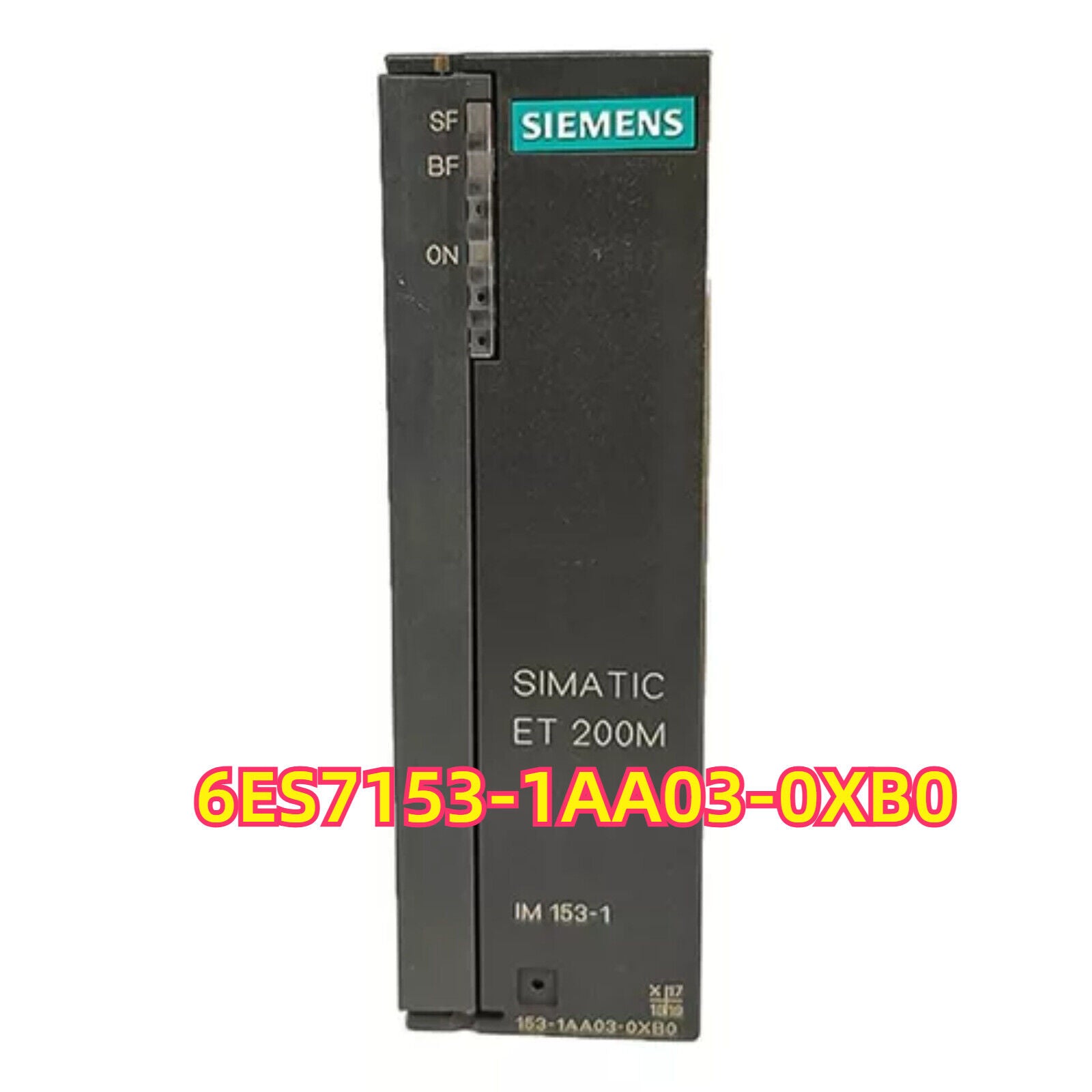

Product Description: Siemens 6ES7153-1AA03-0XB0 IM 153-1 Interface Module

The Siemens 6ES7153-1AA03-0XB0 is the IM 153-1 interface module designed for use with the SIMATIC ET 200M distributed I/O system. It connects the ET 200M station to a PROFIBUS DP network and provides communication between the central controller and remote I/O modules. With support for up to 12 I/O modules and automatic address recognition, this module is a proven solution for decentralized automation setups.

Key Features

• Connects ET 200M to PROFIBUS DP as a DP slave
• Supports up to 12 S7-300 I/O modules (digital, analog, or function)
• Data exchange with central controller over PROFIBUS
• Automatic addressing via bus configuration
• Diagnostic LEDs for easy status and fault identification
• Hot-swapping of modules with power applied (with appropriate modules)
• Compatible with standard S7-300 racks and modules

Technical Specifications

• Part Number: 6ES7153-1AA03-0XB0
• Supported Bus: PROFIBUS DP (up to 12 Mbps)
• Number of Modules Supported: Up to 12 I/O modules
• Address Range: Max. 244 bytes input / 244 bytes output
• Power Supply: 24 V DC (via external terminals)
• Mounting Method: DIN rail (S7-300 standard rack)
• Dimensions (W × H × D): 40 mm × 125 mm × 117 mm
• Weight: Approx. 260 g
• Protection Class: IP20
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, UL, cULus

Application Areas

• Distributed I/O systems using PROFIBUS DP
• Remote automation for process and factory control
• Integration of field devices into central PLC systems
• Flexible expansion of I/O capacity in industrial environments
• Modular machines and systems requiring decentralized control

Advantages

• Simplifies communication between ET 200M and SIMATIC PLCs
• Reduces wiring through decentralized architecture
• Supports hot-swappable module changes for maintenance efficiency
• Fully compatible with Siemens engineering tools and hardware
• Proven solution for scalable, flexible automation networks
