Product Description: Siemens 6ES7151-3BA23-0AB0

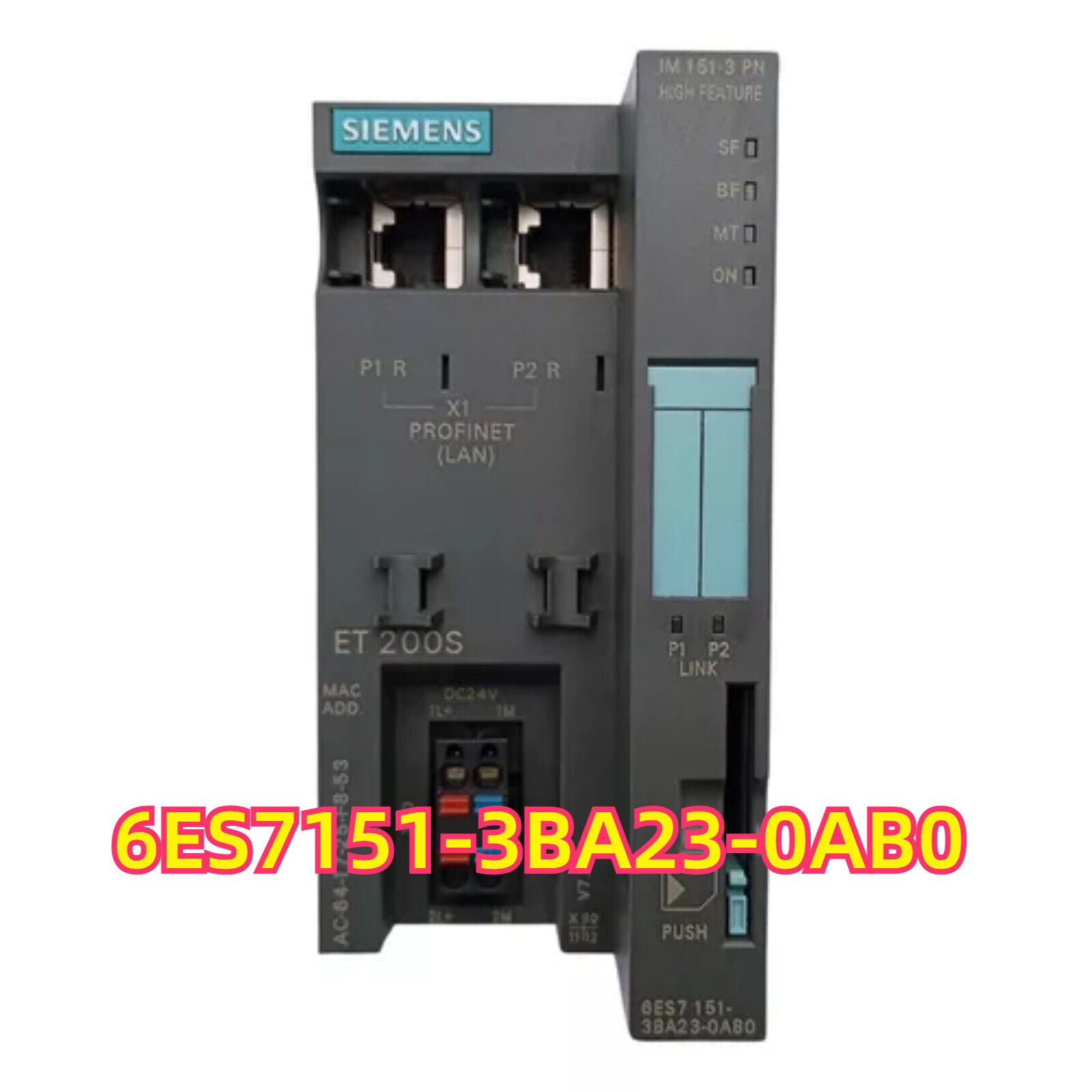

The Siemens 6ES7151-3BA23-0AB0 is an interface module from the SIMATIC ET 200S distributed I/O system. It is classified as IM151-3 PN HF (High Feature), providing a PROFINET-based connection for ET 200S I/O modules to higher-level controllers. This module supports real-time and isochronous communication and includes integrated switch functionality with two RJ45 ports for line and ring topologies. Designed for modular and scalable automation architectures, the IM151-3 PN HF offers advanced diagnostics, high- speed data exchange, and support for PROFINET IRT (Isochronous Real-Time). It is ideal for demanding applications in machine automation, process control, and decentralized system configurations.

Key Features

• High-Speed Communication: Supports PROFINET RT and IRT for time-critical applications.
• Dual RJ45 Ports: Integrated 2-port switch enables line and ring topologies without external switches.
• Advanced Diagnostics: Provides detailed module and channel diagnostics via PROFINET.
• Hot Swapping Support: I/O modules can be replaced during operation without system shutdown.
• Up to 63 I/O Modules: Can operate with up to 63 electronic modules per station.
• Flexible Mounting: DIN rail installation for seamless integration into control panels.

Technical Specifications

• Product Type: Interface Module (IM)
• Part Number: 6ES7151-3BA23-0AB0
• Series: SIMATIC ET 200S
• Model: IM151-3 PN HF
• Communication: PROFINET with 2 × RJ45 ports
• PROFINET Support: RT and IRT (Isochronous Real-Time)
• Max. Modules: Supports up to 63 I/O modules
• Diagnostics: Integrated diagnostics over PROFINET
• Hot Swapping: Supported
• Mounting: DIN rail
• Operating Temperature: 0°C to +60°C
• Weight: Approx. 250 g
• Dimensions (W x H x D): 50 × 125 × 117 mm (approx.)

Application Areas

• Machine and Equipment Automation: Facilitates decentralized I/O in complex machines.
• Process Automation: Connects sensors and actuators in continuous or batch processes.
• Modular Production Lines: Allows flexible expansion and maintenance during operation.
• High-Performance Motion Systems: Enables synchronized communication with IRT capability.

Advantages

• Real-Time Capability: Supports both PROFINET RT and IRT for deterministic data exchange.
• Scalable Architecture: Allows modular expansion up to 63 I/O modules.
• Reduced Downtime: Hot-swapping and advanced diagnostics minimize maintenance impact.
• Space-Efficient: Compact design integrates into small or distributed cabinets.
• Reliable Integration: Seamless operation with Siemens TIA Portal and other SIMATIC components.
