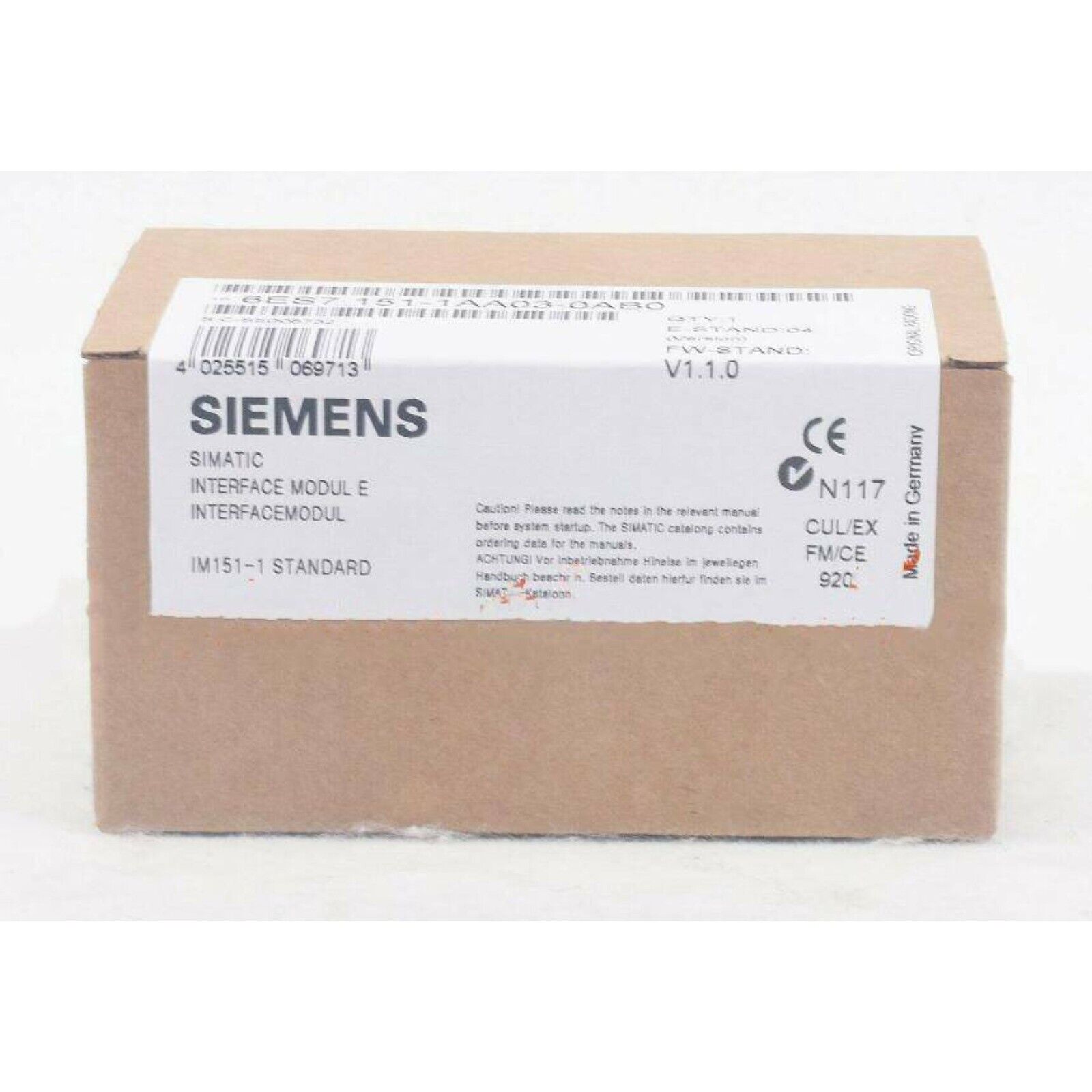

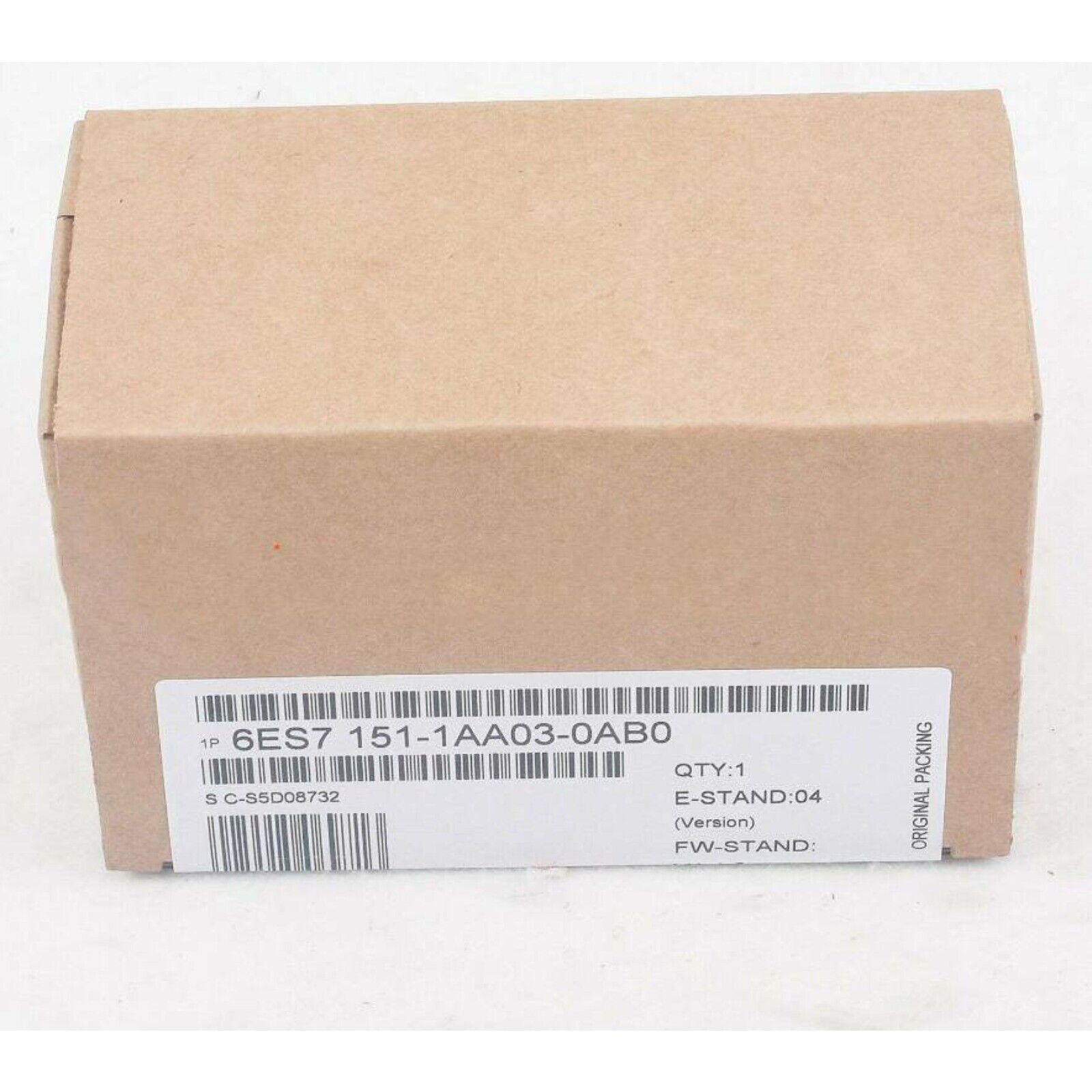

Industrial Communication | Siemens | 6ES7151-1AA03-0AB0 6ES7151-1AA03-0AB0 DP INTERFACE MODULE IM151-1

Product Description: 6ES7151-1AA03-0AB0

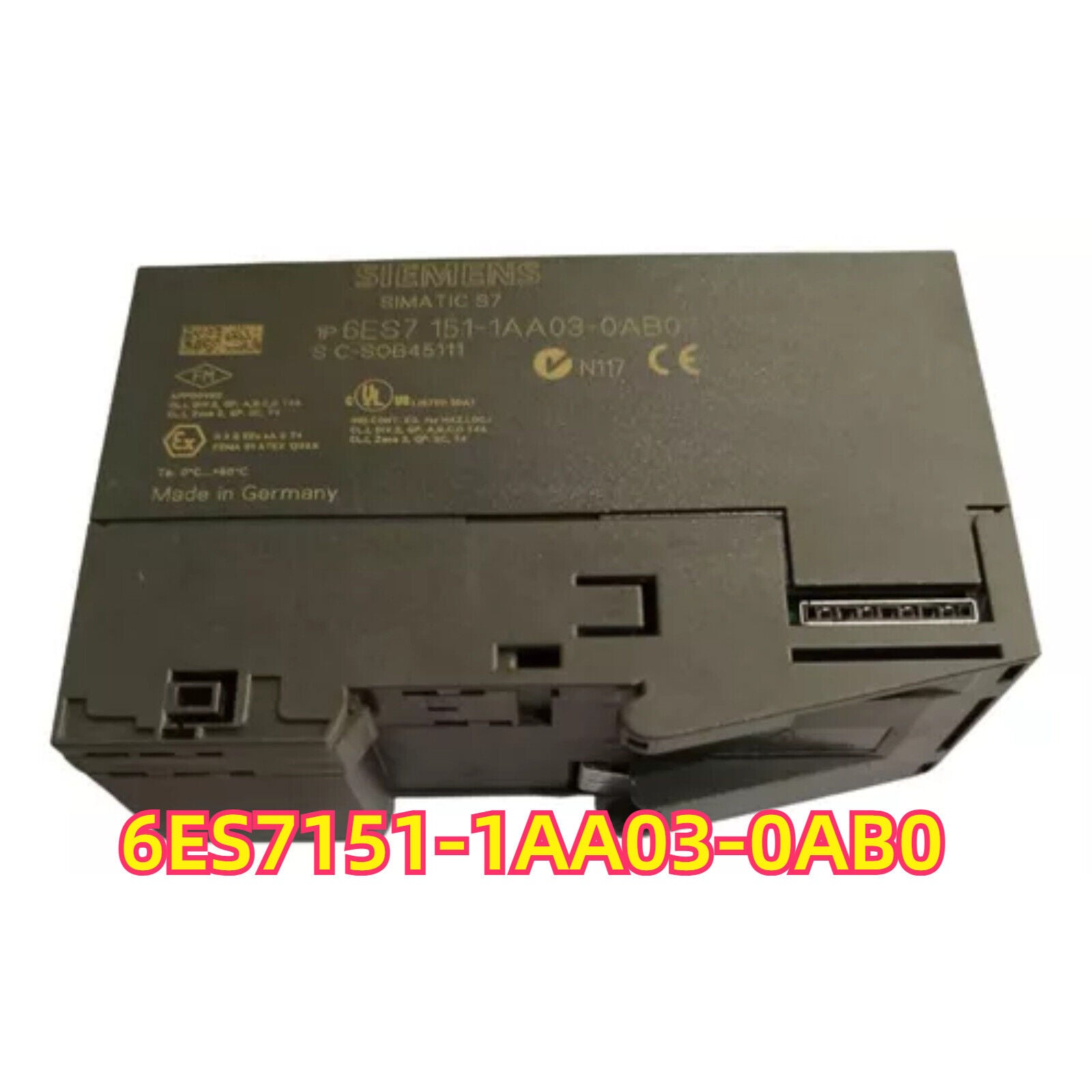

The 6ES7151-1AA03-0AB0 is an ET 200S interface module providing a dedicated PROFINET port for distributed ET 200S I/O stations. It enables connection of up to 63 I/O modules per station and supplies both power and data via the backplane bus. With a compact 40 mm width and DIN-rail mounting, it supports hot-swap replacement and advanced diagnostics for high- availability, decentralized automation systems.

Key Features

• Single PROFINET Port: RJ45, 10/100 Mbps, for direct connection to PROFINET controllers
• Up to 63 Modules: Supports standard SM, FM, and TM modules in one station
• Hot-Swap Capability: I/O modules can be replaced without station shutdown
• Diagnostics: Detailed status and fault information via PROFINET diagnostics objects
• Compact Design: 40 mm module width for high-density installations
• Seamless TIA Portal Integration: Fully configurable and monitored in the Siemens engineering environment

Technical Specifications

• Product Type: Interface Module (IM)
• Part Number: 6ES7151-1AA03-0AB0
• PROFINET Port: 1 × RJ45 (10/100 Mbps)
• Max. I/O Modules per Station: 63
• Hot-Swap Support: Yes
• Diagnostics: Module- and channel-level via PROFINET
• Backplane Bus Supply: Power and data
• Protection Class: IP20
• Mounting: DIN-rail
• Module Width: 40 mm
• Operating Temperature Range: 0 °C … +60 °C

Application Areas

• Decentralized I/O for machine and plant automation
• Flexible PROFINET network topologies (line, ring, star)
• Systems requiring on-the-fly module replacement and minimum downtime
• Integration with S7-1500, S7-1200, or other PROFINET controllers

Advantages

• Provides robust, high-speed PROFINET connection for remote I/O
• Hot-swap capability maximizes system availability
• Integrated diagnostics speed troubleshooting and maintenance
• Slim design maximizes I/O density in control cabinets
• Unified engineering and monitoring via TIA Portal tools
