Product Description: Siemens 6ES7151-1AA02-0AB0

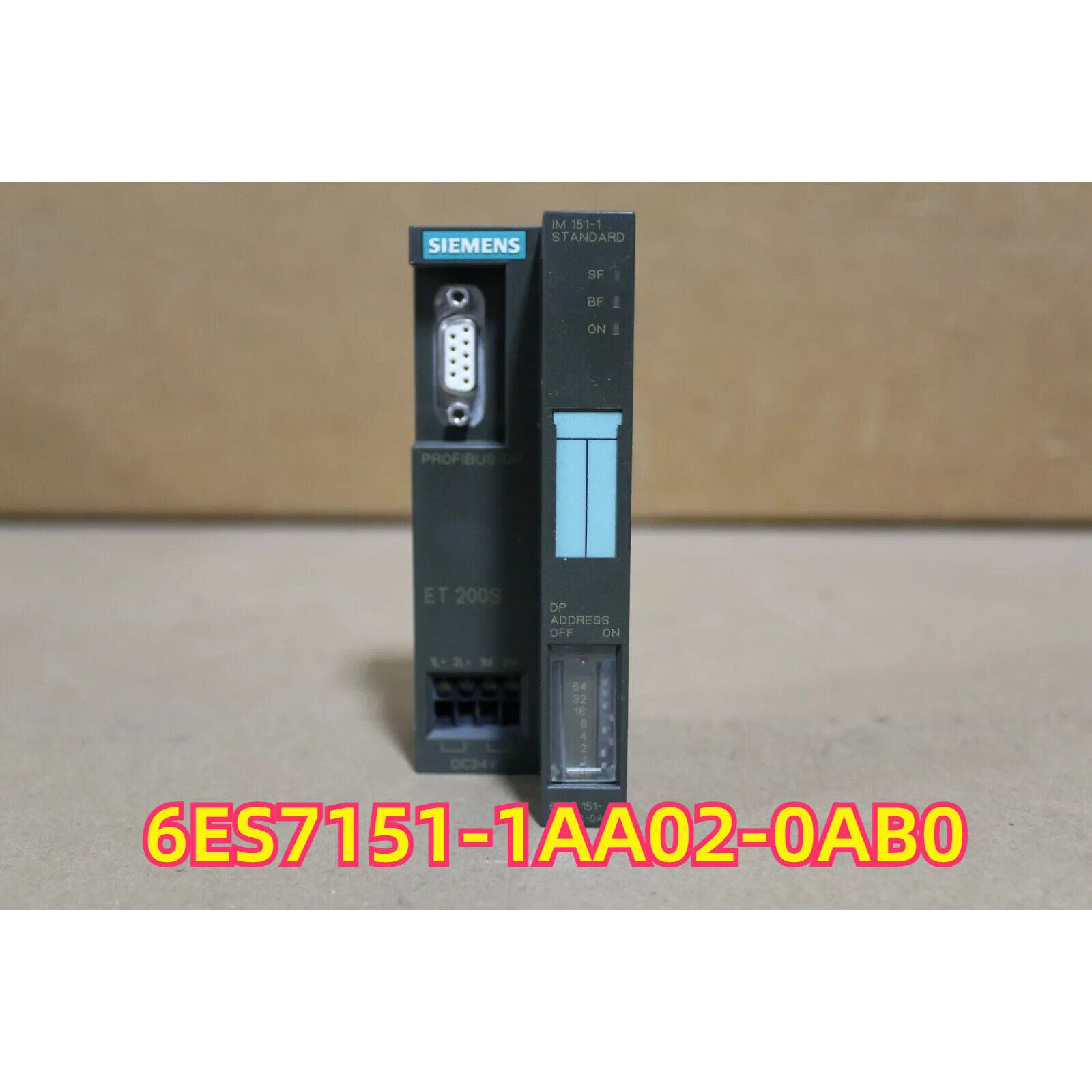

The Siemens 6ES7151-1AA02-0AB0 is a standard PROFIBUS DP interface module (IM151-1) for the ET 200S distributed I/O system. It provides reliable DPV0/DPV1 communication at up to 12 Mbit/s and supports a data volume of 128 bytes for both input and output. Up to 63 downstream I/O, power, electronic or motor-starter modules can be connected. Bus interfacing is via a 9-pin Sub-D connector and includes integrated termination.

Key Features

• PROFIBUS DP Slave: DPV0 and DPV1 support, up to 12 Mbit/s
• I/O Data Volume: 128 bytes for inputs and outputs
• Module Capacity: Connect up to 63 ET 200S modules downstream
• Bus Connector: 9-pin Sub-D with built-in termination
• Mains Buffering: ≥ 20 ms hold-up on 24 V DC supply
• Compact Design: 45 mm module width for high-density racks

Technical Specifications

• Supply Voltage: 24 V DC (19.2 … 28.8 V DC)
• Mains Buffering: ≥ 20 ms
• Input Current (1L+ max.): 200 mA
• Output Current (backplane 5 V): 700 mA
• Bus Interface: PROFIBUS DP (DPV0/DPV1), 9-pin Sub-D
• Data Volume: 128 bytes I/O each
• Max. Connectable Modules: 63
• Module Width: 45 mm
• Protection Class: IP20 (front)
• Operating Temperature: 0 °C … +60 °C

Application Areas

• Distributed I/O station for SIMATIC ET 200S in PROFIBUS DP networks
• Machine automation requiring modular expansion of digital/analog I/O
• Process control systems with up to 63 connected modules per station
• Retrofit or new installations needing high-density, cost-effective I/O integration

Advantages

• High Integration Density: Narrow 45 mm footprint maximizes rack space
• Flexible Communication: Supports both DPV0 and DPV1 for cyclic and acyclic data
• Robust Operation: Built-in termination and > 20 ms buffering ensure reliable bus and power performance
• Scalable: Allows large I/O stations with up to 63 modules per interface
• Easy Maintenance: Standard Sub-D connector simplifies cabling and replacement
