Product Description: Siemens 6ES7135-4FB01-0AB0

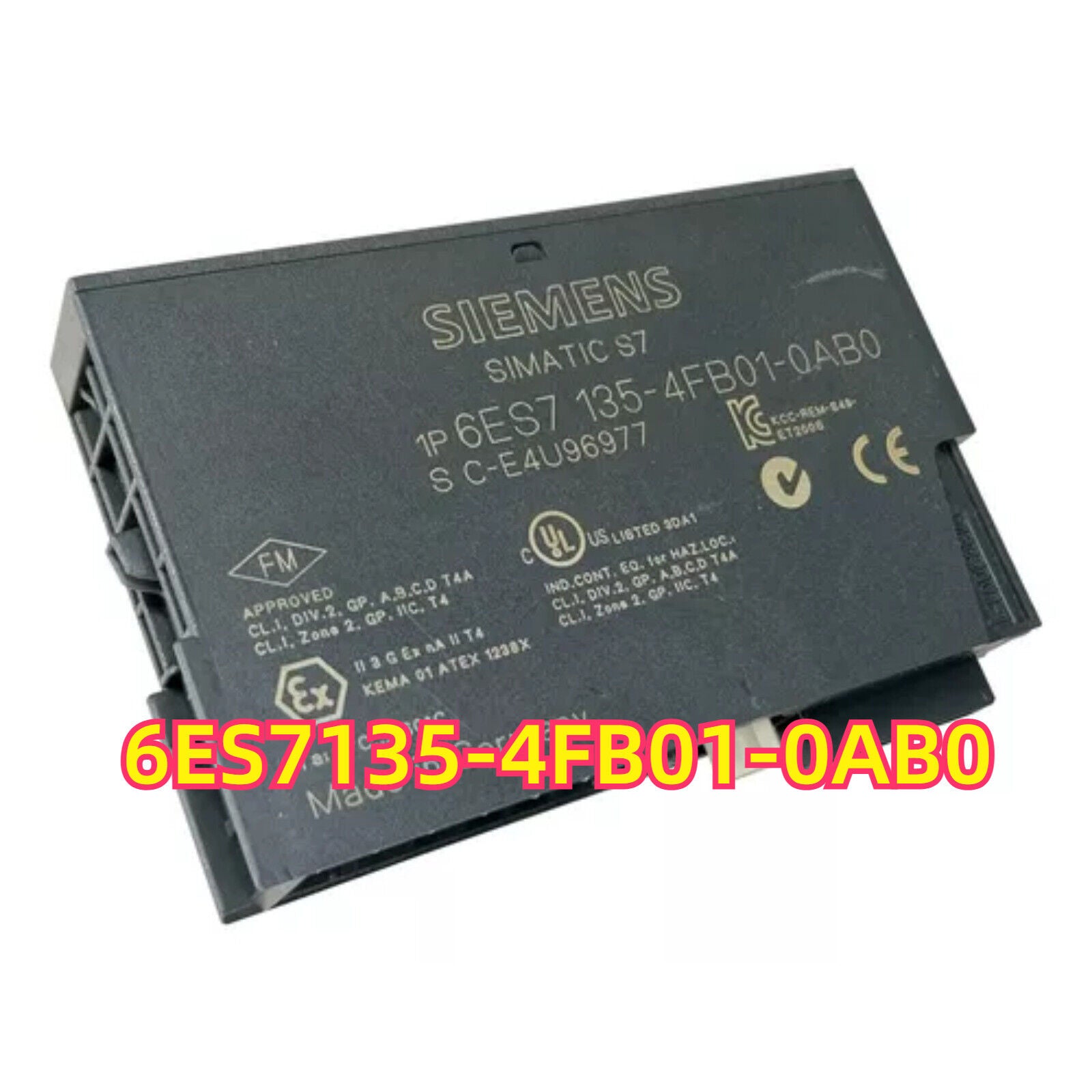

The Siemens 6ES7135-4FB01-0AB0 is an analog output module from the SIMATIC S7-300 series, specifically the SM 335 module, designed for high-precision signal output in industrial automation applications. This module provides 8 analog outputs for controlling devices such as actuators, valves, and motors with variable control. It supports both voltage and current output and is ideal for applications requiring accurate analog signal conversion from the PLC to the field devices. The module features high resolution and a wide output range to meet various industrial requirements.

Key Features

• Number of Outputs: 8 analog outputs
• Output Types Supported: Voltage and current outputs (0-10 V, 4-20 mA)
• Resolution: 12 bits for high precision in signal output
• Output Voltage Range: 0-10 V
• Output Current Range: 4-20 mA
• Accuracy: High precision with minimal signal deviation
• Mounting: Compatible with the SIMATIC S7-300 backplane bus
• Diagnostic Features: Provides diagnostic indicators for output signal monitoring and fault detection
• Temperature Range: Suitable for industrial environments with a wide temperature operating range

Technical Specifications

• Product Type: Analog Output Module
• Part Number: 6ES7135-4FB01-0AB0
• Number of Outputs: 8
• Output Types Supported: Voltage (0-10 V) and Current (4-20 mA)
• Resolution: 12 bits
• Output Voltage Range: 0-10 V
• Output Current Range: 4-20 mA
• Diagnostic Features: Yes
• Mounting: SIMATIC S7-300 backplane bus
• Dimensions (W x H x D): 40 mm x 125 mm x 120 mm
• Weight: Approx. 300 g

Application Areas

• Industrial Automation: Used for controlling devices such as actuators, motors, and valves in manufacturing processes.
• Process Control: Ideal for applications that require precise output control over voltage and current.
• Machine Automation: Suitable for applications involving precise control of analog devices in machine systems.
• Energy Management: Used to control energy-consuming devices in systems requiring variable signal output.

Advantages

• High Precision: 12-bit resolution for accurate and reliable signal output.
• Versatile Output Types: Supports both voltage and current outputs, making it suitable for a wide range of applications.
• Reliable Diagnostics: Built-in diagnostic features enable easy fault detection, ensuring reliable operation.
• Compact and Efficient: Space-saving design that integrates seamlessly with the SIMATIC S7-300 system.
