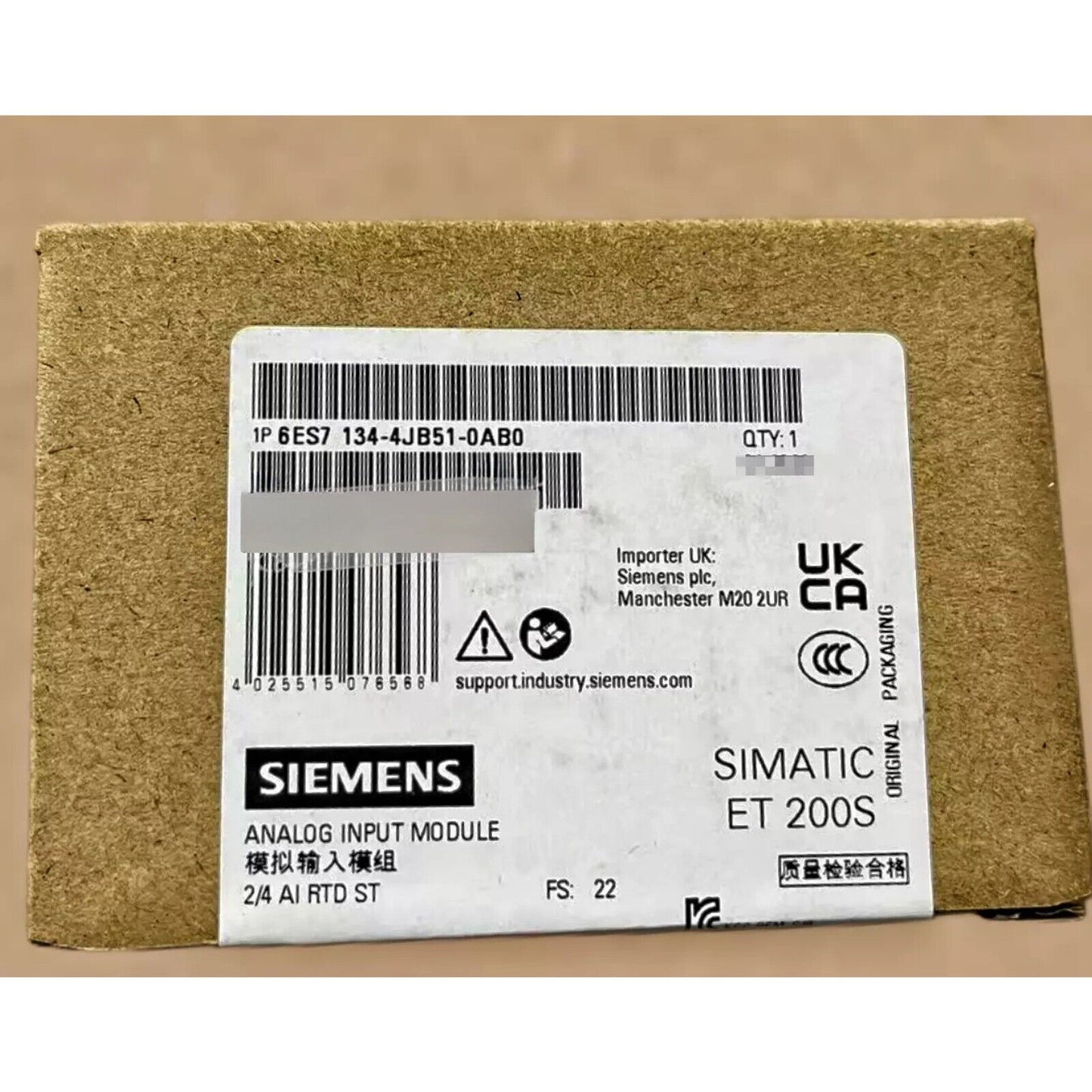

Product Description: Siemens 6ES7134-4JB51-0AB0

The Siemens 6ES7134-4JB51-0AB0 is an analog input module designed for the SIMATIC ET 200S distributed I/O system. This module offers 2 or 4 channels for measuring resistance temperature detectors (RTDs) and resistors, providing high-precision analog signal acquisition in industrial automation applications. It supports various sensor types, including Pt100, Ni100, and resistance values of 150 Ω, 300 Ω, and 600 Ω. The module features a 15-bit resolution with sign and operates with a cycle time of 110 ms per channel.

Key Features

• Number of Channels: 2 or 4 channels with 3- or 4-wire connection; 4 channels with 2-wire connection
• Sensor Types Supported: Pt100, Pt100 KL, Ni100, Ni100 KL, 150 Ω, 300 Ω, 600 Ω
• Resolution: 15 bits with sign
• Cycle Time: 110 ms per channel
• Width: 15 mm
• Diagnostic Indicators: SF LED (group fault)
• Mounting Compatibility: Fits to BaseUnit BU type A0
• Color Code: CC00

Technical Specifications

• Product Type: Analog Input Module
• Part Number: 6ES7134-4JB51-0AB0
• Number of Inputs: 2 or 4
• Supported Sensors: Pt100, Pt100 KL, Ni100, Ni100 KL, 150 Ω, 300 Ω, 600 Ω
• Resolution: 15 bits with sign
• Cycle Time: 110 ms per channel
• Width: 15 mm
• Diagnostic Indicators: SF LED (group fault)
• Mounting Compatibility: BaseUnit BU type A0
• Color Code: CC00

Application Areas

• Process Control: Monitoring and controlling industrial processes requiring precise temperature measurements
• Machine Automation: Integrating RTD sensors into automated machinery for real-time data acquisition
• Building Automation: Collecting temperature data from various sensors in building systems for monitoring and control
• Energy Management: Measuring temperature-related parameters in industrial settings for energy optimization

Advantages

• High Precision: 15-bit resolution with sign ensures accurate temperature measurements
• Wide Sensor Compatibility: Supports a variety of RTD and resistor types, providing flexibility in sensor selection
• Compact Design: 15 mm width allows for space-saving installations in control cabinets
• Reliable Diagnostics: SF LED indicator provides clear fault diagnostics, enhancing system reliability
