SIMATIC S7-200 SMART | Siemens | 6ES7 288-0ED10-0AA0 6ES7288-0ED10-0AA0 Smart Regulated Power Supply

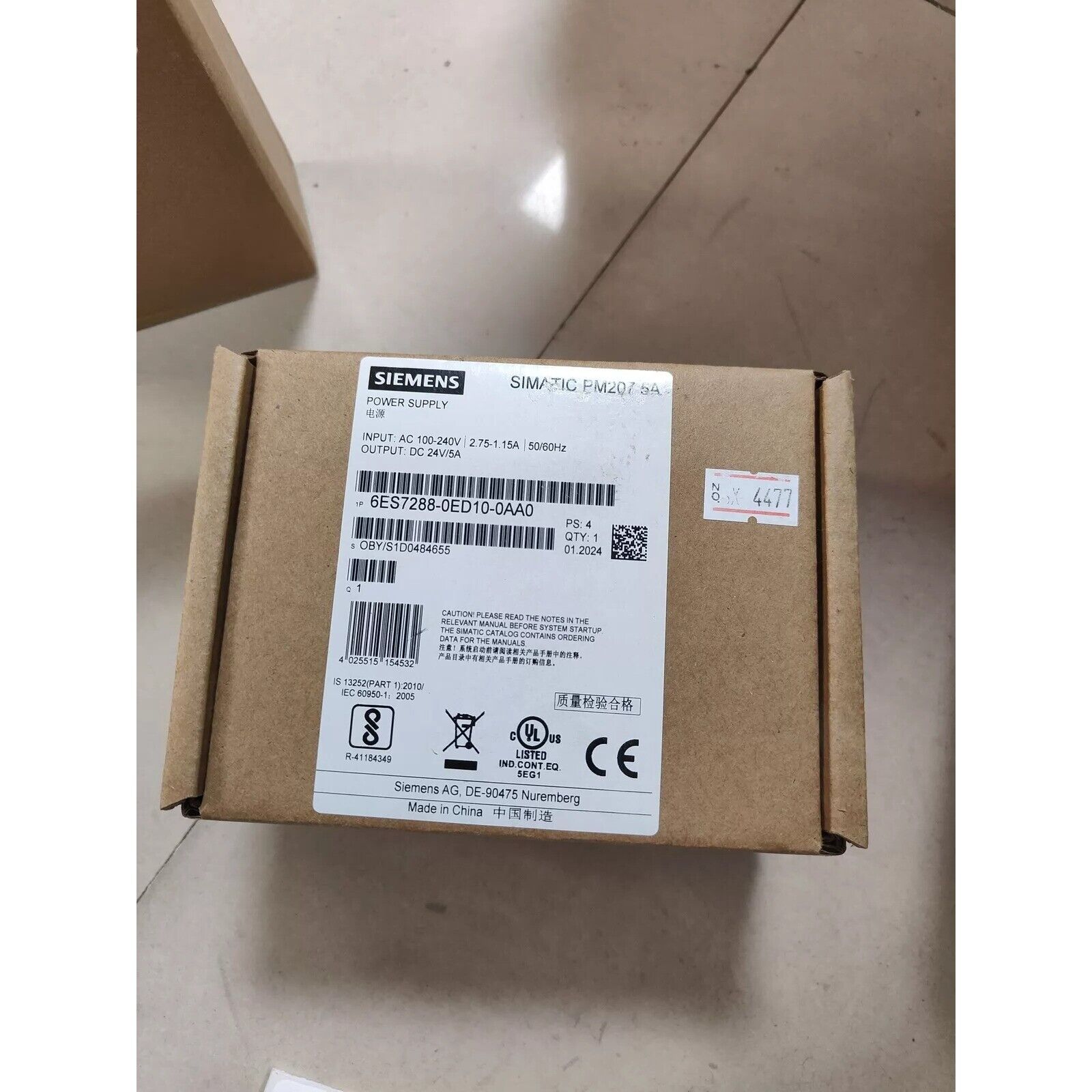

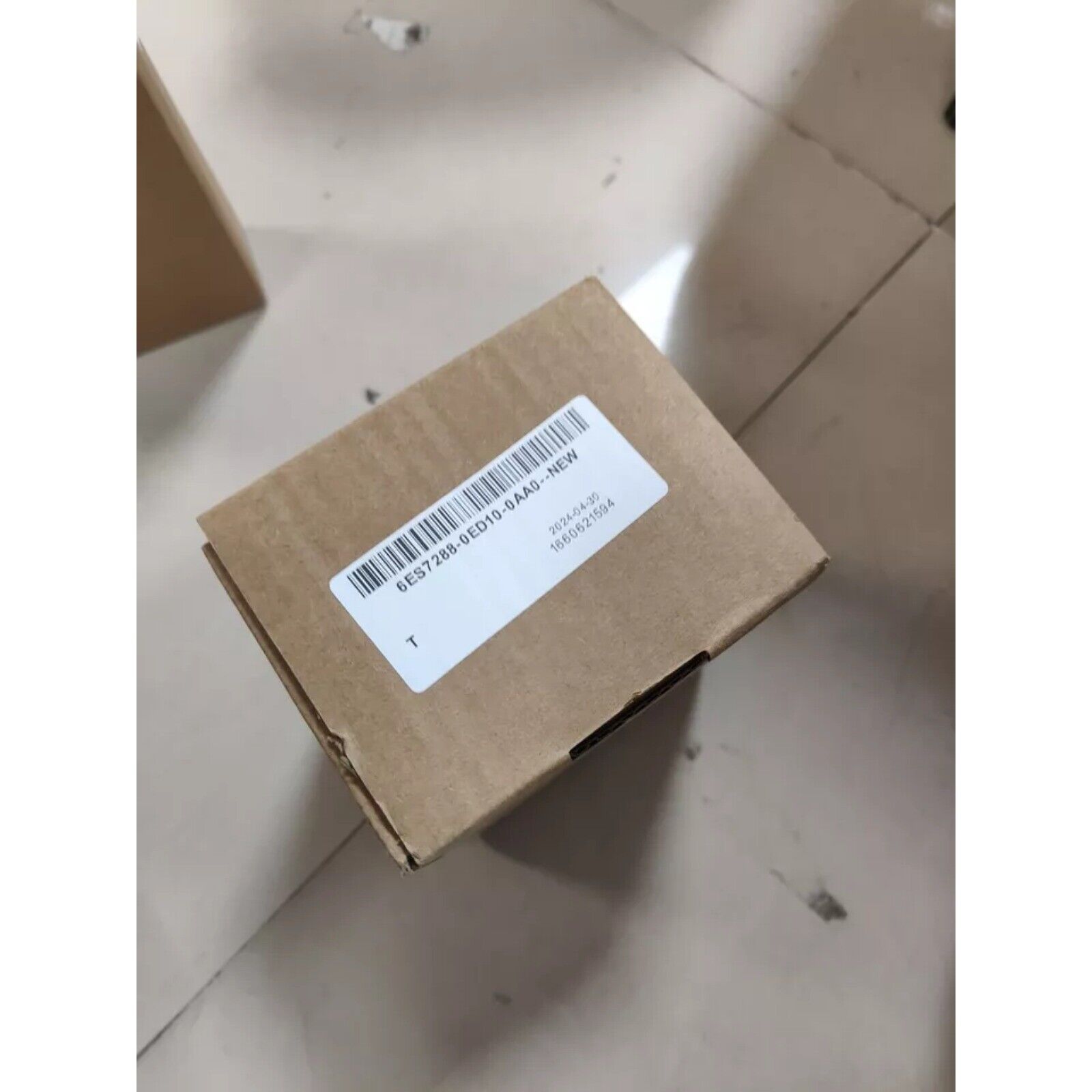

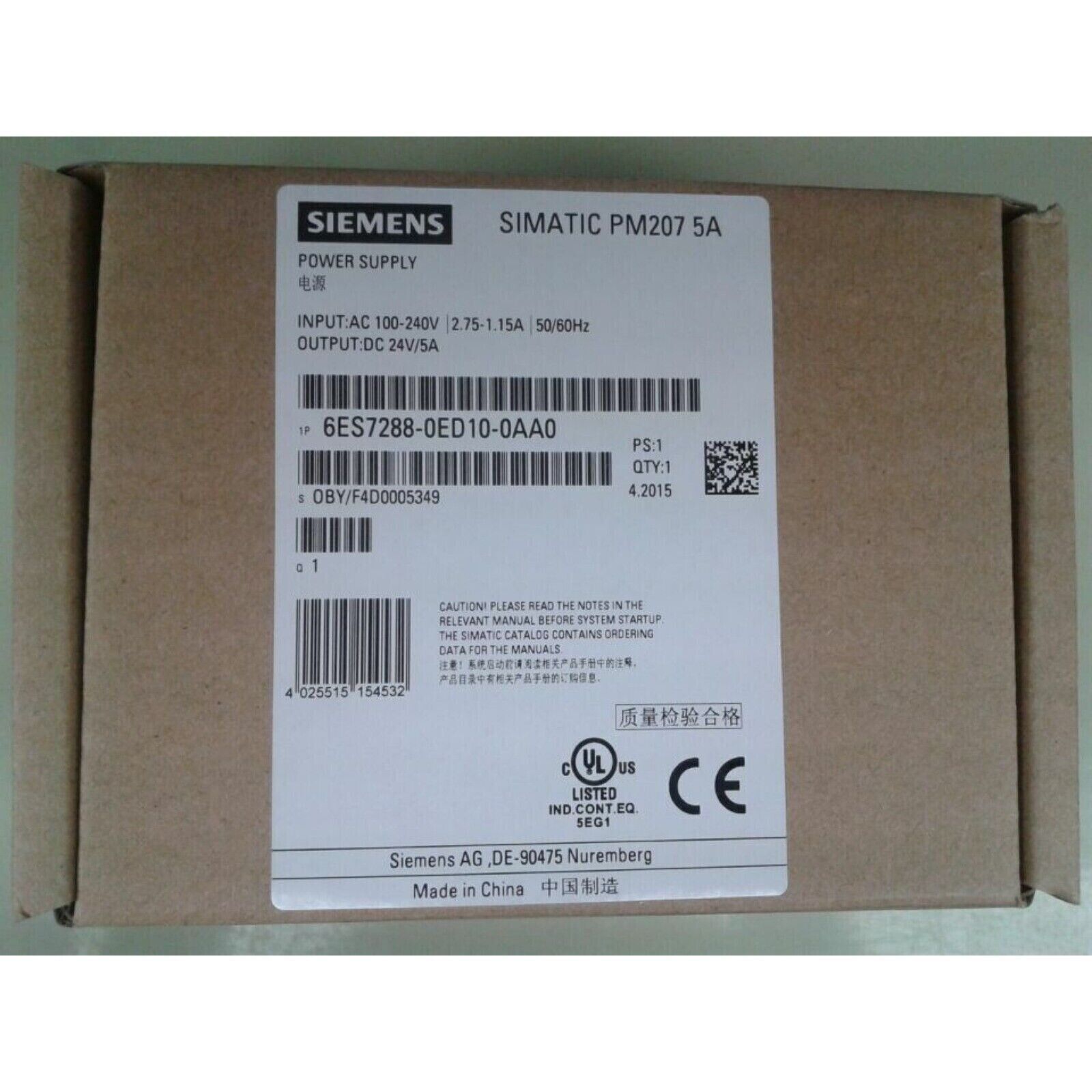

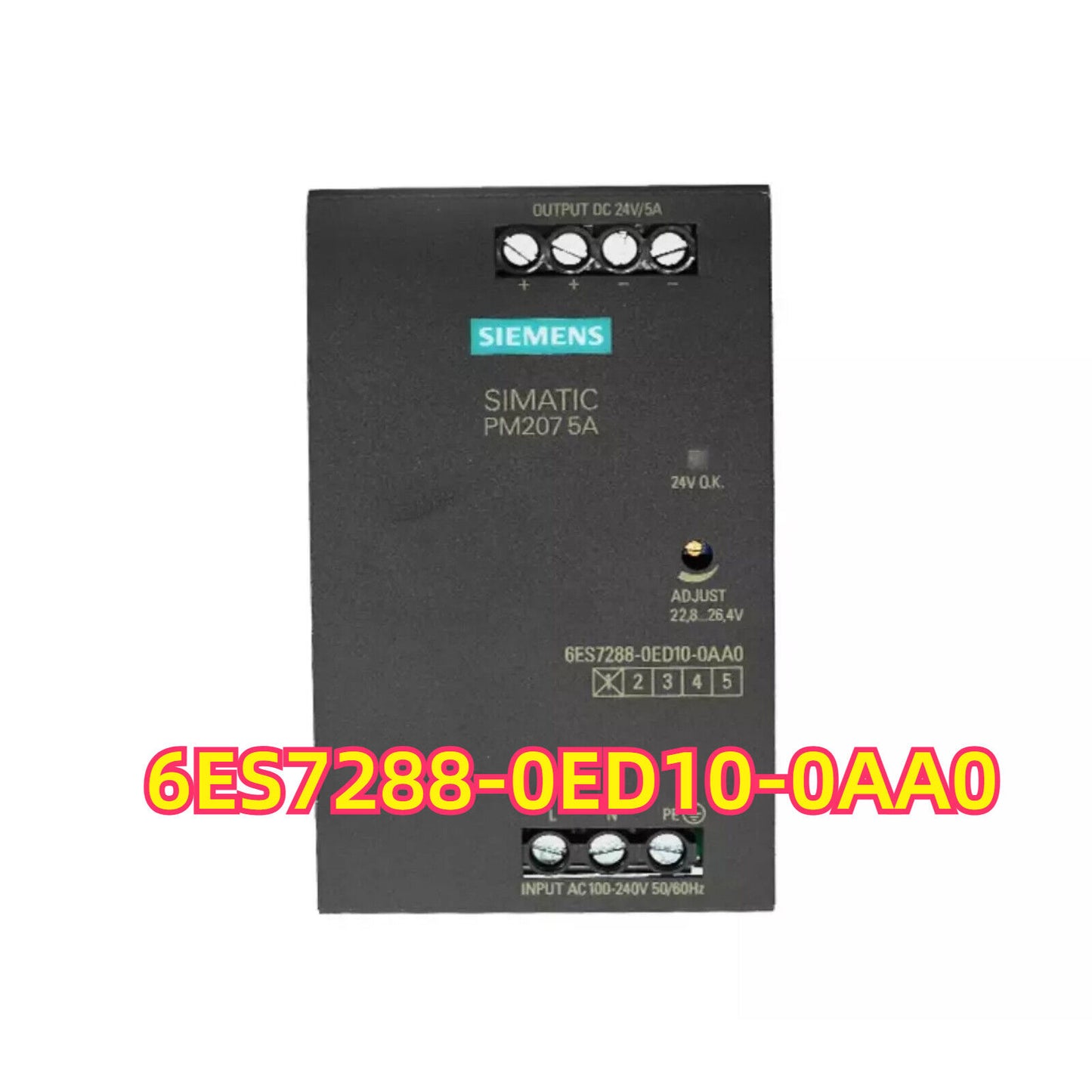

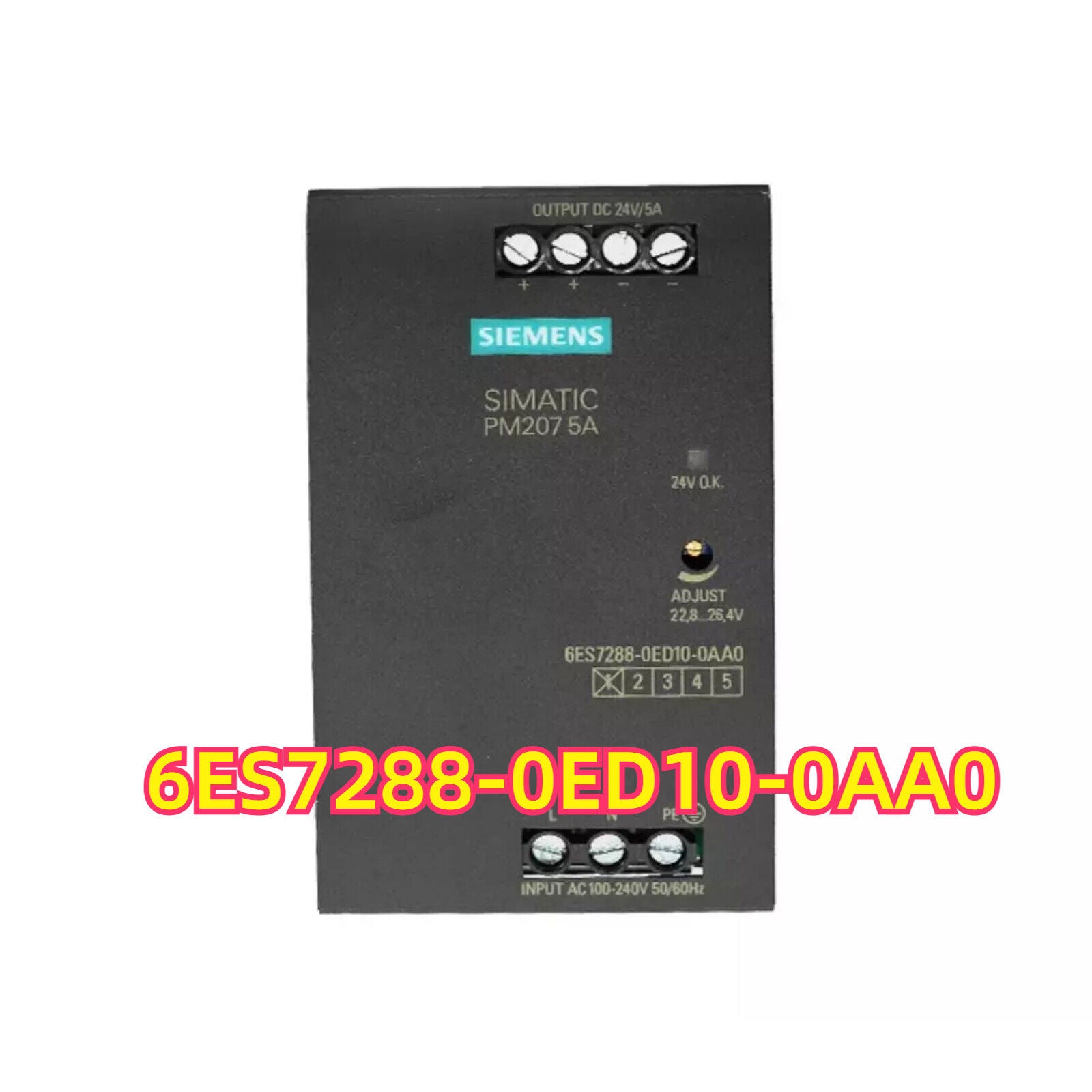

Product Description: Siemens 6ES7288-0ED10-0AA0

The Siemens 6ES7288-0ED10-0AA0 is a regulated power supply module designed for the SIMATIC S7-200 SMART series. It accepts an input voltage range of 100–240 V AC and delivers a stable 24 V DC output at 5 A. This module ensures consistent and reliable power to automation systems and is equipped with integrated protection features to safeguard against overload and short circuits. Its compact and robust design makes it ideal for industrial control environments where space and reliability are crucial.

Key Features

• Wide input voltage range: 100–240 V AC
• Output voltage: 24 V DC
• Output current: 5 A
• Integrated electronic protection: overload and short- circuit protection
• DIN rail mounting for easy installation
• Compact and durable housing suitable for industrial applications
• Certified for global use: CE, cULus, EAC

Technical Specifications

• Part Number: 6ES7288-0ED10-0AA0
• Input Voltage Range: 100–240 V AC
• Output Voltage: 24 V DC
• Output Current: 5 A
• Mounting Method: DIN rail
• Dimensions (W × H × D): 90 mm × 100 mm × 81 mm
• Weight: Approximately 0.6 kg
• Protection Class: IP20
• Operating Temperature Range: 0 °C to +55 °C
• Storage Temperature Range: –40 °C to +70 °C
• Relative Humidity: 5% to 95% (non-condensing)
• Certifications: CE, cULus, EAC

Application Areas

• Powering SIMATIC S7-200 SMART PLC systems
• Industrial automation requiring regulated 24 V DC supply
• Electrical control panels and distributed automation setups
• Machine building, factory automation, and process control installations

Advantages

• Supports international voltage standards for global compatibility
• Enhances system stability with built-in protection features
• Compact design minimizes cabinet space requirements
• Quick and secure DIN rail mounting reduces installation time
• Fully compatible with Siemens S7-200 SMART automation architecture
