PLC | Siemens | 6ES7 232-4HB32-0XB0 S7-1200 Analog output SM 1232 6ES7232-4HB32-0XB0

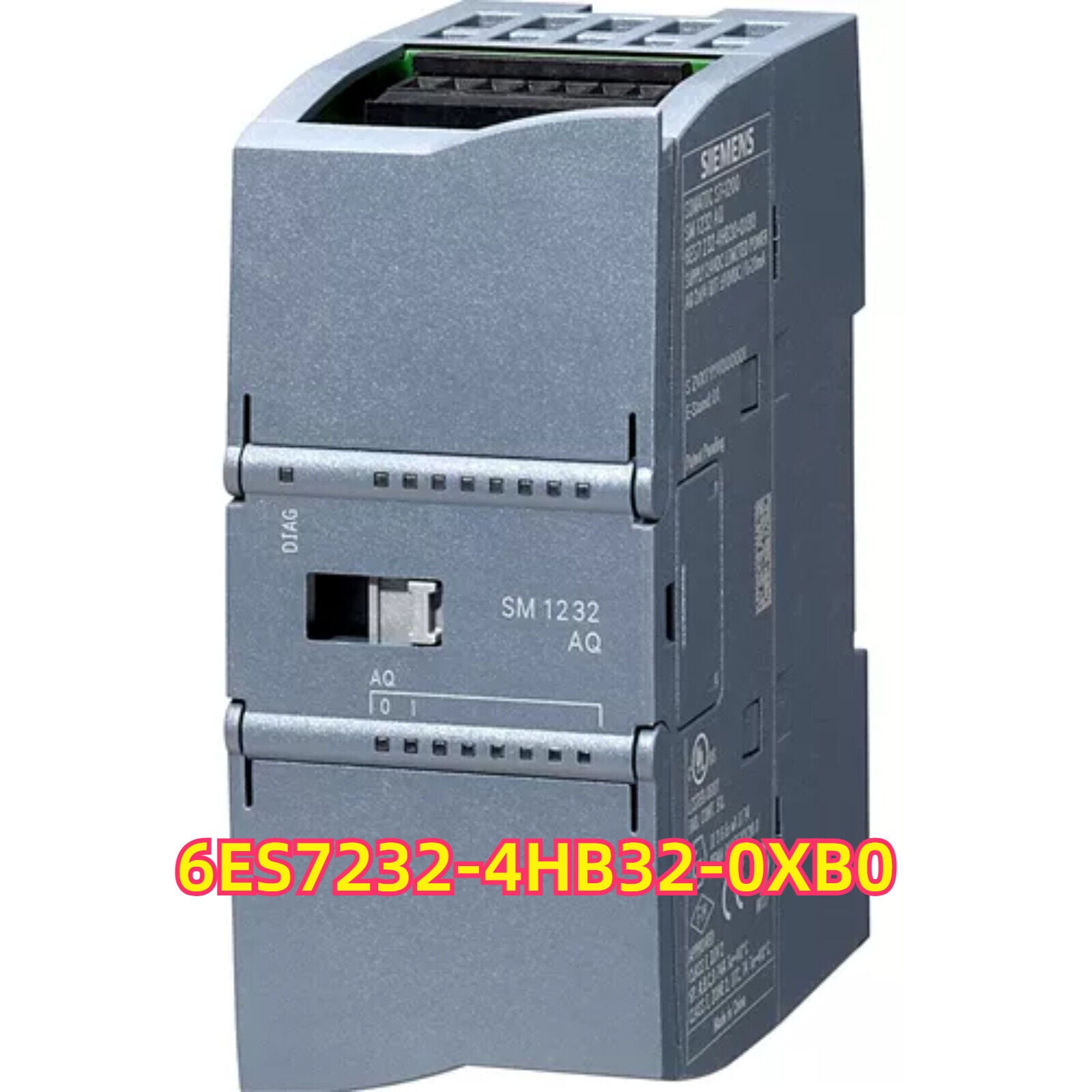

Product Description: Siemens 6ES7232-4HB32-0XB0

The Siemens 6ES7232-4HB32-0XB0 is an analog output signal module from the SIMATIC S7-1200 series, featuring 2 analog outputs for either voltage or current signals. With 13-bit resolution and flexible output configuration, this module enables precise analog signal generation for control of actuators such as valves, drives, and other analog field devices. It integrates seamlessly with S7-1200 CPUs and is ideal for applications requiring accurate analog output in compact control systems.

Key Features

• 2 analog outputs (AO)
• Configurable for voltage (±10 V, 0–10 V) or current (0–20 mA, 4–20 mA) signals
• High resolution (13 bits) for precise control
• Individual channel configuration via TIA Portal
• Galvanic isolation between outputs and system bus
• Compact DIN rail-mounted design
• Seamless integration with SIMATIC S7-1200 PLCs

Technical Specifications

• Part Number: 6ES7232-4HB32-0XB0
• Number of Outputs: 2 analog outputs
• Output Signal Types:
  • Voltage: ±10 V, 0–10 V
• Resolution: 13 bits
• Output Load:
  • Voltage: ≥1 kΩ
• Conversion Time: ≤1 ms per channel
• Galvanic Isolation: Yes, between channels and backplane
• Power Supply: Via backplane from CPU
• Mounting: DIN rail
• Dimensions (W × H × D): 45 mm × 100 mm × 75 mm
• Weight: Approx. 160 g
• Protection Class: IP20
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, cULus, EAC

Application Areas

• Industrial process control with analog actuators
• Machine automation requiring variable signal output
• Control of proportional valves and analog-positioned devices
• Integration into compact and distributed control panels
• OEM applications using the S7-1200 automation platform

Advantages

• High-precision analog output with flexible configuration
• Reduces need for external signal converters or amplifiers
• Simple and fast integration into TIA Portal
• Reliable and robust design for industrial environments
• Space-saving solution for analog output expansion
