PLC |Siemens | 6ES7 211-1BE40-0XB0 SIMATIC S7-1200 CPU 1211C 6ES7211-1BE40-0XB0

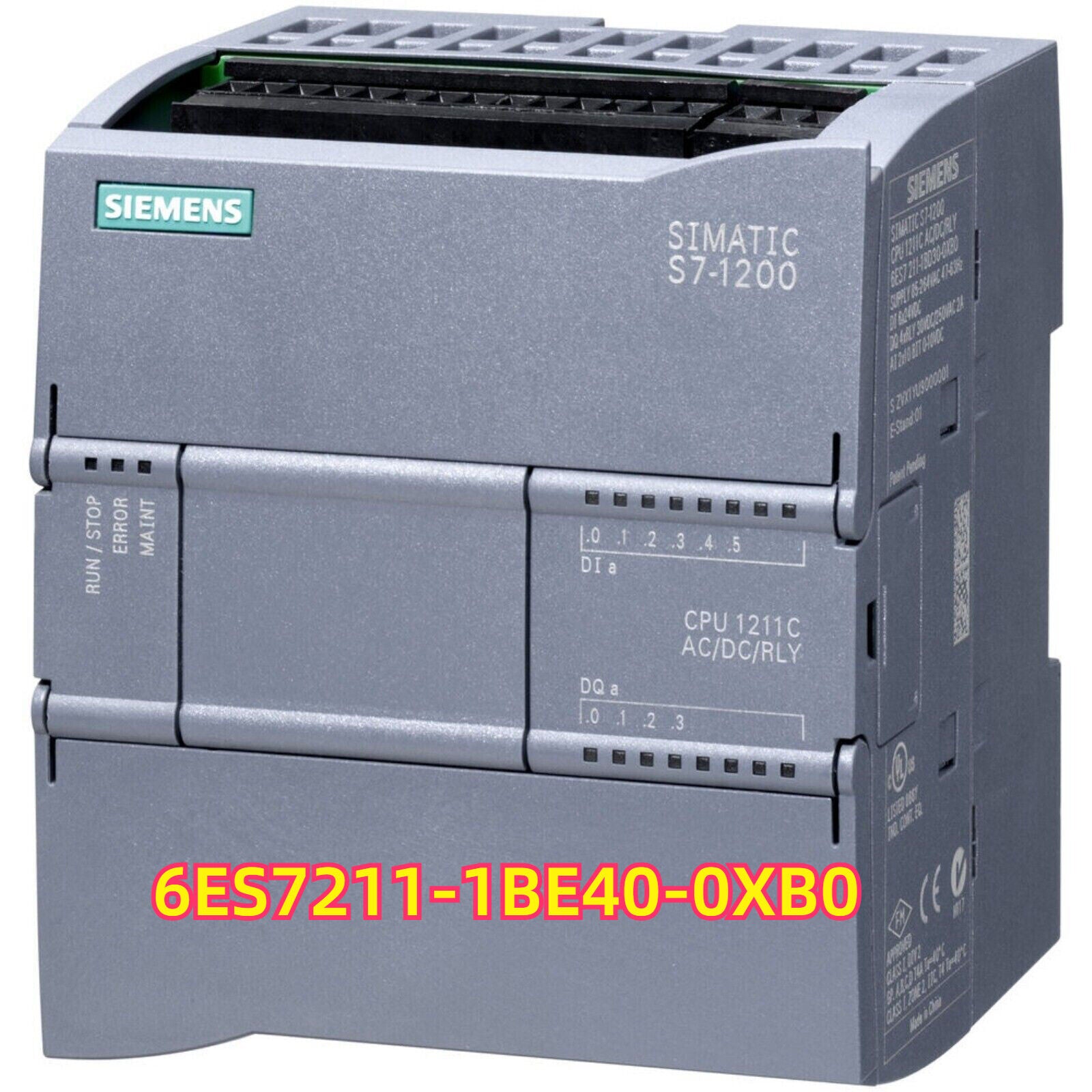

Product Description: Siemens 6ES7211-1BE40-0XB0 CPU 1211C

The Siemens 6ES7211-1BE40-0XB0 is the CPU 1211C from the SIMATIC S7-1200 series, a compact and cost-effective controller designed for basic to mid- range automation tasks. It features 6 digital inputs, 4 digital outputs (transistor), and 2 analog inputs, with a 24 V DC power supply and output type. With integrated PROFINET communication, high- speed processing, and support for modular expansion, this CPU provides flexible performance for small machines and automation projects.

Key Features

• Integrated I/O: 6 digital inputs, 4 digital outputs (24 V DC), and 2 analog inputs (0–10 V)
• Built-in PROFINET interface for programming and HMI/SCADA communication
• High-speed processing for time-critical operations
• Expandable with signal modules, communication modules, and signal boards
• Built-in real-time clock and data retention
• Compatible with TIA Portal engineering software
• Integrated motion control functions (PWM, PTO)

Technical Specifications

• Part Number: 6ES7211-1BE40-0XB0
• Power Supply: 24 V DC
• Digital Inputs: 6 (24 V DC, sink/source configurable)
• Digital Outputs: 4 (24 V DC transistor, 0.5 A per channel)
• Analog Inputs: 2 (0–10 V, 10-bit resolution)
• Program/Data Memory: 100 KB / 50 KB
• Communication Ports: 1 x PROFINET (RJ45, 10/100 Mbps)
• Integrated Functions: HSC, PWM, PID, pulse train outputs
• Expansion: Up to 3 signal modules, 1 signal board, and 1 communication module
• Dimensions (W × H × D): 90 mm × 100 mm × 75 mm
• Weight: Approx. 280 g
• Protection Class: IP20
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, cULus, EAC

Application Areas

• Small machine automation and control systems
• Building automation and environmental monitoring
• OEM applications in packaging, material handling, and food processing
• Decentralized control tasks requiring integrated communication
• Educational and prototyping projects

Advantages

• All-in-one compact controller with integrated I/Os and communication
• Flexible expansion supports growing system needs
• Seamless integration into Siemens TIA Portal for unified engineering
• Cost-effective solution for a wide range of automation tasks
• High reliability and industrial-grade durability in compact form
