Industrial Communication | Siemens | 6ES7 151-8AB01-0AB0 6ES7151-8AB01-0AB0 IM151-8 PN/DP CPU for ET200

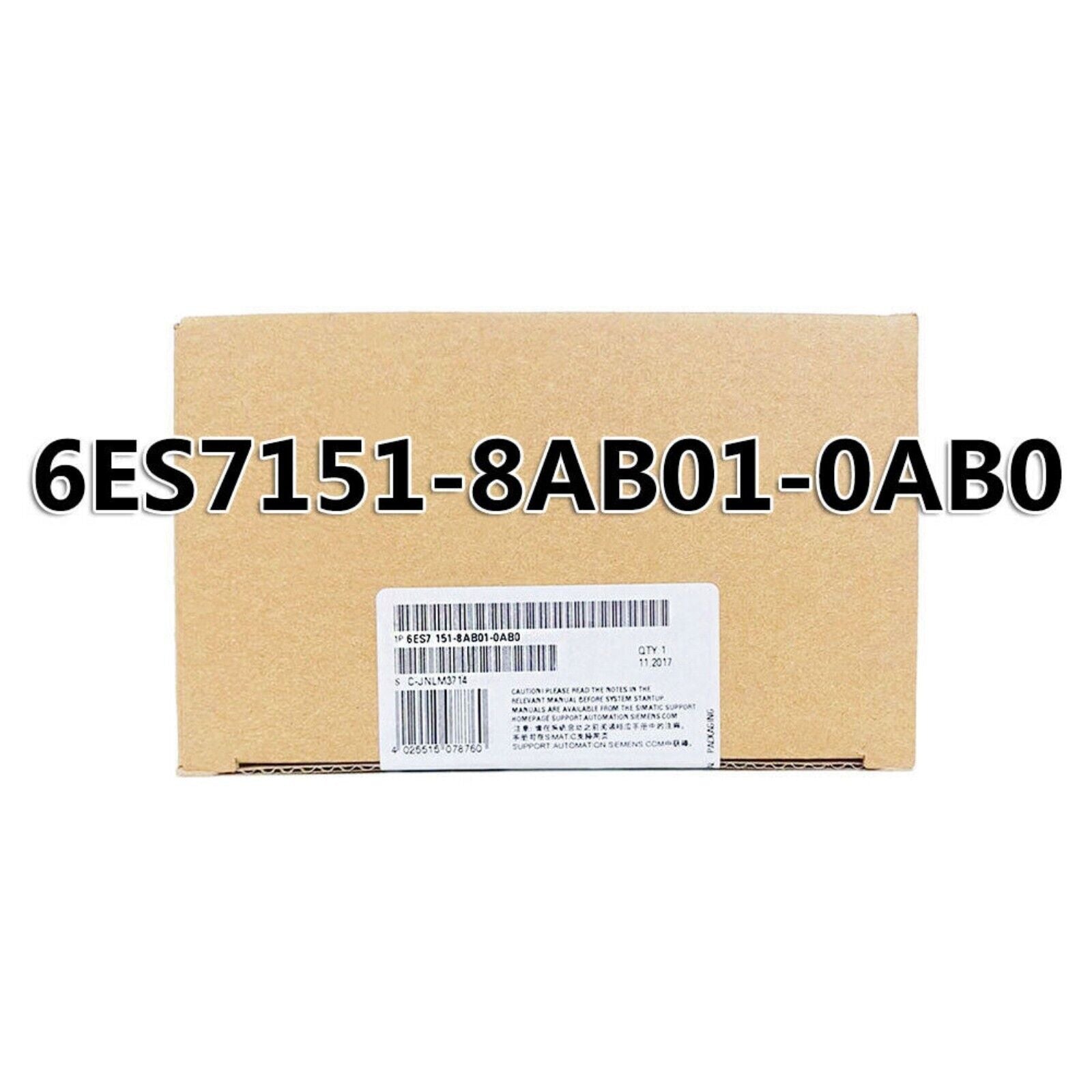

Product Description: Siemens 6ES7151-8AB01-0AB0

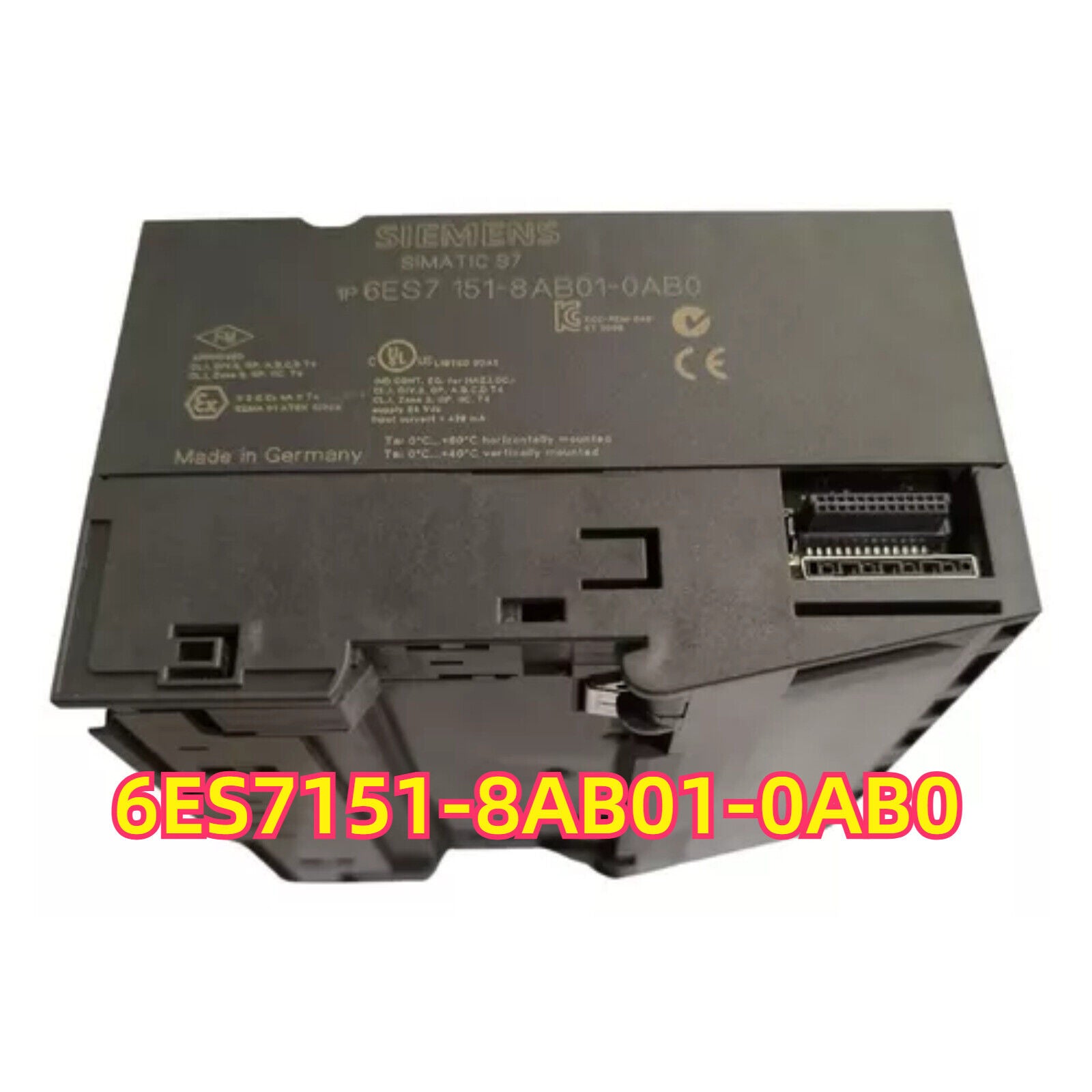

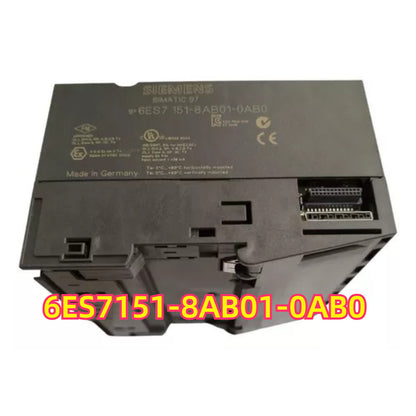

The Siemens 6ES7151-8AB01-0AB0 is an interface module with an integrated CPU for the SIMATIC ET 200S distributed I/O system. It features a 192 KB work memory and supports both PROFINET and PROFIBUS communication protocols. The module includes three RJ45 ports for PROFINET connectivity and requires a SIMATIC Micro Memory Card (MMC) for operation. Designed for modular and scalable automation solutions, it facilitates efficient control in distributed environments.

Key Features

• Integrated CPU: 192 KB work memory for user programs
• Communication Interfaces: 3 × RJ45 ports for PROFINET IO Controller functionality
• PROFIBUS DP Master/Slave capability
• Memory: Requires SIMATIC Micro Memory Card (MMC) for program and data storage
• Power Supply: 24 V DC (permissible range: 20.4 V to 28.8 V DC)
• Engineering Tools: Compatible with STEP 7 V5.5 or higher and TIA Portal V11 or higher
• Firmware Version: V3.2
• Mounting: DIN rail mounting for easy integration into control cabinets

Technical Specifications

• Product Type: Interface Module with Integrated CPU
• Part Number: 6ES7151-8AB01-0AB0
• Work Memory: 192 KB
• Communication Ports: 3 × RJ45 (PROFINET), PROFIBUS DP
• Supply Voltage: 24 V DC (20.4 V to 28.8 V DC permissible)
• Required Memory Card: SIMATIC Micro Memory Card (MMC)
• Firmware Version: V3.2
• Engineering Tools: STEP 7 V5.5 or higher, TIA Portal V11 or higher
• Mounting: DIN rail
• Operating Temperature Range: 0 °C to +60 °C
• Protection Class: IP20
• Dimensions (W × H × D): 12.7 cm × 7.6 cm × 12.7 cm
• Weight: Approximately 0.3 kg

Application Areas

• Distributed automation systems requiring integrated control and I/O
• Modular machine and process control setups
• Systems necessitating both PROFINET and PROFIBUS communication
• Applications where space-saving and scalability are essential

Advantages

• Combines CPU and interface module functionalities, reducing hardware requirements
• Supports dual communication protocols for flexible integration
• Compact design suitable for decentralized installations
• Seamless integration with Siemens automation software tools
• Facilitates scalable and modular system architectures
