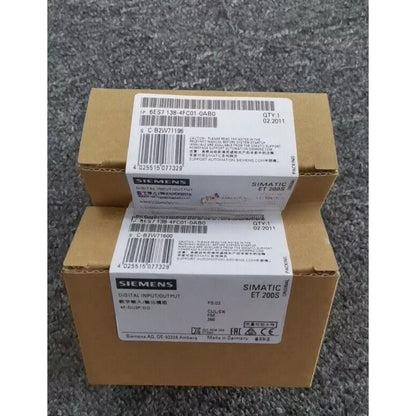

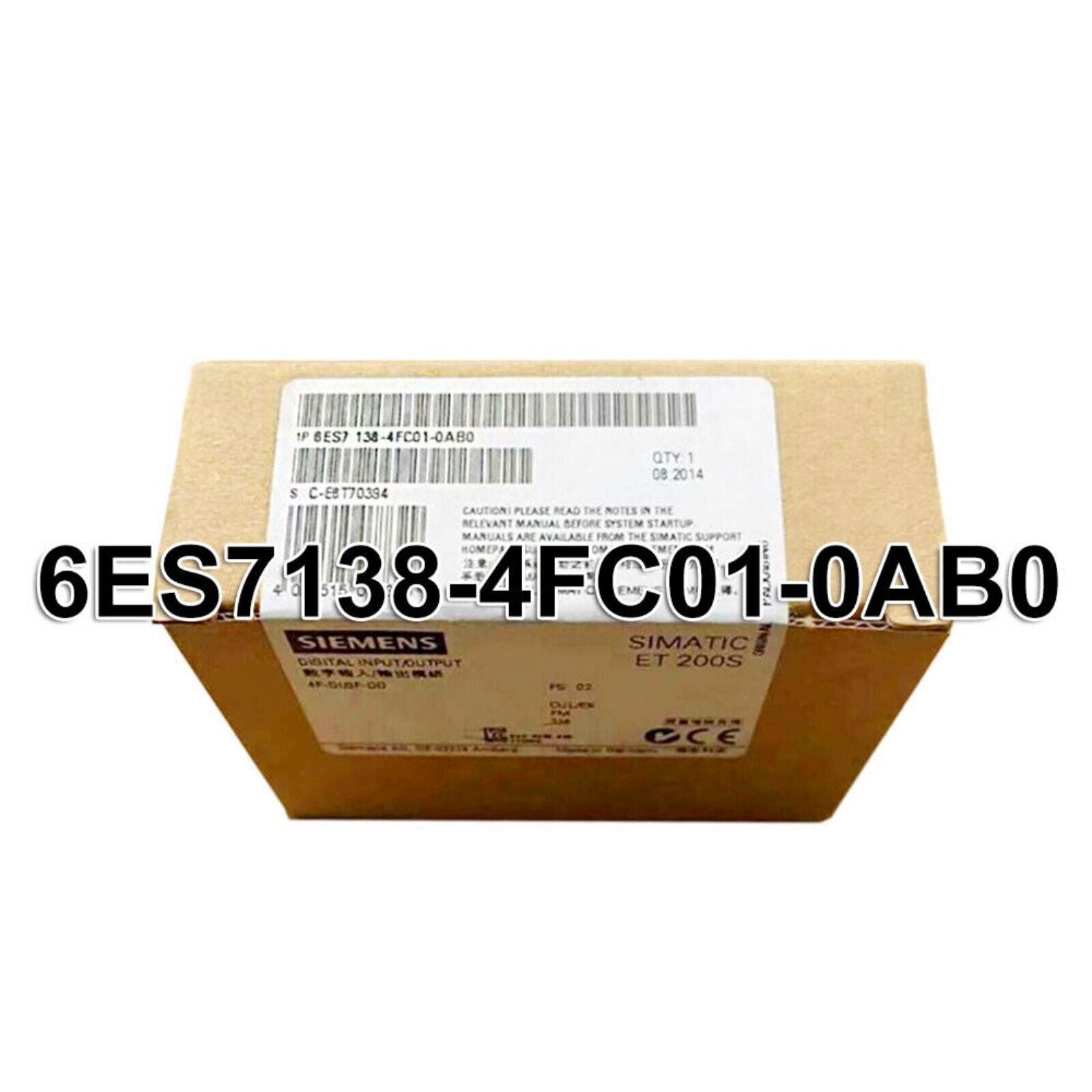

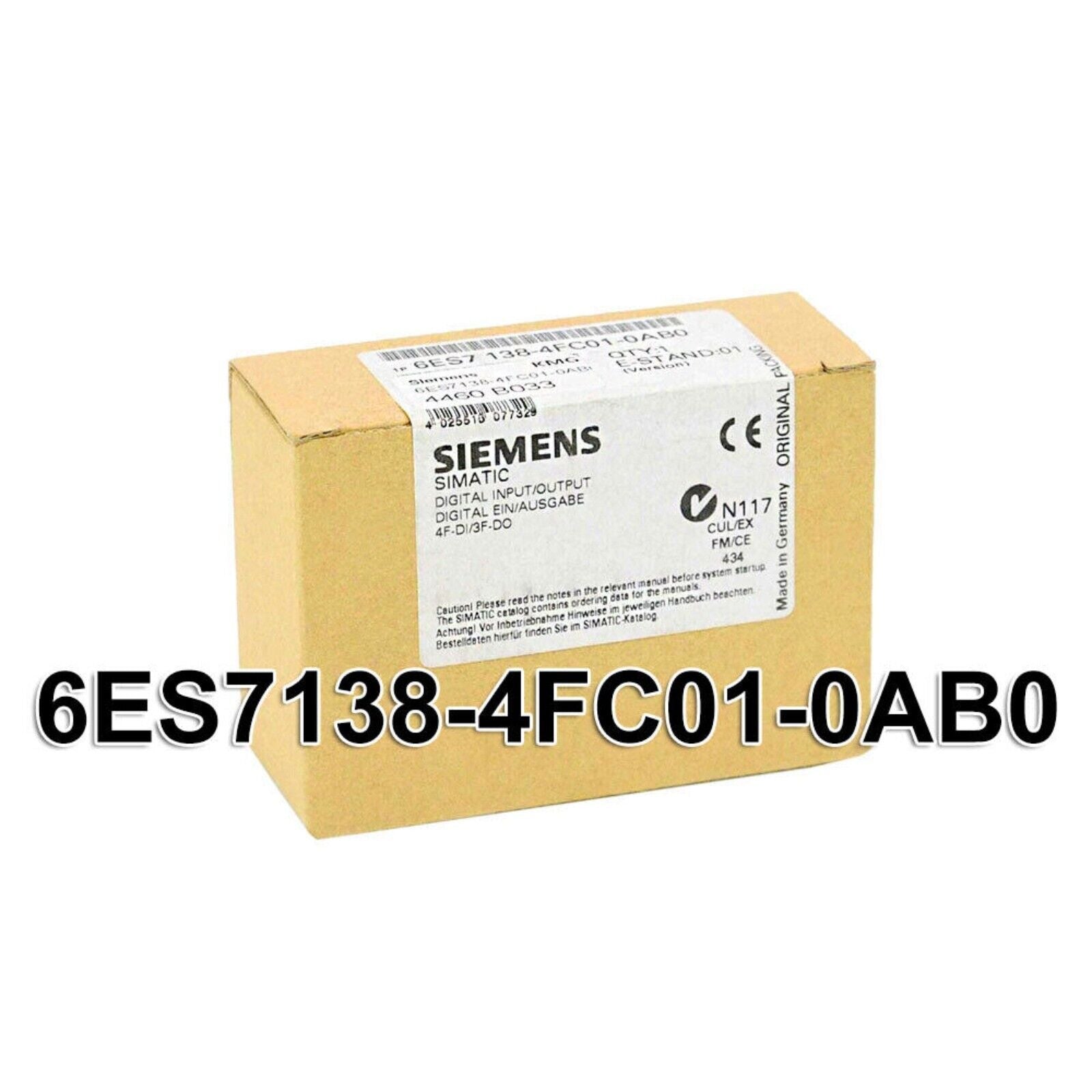

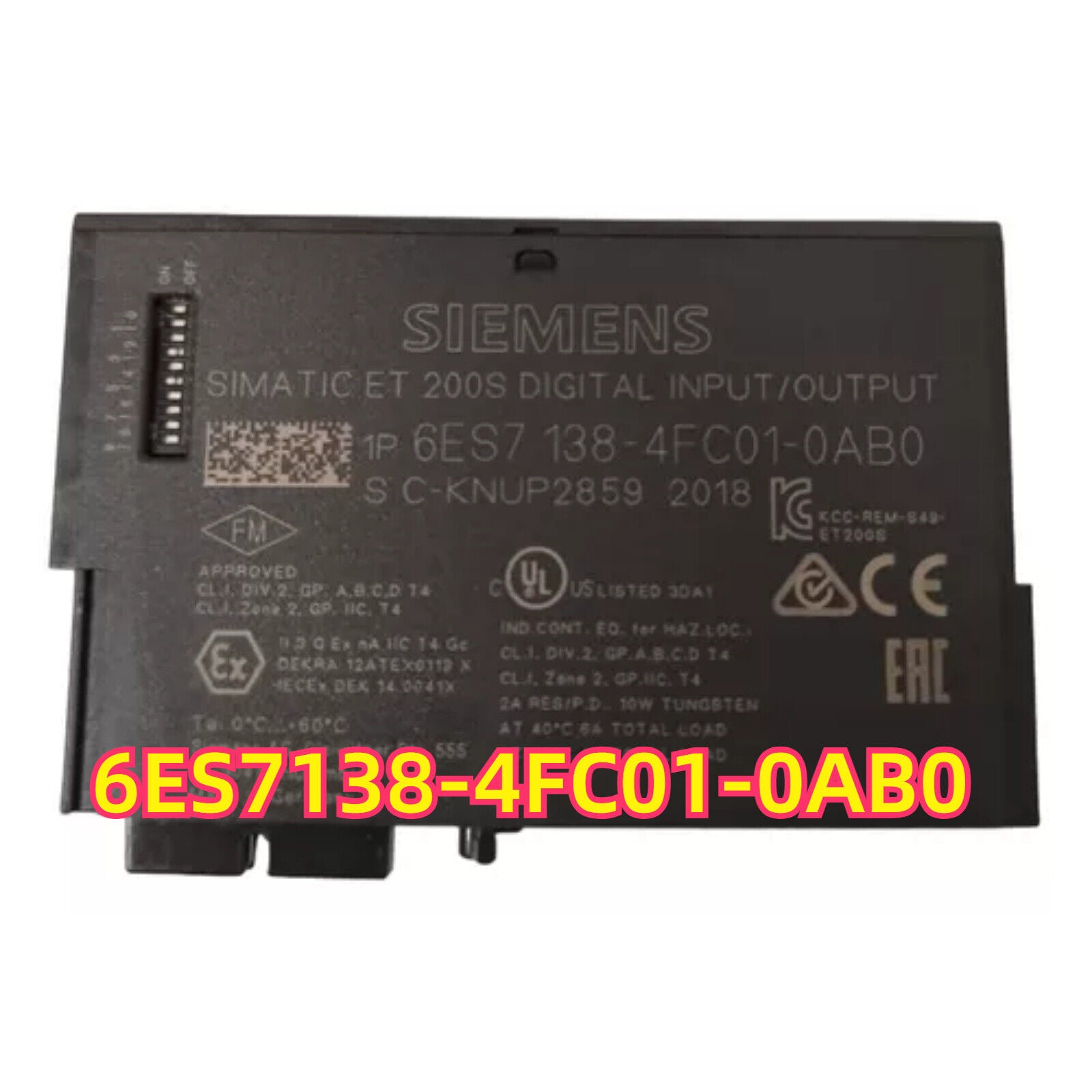

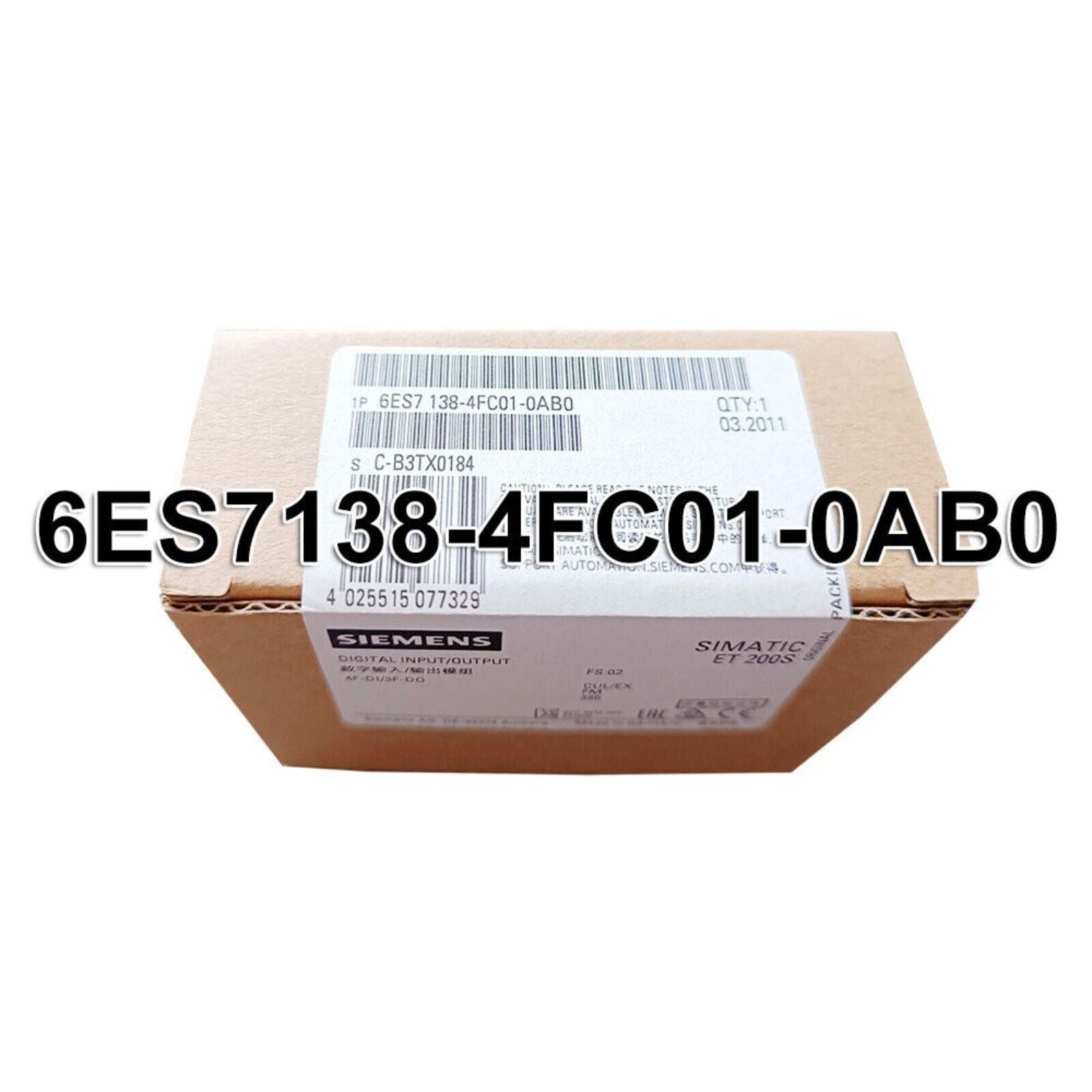

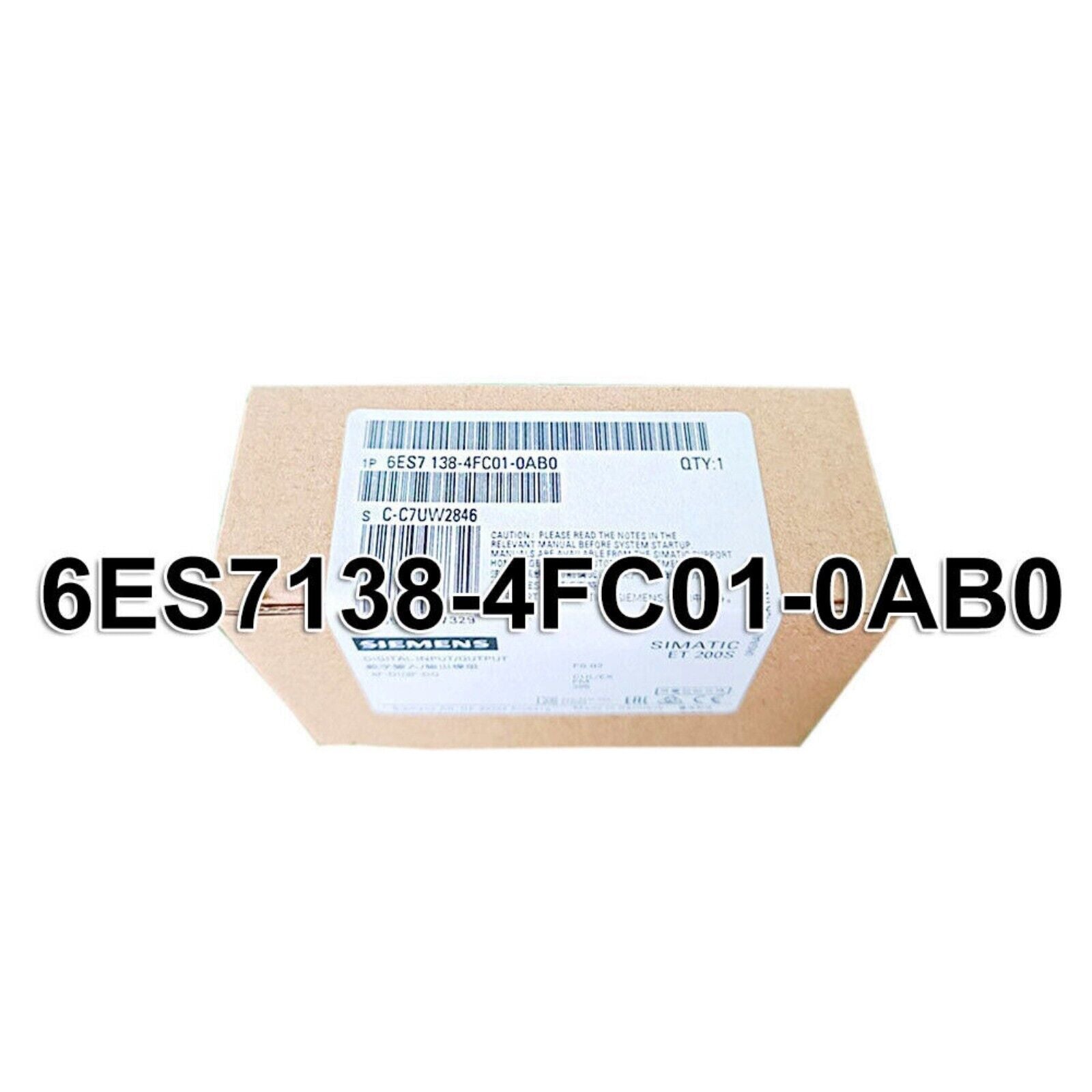

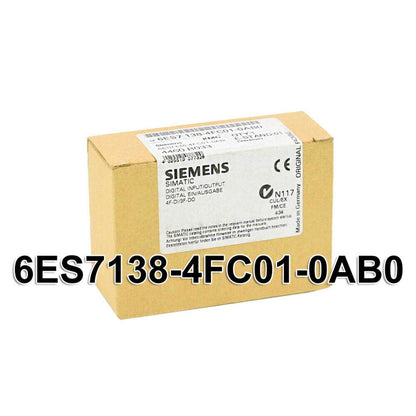

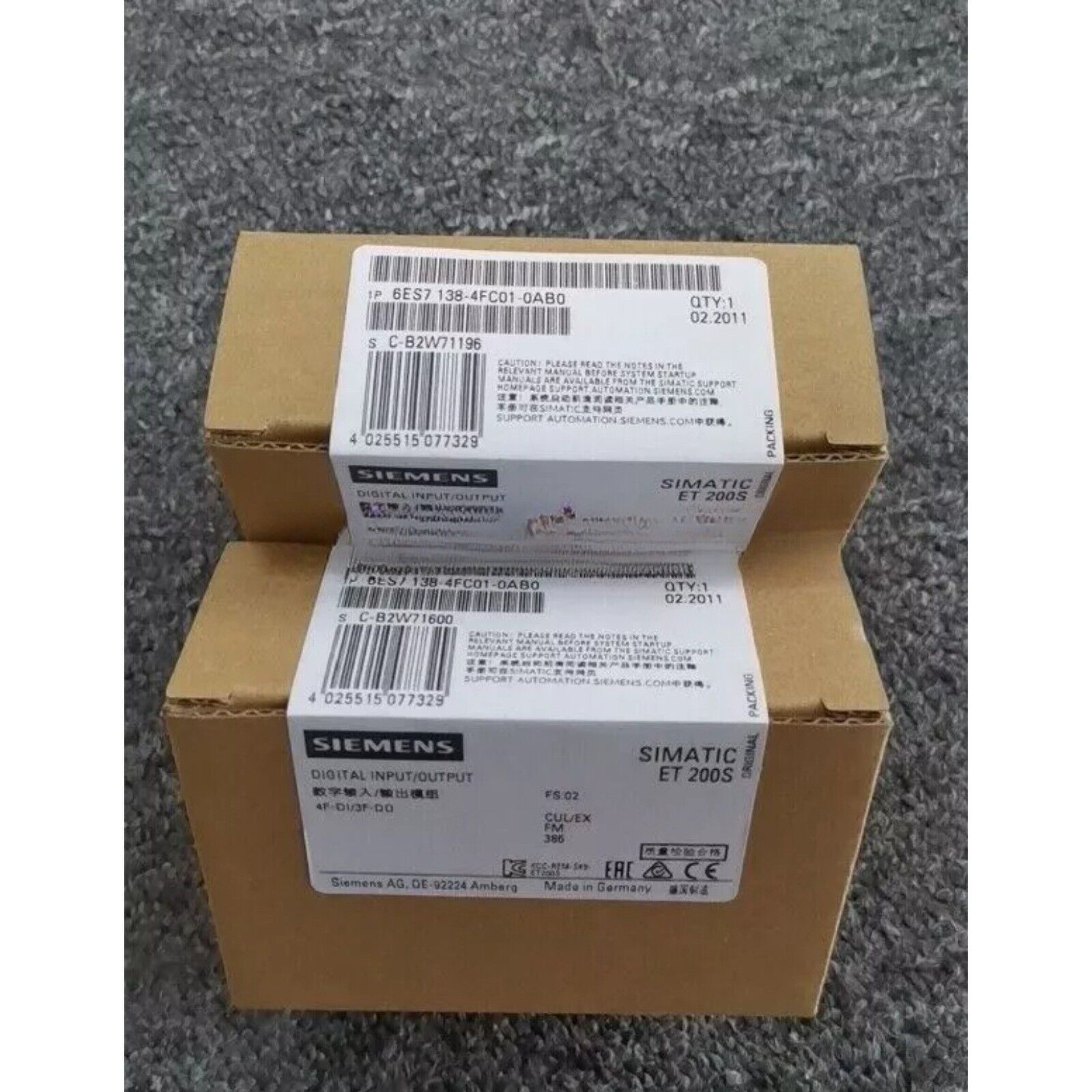

Product Description: Siemens 6ES7138-4FC01-0AB0

The Siemens 6ES7138-4FC01-0AB0 is a fail-safe digital I/O module for the SIMATIC ET 200S distributed I/O system. It provides 4 fail-safe digital inputs and 3 fail-safe digital outputs, operating at 24 V DC. This module supports safety-related communication via PROFIsafe and is designed for applications up to SIL2 (IEC 61508), Category 3 (EN 954-1), and PL d (ISO 13849). It is ideal for safety applications including emergency stops, protective door switches, and two-hand operation controls.

Key Features

• 4 fail-safe digital inputs (F-DI)
• 3 fail-safe digital outputs (F-DO), 24 V DC / 2 A per channel
• Supports PROFIsafe over PROFIBUS DP or PROFINET
• Complies with SIL2, Category 3, and Performance Level d
• PROFIsafe address configurable via DIP switch
• Channel-specific diagnostics and fault monitoring
• Suitable for use with IM151-3 HF interface module
• 30 mm module width for compact installations

Technical Specifications

• Supply Voltage: 24 V DC
• Power Loss: Approx. 3.5 W
• Input Current (Signal “1”): Approx. 3.5 mA
• Output Current per Channel: 2 A (max.)
• Module Width: 30 mm
• Dimensions (W × H × D): 30 mm × 81 mm × 52 mm
• Weight: Approx. 0.1 kg
• Protection Class: IP20
• Operating Temperature Range: 0 °C to +60 °C
• Mounting: DIN rail installation

Application Areas

• Industrial automation with integrated safety functions
• Emergency stop circuits
• Safety doors and guard monitoring
• Two-hand operation controls
• Distributed I/O networks requiring fail-safe I/O

Advantages

• Compact module with integrated safety
• Meets global safety standards up to SIL2 and PL d
• Reduces wiring and installation time
• Full diagnostics capability for faster troubleshooting
• Seamless integration into ET 200S I/O systems with PROFIsafe
