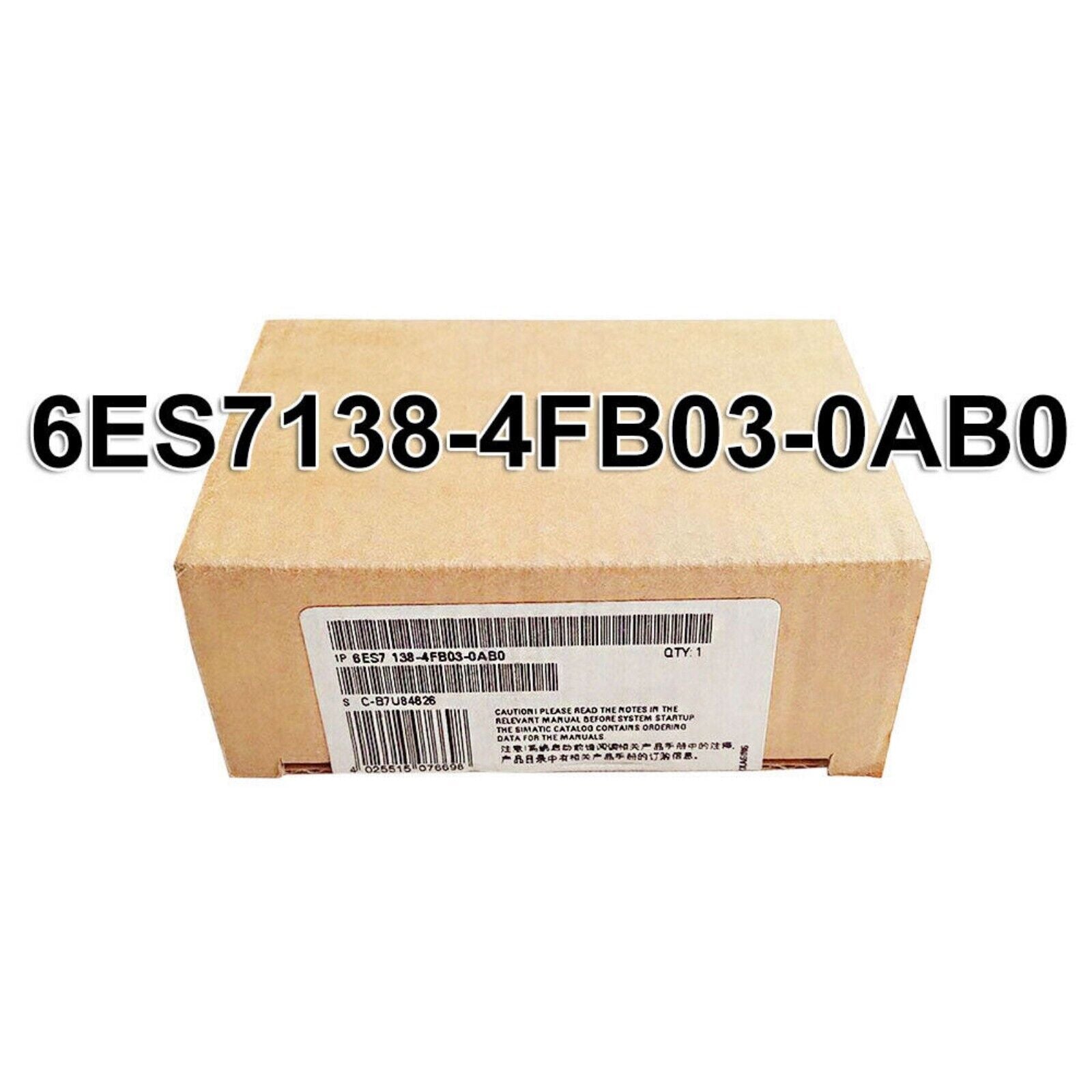

Product Description: Siemens 6ES7138-4FB03-0AB0

The Siemens 6ES7138-4FB03-0AB0 is a failsafe digital input module from the SIMATIC ET 200S series, designed for safety-related automation systems. It provides 8 digital inputs for 24 V DC signals and supports safety functions in accordance with SIL 3 (IEC 61508) and PL e (EN ISO 13849-1). This High Feature (HF) module is used for applications requiring secure monitoring of safety sensors such as emergency stop buttons, light curtains, or door switches. The module operates in conjunction with a safety- capable controller (e.g., S7 F-CPU) via PROFIsafe over PROFIBUS and integrates seamlessly into TIA Portal or STEP 7 for configuration and diagnostics.

Key Features

• 8 Failsafe Digital Inputs: Monitors 24 V DC signals from safety devices
• Certified Safety Standards: SIL 3, PL e, Category 4
• High Feature Version: Supports detailed diagnostics and parameterization
• Hot Swapping: Can be replaced during operation when mounted with appropriate BaseUnits
• PROFIsafe Compatible: Communicates safely over standard PROFIBUS networks
• Short-Circuit and Cross-Circuit Detection: Ensures reliable signal integrity

Technical Specifications

• Product Type: Failsafe Digital Input Module
• Part Number: 6ES7138-4FB03-0AB0
• Series: SIMATIC ET 200S
• Module Type: F-DI 8×24 V DC HF
• Number of Inputs: 8
• Input Voltage: 24 V DC
• Input Type: Single-channel and dual-channel (configurable)
• Diagnostic Features: Yes (channel-level diagnostics, wire break, short circuit)
• Safety Integrity Level: SIL 3 (IEC 61508)
• Performance Level: PL e (EN ISO 13849-1), Category 4
• Communication Interface: PROFIBUS with PROFIsafe
• Required BaseUnit: BU type E0 or higher
• Module Width: 15 mm
• Mounting: DIN rail, via ET 200S BaseUnit
• Operating Temperature: 0°C to +60°C
• Protection Class: IP20
• Weight: Approx. 90 g

Application Areas

• Emergency Stop Monitoring: Captures E-stop signals from various machine zones
• Safety Sensors: Interfaces with light curtains, interlock switches, and safety mats
• Failsafe Machine Control: Ideal for robotics, presses, packaging, and processing systems
• Plant Safety Systems: Centralized or distributed input collection for safe automation networks

Advantages

• Integrated Safety: Meets international safety standards without external relays
• Compact and Scalable: 8 channels in a 15 mm-wide module
• Detailed Diagnostics: Enables fast fault localization and minimal downtime
• Seamless Integration: Configured easily in TIA Portal or STEP 7 with S7 F-CPUs
• Field- Proven Reliability: Robust module for continuous use in demanding safety applications
