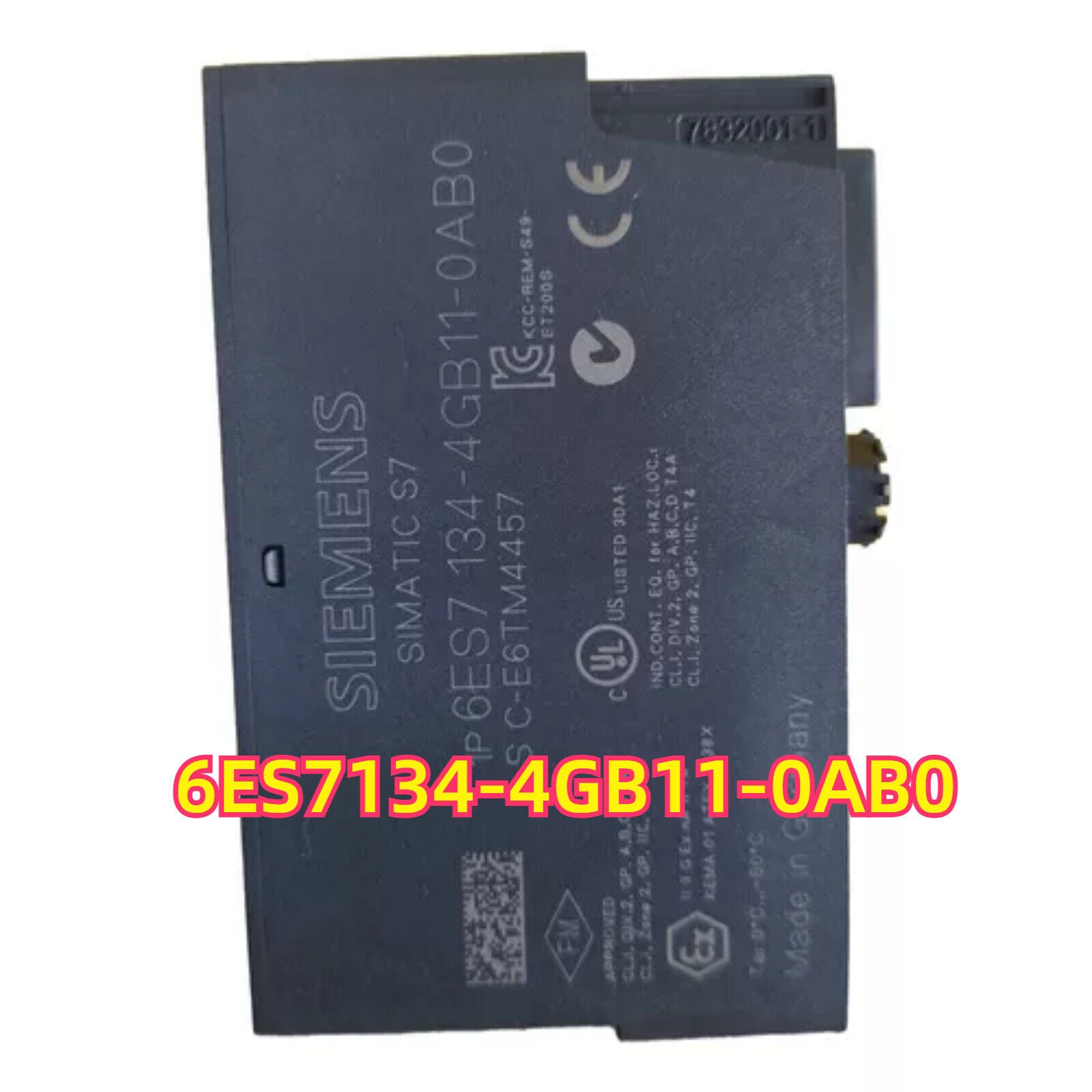

Product Description: Siemens 6ES7134-4GB11-0AB0

The Siemens 6ES7134-4GB11-0AB0 is a standard analog output module from the SIMATIC ET 200S series, offering 2 analog output channels for voltage or current signals. Designed for general-purpose analog signal generation, it is suitable for controlling actuators such as valves, drives, and analog- positioned devices in distributed automation systems. This module provides high-resolution output and integrates easily into ET 200S stations.

Key Features

• 2 analog output channels
• Output types: voltage (±10 V, 0–10 V) or current (0–20 mA, 4–20 mA)
• High-resolution signal output with up to 15-bit resolution
• Standard module with basic diagnostics
• Galvanic isolation between outputs and backplane bus
• Hot- swappable (with appropriate terminal modules)
• Requires separate terminal module (e.g., TM-E)

Technical Specifications

• Part Number: 6ES7134-4GB11-0AB0
• Number of Outputs: 2
• Output Ranges:
  • Voltage: ±10 V, 0–10 V
• Resolution: Up to 15 bits
• Load Resistance:
  • Voltage: ≥10 kΩ
• Conversion Time: Approx. 0.5 ms per channel
• Galvanic Isolation: Yes, between channels and system
• Mounting Method: Plug-in to ET 200S BaseUnit
• Module Width: 15 mm
• Protection Class: IP20
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: –40 °C to +70 °C
• Weight: Approx. 50 g
• Certifications: CE, cULus, EAC

Application Areas

• Process control and analog actuator control
• Modular and distributed I/O systems in industrial automation
• Analog signal output for drives, positioning systems, and sensors
• ET 200S-based remote stations using PROFIBUS or PROFINET
• General automation systems requiring compact analog output

Advantages

• Flexible signal output configuration (voltage or current)
• High resolution ensures accurate control of analog devices
• Compact, modular design fits distributed I/O environments
• Cost-effective solution for basic analog output needs
• Fully compatible with Siemens TIA Portal and SIMATIC PLCs
