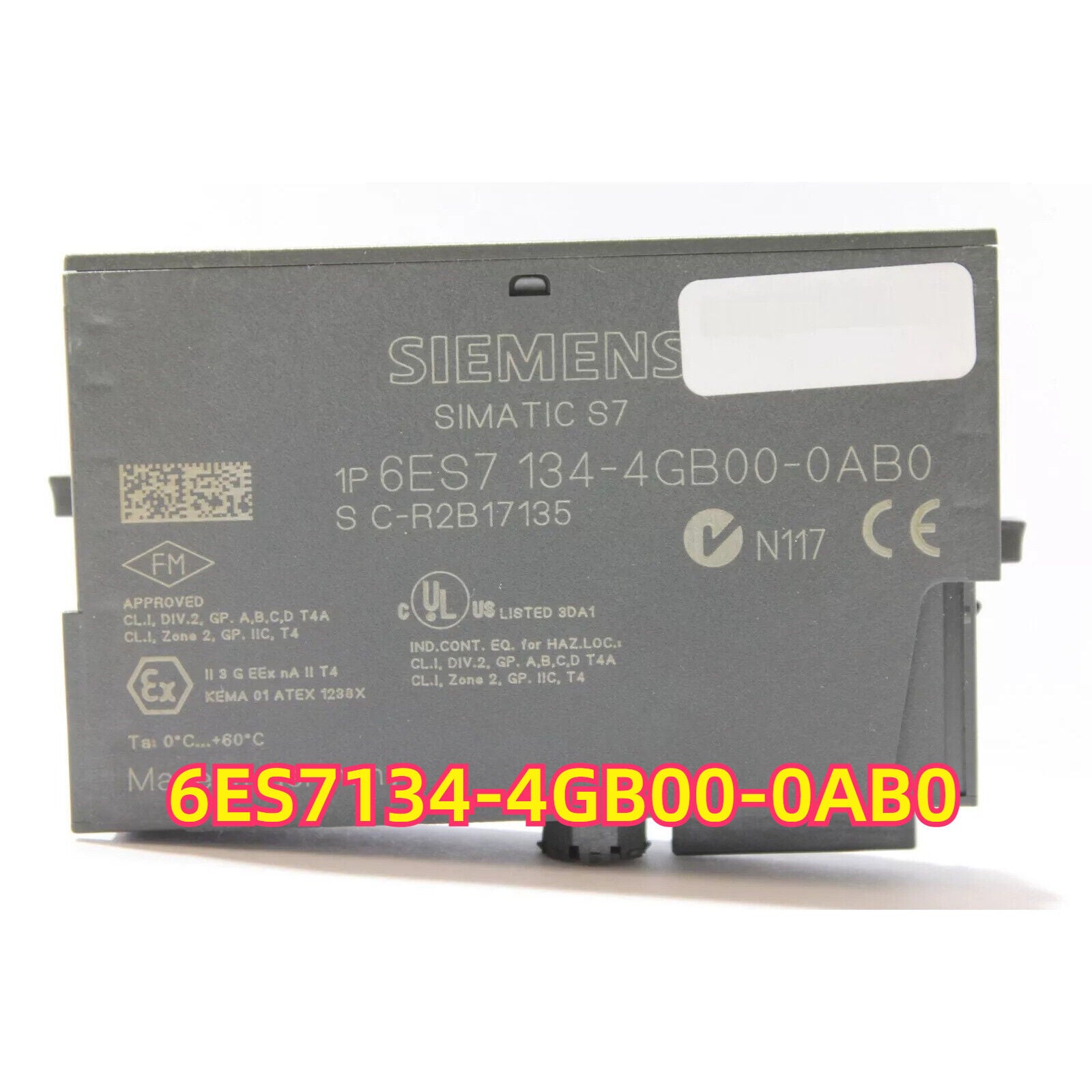

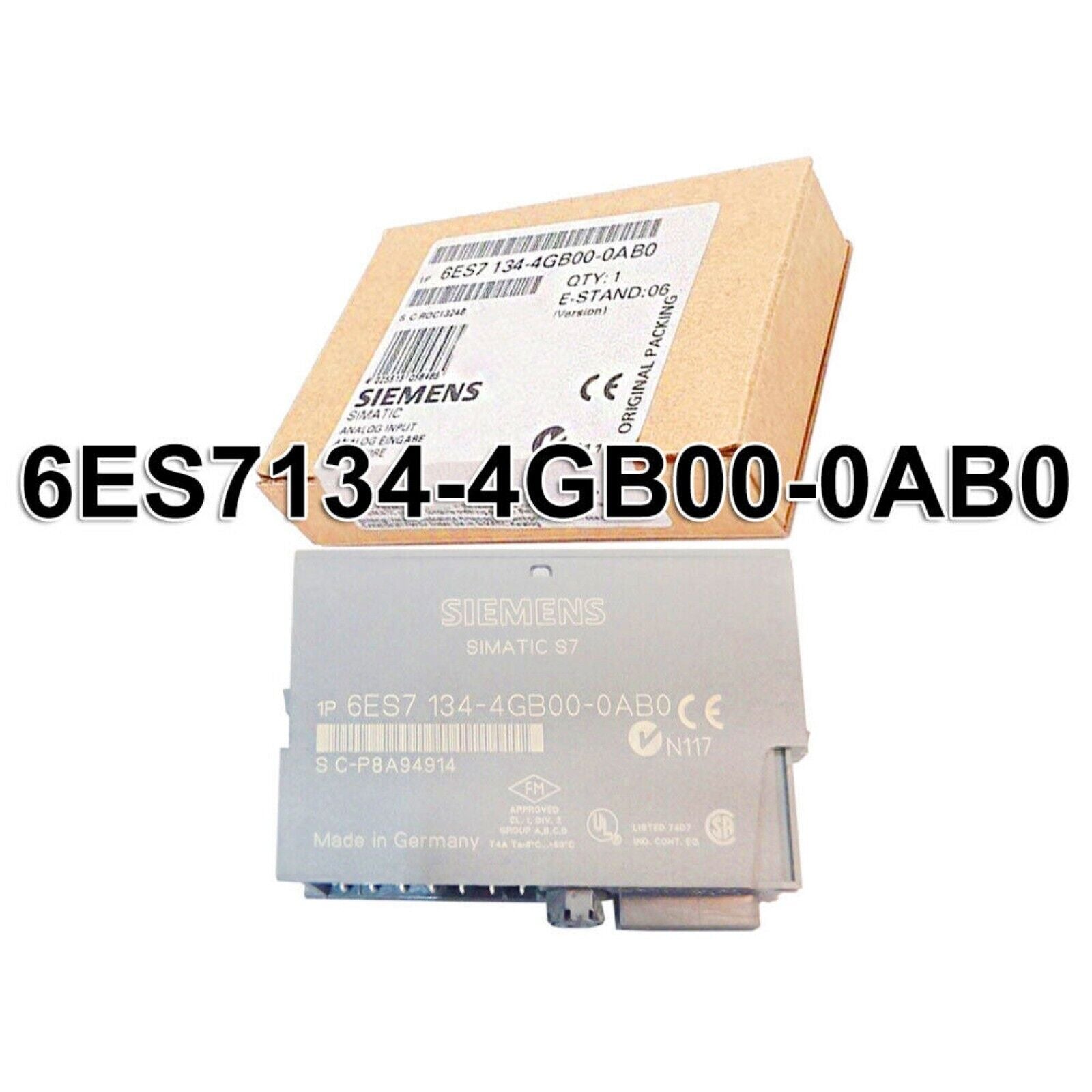

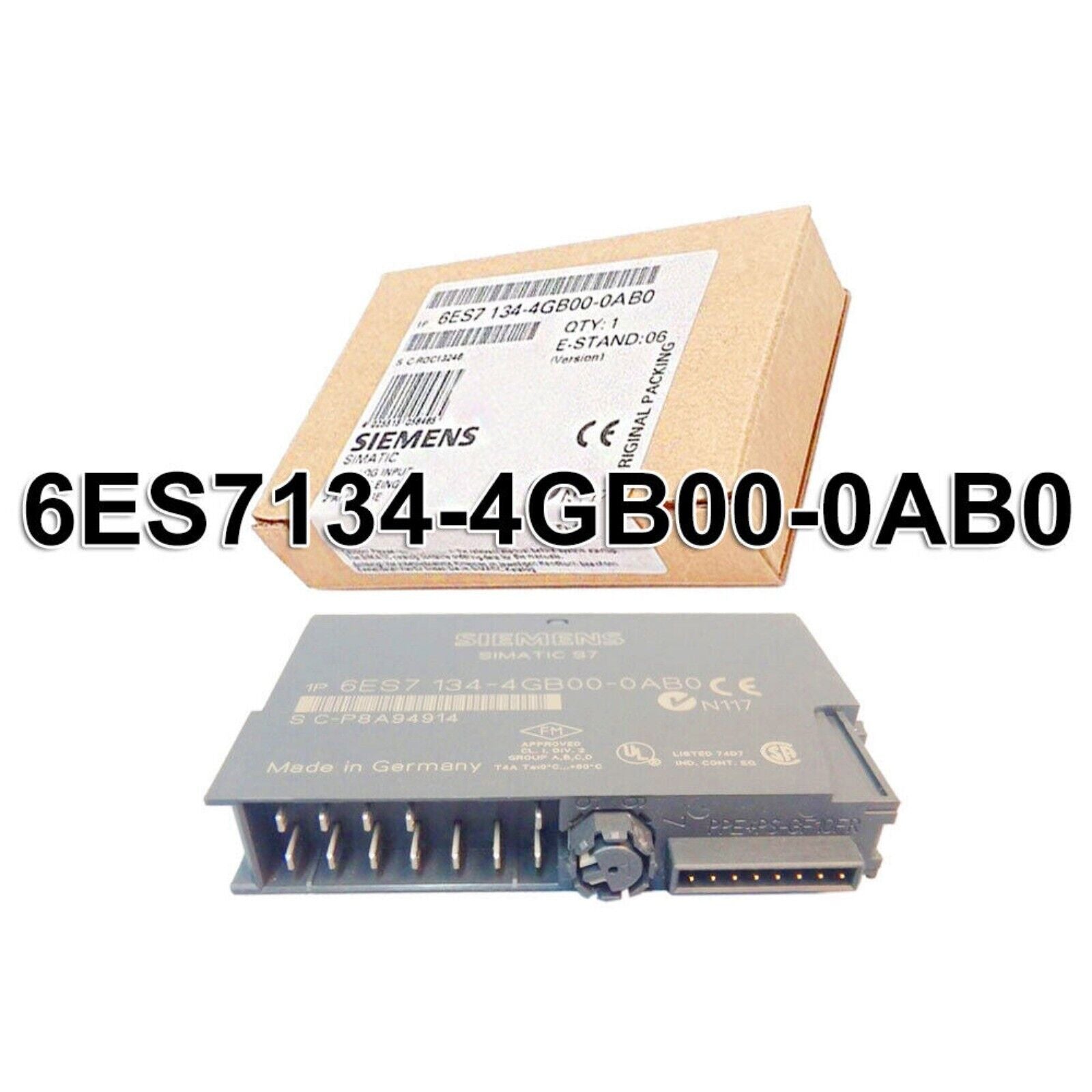

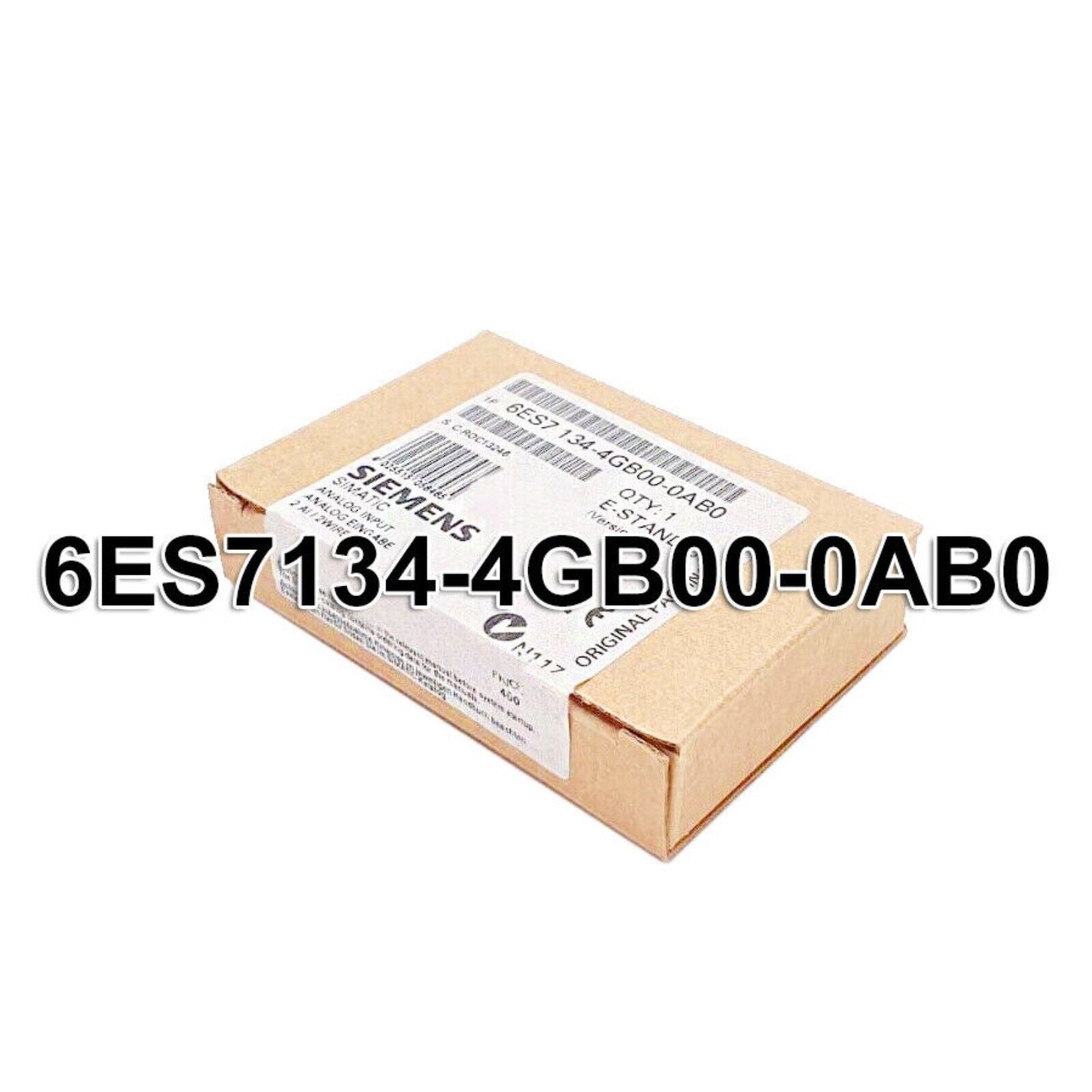

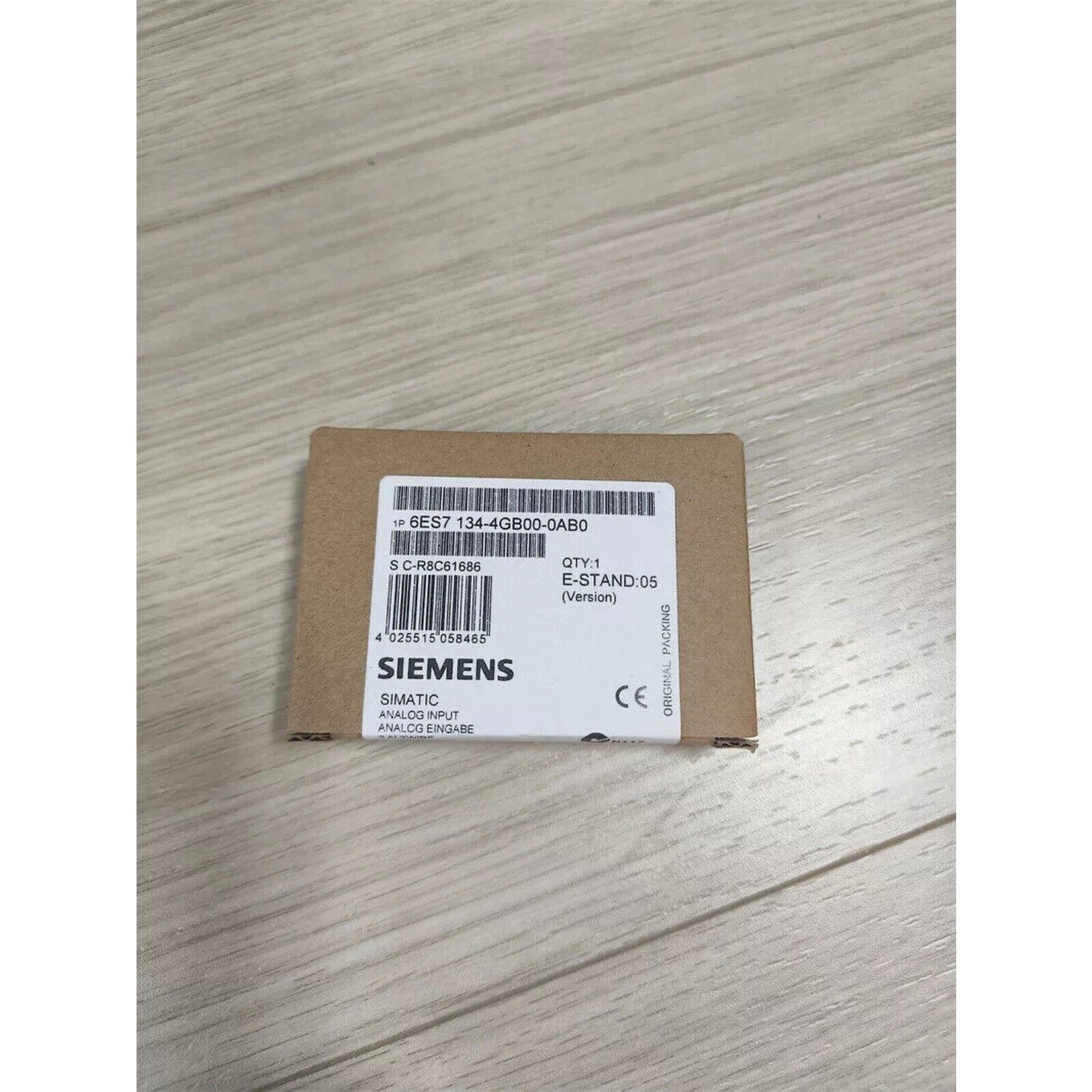

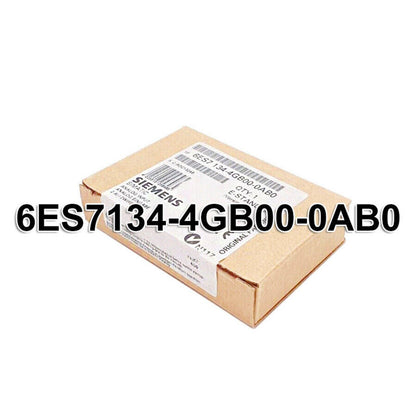

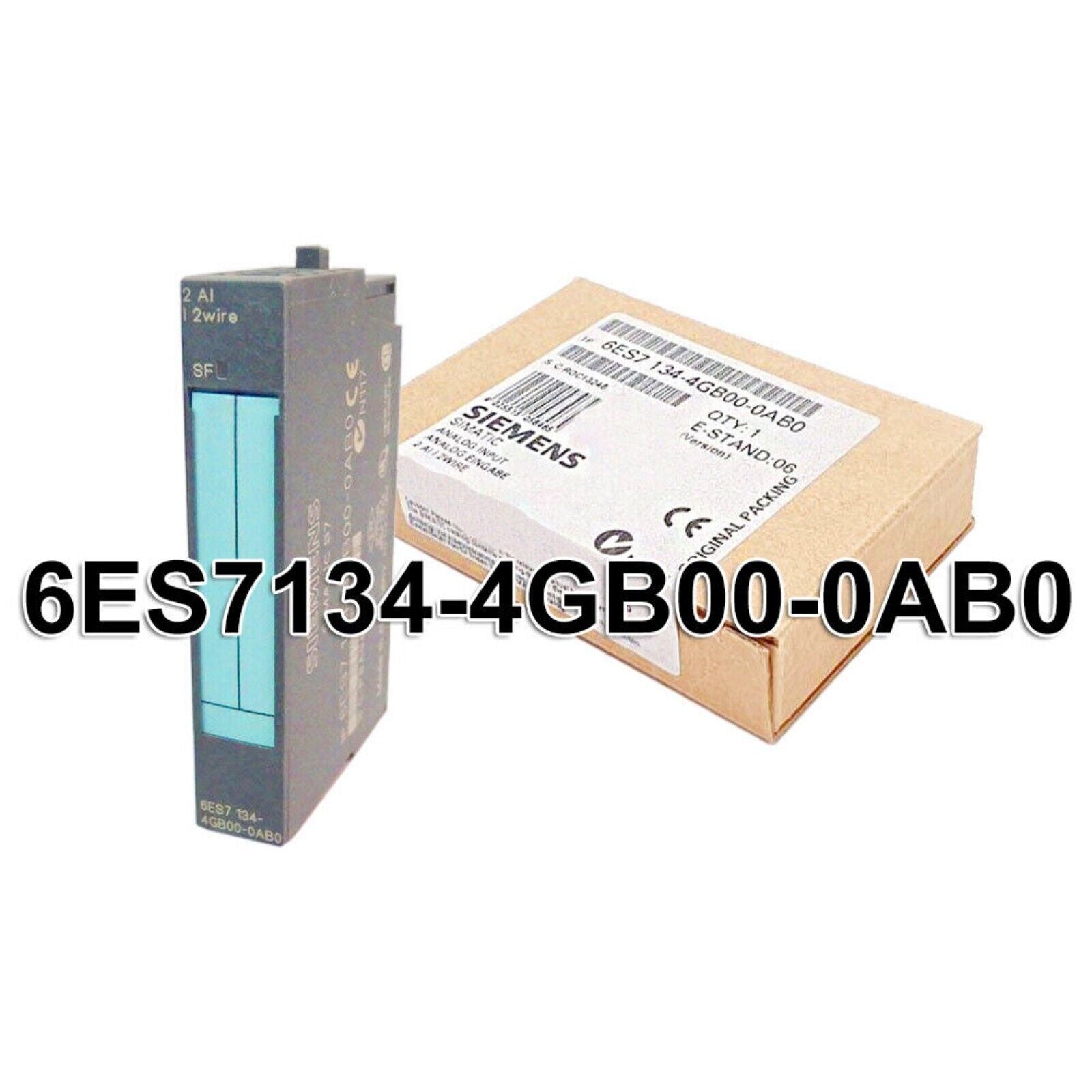

Product Description: Siemens 6ES7134-4GB00-0AB0

The Siemens 6ES7134-4GB00-0AB0 is an analog input module from the SIMATIC S7-1200 series, providing four channels for receiving 4–20 mA analog signals with 12-bit resolution. This module is ideal for applications that require accurate analog signal acquisition, such as process control, measurement, and monitoring in industrial automation systems. The AI 4x20mA module can be easily integrated into the S7-1200 PLC system, offering reliable data acquisition for controlling and monitoring field devices.

Key Features

• Analog Inputs: 4 channels for 4–20 mA current input
• Resolution: 12 bits (4096 values)
• Input Range: 4–20 mA (standard current loop)
• Signal Conditioning: Internal filtering and scaling
• Mounting: DIN rail mounting within the SIMATIC S7-1200 system rack
• Configuration: Configured via TIA Portal or STEP 7

Technical Specifications

• System Series: SIMATIC S7-1200
• Module Type: Analog Input Module (AI)
• Number of Inputs: 4
• Input Signal Type: 4–20 mA (current input)
• Resolution: 12 bits
• Input Range: 4–20 mA
• Power Supply: Via backplane bus
• Mounting: DIN rail
• Dimensions (W × H × D): Approx. 40 mm × 125 mm × 129 mm
• Operating Temperature Range: 0 °C to +60 °C
• Protection Class: IP20
• Certifications: CE, UL, cULus

Application Areas

• Process control in industrial automation systems
• Measurement and regulation of parameters such as temperature, pressure, and flow
• Integration with SIMATIC S7-1200 PLC for modular, scalable control systems
• Field device signal acquisition for monitoring and control

Advantages

• High-resolution 12-bit input for precise analog signal processing
• Flexible input configuration for 4–20 mA current loop signals
• Easy integration and configuration via TIA Portal
• Reliable performance in industrial environments with diagnostic capabilities
