Product Description: Siemens 6ES7132-6BF01-0BA0

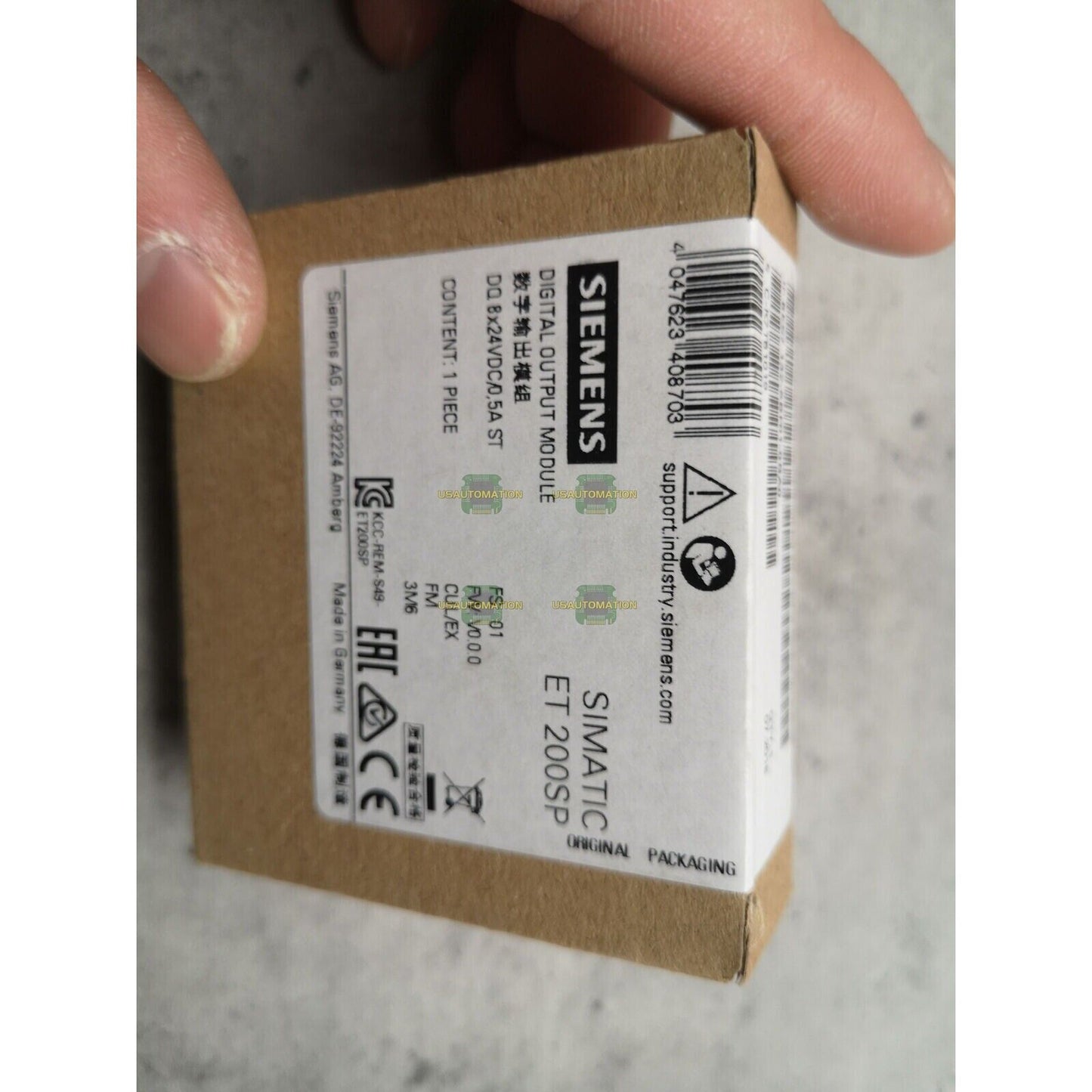

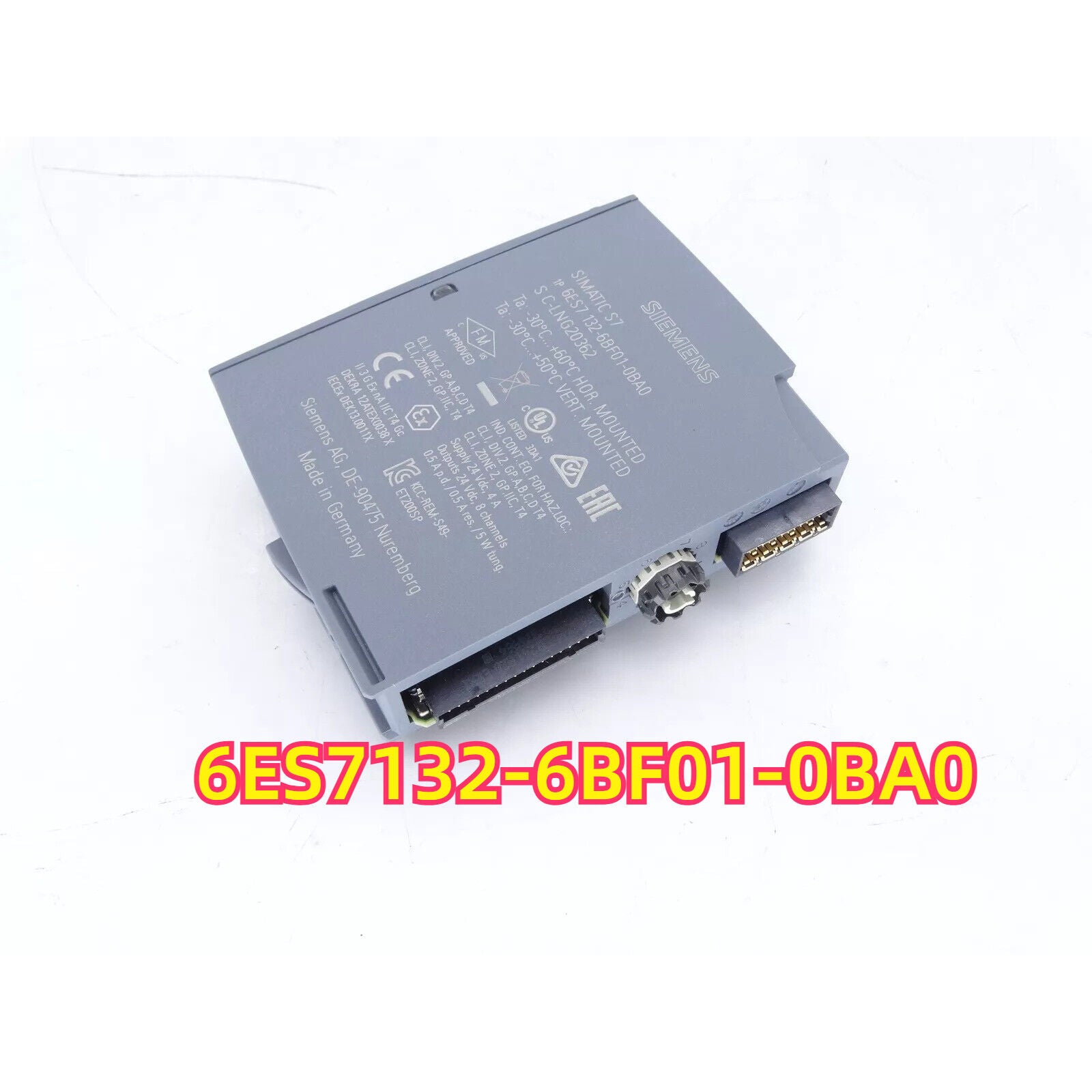

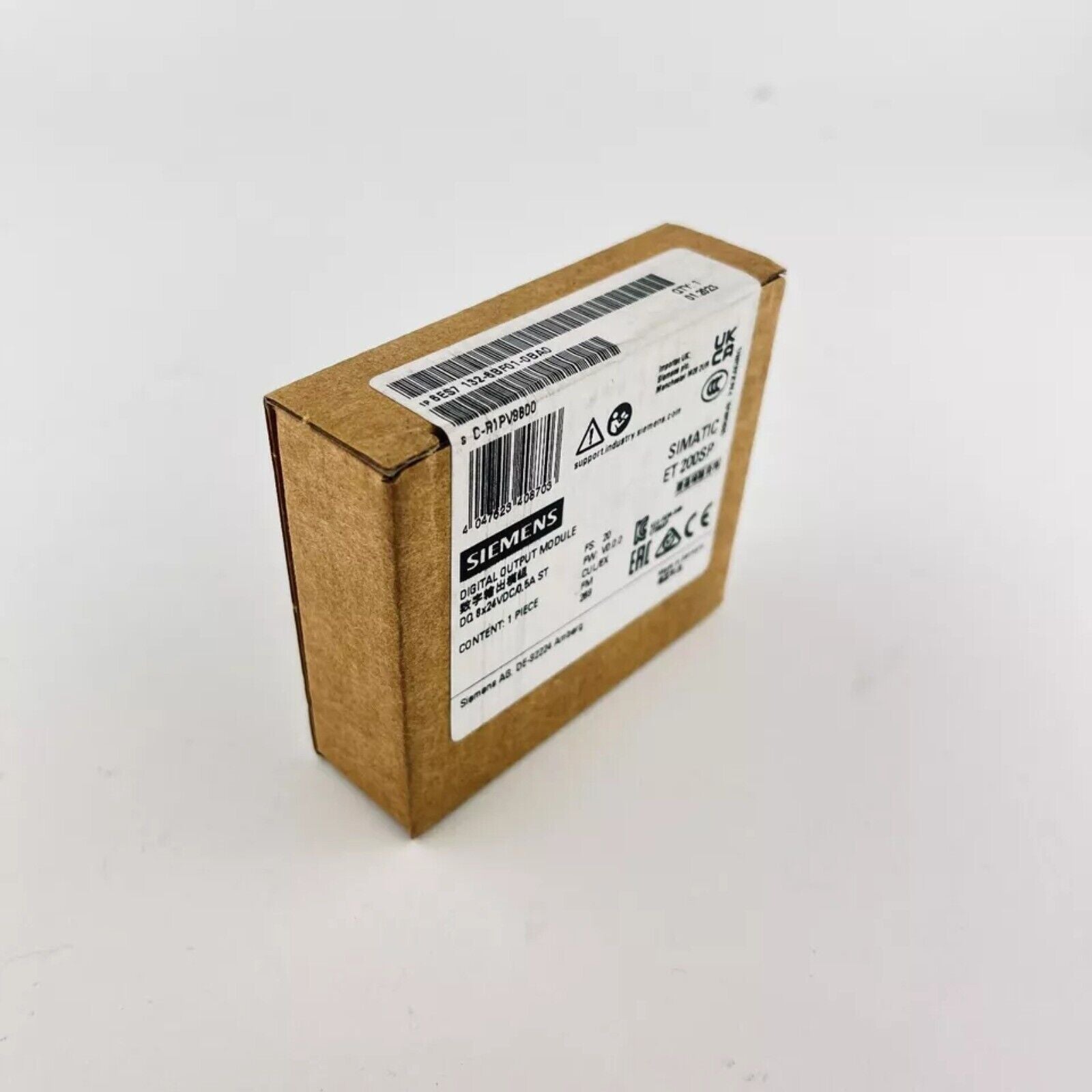

The Siemens 6ES7132-6BF01-0BA0 is a digital output module from the SIMATIC ET 200SP distributed I/O system. It provides four standard 24 V DC digital output channels with a maximum current of 0.5 A per channel. Designed for fast and reliable switching of actuators and other digital devices, the module supports high-density signal processing in a compact footprint. It is mounted on a compatible ET 200SP base unit and is configured via the TIA Portal engineering environment.

Key Features

• Digital Outputs: 4 channels, 24 V DC
• Output Current: 0.5 A per channel
• Signal Type: Standard (non-isolated) digital output
• LED Indicators: Channel status indication
• Mounting: Directly on ET 200SP base unit (BU-type A0, A1, or A2)
• Configuration: Via TIA Portal (STEP 7 V13 or higher)

Technical Specifications

• System Series: SIMATIC ET 200SP
• Module Type: Digital Output Module (DQ Standard)
• Number of Outputs: 4
• Output Voltage: 24 V DC
• Output Current per Channel: 0.5 A
• Switching Delay: <0.2 ms
• Diagnostics: Channel diagnostics, short-circuit detection
• Mounting Position: Vertical on base unit
• Dimensions (W × H × D): 15 mm × 73 mm × 58 mm
• Protection Class: IP20 (in terminal assembly)
• Operating Temperature Range: -30 °C to +60 °C
• Certifications: CE, cULus, RCM, KC

Application Areas

• Switching of solenoids, relays, and digital actuators
• Distributed automation systems using ET 200SP
• Modular control cabinets for manufacturing and process control
• Compact field installations with limited space

Advantages

• Compact and modular design saves space in control panels
• High-speed switching and diagnostic capability
• Fully integrated with TIA Portal for streamlined engineering
• Ideal for modern decentralized automation architectures
