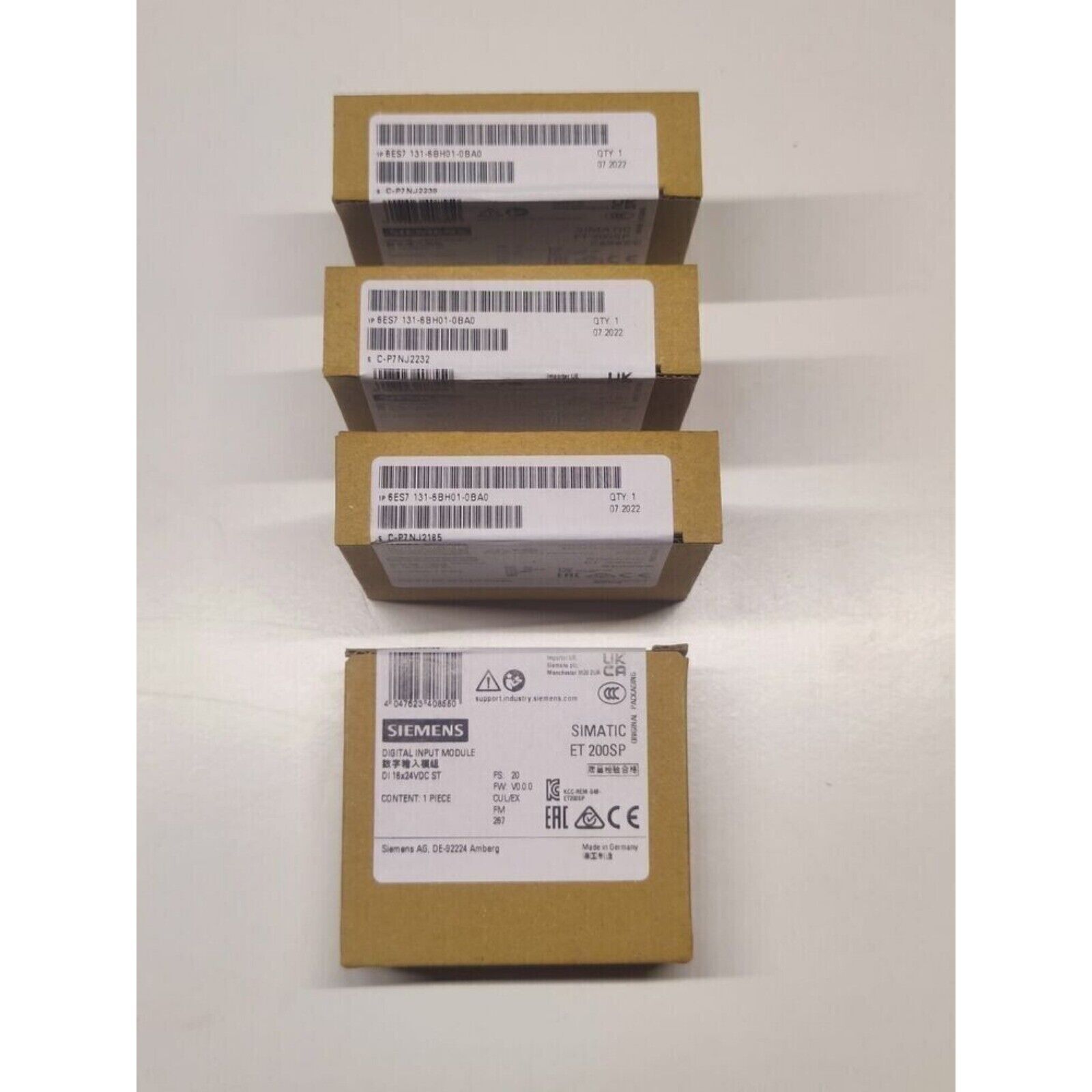

Industrial Communication | Siemens | 6ES7 131-6BH01-0BA0 6ES7131-6BH01-0BA0 ET200SP Digital input module

Product Description: Siemens 6ES7131-6BH01-0BA0 (SIMATIC S7-1200 CPU 1211C)

The Siemens 6ES7131-6BH01-0BA0 is a compact and efficient central processing unit (CPU) from the SIMATIC S7-1200 series, specifically the CPU 1211C model. This CPU is designed for small to medium-sized automation systems that require high reliability and performance in industrial control applications. It integrates digital I/O and communication functions within a single unit, providing a space-saving solution for various automation applications, such as machine control, process monitoring, and factory automation. The CPU 1211C features an integrated Ethernet interface for communication, allowing for easy integration into industrial networks.

Key Features

• Integrated Communication: Built-in PROFINET interface for easy network integration, enabling communication with Siemens PLCs, HMIs, and other devices.
• Memory: 50 KB of user memory and 50 KB of system memory for handling moderate control tasks.
• I/O Capability: Offers 8 digital inputs and 6 digital outputs, with the option to expand through modular I/O modules as needed.
• Compact Design: A small form factor that fits easily into tight spaces in control cabinets and industrial environments.
• Operating Temperature Range: Operates in an industrial temperature range of 0°C to +60°C, making it suitable for a wide variety of applications.
• Diagnostic Features: Diagnostic LEDs for system status and troubleshooting.

Technical Specifications

• Product Type: Central Processing Unit (CPU)
• Part Number: 6ES7131-6BH01-0BA0
• Memory: 50 KB user memory, 50 KB system memory
• Integrated I/O: 8 digital inputs, 6 digital outputs
• Communication: PROFINET (Integrated Ethernet Interface)
• Mounting: DIN rail mounting
• Operating Temperature Range: 0°C to +60°C
• Dimensions (W x H x D): Compact form factor for easy integration
• Weight: Approx. 300 g

Application Areas

• Factory Automation: Ideal for controlling and monitoring machines and systems in automated manufacturing processes.
• Machine Control: Suitable for controlling machines, conveyors, and production lines where moderate control tasks are required.
• Process Monitoring: Can be used in process industries such as food processing, pharmaceuticals, and chemicals for automation and monitoring.
• Building Automation: Suitable for controlling building systems such as HVAC, lighting, and security through integrated automation solutions.

Advantages

• Compact and Efficient: Space-saving design makes it ideal for applications with limited space in control panels.
• Integrated Communication: The built-in PROFINET interface simplifies integration with Siemens automation systems, reducing installation time and complexity.
• Expandable: Although the unit itself is compact, it offers the option to expand I/O with additional modules, providing scalability as automation needs grow.
• Reliable Diagnostics: Diagnostic LEDs ensure quick identification of system issues, reducing downtime and maintenance costs.
• Energy-Efficient: Designed with energy efficiency in mind, helping to reduce operational costs in industrial control systems.
