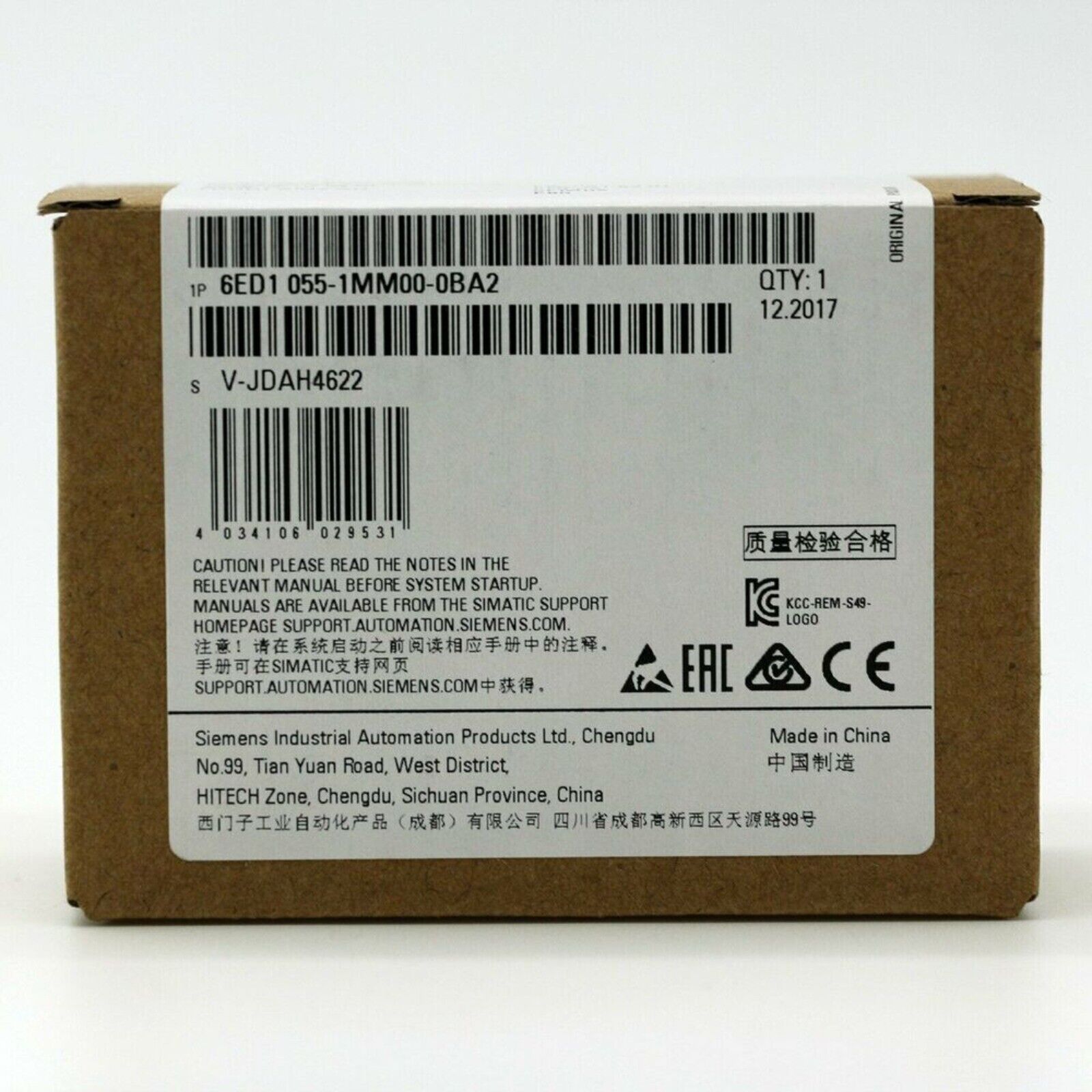

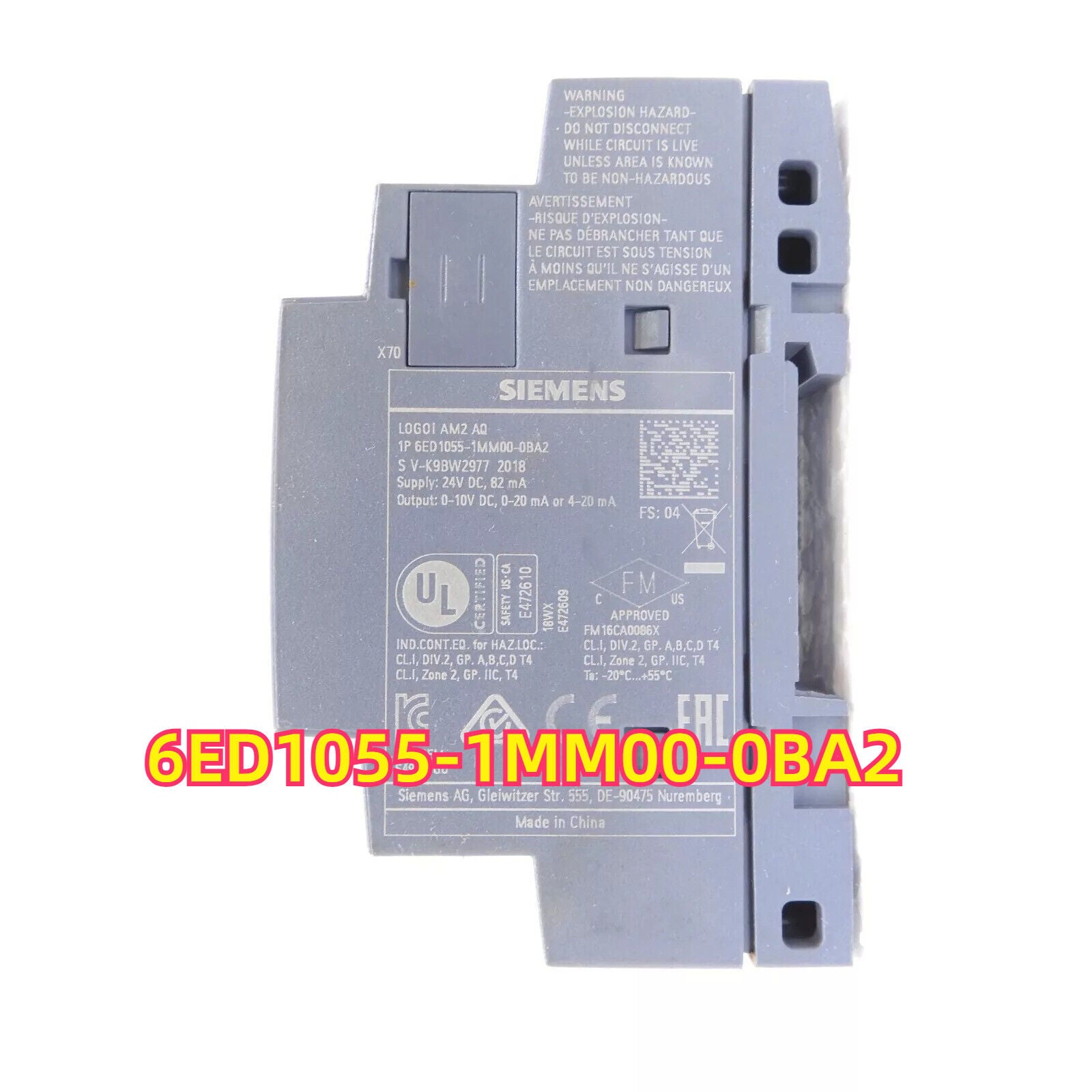

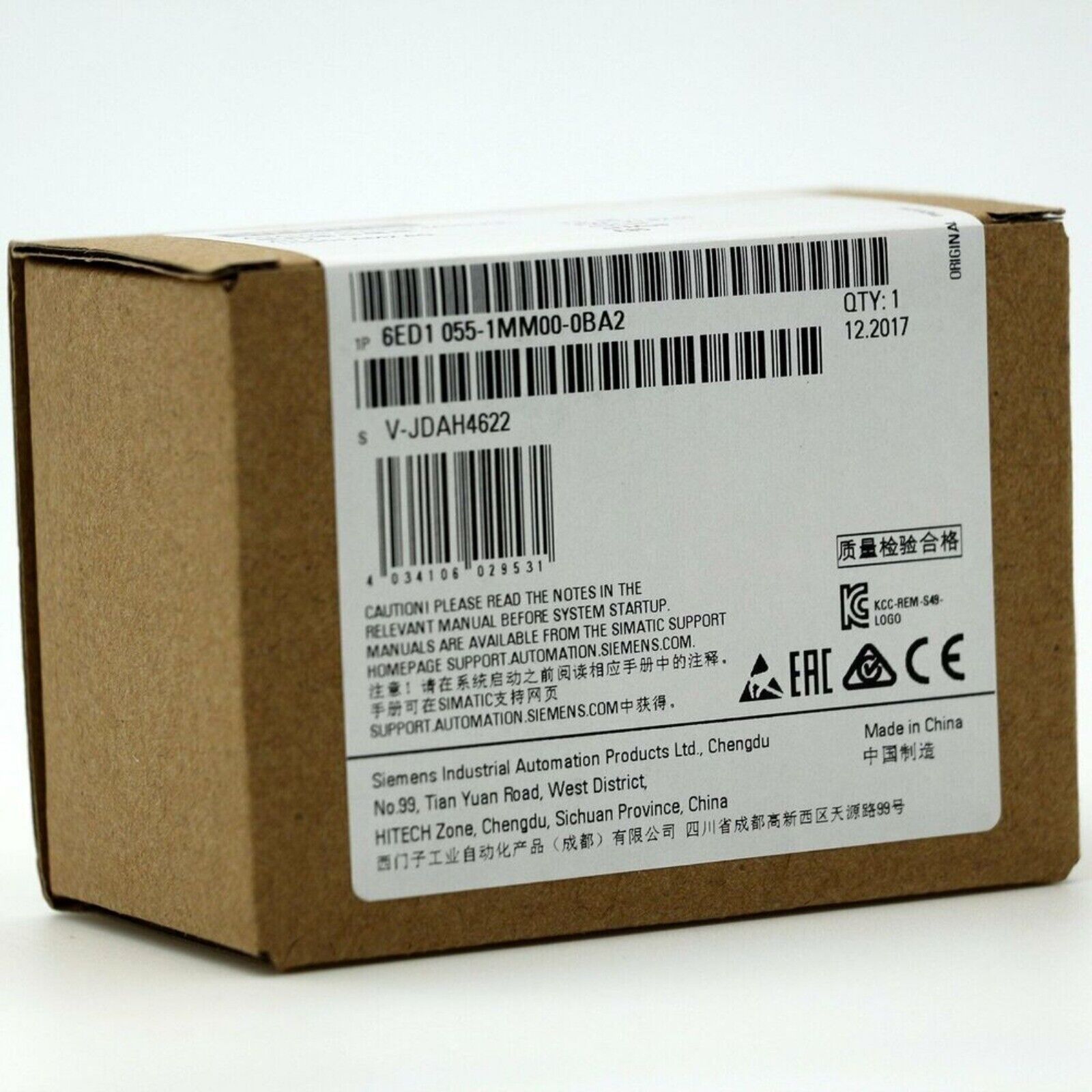

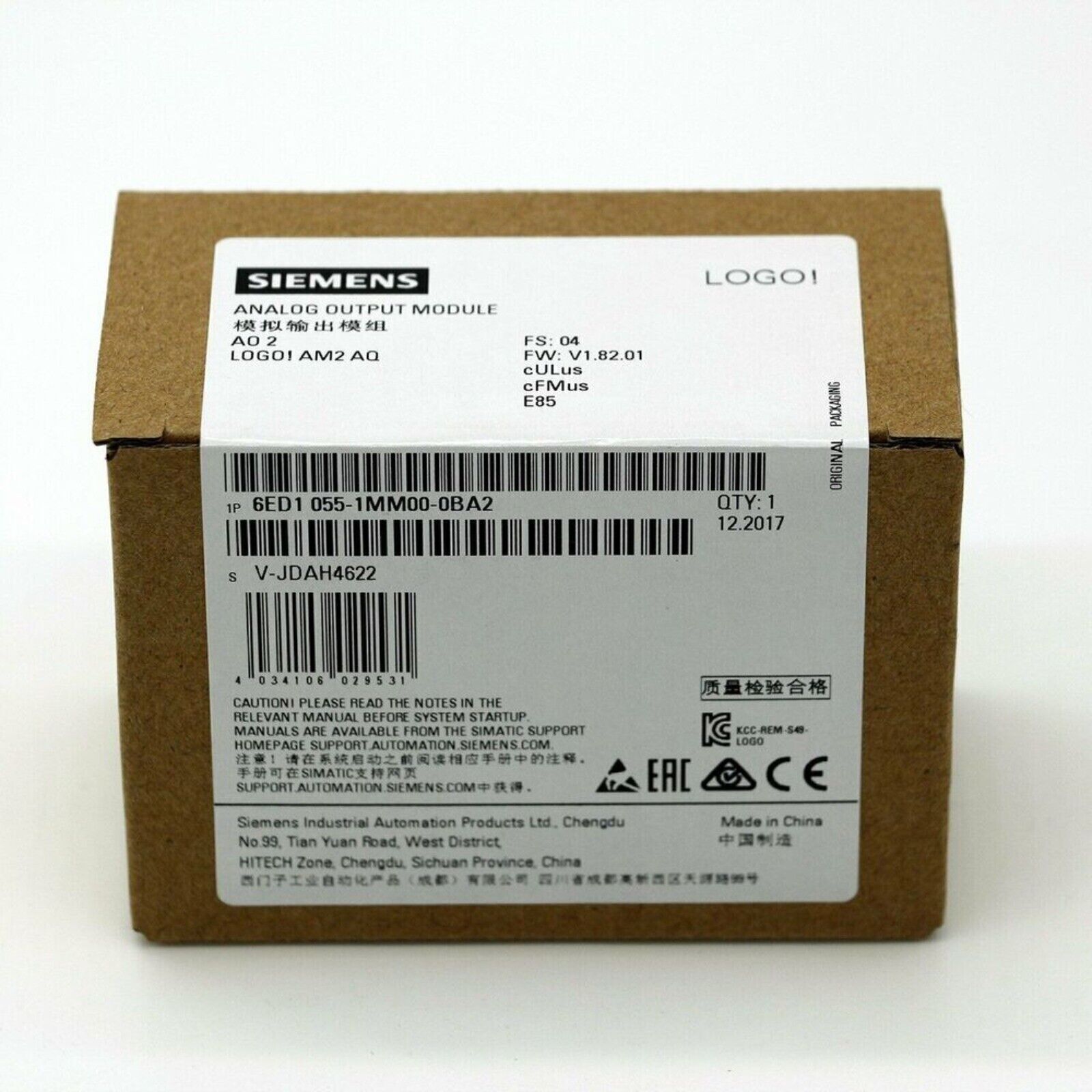

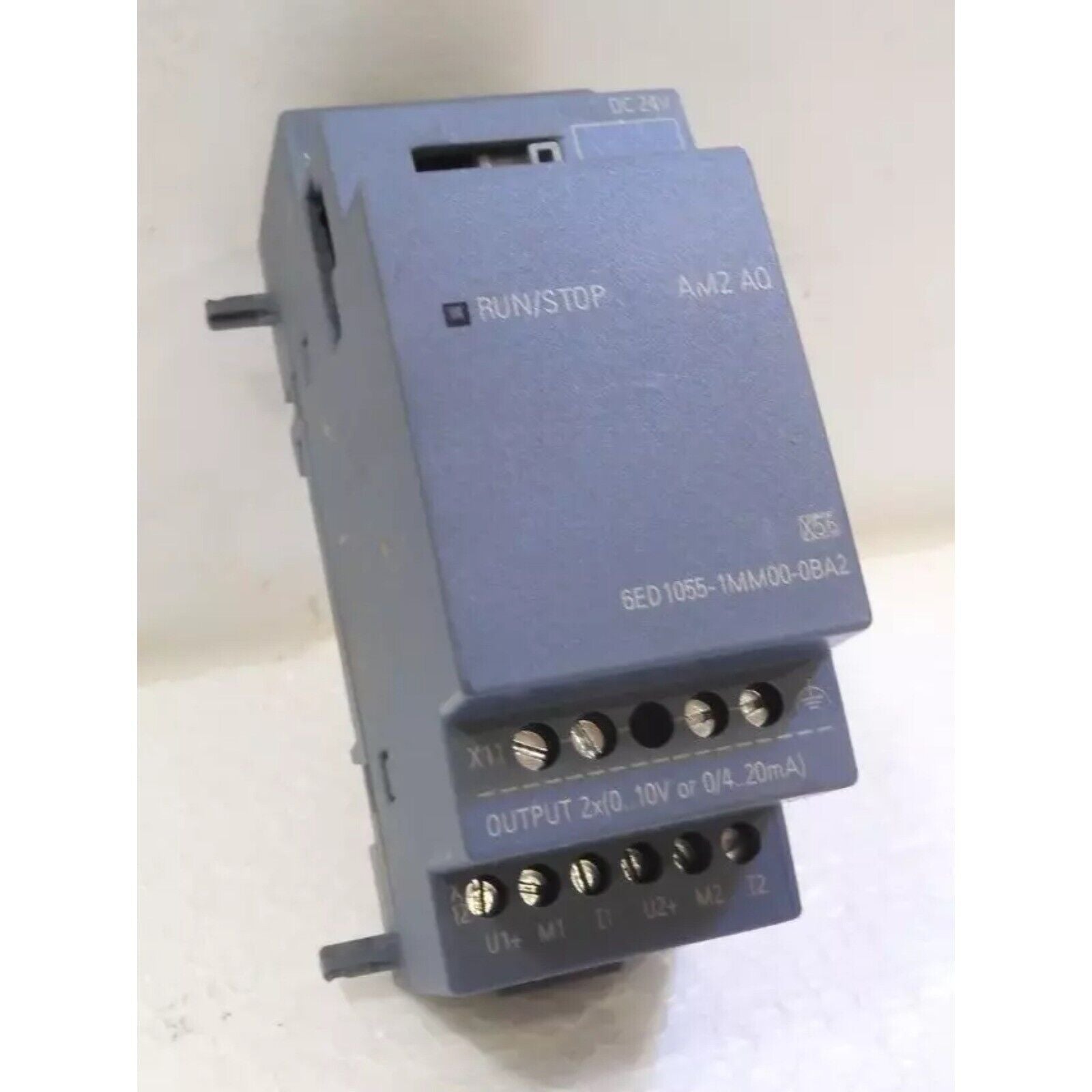

PLC | Siemens | 6ED1055-1MM00-0BA2 6ED1 055-1MM00-0BA2 LOGO! AM2 AQ expansion

Product Description: Siemens 6ED1055-1MM00-0BA2

The Siemens 6ED1055-1MM00-0BA2 is a Basic Panel from the SIMATIC HMI series, designed for user-friendly interaction between operators and machines or processes in industrial automation systems. This panel features a 7-inch touchscreen display that allows operators to monitor and control machine processes efficiently. It provides a cost-effective solution for basic machine-level interaction while supporting various communication protocols to connect to Siemens PLC systems. The panel offers a high- resolution TFT display for clear visualization of system parameters and diagnostics.

Key Features

• Display Size: 7-inch color TFT touchscreen
• User Interface: Touchscreen for intuitive operation and easy navigation of menus and settings
• Communication Protocols: Supports communication with Siemens PLC systems using PROFINET and other standard industrial communication protocols
• Programming: Easily configurable with Siemens WinCC flexible, enabling quick programming for industrial applications
• Diagnostic Features: Provides real- time monitoring and diagnostics for connected systems
• Operating Temperature: Suitable for industrial environments with a temperature range of 0°C to +50°C
• Mounting: Panel mount for easy integration into control cabinets or machines

Technical Specifications

• Product Type: Human Machine Interface (HMI)
• Part Number: 6ED1055-1MM00-0BA2
• Display Size: 7-inch
• Display Type: TFT, high-resolution
• Touch Interface: Yes, touchscreen interface
• Communication Protocols: PROFINET, Industrial Ethernet
• Operating Temperature: 0°C to +50°C
• Mounting: Panel mount
• Dimensions (W x H x D): 178 mm x 133 mm x 45 mm
• Weight: Approx. 0.6 kg

Application Areas

• Factory Automation: Ideal for controlling and monitoring machinery and processes in manufacturing environments.
• Process Control: Used in industries such as chemicals, pharmaceuticals, and food processing for real-time monitoring and control.
• Building Automation: Suitable for building management systems, such as controlling HVAC, lighting, and security systems.
• Energy Management: Used for monitoring and controlling energy-consuming devices in industrial settings.

Advantages

• Intuitive User Interface: The touchscreen interface makes it easy to navigate through the system and control machine parameters.
• Clear Visualization: The high- resolution TFT display ensures that data and system parameters are clearly visible, even in industrial environments.
• Cost-Effective: Provides an affordable solution for basic HMI functions in industrial automation.
• Flexible Integration: Supports multiple communication protocols, allowing seamless integration with Siemens PLC systems.
