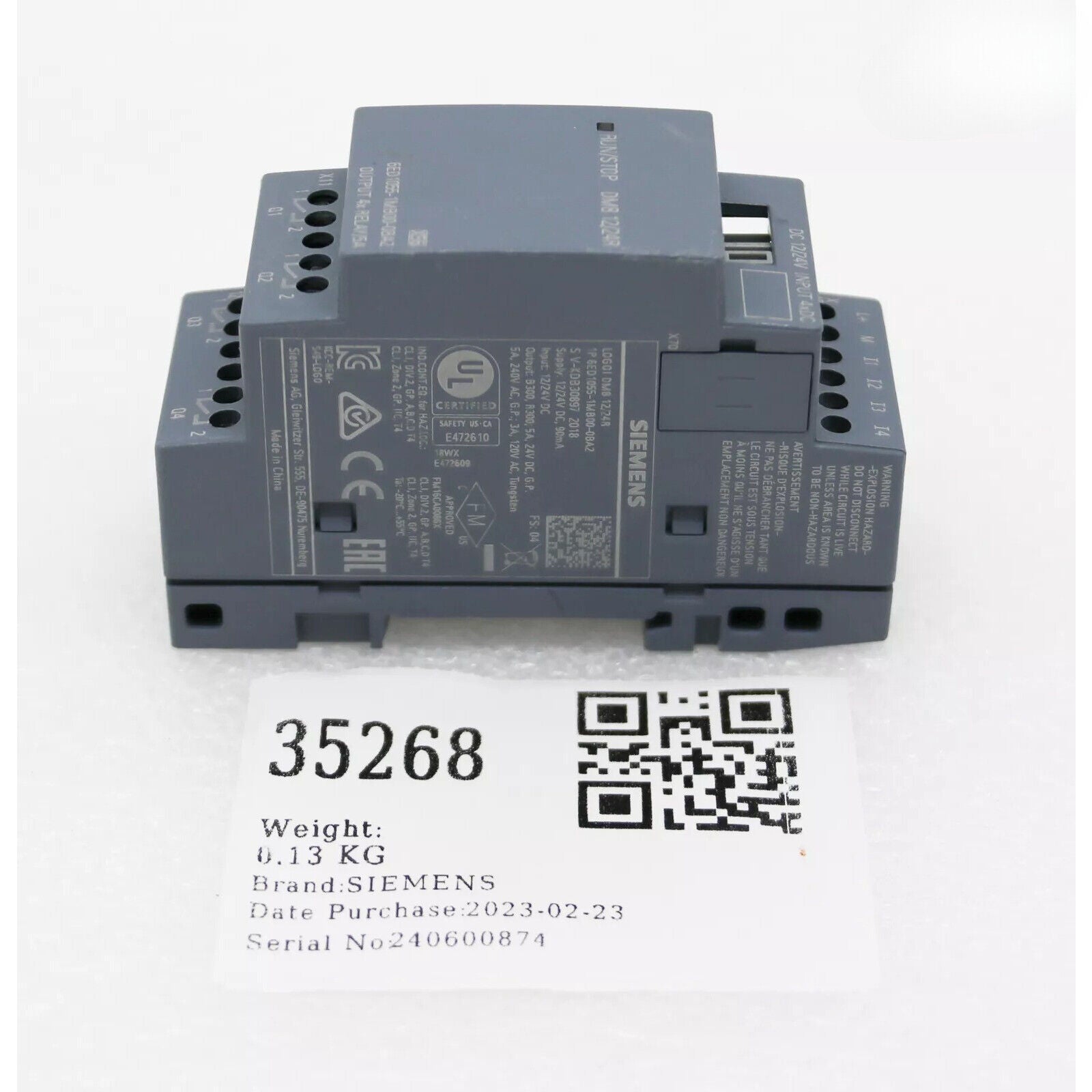

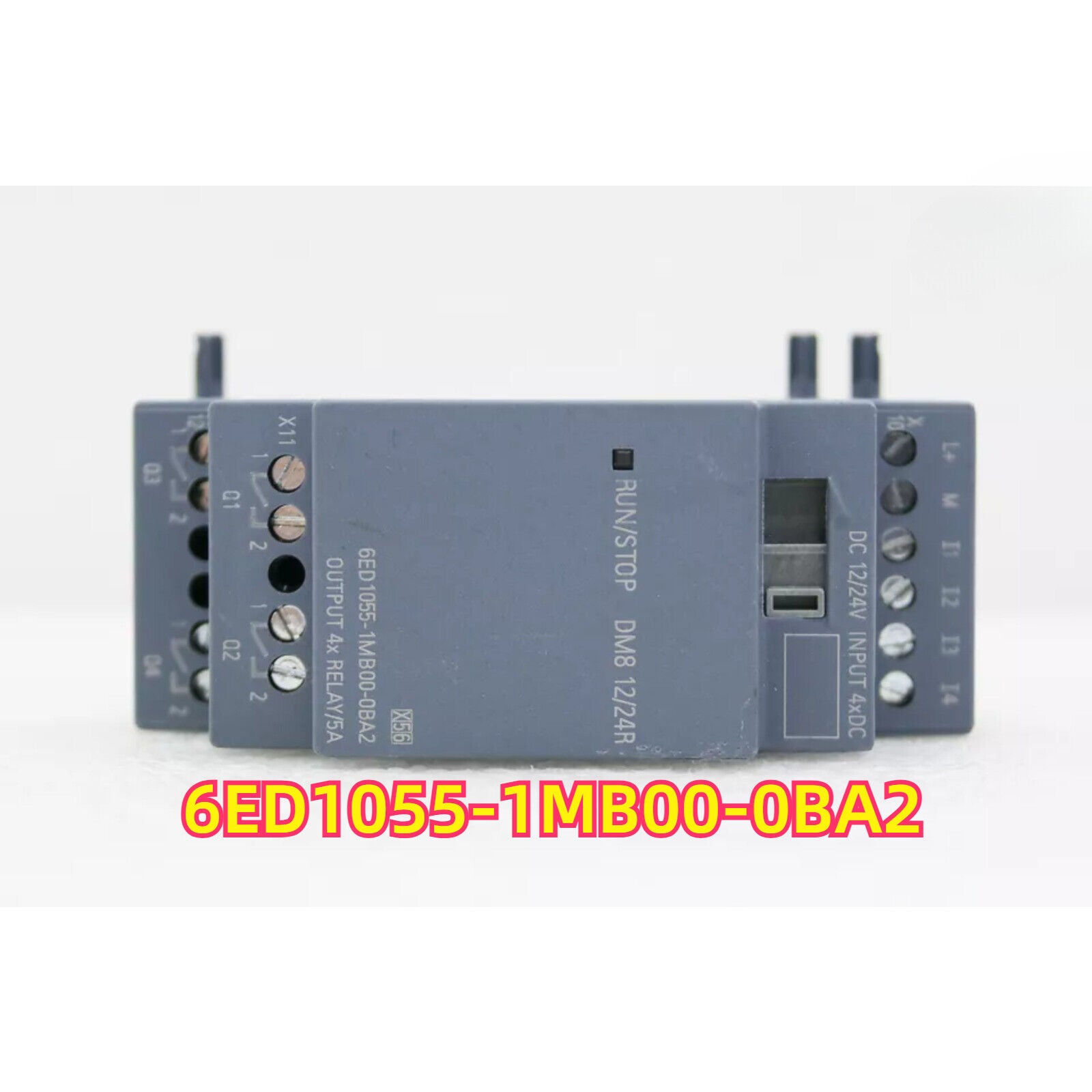

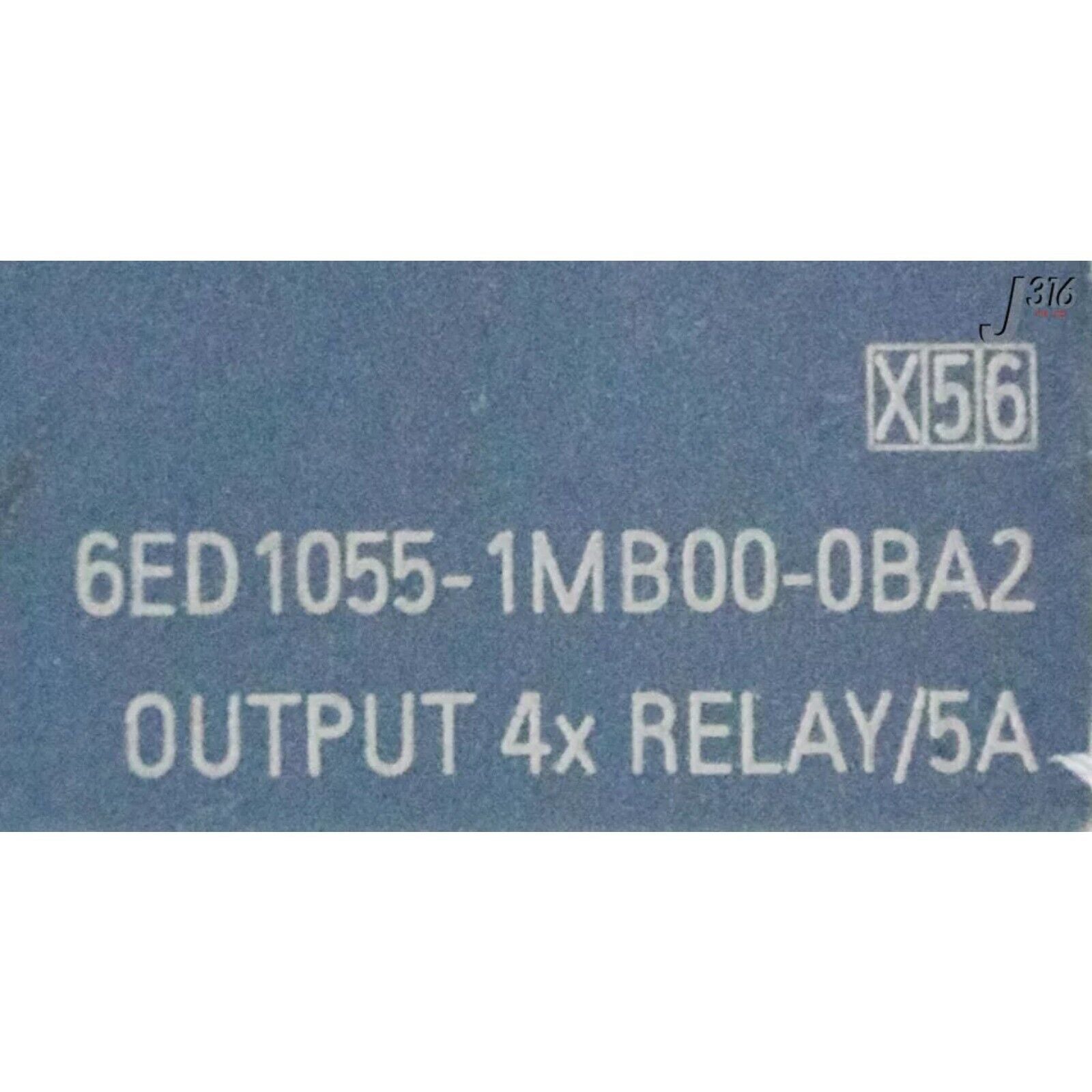

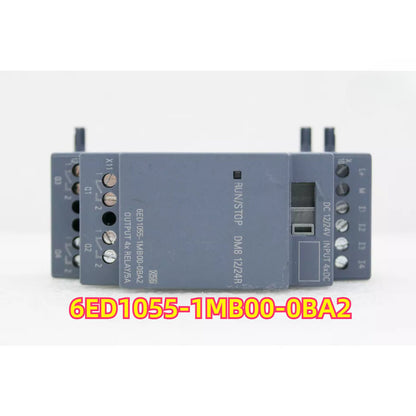

PLC | Siemens | 6ED1055-1MB00-0BA2 6ED1 055-1MB00-0BA2 LOGO! DM8 12/24R expansion

Product Description: Siemens 6ED1055-1MB00-0BA2

The Siemens 6ED1055-1MB00-0BA2 is a digital expansion module from the LOGO! 8 series, offering 8 digital inputs (24 V DC) and 8 digital outputs with transistor (NPN) switching. It is used to expand the I/O capability of LOGO! logic modules for applications requiring fast, reliable switching of DC loads. Designed for compact automation tasks, the DM16 24T is ideal for use in building automation, small machine control, and energy management systems.

Key Features

• Digital Inputs: 8 channels, 24 V DC
• Digital Outputs: 8 channels, transistor (NPN, 24 V DC)
• Switching Capacity: Max. 0.3 A per output
• Wiring: Spring-loaded terminals
• Mounting: DIN rail installation
• Compatibility: Fully compatible with LOGO! 8 basic modules
• Configuration: LOGO! Soft Comfort software

Technical Specifications

• System Series: LOGO! 8
• Module Type: Digital Expansion Module
• Number of Digital Inputs: 8 (24 V DC)
• Number of Digital Outputs: 8 (Transistor, NPN)
• Output Current per Channel: Max. 0.3 A
• Output Voltage: 24 V DC
• Power Supply Voltage: 24 V DC
• Mounting Type: DIN rail
• Dimensions (W × H × D): 126 mm × 90 mm × 60 mm
• Operating Temperature Range: 0 °C to +55 °C
• Protection Class: IP20
• Certifications: CE, cULus, EAC

Application Areas

• Extension of LOGO! controller I/O capacity
• Fast-switching DC applications in compact automation
• Control of indicator lights, solenoids, and small actuators
• Industrial and building automation projects

Advantages

• Transistor outputs ensure fast and noise-free switching
• Seamless expansion for LOGO! 8-based systems
• Easy configuration and integration using LOGO! Soft Comfort
• Compact, reliable, and easy to wire with spring terminals
