PLC | Siemens | 6ED1052-1FB00-0BA8 6ED1 052-1FB00-0BA8 LOGO 230RCE logic module

Product Description: Siemens 6ED1052-1FB00-0BA8

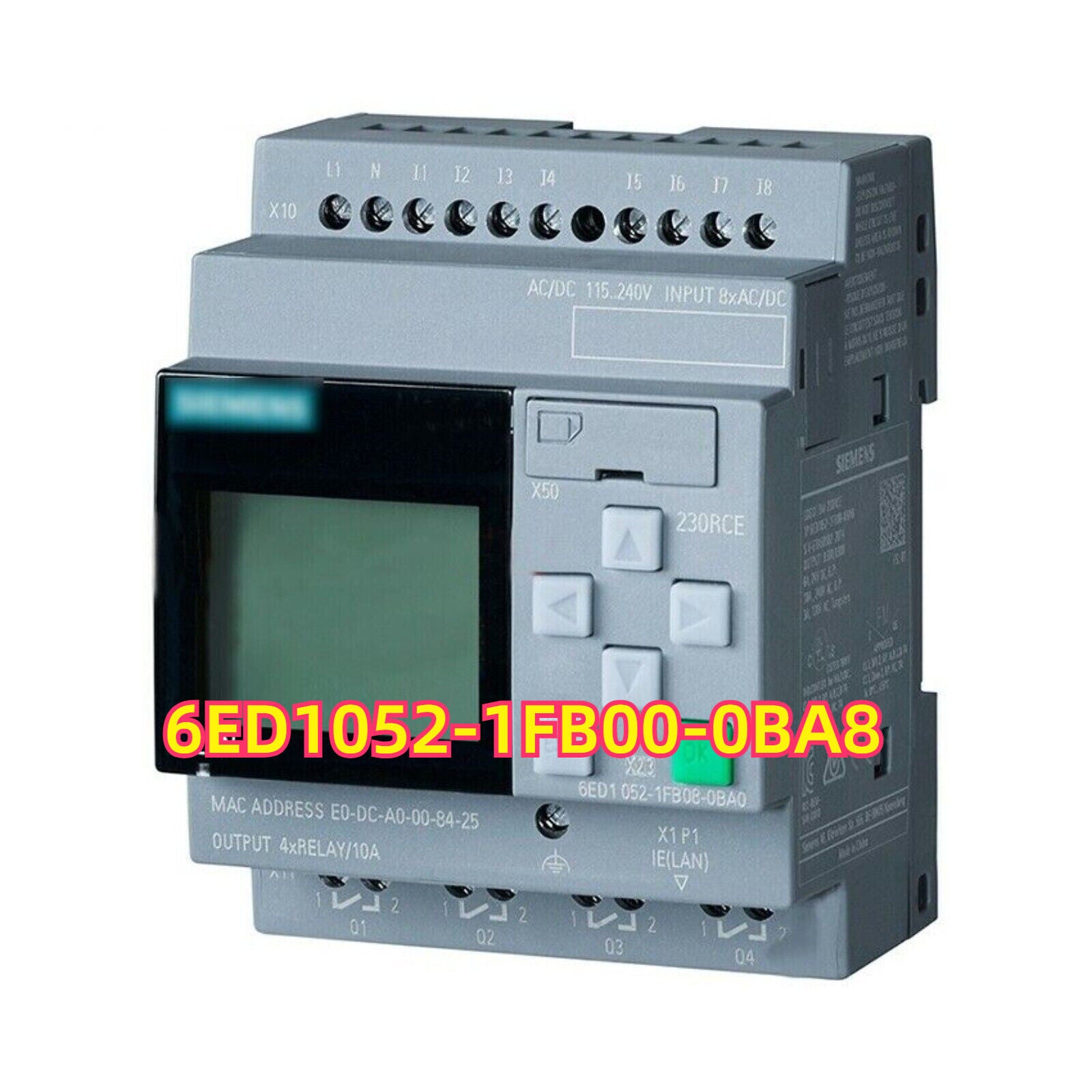

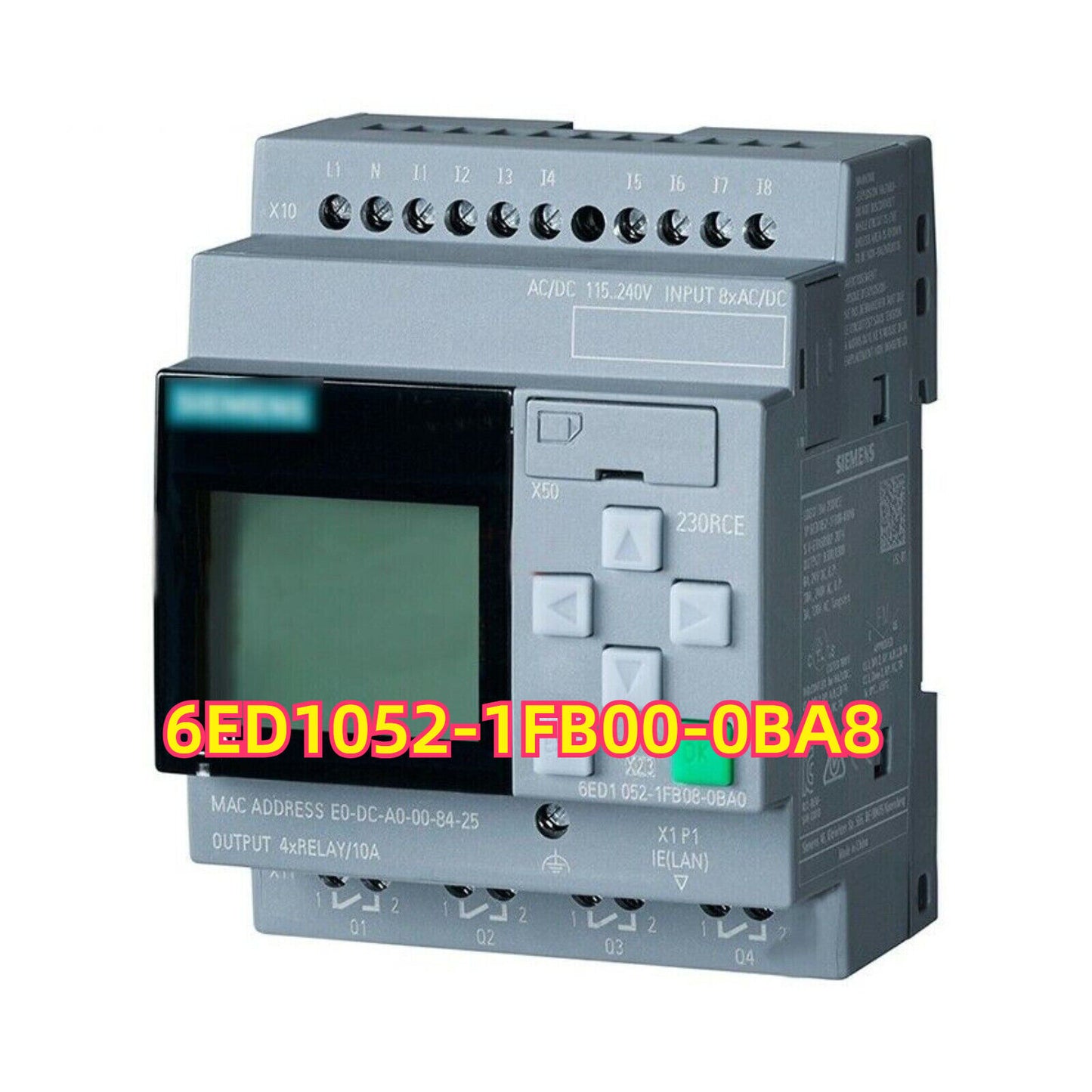

The Siemens 6ED1052-1FB00-0BA8 is a compact and versatile logic module from the LOGO! 8 series, featuring integrated digital inputs and relay outputs. Designed for small automation tasks, this model includes an onboard display and Ethernet communication capabilities, allowing for intuitive control, easy networking, and remote access. It is ideal for standalone control systems in building automation, machinery, and decentralized applications.

Key Features

• 8 digital inputs and 4 relay outputs
• Integrated display and keypad for direct operation and status monitoring
• Ethernet interface for programming, communication, and remote control
• Expandable with additional LOGO! modules
• Web server functionality for browser-based visualization
• Compatible with LOGO! Soft Comfort engineering software
• Relay outputs allow direct switching of AC or DC loads

Technical Specifications

• Part Number: 6ED1052-1FB00-0BA8
• Power Supply: 12/24 V DC
• Digital Inputs: 8 (4 of which can be used as analog 0–10 V inputs)
• Digital Outputs: 4 (Relay, max 10 A per channel)
• Ethernet Ports: 1 x RJ45 (10/100 Mbps)
• Program Memory: 400 function blocks
• Display: 6-line backlit display with 3 control buttons
• Clock: Integrated real-time clock with battery backup
• Dimensions (W × H × D): 72 mm × 90 mm × 55 mm
• Mounting Method: DIN rail
• Protection Class: IP20
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, cULus, EAC

Application Areas

• Small-scale automation in buildings and HVAC systems
• Control of gates, pumps, lighting, and ventilation systems
• Decentralized machine control
• Educational and prototype automation systems
• Standalone or networked systems in smart infrastructure

Advantages

• All-in-one logic controller with integrated HMI and Ethernet
• Simple programming via LOGO! Soft Comfort with drag-and-drop logic blocks
• Expandable I/O for flexible system scaling
• Built-in web server for remote monitoring and control
• Energy-efficient, compact solution for decentralized automation
