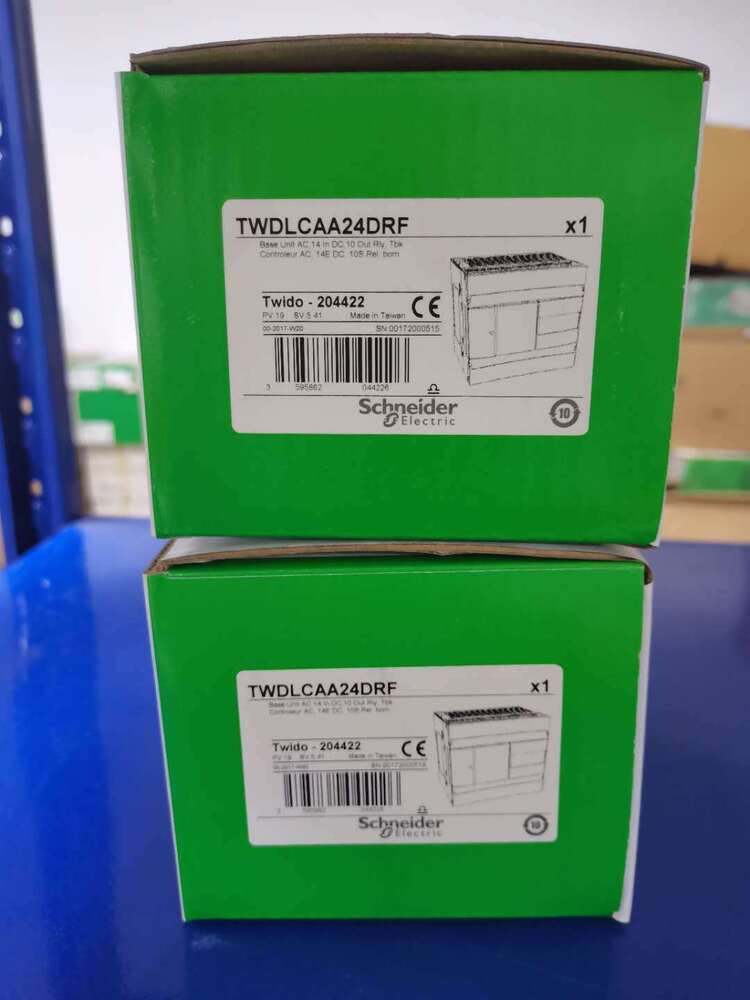

Product Description: Schneider Electric TWDLCAA24DRF

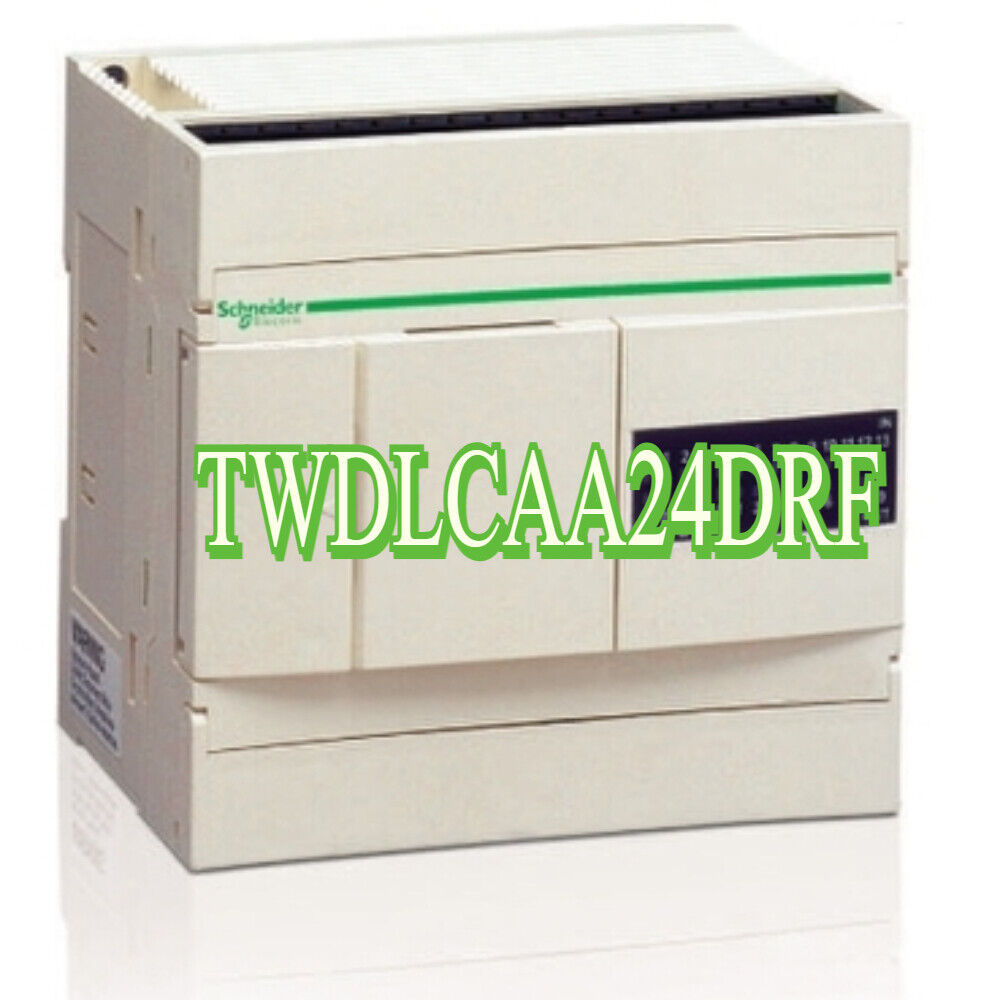

The Schneider Electric TWDLCAA24DRF is a compact and modular PLC base unit from the Twido series, offering 24 digital I/O points. It includes 14 digital inputs and 10 relay outputs, operating on a 100–240 V AC power supply. This controller is well-suited for small to medium automation tasks and supports expansion with additional I/O and communication modules. It features a 24 V DC output for powering sensors and is programmed using TwidoSuite software.

Key Features

• Power supply: 100–240 V AC
• 14 digital inputs (24 V DC)
• 10 relay outputs (max 250 V AC, 2 A per output)
• 24 V DC sensor supply (250 mA max)
• Expandable with I/O and communication modules
• Compatible with TwidoSuite programming software
• DIN rail or panel mounting

Technical Specifications

• Input frequency: 50/60 Hz
• Input current: 0.5 A at 100 V AC, 0.3 A at 240 V AC
• Inrush current: less than 30 A
• Relay contact life: 10 million operations (no load), 100,000 under nominal load
• Isolation voltage: 500 V between I/O and logic circuits
• Operating temperature: 0°C to 55°C
• Storage temperature: -25°C to 70°C
• Relative humidity: 10% to 95%, non-condensing
• Dimensions (W x H x D): Approximately 142.4 mm x 90 mm x 70 mm
• Weight: Approx. 0.4 kg

Application Areas

• Compact machinery automation
• Building and facility control systems
• Process monitoring and control
• Packaging and conveyor systems
• Entry-level industrial control panels

Advantages

• Space-saving design ideal for tight enclosures
• Built-in sensor power supply reduces external wiring
• Relay outputs support a wide range of loads
• Modular expansion allows system growth
• Straightforward programming using TwidoSuite
