Modicon Premium | Schneider | TSXASY410 Analog Output Module

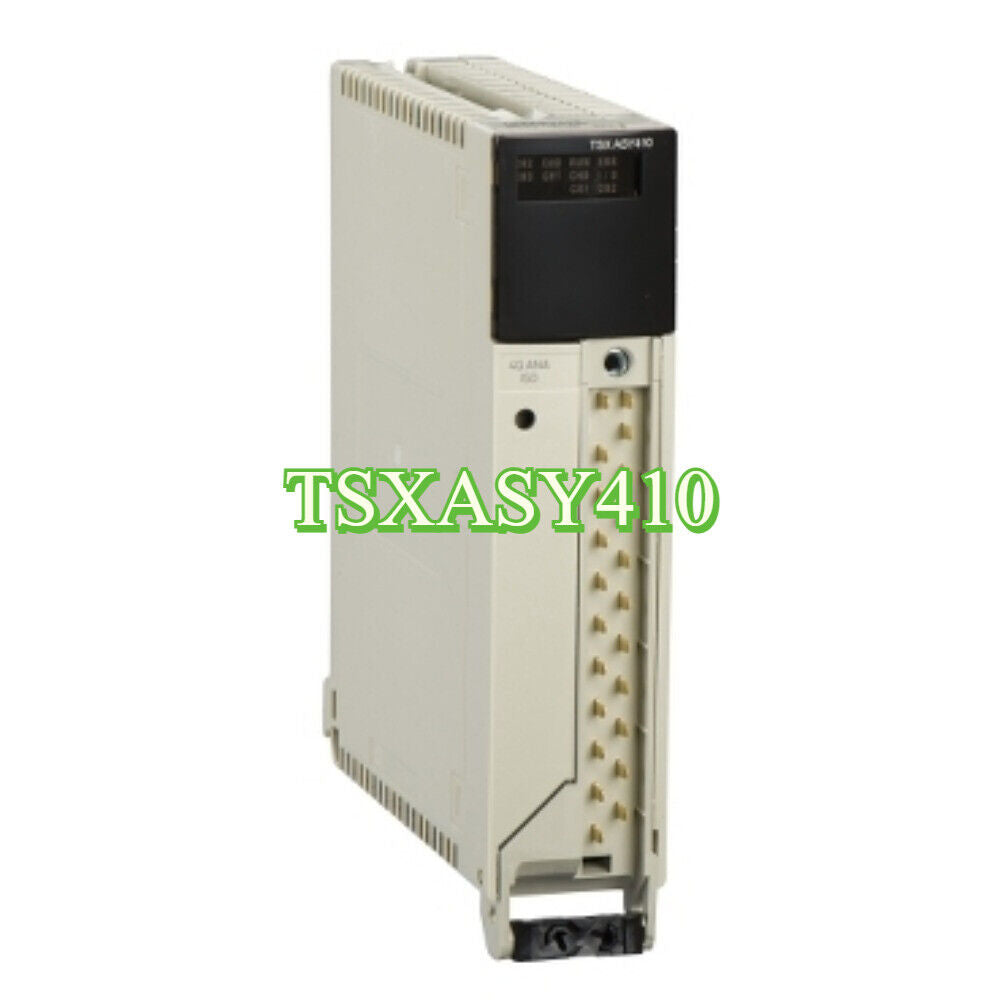

Product Description: Schneider Electric TSXASY410

The Schneider Electric TSXASY410 is an I/O base expansion interface module used in Modicon Premium PLC systems. It allows the extension of the PLC system by enabling a second backplane (rack) to be connected to the primary PLC base via a remote cable link. It is typically used with TSX Premium base racks and interface cables to expand system I/O capacity.

Key Features

• Supports connection of a second I/O base
• Connects to TSX Premium PLC via TSXASY200/EX cables
• Plugs directly into the first slot of the extension rack
• Enables distributed architecture for larger control systems
• Transparent communication with main CPU

Technical Specifications

• Communication method: Proprietary rack bus extension
• Mounting: Directly on DIN rail inside extension rack
• Power supply: Supplied via backplane from extension rack power supply
• Cable interface: Compatible with Schneider Electric extension cables (TSXASY200/300 series)
• Operating temperature: 0°C to +60°C
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 95%, non-condensing
• Dimensions (W x H x D): Standard slot width for Modicon Premium racks
• Weight: Approx. 0.2 kg

Application Areas

• Expansion of Modicon Premium PLC systems
• Distributed I/O architectures
• Large-scale industrial automation systems
• Packaging, process, and material handling systems

Advantages

• Simple way to increase system I/O capacity
• Maintains seamless integration with main rack and CPU
• Reduces wiring complexity in large control systems
• Reliable backplane extension with high communication integrity
