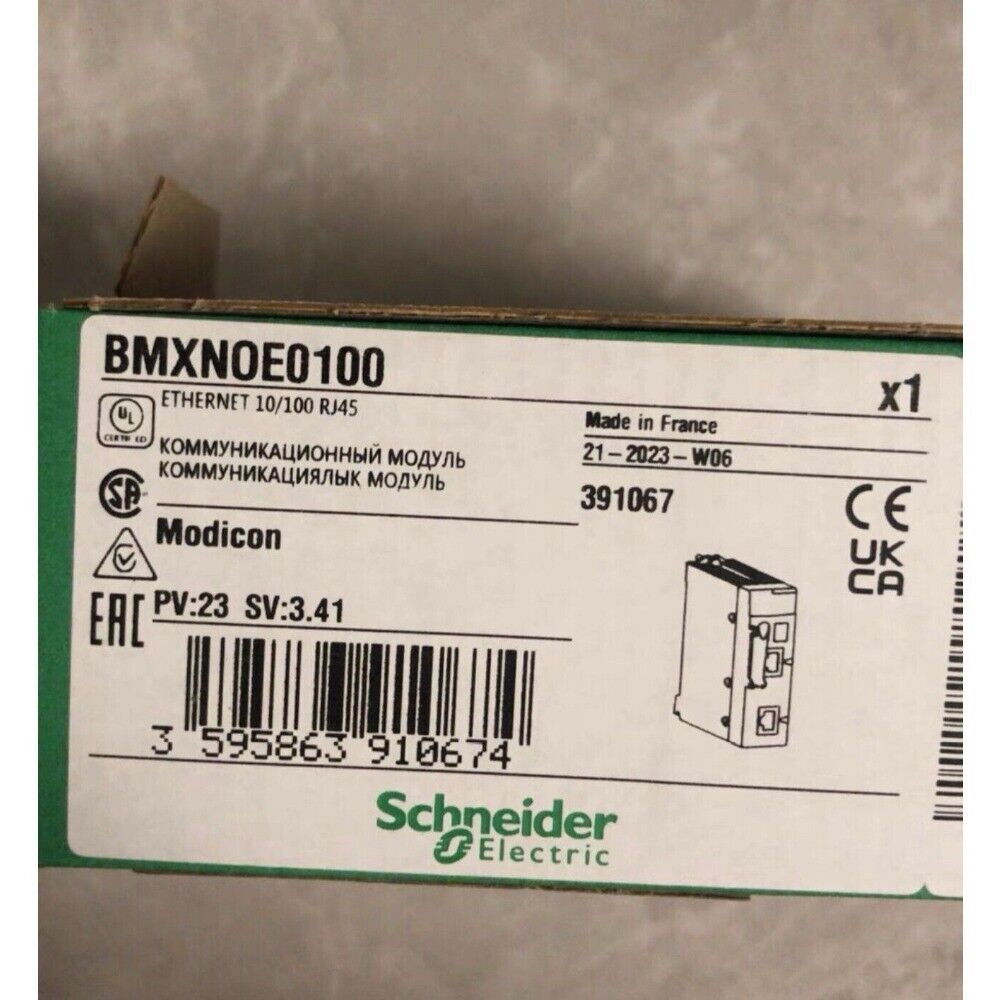

Product Description: Schneider Electric BMXNOE0100

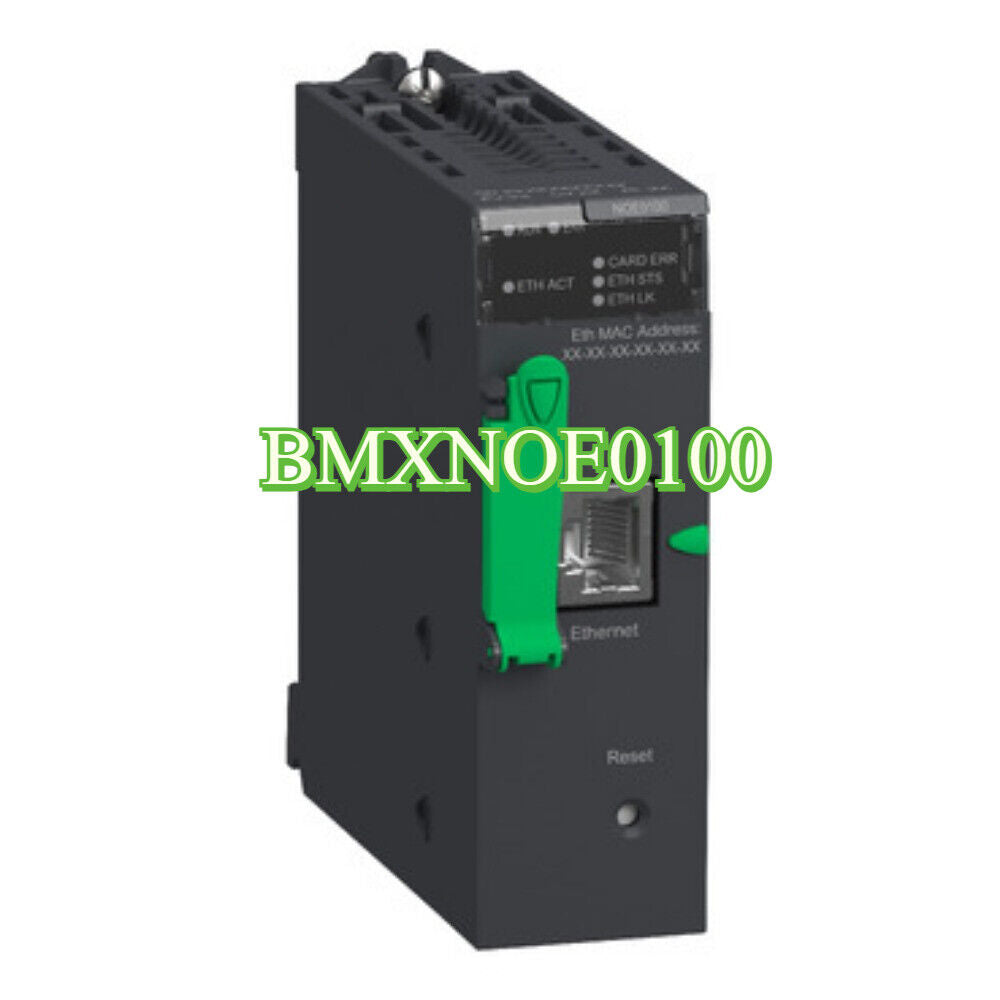

The Schneider Electric BMXNOE0100 is an Ethernet TCP/IP communication module designed for use with the Modicon M340 programmable logic controller (PLC) platform. It enables high-speed data communication between the M340 CPU and external devices or networks using standard Ethernet protocols. This module allows integration with SCADA systems, remote I/O stations, and other Ethernet-enabled PLCs.

Key Features

• 1 Ethernet port (RJ45), 10/100 Mbps
• Supports Modbus TCP and Ethernet/IP protocols
• Allows data exchange with SCADA, HMIs, and other PLCs
• Web server for diagnostics and remote monitoring
• IP address configuration via BOOTP, DHCP, or manual setup
• Embedded services: web diagnostics, FTP server, SNMP
• DIN rail or panel mountable with standard PLC form factor
• LED indicators for link and activity status

Technical Specifications

• Transmission rate: 10/100 Mbps (auto-negotiation)
• Connector type: RJ45 (shielded)
• Isolation: 1500 V RMS between Ethernet port and internal circuits
• Power supply: From PLC backplane (approx. 260 mA at 3.3 V DC)
• Operating temperature: 0°C to +60°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% to 95%, non-condensing
• Protection rating: IP20
• Dimensions (W x H x D): 32 mm x 100 mm x 110 mm
• Weight: Approximately 0.2 kg

Application Areas

• SCADA and DCS integration
• Factory and process automation networks
• Remote I/O and control system communications
• PLC-to-PLC Ethernet communication
• Industrial Internet of Things (IIoT) solutions

Advantages

• Reliable and fast Ethernet connectivity for M340 PLCs
• Easy configuration and diagnostics via built-in web server
• Supports both control and monitoring applications
• Reduces complexity in networked automation systems
• Seamless integration with Modicon architectures
