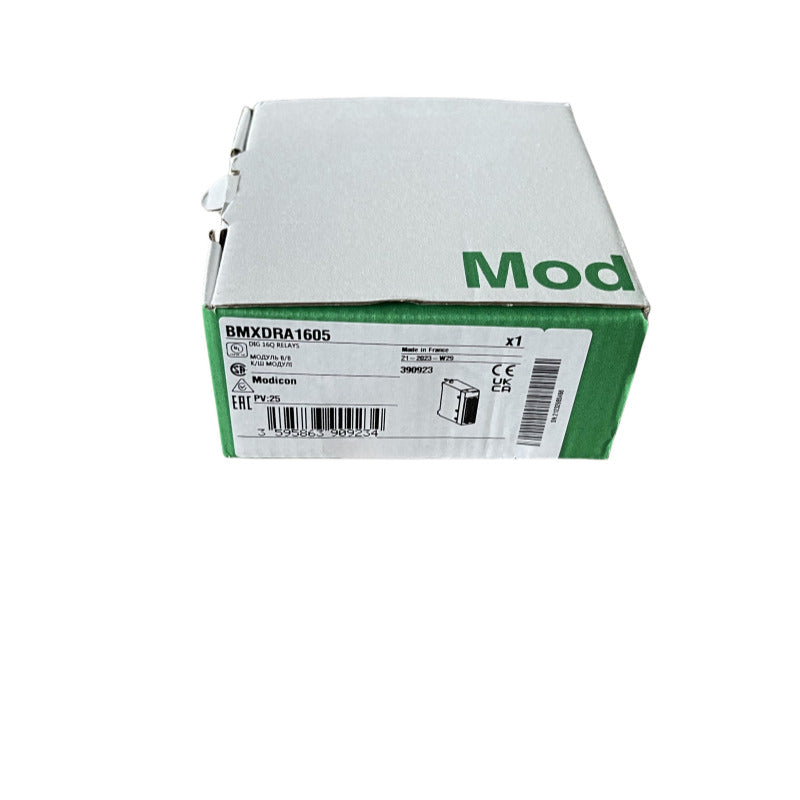

Product Description: Schneider Electric BMXDRA1605

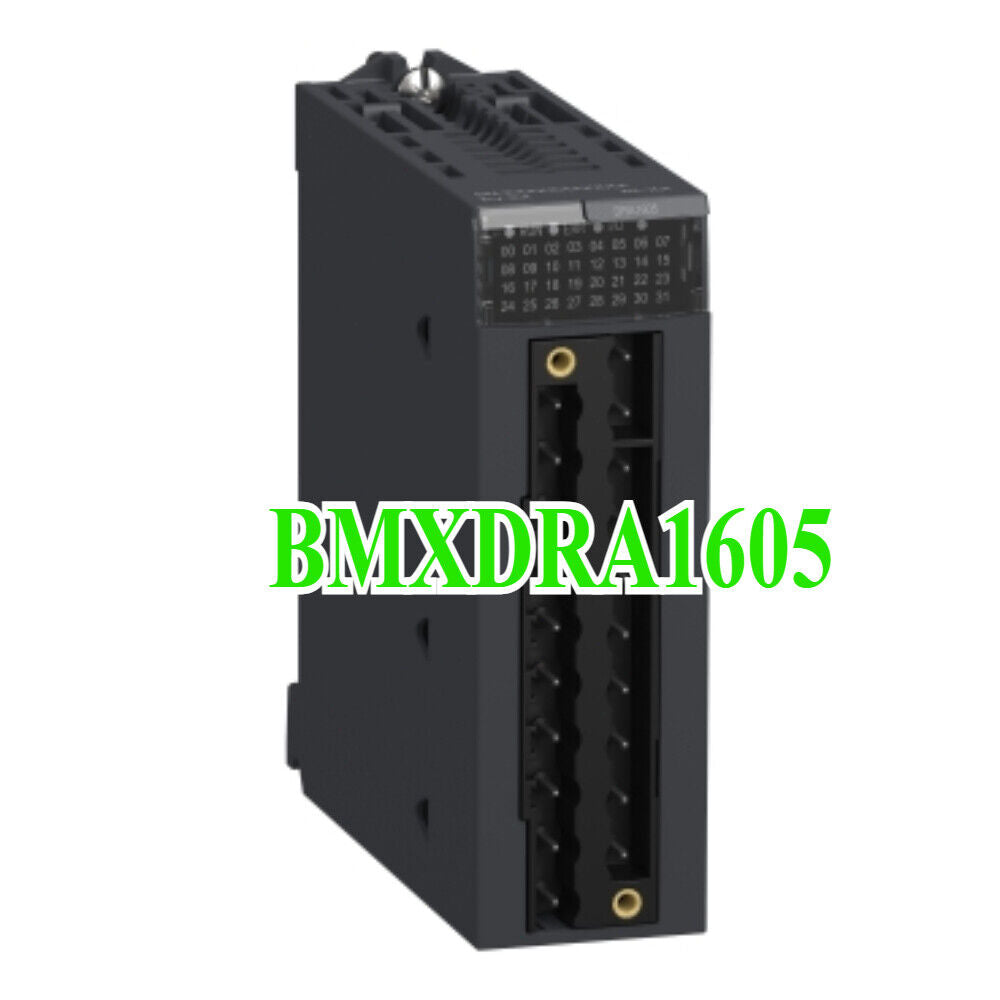

The Schneider Electric BMXDRA1605 is a digital output module designed for use with the Modicon M340 programmable logic controller system. It provides 16 relay-type output channels, each capable of switching both AC and DC loads. This module is ideal for applications requiring electrical isolation and flexibility in output signal types.

Key Features

• 16 discrete output channels
• Output type: Relay (mechanical contacts)
• Rated output voltage: 24 VDC / 250 VAC
• Output current: Up to 2 A per channel
• Galvanic isolation between channels
• Output response time: typically 10 ms ON / 10 ms OFF
• Contact lifetime: 100,000 operations at full load
• LED indicators for output status per channel
• Removable 20-way terminal block
• DIN rail mounting

Technical Specifications

• Switching voltage range: 5 VDC to 30 VDC / 5 VAC to 250 VAC
• Maximum total current: 8 A per module
• Isolation: 1500 V between output channels and internal logic
• Power consumption: approx. 200 mA at 3.3 VDC from backplane
• Operating temperature: 0°C to +60°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% to 95%, non-condensing
• Protection rating: IP20
• Dimensions (W x H x D): 32 mm x 100 mm x 110 mm
• Weight: approx. 0.2 kg

Application Areas

• General industrial automation
• Machine control systems
• Building and facility automation
• Packaging, assembly, and conveyor control
• Systems requiring flexible AC/DC switching outputs

Advantages

• Supports both AC and DC load switching
• Electrical isolation enhances safety and reliability
• Long relay life and robust contact performance
• Easy installation and maintenance with removable terminals
• Clear LED indicators for each output channel
