Modicon M340 | Schneider | BMXDDI1602 PLC Module BMX DDI 1602 New sealed

Product Description: Schneider Electric BMXDDI1602

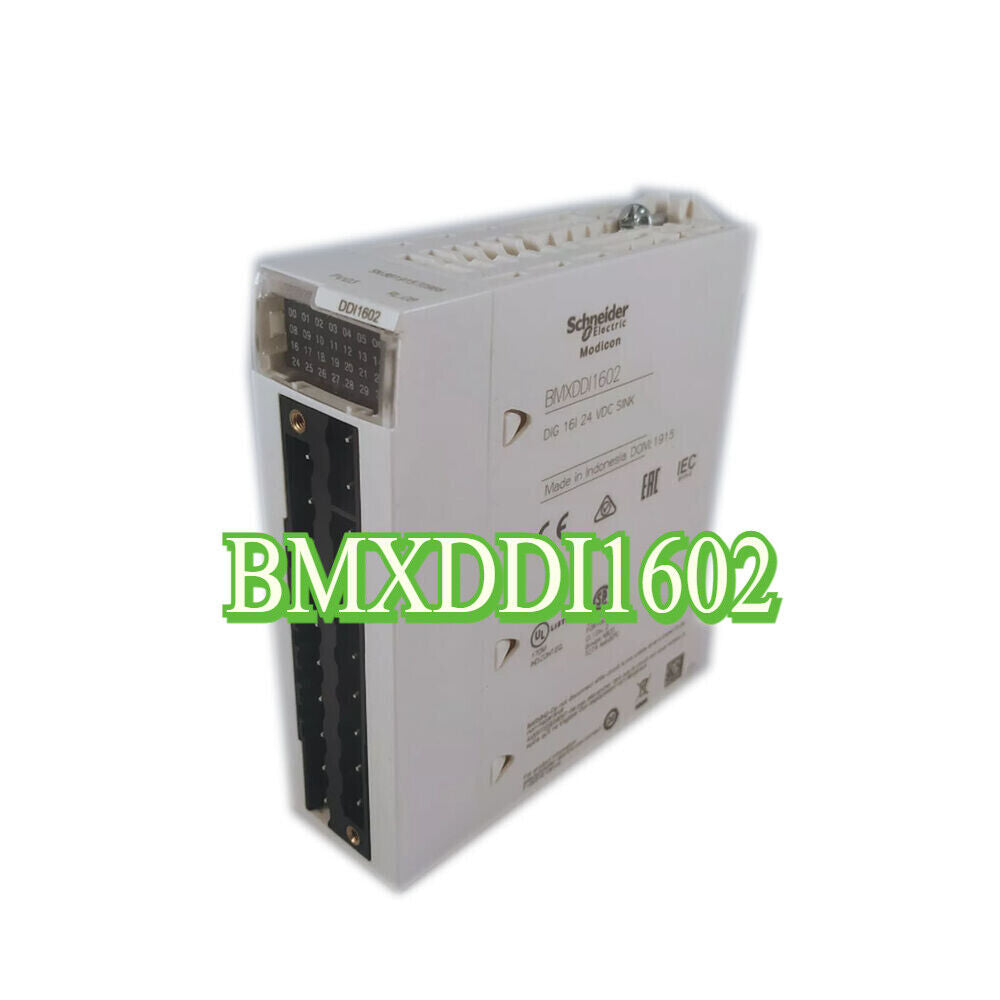

The Schneider Electric BMXDDI1602 is a 16-channel digital input module designed for use with Modicon M340 programmable logic controllers. It operates with 24 VDC positive logic (sink type) and is suitable for a wide range of industrial automation applications. The module is used to receive discrete signals from field devices such as pushbuttons, limit switches, and sensors.

Key Features

• 16 digital input channels
• Input voltage: 24 VDC ±20%
• Input type: Positive logic (sink)
• Input current: 3.5 mA per channel
• Input impedance: 6.8 kΩ
• Response time: Typical 4 ms, maximum 7 ms
• Isolation: 1500 V AC between input and internal logic
• Removable terminal block with 20 points
• Status LEDs for each input channel
• DIN rail or panel mounting

Technical Specifications

• Voltage guaranteed for logic 1: ≥ 11 V
• Voltage guaranteed for logic 0: ≤ 5 V
• Operating temperature: 0°C to +60°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% to 95% non-condensing
• Power consumption: Approx. 65 mA at 3.3 V from the rack backplane
• Dimensions (H x W x D): 100 mm x 32 mm x 110 mm
• Weight: Approximately 0.115 kg

Application Areas

• Industrial machine automation
• Process control systems
• Packaging and material handling
• Manufacturing line monitoring
• General-purpose discrete input acquisition

Advantages

• High-density input module in compact format
• Suitable for use with proximity sensors (IEC 60947-5-2)
• Plug-in wiring simplifies installation and maintenance
• Fast response time ensures accurate signal capture
• Seamless integration with Modicon M340 PLCs
