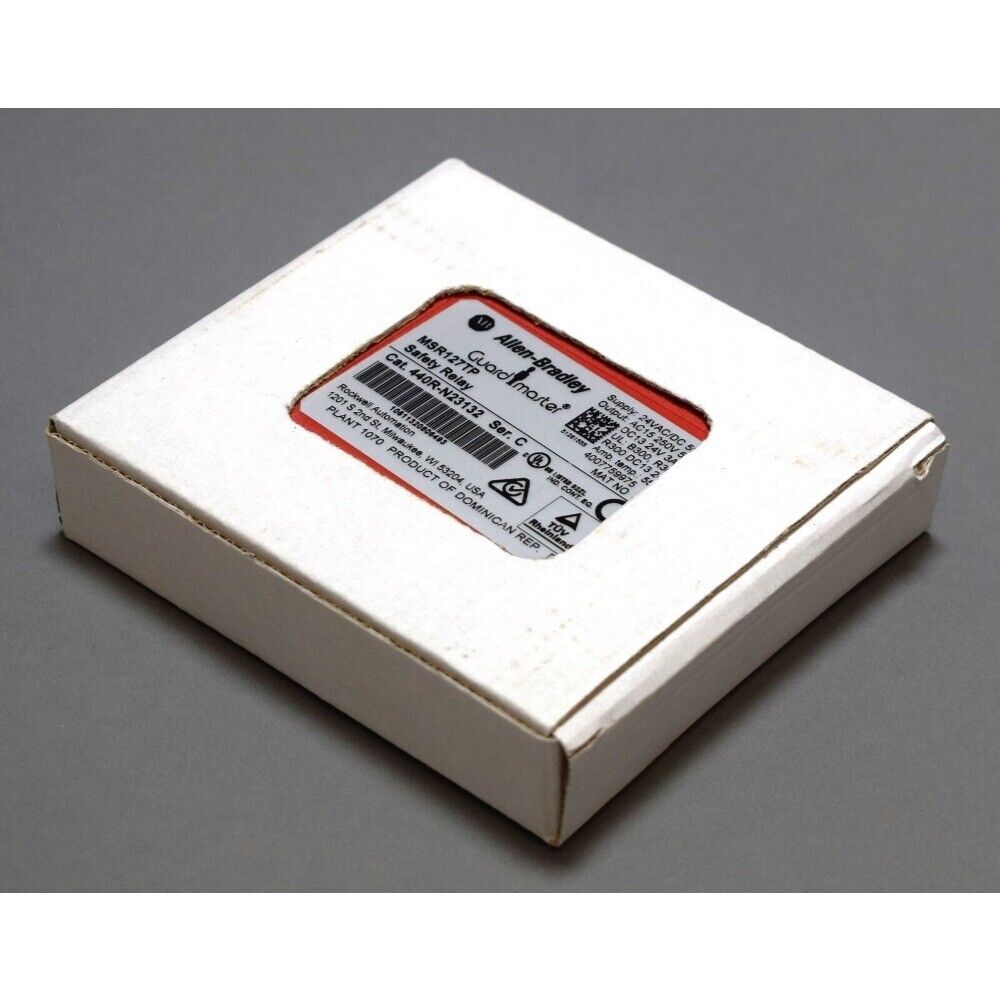

Allen-Bradley | 440R-N23132 |Minotaur MSR127TP

Product Description: Allen-Bradley 440R-N23132

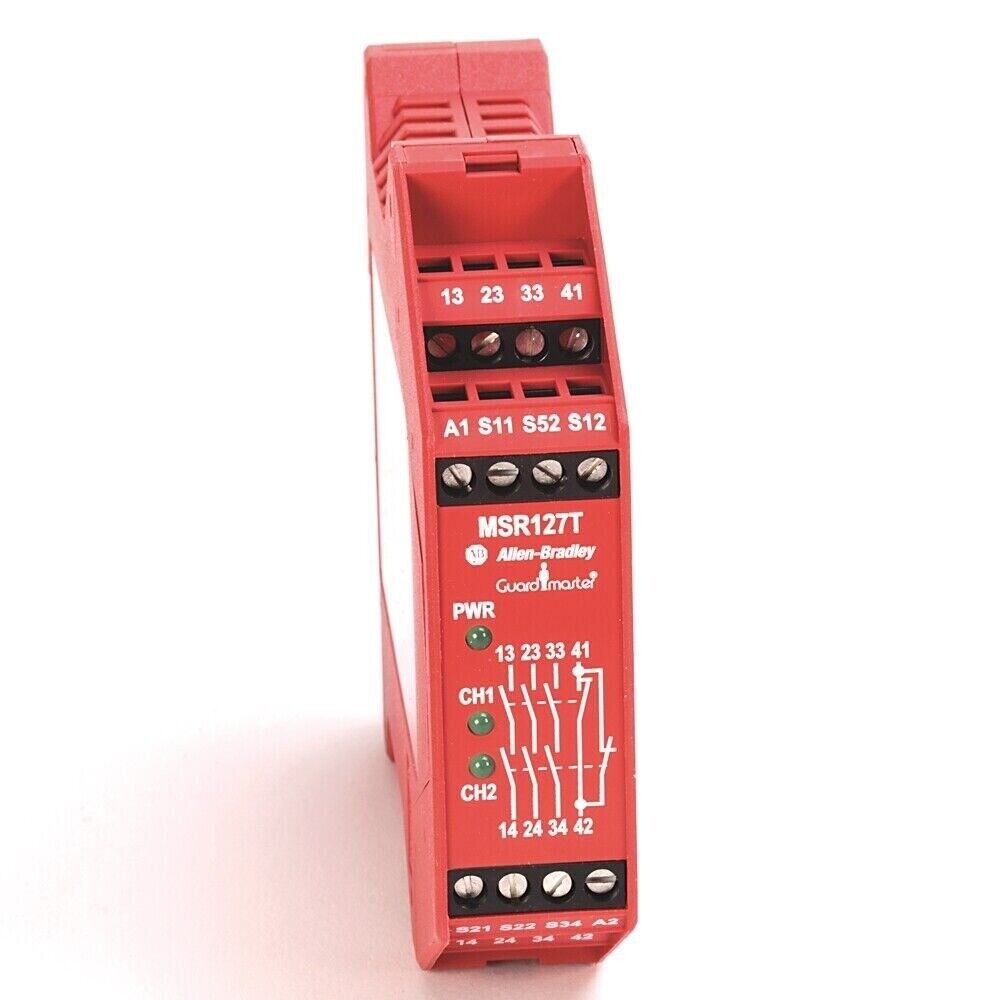

The Allen-Bradley 440R-N23132 is part of the Minotaur MSR127TP family of safety relays, designed to monitor dual- channel input devices such as emergency stop buttons, safety interlock switches, and light curtains. This unit provides three redundant normally open safety outputs and one normally closed auxiliary output, offering robust safety logic in a compact and efficient design. The MSR127TP series is widely used in industrial safety systems where redundancy, cross-fault detection, and compliance with global safety standards are critical. The 440R-N23132 supports both automatic and manual reset modes and is DIN rail mountable, allowing quick integration into control panels.

Product Type

• Safety Relay Module
• Series: Minotaur MSR127TP
• Application: Emergency stop and safety gate monitoring

Key Features

• Dual-channel safety input monitoring
• 3 N.O. safety relay outputs
• 1 N.C. auxiliary output
• Automatic or manual reset configuration
• Cross-fault detection between input channels
• LED indicators for power, input, and fault diagnostics
• DIN rail mounting for ease of installation
• Screw clamp terminal connections

Technical Specifications

• Power Supply: 24V DC
• Safety Outputs: 3 normally open (N.O.), redundant
• Auxiliary Output: 1 normally closed (N.C.)
• Max Output Rating:
  • 6 A at 250V AC (resistive load)
• Input Devices Supported: E-stop, safety gates, light curtains
• Response Time: ≤ 20 ms
• Electrical Life: ≥ 100,000 cycles at full load
• Mechanical Life: ≥ 10 million operations
• Mounting: DIN rail
• Enclosure Rating: IP40 (housing), IP20 (terminals)
• Operating Temperature: 0°C to +55°C
• Standards Compliance:
  • EN ISO 13849-1 (PLe, Cat. 4)
• Certifications: CE, cULus, TÜV, RoHS

Application Areas

• Emergency stop circuits
• Safety interlock switches
• Light curtain monitoring
• Machinery safety circuits
• Packaging and assembly lines
• Guard door and gate applications

Advantages

• Redundant safety outputs enhance reliability
• Cross-fault detection ensures fault-tolerant operation
• Fast response time for safety-critical operations
• Compliant with global safety standards
• Compact DIN rail design fits into standard control enclosures
