Allen-Bradley | 2711R-T4T | PanelView 800

Product Description: Allen-Bradley 2711R-T4T

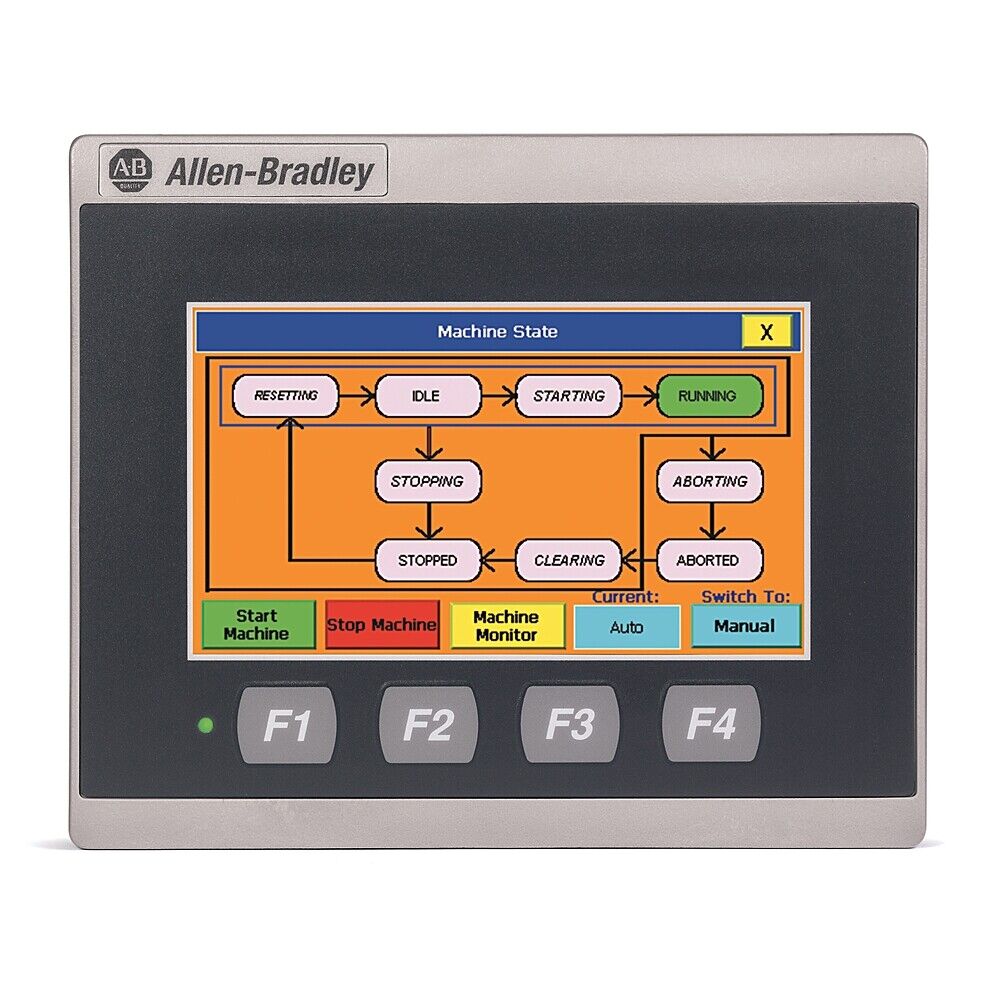

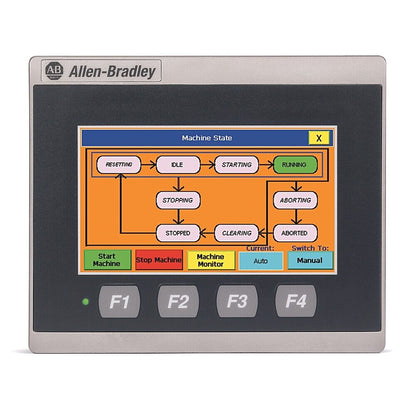

The Allen-Bradley 2711R-T4T is a compact and cost- effective Human-Machine Interface (HMI) terminal from the PanelView 800 series. Designed for small to mid-size applications, it features a 4.3-inch color TFT touchscreen with four programmable function keys, providing intuitive operator control and monitoring. The terminal supports both landscape and portrait orientations, offering flexibility in installation and application design.

Key Features

• 4.3-inch widescreen color TFT LCD with 480 x 272 resolution
• Resistive touchscreen and four programmable function keys (F1–F4)
• High-performance 800 MHz CPU with 256 MB memory (128 MB RAM / 128 MB flash)
• Built-in Ethernet (10/100 Mbps) and serial communication ports (RS-232, RS-422/485)
• USB host port and microSD™ card slot for data transfer and firmware updates
• Integrated real-time clock with battery backup
• Supports alarm messaging with embedded variables and recipe management
• Configurable via Connected Components Workbench™ software
• Flexible mounting in landscape or portrait orientation
• IP65-rated front panel for protection against dust and water ingress

Technical Specifications

• Display: 4.3-inch color TFT LCD
• Resolution: 480 x 272 pixels
• Backlight Life: 40,000 hours minimum
• Touchscreen: Analog resistive
• Function Keys: 4 programmable keys
• Processor: 800 MHz CPU
• Memory: 256 MB (128 MB RAM / 128 MB flash)
• Power Supply: 24V DC (18–32V DC range)
• Power Consumption: Maximum 9 W
• Communication Ports:
  • 1 x Ethernet (10/100 Mbps)
  • 1 x RS-232
  • 1 x RS-422/485
  • 1 x USB host port
  • 1 x microSD™ card slot (supports up to 32 GB)
• Real-Time Clock: Integrated with battery backup (minimum 5-year battery life at 25°C)
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F)
• Humidity: 5% to 95% non-condensing
• Enclosure Rating: IP65 (front panel)
• Dimensions (H x W x D): 116 mm x 138 mm x 43 mm (4.56 in x 5.43 in x 1.69 in)
• Cutout Dimensions (H x W): 99 mm x 119 mm (3.90 in x 4.69 in)
• Weight: Approximately 0.333 kg (0.73 lb)
• Certifications: CE, cULus, KC, RCM, RoHS

Application Areas

• Small to mid-size machine control systems
• Packaging and material handling equipment
• HVAC systems
• Water and wastewater treatment
• Food and beverage processing
• Standalone or distributed control applications

Advantages

• Compact design suitable for space-constrained installations
• High-resolution display with intuitive touch interface
• Multiple communication options for flexible connectivity
• Easy integration with Allen- Bradley Micro800® and MicroLogix™ controllers
• Simplified configuration and programming with Connected Components Workbench™ software
• Durable construction with IP65-rated front panel for industrial environments
