Allen-Bradley | 2711P-T7C4D9 700 | Panelview Plus 7 Performance

Product Description: Allen-Bradley 2711P-T7C4D9

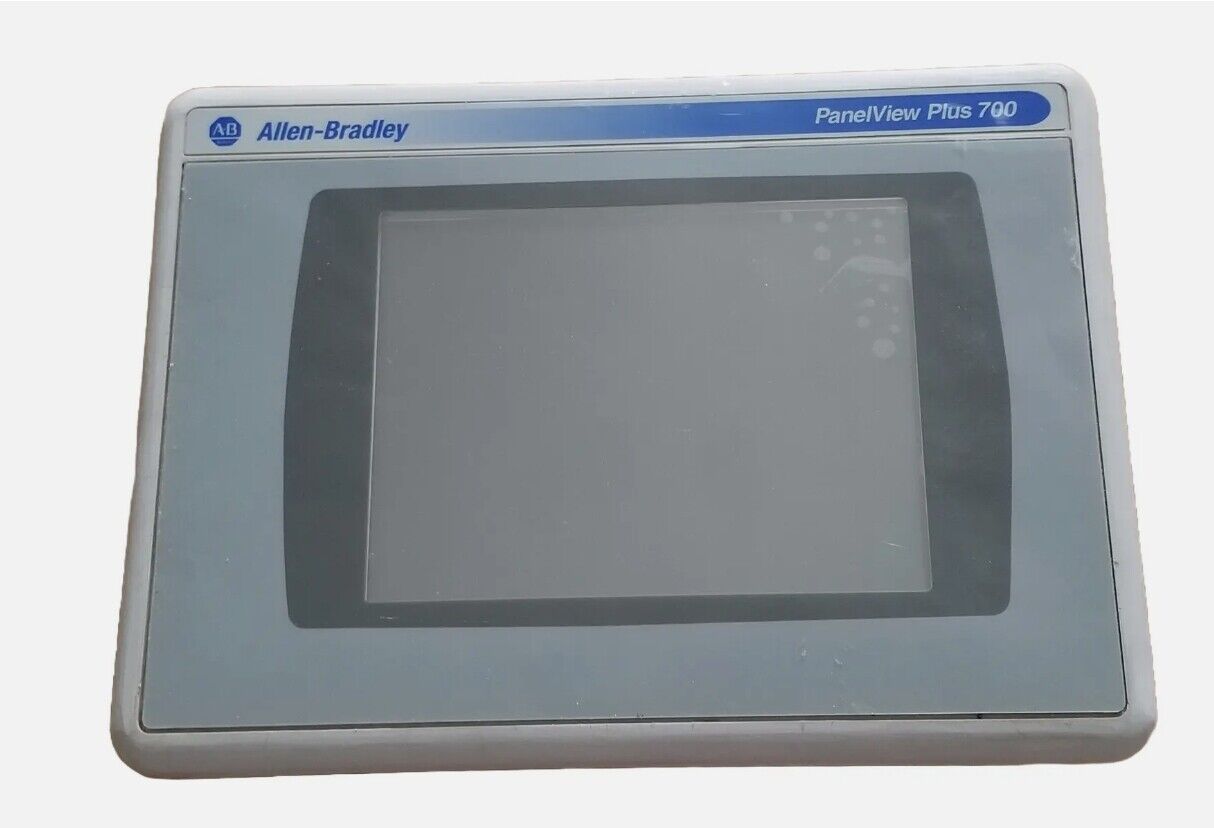

The Allen-Bradley 2711P-T7C4D9 is a PanelView Plus 7 Performance operator interface terminal designed for advanced human- machine interface (HMI) applications. It features a 7-inch widescreen color touchscreen with high resolution, delivering crisp and clear graphics for effective process visualization and control. This terminal supports Ethernet communication and offers enhanced processing power, making it suitable for complex automation tasks in industrial environments.

Product Type

• Operator Interface Terminal (HMI)
• Series: PanelView Plus 7 Performance
• Display Size: 7 inches (widescreen)
• Display Type: Color TFT touchscreen

Key Features

• 7-inch widescreen color touchscreen with 800 x 480 resolution
• High-performance processor for faster response and smoother graphics
• Integrated Ethernet port for seamless network communication
• USB ports for application upload/download and external device connectivity
• Multiple communication protocols supported (EtherNet/IP, DF1, Modbus, etc.)
• Enhanced security features including user authentication and password protection
• Supports FactoryTalk View ME software for intuitive programming
• Rugged design with IP66/NEMA 4X front bezel for washdown and harsh environments

Technical Specifications

• Display Resolution: 800 x 480 pixels
• Touchscreen: Resistive type
• Communication Ports: Ethernet, USB, serial (optional)
• Power Supply: 24V DC
• Operating Temperature: 0°C to 55°C
• Protection Rating: IP66/NEMA 4X (front bezel)
• Certifications: UL, CE, cUL, RoHS
• Dimensions (HxWxD): Approximately 188 mm x 216 mm x 58 mm

Application Areas

• Complex machine control and monitoring
• Process automation and supervisory control
• Packaging, material handling, and robotics
• Food and beverage industry with washdown requirements
• Water/wastewater and utilities control

Advantages

• Crisp, clear widescreen display enhances operator interaction
• High processing power improves application performance
• Robust communication options for flexible integration
• Enhanced security to protect critical control systems
• Durable design suitable for demanding industrial environments
